User Manual for Optoma Technology EH416 4200-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology EH416 4200-Lumen Full HD
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology EH416 4200-Lumen Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

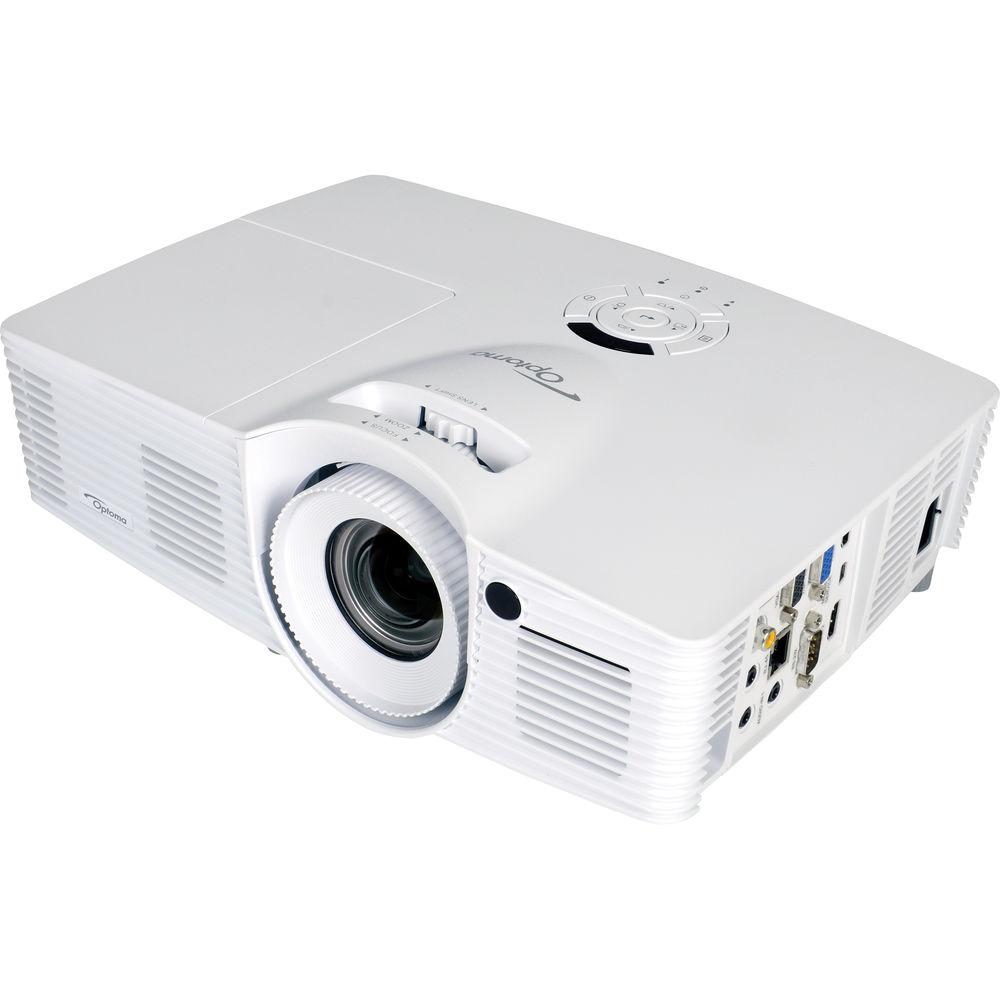

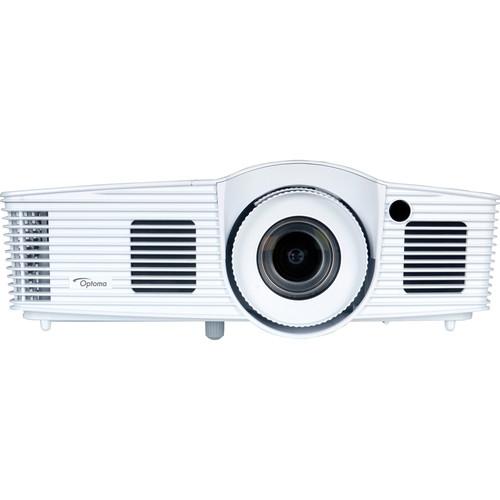

Product description Enjoy bright, clear images with the Optoma EH416 4200-Lumen Full HD DLP Projector. Its 4200 lumens of brightness will overcome ambient light in many cases while its 20,000:1 contrast ratio and Full HD (1920 x 1080) native resolution will help ensure that detail is clear. It has a 1.4 to 2.24:1 throw ratio, which will allow you to place the projector far from the screen without losing focus.

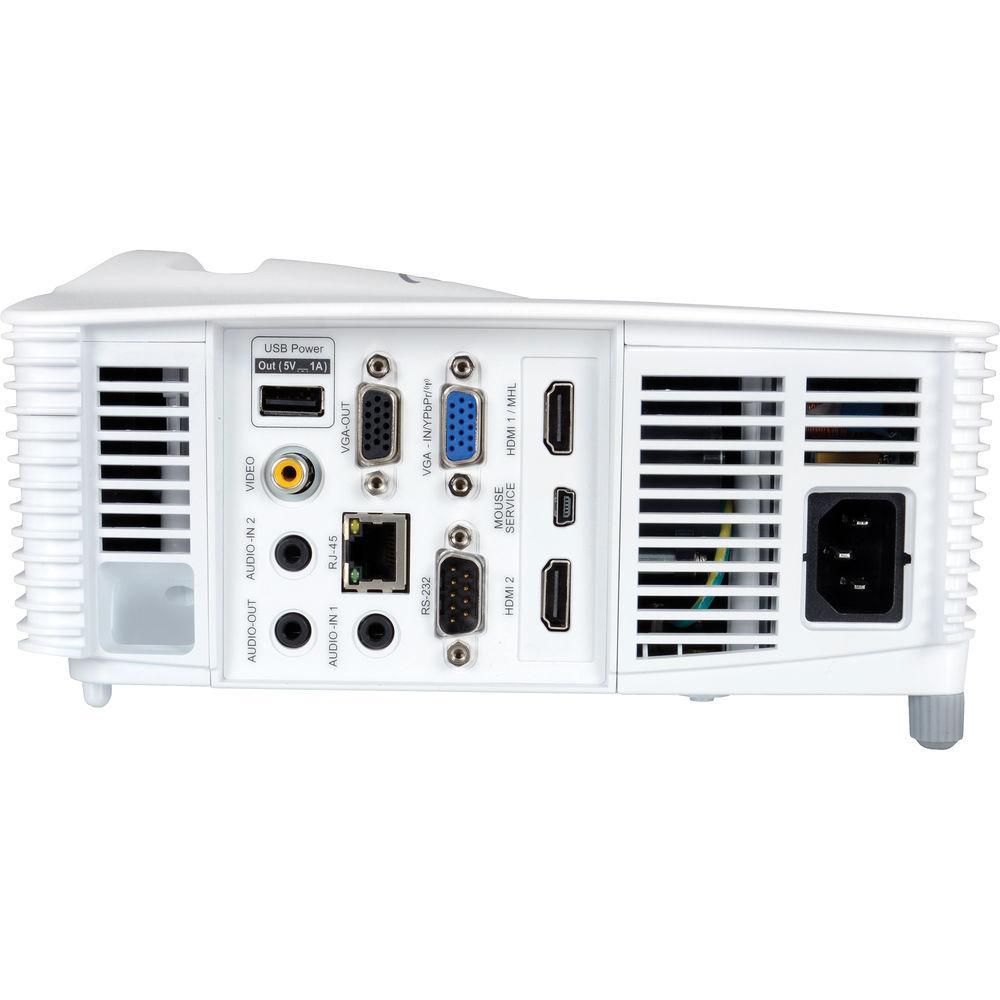

The EH416 has VGA, composite, and two HDMI inputs to support a variety of devices. Its VGA output will let you daisy chain the image to another projector or display, while the analog audio input and output will do the same for your audio. The projector will connect wirelessly with an optional WHD200 system. The EH416 has a built-in 10-Watt speaker to eliminate the need for a separate speaker system. It is controllable via Ethernet and RS-232 using AMX or Crestron RoomView software. The projector includes an IR remote control which features a built-in laser pointer. - BrilliantColor Technology
- For natural-looking images, the EH416 incorporates BrilliantColor multicolor processing technology.
- High Contrast
- With bright whites and rich blacks, images come alive and text appears crisp and clear.
- Wireless Ready
- Stream Full 1080p 3D content to your projector wirelessly, eliminating the hassle and extra cost of installing long cables, with the optional WHD200.
- Full 3D
- The EH416 can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting, and compatible game consoles. Support for 144Hz refresh rate provides smooth, flicker-free images.
- 1.6x Zoom
- The 1.6x zoom enables multiple placement possibilities at a variety of distances from the projection screen. An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost-effective solution whilst still retaining a diverse choice of positioning options.
- Vertical Lens Shift
- Simplify installation with vertical lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in the room and enables a wider range of screen size options.
- MHL Connectivity
- Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos, and share photos on the big screen. You can even use MHL to connect and power the optional HDCast Pro.
- Eco+ Mode
- Eco+ technology brings together high contrast, improved lamp life, and energy saving features that are easy to use while reducing power consumption.
- Eco AV Mute
- Stay in control of your presentation with Eco AV Mute. Direct your audience's attention away from the screen by blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.
- Auto Power Off
- To help save energy, the "Auto Power Off" feature automatically turns off the projector after a set period of time if it is not being used.
- Long Lamp Life
- Reduce the number of lamp changes with a lamp life of up to 7000 hours in Eco+ Mode.
- USB Power
- Use the USB power port to power an HDMI dongle, such as Google Chromecast.
- Integrated Speaker
- The built-in speaker offers audio support without the need for external speakers.
- Energy Saving
- Using the specially designed lamp modes, you can reduce power consumption by up to 70%. Each mode also has a positive effect on the lamp life, lowering the total cost of ownership and reducing maintenance.
- Quick Resume
- This feature allows the projector to be instantly powered on again if it is accidentally switched off.
- Remote Mouse and Laser

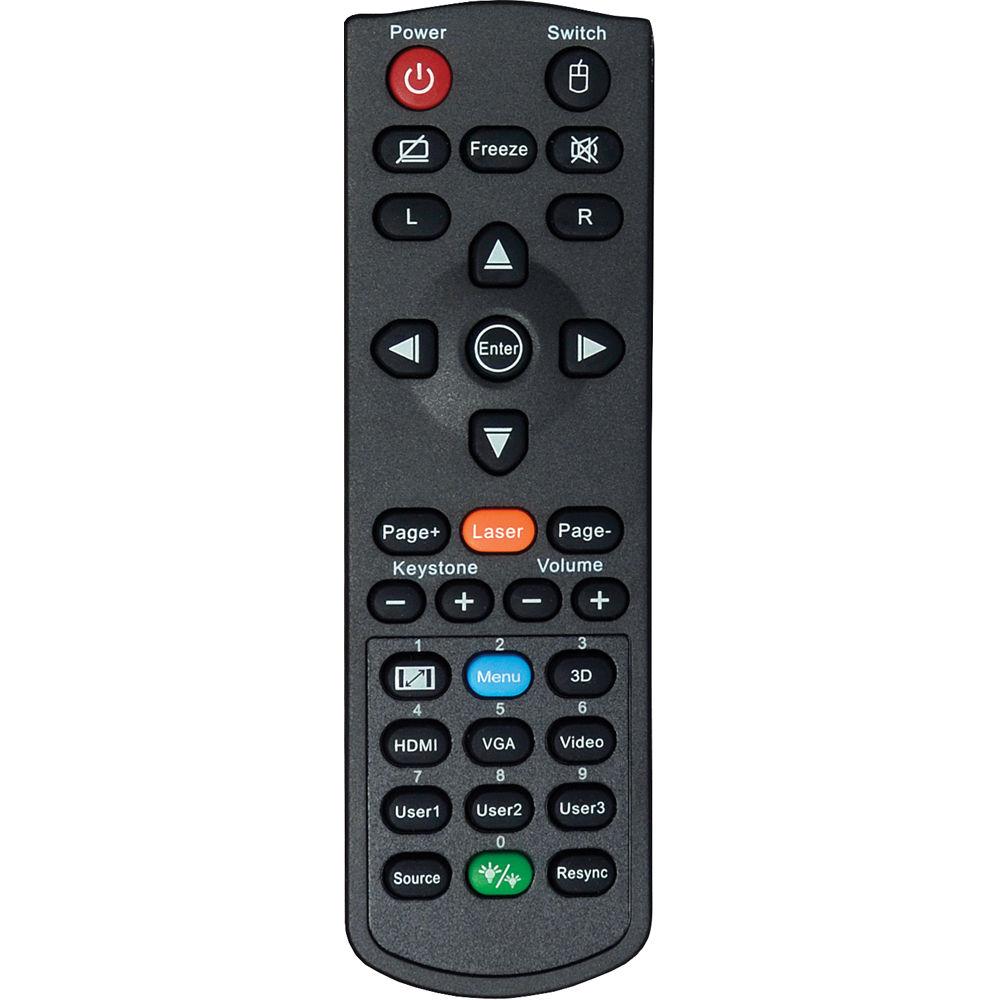

- Keep your audience's attention focused on the right things using the fully functional remote with USB mouse control and built-in laser pointer.
- RS-232
- The EH416 comes with a set of RS-232 commands, making it simple to manage using virtually any control system.
- AMX Compatibility
- Dynamic discovery protocol is incorporated into the projector for installation with AMX control systems.
- LAN Control
- Using the compatible RoomView software, you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer.
- Schedule the projectors to power on/off
- Control and alter the projector settings using the simple web browser
- Emergency text broadcast capabilities for urgent or important announcements
- Automatically receive email updates for lamp maintenance
UPC: 796435440022 In the Box Optoma Technology EH416 4200-Lumen Full HD DLP Projector Remote Control 2 x AAA Batteries AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Brochure PDF 334.9kb More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology EH416 4200-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology EH416 Specs | | | Display System | 1-Chip 0.65" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Max Brightness | 4200 Lumens | | Uniformity | 75% | | Offset | 99% - 116% | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Contrast Ratio | 20000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 1080p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Lens | f/2.5 - 3.26 (f = 20.91 - 32.62 mm) | | Lens Shift | Vertical: + 17% | | Optical Zoom | Manual: 1.6x | | Throw Distance | 4.265 - 30.84' / 1.3 - 9.4 m | | Throw Ratio | 1.4 - 2.24:1 | | Projection Size | 26.21 - 303.3" / 66.57 - 770.38 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 2 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x USB Power (Output)
1 x USB Control/Service (Input) | | | | Lamp Power | 260 W | | Expected Lamp Life | Low Brightness: 7000 Hours
Full Brightness: 3000 Hours | | Fan Noise | Low Brightness: 32 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Norwegian
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 309 W
Low Brightness: 249 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 10 - 85% | | Dimensions (W x H x D) | 12.4 x 8.8 x 4.5" / 314.0 x 224.0 x 114.0 mm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 15.9 x 11.4 x 6.8" |
