User Manual for Optoma Technology EH465 4800-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology EH465 4800-Lumen Full HD
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology EH465 4800-Lumen Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

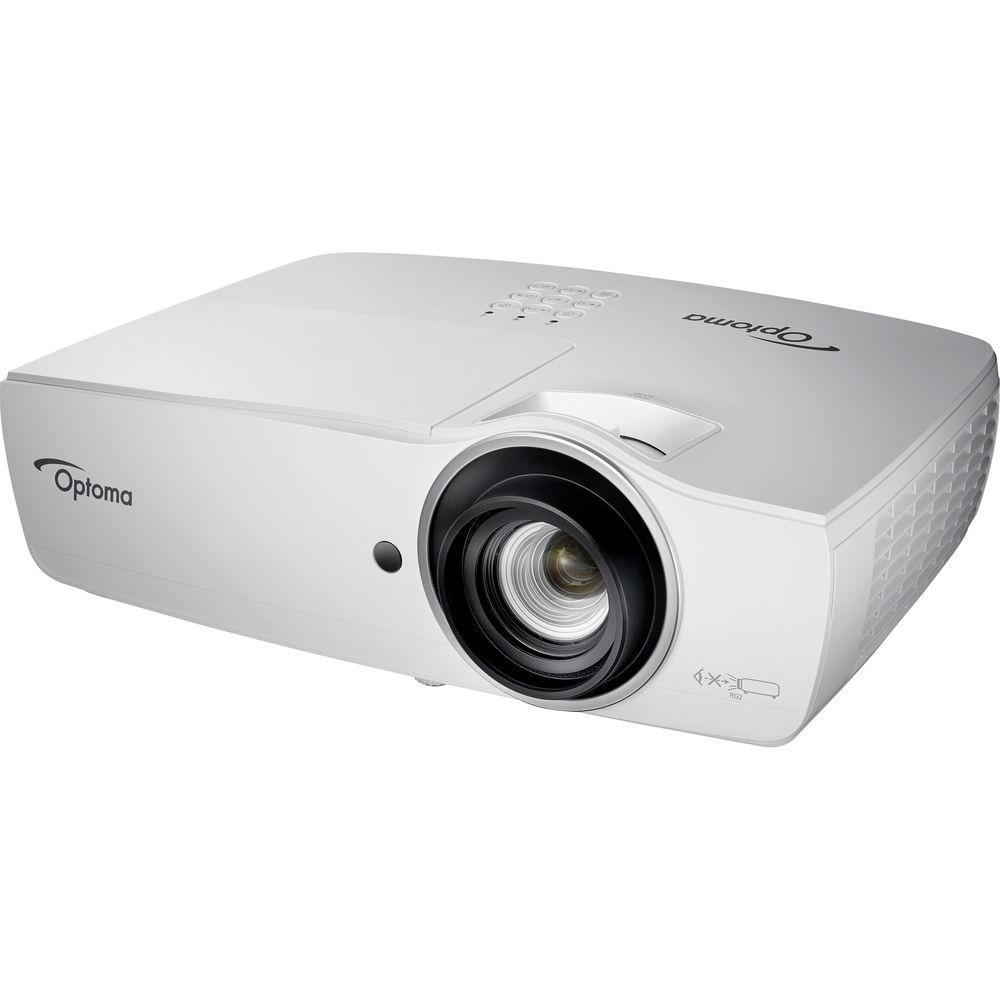

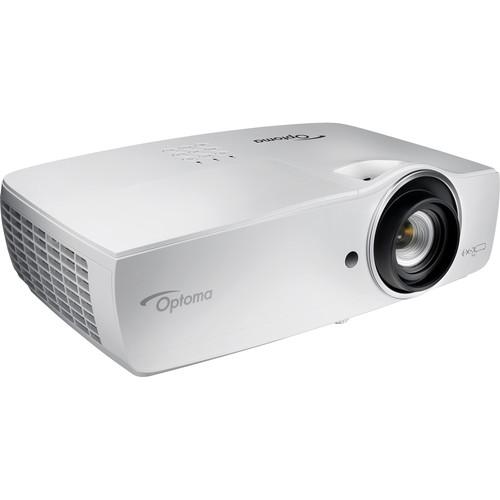

Product description Enjoy bright images and high dynamic contrast with the Optoma EH465 4800-Lumen Full HD DLP Projector. Its native 1920 x 1080 resolution displays data and images clearly at various viewing distances, while its 1.39 to 2.09:1 throw ratio allows you to place the projector relatively far from the screen without losing focus.

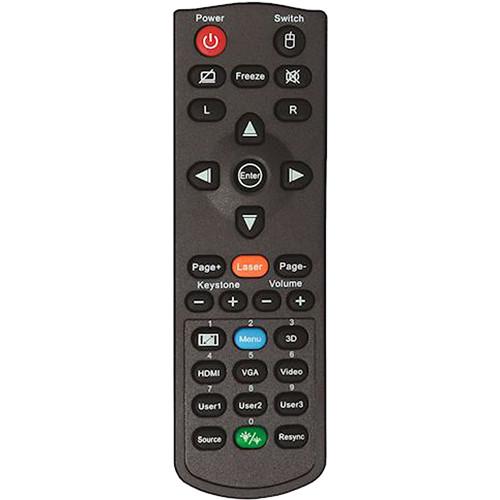

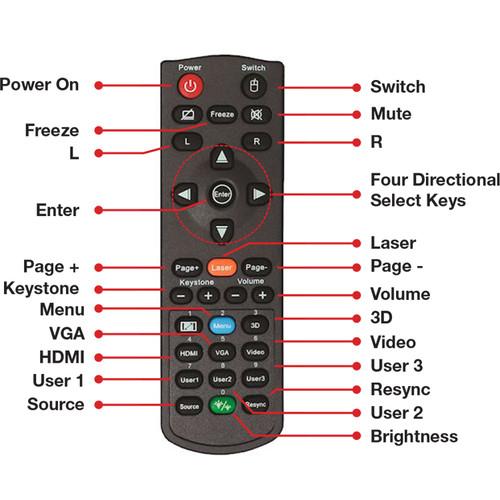

The EH465 features VGA and two HDMI inputs, one of which is MHL-compatible for wired streaming from your compatible smart device. The projector includes a wireless LAN adapter, which enables wireless streaming over Wi-Fi. An IR remote with a built-in laser pointer is also included as an added convenience. - DLP Technology
- Digital Light Processing (DLP) technology is designed to provide digital projection with higher contrast, faster response time, good pixel structure, and virtually no color degradation.
- Engineered for Enhanced Color
- The EH465 can produce the Rec.709 color gamut, which is the international HDTV standard to guarantee accurate reproduction of cinematic color as the director intended. It can also create saturated colors for gaming and animated content.
- Dynamic Black Technology
- Dynamic Black technology is designed to add depth to the image by adjusting the lamp output to create a high contrast ratio, allowing bright scenes to appear crisp and clear while dark scenes remain detailed with deep blacks and enhanced light and shade detail.
- Four Corner Adjustment
- Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image, simplifying installation with uneven or angled projection surfaces.
- Wireless Display and Document Casting with HDCast pro
- Mirror the screen of your Android, Windows, and Mac devices wirelessly. Cast images and documents from Android, iOS, Windows, and Mac devices, or use USB Display to mirror Android and iOS devices.
- Direct Power On
- The Direct Power On feature allows you to turn on the projector directly from the power source, simplifying installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.
- Signal Power On
- The projector can power on when it receives a signal through the HDMI input, helping to ensure that the projector is turned on at the same time as the source device.
- MHL Connectivity
- Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL. Now you can view presentations and documents, stream videos, and share photos on the big screen.
- Computer-Free USB Image and Document Viewer
- The integrated image and document viewer provides direct viewing of office documents, such as PDFs, images, and presentations from any compatible USB storage device.
- Integrated Speaker
- Complete the experience with the convenience of a built-in speaker. The speaker allows you to complete your setup without external speakers.
- LAN Display
- LAN Display (via Ethernet) supports projection from up to four Windows or Mac OS X computers simultaneously.
- Crestron Roomview with Network Control
- Crestron software provides a custom configurable interface to monitor, manage, and control every connected device in every room remotely from virtually any computer. Via a master computer, you can manage up to 250 projectors at the same time, control and alter settings using a web browser page (including OSD menu control), and set up email alerts for warning messages, making the EH465 well suited for use in large installations in both educational and business environments.
UPC: 796435441050 In the Box Optoma Technology EH465 4800-Lumen Full HD DLP Projector Remote Control with Batteries USB Wi-Fi Adapter Carrying Case AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology EH465 4800-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology EH465 Specs | | | Display System | 0.65" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 4800 Lumens | | Uniformity | 75% | | Offset | 114.9% ± 5% | | Aspect Ratio | Native: 16:9
Supported: 16:10
Supported: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 1080p)
Top Bottom (up to 1080p) | | Color Wheel | 5-Segment (R/G/B/W/Y) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 25 to 85 Hz or 120 Hz
Vertical: 15 to 91 kHz | | | | Focus | Manual | | Lens | f/2.42 - 2.97 (f = 20.7 - 31.05 mm) | | Optical Zoom | Manual: 1.5x | | Throw Distance | 3.93 - 49.1' / 1.198 - 14.966 m | | Throw Ratio | 1.39 - 2.09:1 | | Projection Size | 25.9 - 324.9" / 65.79 - 825.25 cm | | | | Keystone Correction | Vertical: ± 30°

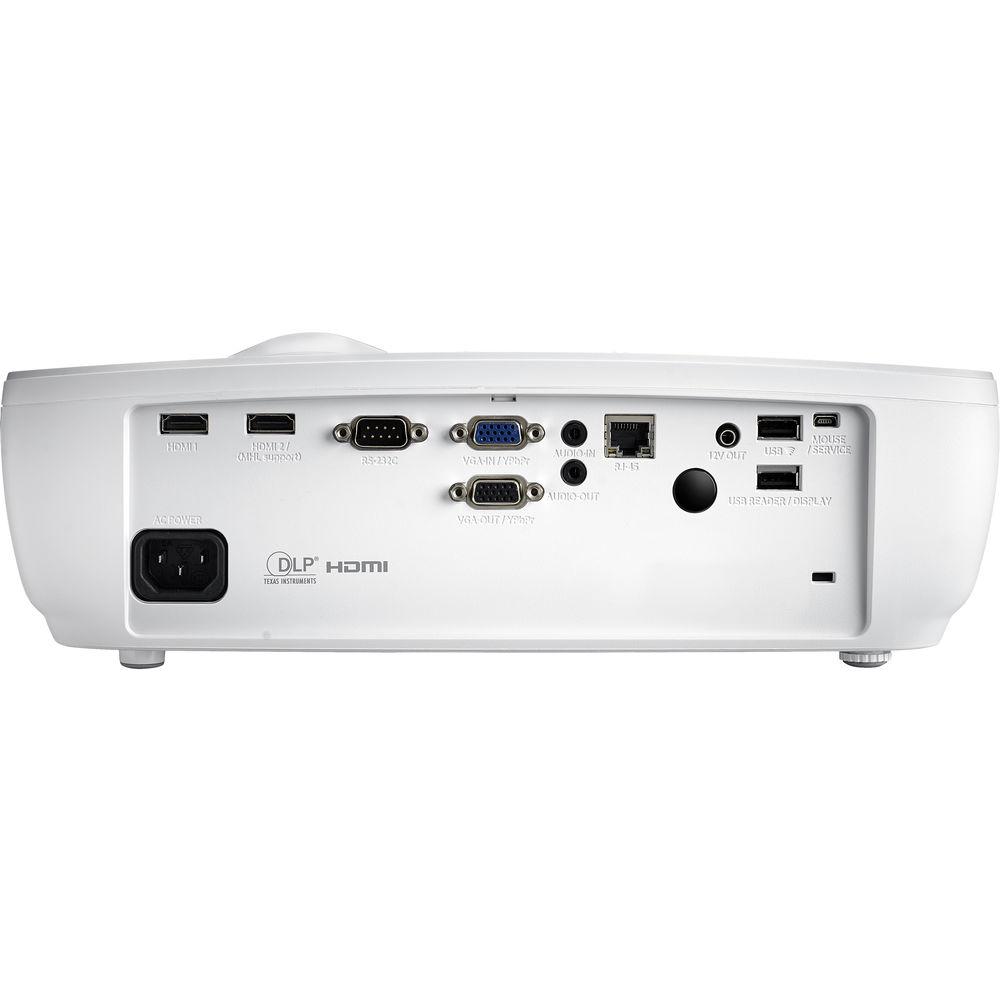

Horizontal: ± 25° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Power, Video Input/Output
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x Ethernet (RJ45) LAN
1 x USB 2.0 (USB Type-A) LAN Input
1 x USB 2.0 (USB Type-A) Audio, Power, Video Input/Output
1 x USB 2.0 (USB Type-B) Service Input
1 x 1/8" / 3.5 mm Mini Control Input
1 x RS-232 (DE-9) Control | | Memory Card Slot | None | | | | Wireless LAN / Wi-Fi | Yes, with Included Adapter | | | | Light Source | Lamp | | Lamp Power | 285 W | | Expected Lamp Life | Full Brightness: 2500 Hours
Medium Brightness: 3500 Hours
Low Brightness: 4500 Hours | | Fan Noise | Full Brightness: 37 dB
Medium Brightness: 31 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Document File Types | DOC, PDF, PPT, XLS | | Supported Photo File Types | JPEG | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 390 W
Low Brightness: 320 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 12.2 x 3.9 x 8.7" / 31.0 x 9.9 x 22.1 cm | | Weight | 6.75 lb / 3.06 kg | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 17.0 x 12.5 x 9.0" |
