User Manual for Optoma Technology GT5600 3600-Lumen Full HD Ultra-Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology GT5600 3600-Lumen Full HD
- Product category: Home Theater Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Home Theater Projectors
 |
User manual for the Optoma Technology GT5600 3600-Lumen Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Buying Guide to Projectors Read More vzvufaqc Enjoy bright, clear images with the Optoma GT5600 3600-Lumen Full HD Ultra-Short Throw DLP Projector. Its 3600 lumens of brightness will overcome ambient light in many cases, while its 20,000:1 dynamic contrast ratio and 1080p native resolution will help ensure that detail is clear. It has an ultra-short 0.25:1 throw ratio, which will allow you to place the projector 6 to 9" from the screen to prevent the casting of shadows from people walking in front of it.

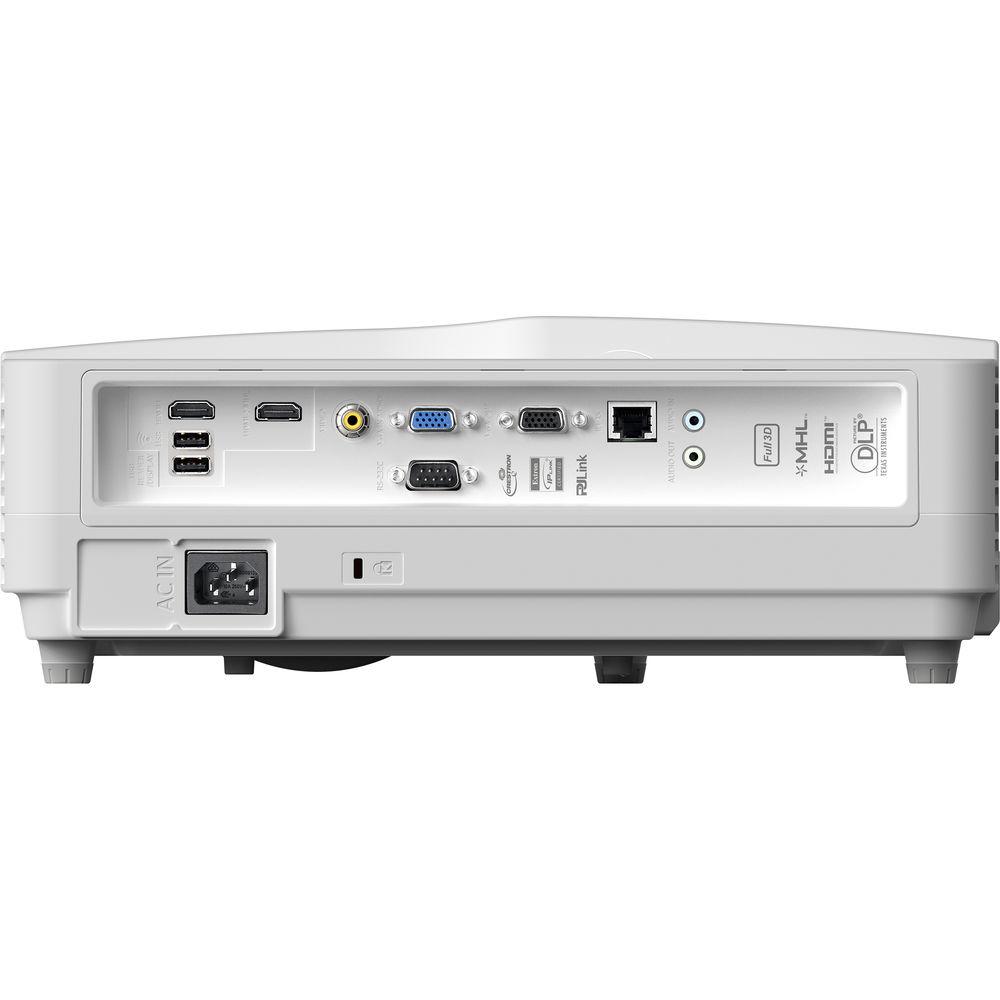

The GT5600 has composite video, VGA, and two HDMI inputs to support a variety of devices, while the VGA output allows you to daisy-chain the image to another projector or display; the analog audio input and output ensure that audio accompanies your video or presentation. Wireless presentation is made possible by the included USB Wi-Fi adapter. The GT5600 has a built-in 16-Watt speaker to eliminate the need for a separate speaker system. It is controllable via Ethernet, RS-232, or the included IR remote control. -
- 3600 lumens of brightness and a 20,000:1 dynamic contrast ratio for detailed images
- Auto keystone and four-corner correction helps make setup quick
- Designed to provide a place-and-play experience
- USB display screen mirroring with iOS and Android devices
- Wireless presentations and image sharing with the included USB Wi-Fi adapter
- Computer-free USB image viewer and office document reader
- On-screen menu adjustment in 18 languages
UPC: 796435813246 In the Box Optoma Technology GT5600 3600-Lumen Full HD Ultra-Short Throw DLP Projector Remote Control with Batteries USB Wi-Fi Adapter AC Power Cord Limited 1-Year Warranty Limited 90-Day Warranty More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology GT5600 3600-Lumen Full HD Ultra-Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology GT5600 Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3600 Lumens | | Uniformity | 80% | | Offset | 118.8% ± 3% | | Aspect Ratio | Native: 16:9
Supported: 16:10
Supported: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing
Side by Side
Top Bottom | | Color Wheel | 6-Segment (R/G/B/W/Y/C) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 24 to 85 Hz or 120 Hz
Horizontal: 15.375 to 91.146 kHz | | | | Focus | Manual | | Lens | f/2.4 (f = 3.72 mm) | | Optical Zoom | None | | Throw Distance | 6 - 9" / 15.24 - 22.86 cm | | Throw Ratio | 0.25:1 | | Projection Size | 80 - 100" / 203.20 - 254.00 cm | | | | Keystone Correction | Auto-Horizontal: ± 4°
Auto-Vertical: ± 4° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x Ethernet (RJ45) LAN
2 x USB 2.0 (USB Type-A) Audio, Control, Power, Video
1 x RS-232 (DE-9) Control | | Memory Card Slot | None | | | | Wireless LAN / Wi-Fi | Yes, with Included Adapter | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Low Brightness: 25 dB | | Security | Cable Lock Slot
Keypad Lock
Security Bar | | Supported Audio File Types | APE, FLAC, MP3, OGG, WMA | | Supported Document File Types | DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX | | Supported Photo File Types | BMP, GIF, JPEG | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 285 W
Low Brightness: 205 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 13.5 x 4.8 x 14.3" / 34.3 x 12.2 x 36.3 cm | | Weight | 8.7 lb / 3.95 kg | | | | Package Weight | 12.815 lb | | Box Dimensions (LxWxH) | 18.8 x 18.1 x 8.9" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
