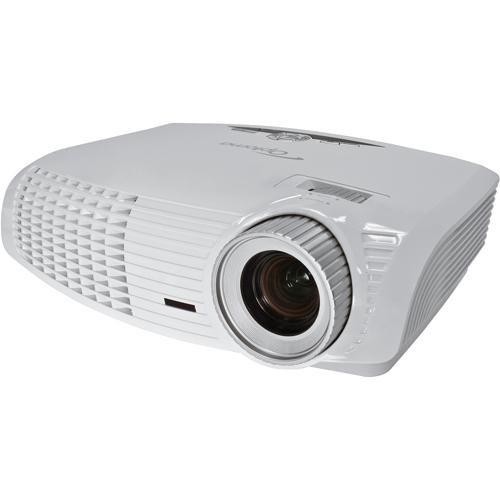

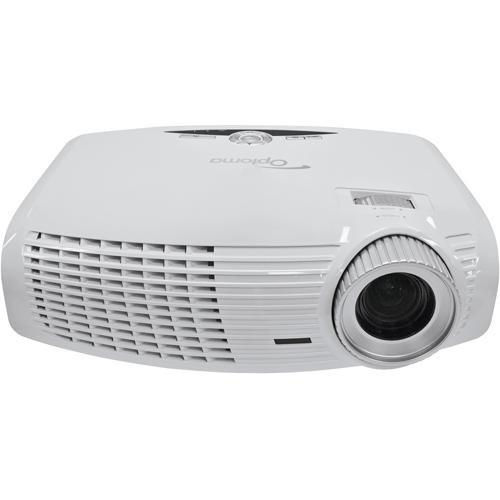

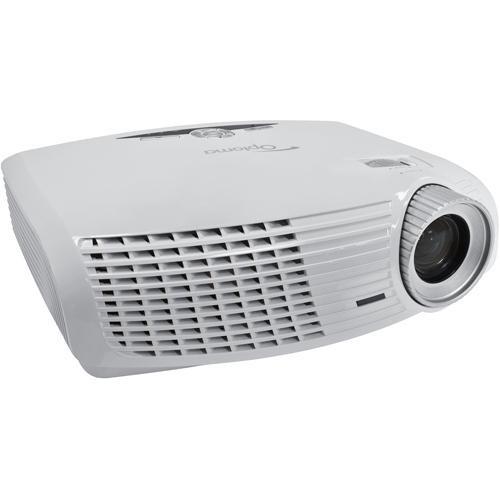

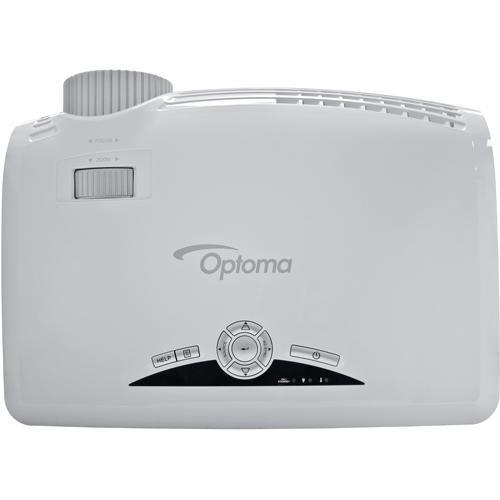

User Manual for Optoma Technology HD20 1700 ANSI Lumens 16:9 Projector - Refurbished Click to enlarge the picture
Contents of the user manual for the Optoma Technology HD20 1700 ANSI Lumens
- Product category: Uncategorized Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Uncategorized
 |
User manual for the Optoma Technology HD20 1700 ANSI Lumens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Whether you're rooting for your team in the big game, watching the latest movie on Blu-ray disc or playing your favorite console game you'll get more out of the experience with the Optoma HD20. It put outs 1700 ANSI Lumens at a 4000:1 contrast ratio to provide rich, saturated colors in true 1080p high definition to every one of its 2,073,600 pixels. Capable of projecting an image of from about three feet to twenty-five feet measured diagonally, the HD-20 is useful everywhere from the family room to a large auditorium. And it's useable all over the world with its 100 – 240 V AC 50/60 Hz power supply and its ability to accept PAL and SECAM standard broadcasts in addition to the NTSC North American standard. With two HDMI inputs plus component and VGA inputs, with the HD20 your entertainment options have never been more flexible or, well, more entertaining! - 1700 ANSI Lumens + 4000:1 Contrast Ratio = Excellent Picture
- Whether you're watching a movie or a football game or playing one on your favorite game console the HD20 has the display power to provide an outstanding picture.
- Texas Instruments DLP Chip Technology Saves You Time and Money
- TI Digital Light Processing technology with BrilliantColor is recognized as one of the best display panels available for projectors. It delivers excellent color saturation and subtle details for superior image quality. What's more it requires no filter like other panels do, saving you the time, expense and hassle of periodic filter cleanings and changes.
- Compatible With World Video and Power Standards
- The HD20 can handle NTSC at Standard (480i), Enhanced (480p) and HDTV (720p, 1080i, 1080p) resolutions. It can also accept PAL and SECAM signals. And its autoswitching 100 – 240 V AC 50/60 Hz power supply will work in most countries the world over.
- Compatible With Both PCs and Macs for Maximum Display Flexibility
- The HD 20 can accept computer outputs in these resolutions: HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized and VESA from both PC and Macintosh computers. And of course you can hook up your favorite console game too.
- Security Measures Protect Your Investment
- Both a Kensington Lock Port and a Security Bar are available so you can attach your projector to larger, harder to conceal and transport objects like projector carts and conference tables.
- Works Just as Well in Small Meeting Rooms as a Large Auditoriums
- With a possible image size of about a yard (measured diagonally) to 300" (25 feet!) you're sure to find the perfect location to mount your HD20. And you can place it on a tabletop or mount it on the ceiling for front or rear projection.
UPC: 796435821098 In the Box Optoma Technology HD20 1700 ANSI Lumens 16:9 Projector Lens Cap Power Cord Remote Control With Batteries (AAA x 2) User's Manual Quick Start Card Warranty Card 90-Day Manufacture Warranty User Manual PDF 20mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology HD20 1700 ANSI Lumens 16:9 Projector - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

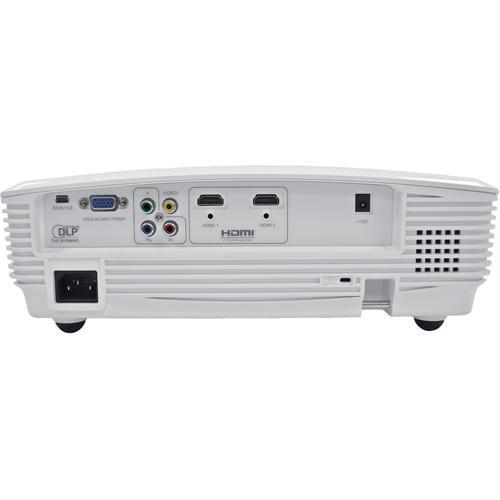

Technical parametersOptoma Technology EPHD20RFBA Specs | | | Projector Display System | Single 0.65" 1080p DMD DLP Technology by Texas Instruments | | Native Resolution | 1920 x 1080 | | Number of Pixels | 2,073,600 | | Lumens Brightness | 1700 | | Contrast Ratio | 4000:1 | | Aspect Ratio | 16:9 | | System | NTSC, PAL, SECAM | | HDTV Compatibility | 480p, 720p 1080i, 1080p | | | | Lens | F = 2.55-2.87, f = 22.4-26.8mm | | Focus/Zoom Adjusting | 1.2x Manual Zoom and Focus | | Lens Shift | Not Specified By Manufacturer | | Recommended Projection Size | 37.6 – 301.1" | | | | Keystone Correction | ±5° Vertical | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Projection Tilt Option | Using Projector Feet. Range Not Specified By Manufacturer | | Built-in Speaker | No | | | | Input Terminals | HDMI x 2 VGA x 1 Component Video x 1 VGA x 1 | | Output Terminals | 12 V Trigger | | Control Protocol | 12 V Trigger (For Screen Control) | | | | Lamp (Bulb) | OSRAM 230 Watt P-VIP | | Fan Noise | 34 dB in Bright Mode
32 dB in Standard Mode | | Remote Control | Yes, Backlit | | Power Requirements | 100 – 240 V AC, 50/60 Hz, Auto-Switching | | Dimensions (WxHxD) | 12.76 x 3.82 x 9.21" (324 x 97 x 234 mm) | | Weight | 6.4 lbs (2.9kg) | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 19.4 x 13.0 x 7.2" |
