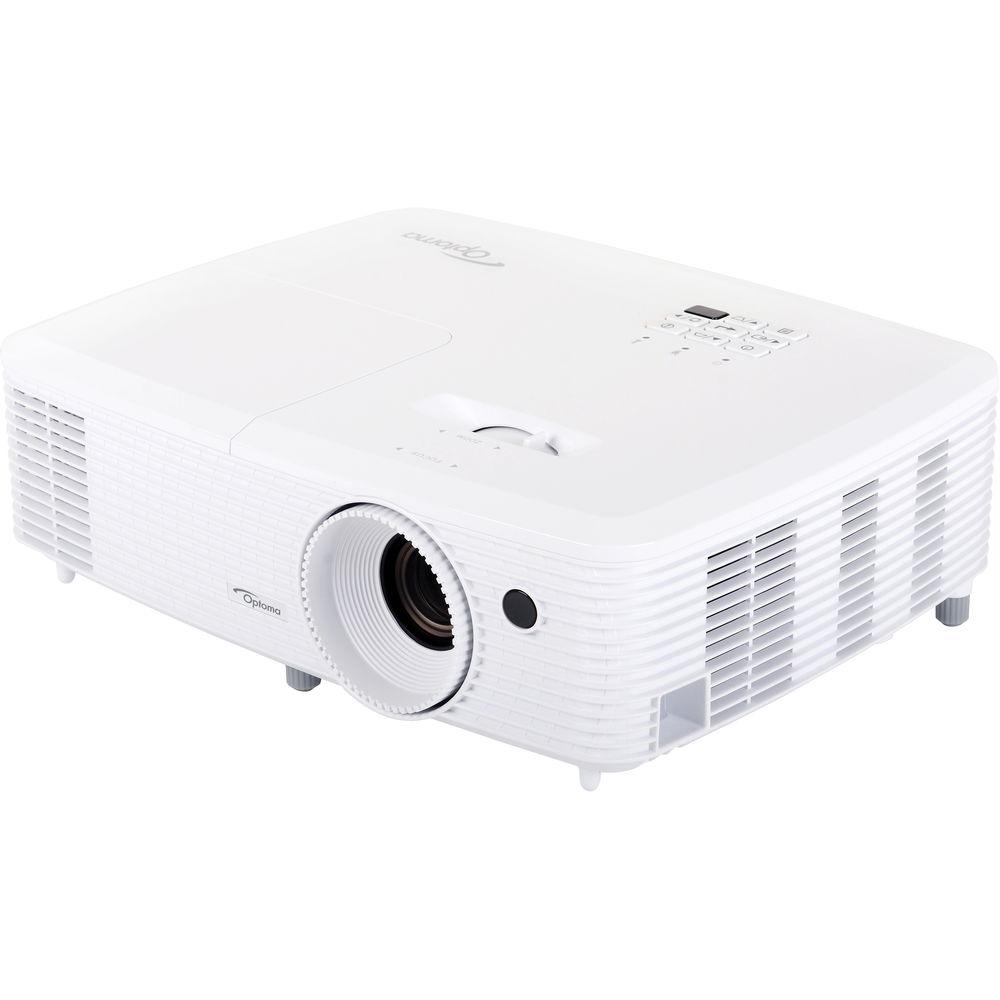

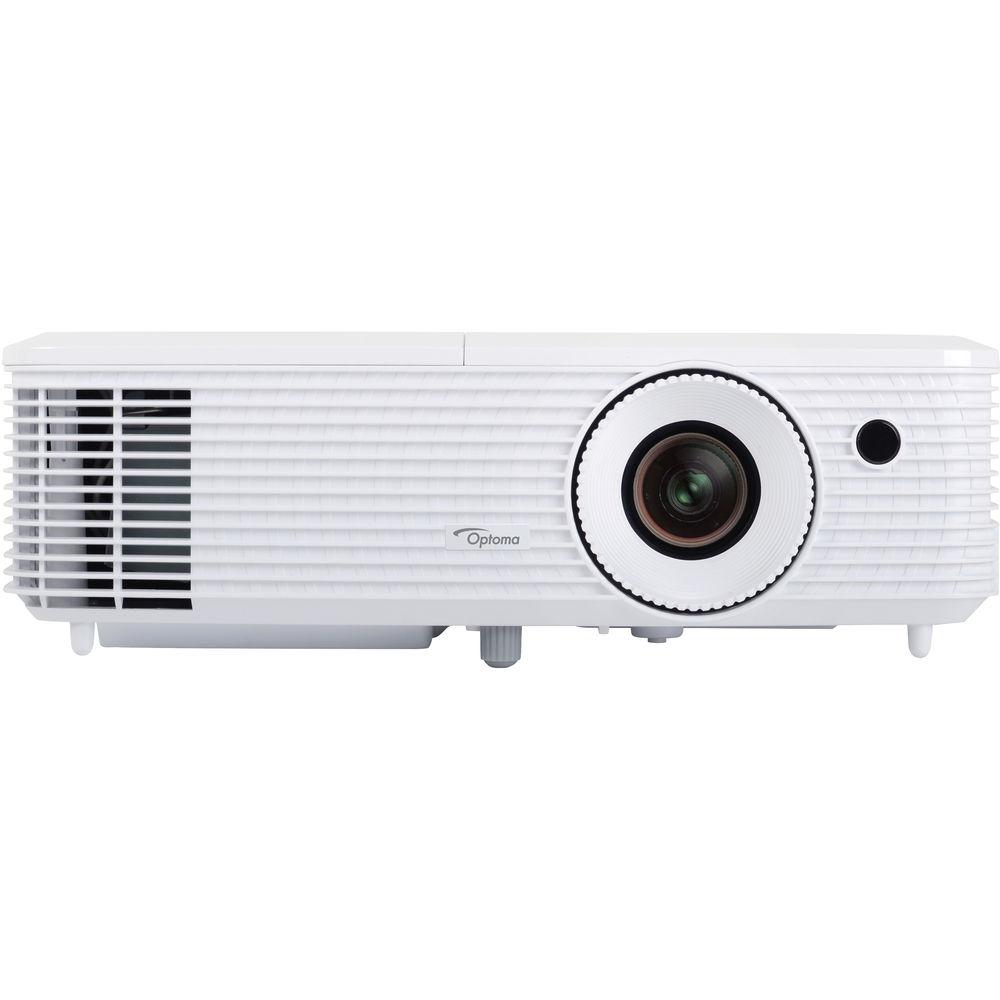

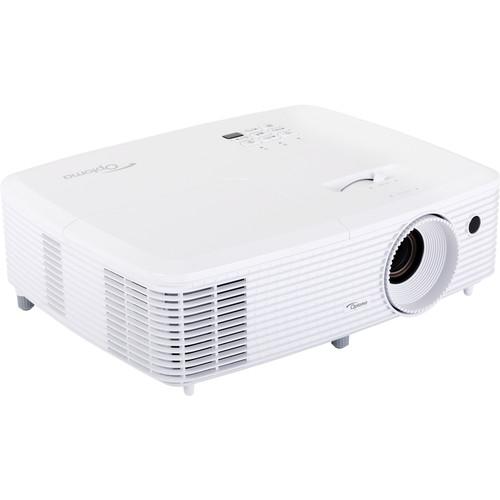

Product description Buying Guide to Projectors Read More cfbbxqccaesebcffzaq Project a big-screen image with the Optoma HD29Darbee Full HD DLP Home Theater Projector. Its 1.48 to 1.62:1 throw ratio will allow it to project up to a 305.3" image from 394" from the screen or wall. It has a native resolution of 1920 x 1080 to display Full HD images, and a 30,000:1 dynamic contrast ratio to enhance the clarity of dark areas of images. The 3200 lumens of brightness will overcome ambient light in many in-home settings. When paired with compatible 3D glasses, this projector also supports many 3D formats from a variety of sources.

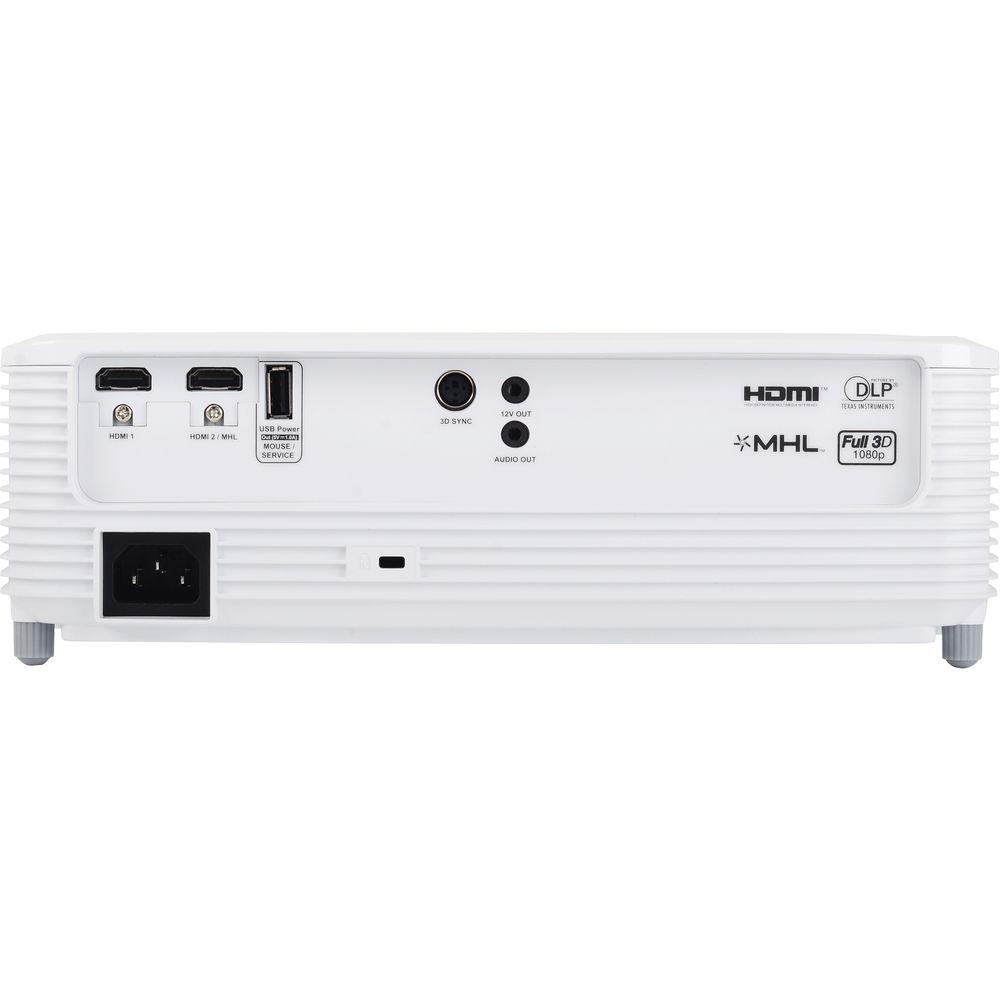

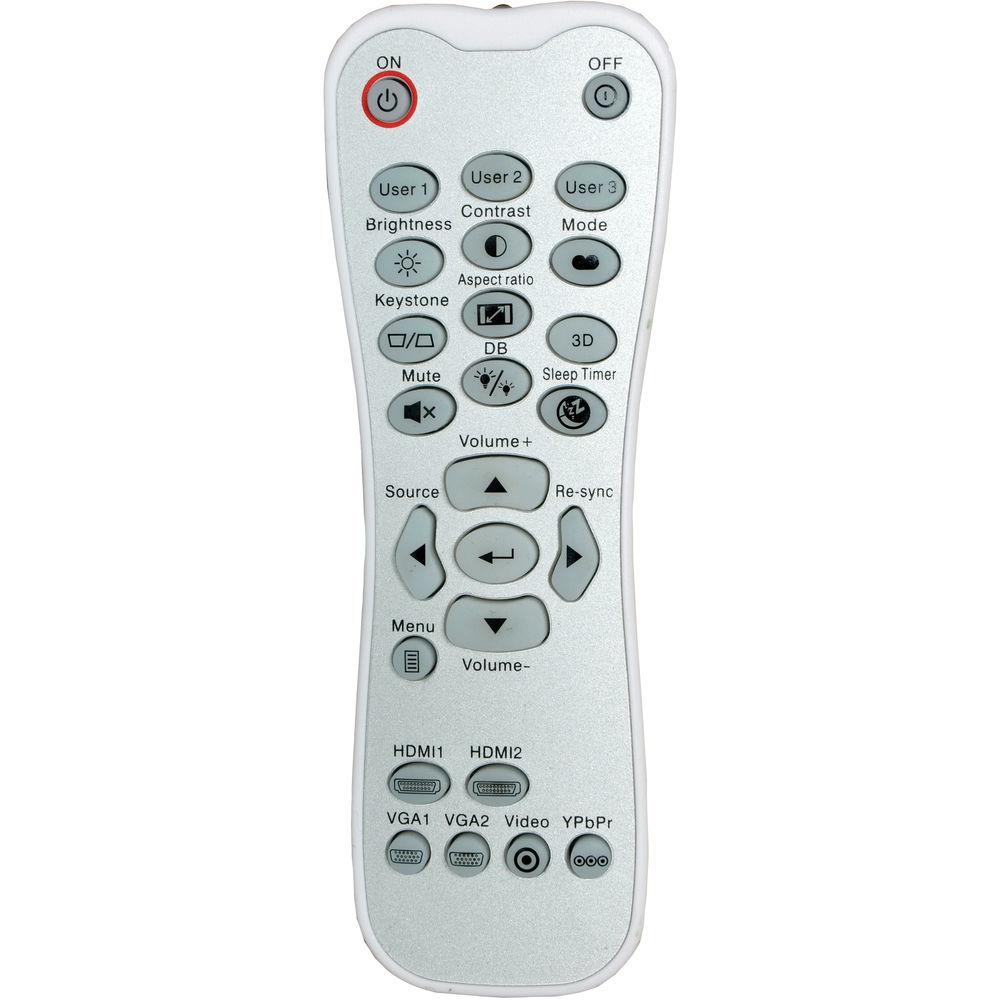

The HD29Darbee has two HDMI inputs, one of which is MHL-compatible for wired mirroring of your compatible smartphone or tablet. A 10-Watt speaker is built-in for audio playback, as is a 3.5mm audio output to connect it to your external speaker system. The projector includes an IR remote control for added convenience. - The DarbeeVision image processor is designed to enhance images for enhanced levels of detail, depth, lighting, and object separation.
- 1080p Full HD resolution, 3200 lumens of brightness, and a 30,000:1 contrast ratio come together to help deliver bright images with enhanced black levels.
- Reference Display Mode enables accurate color that complies with the REC. 709 HDTV color gamut.
- BrilliantColor enhances color quality, while ISFccc profiles enable augmented color purity and black levels.
- The lamp in the HD29Darbee is estimated to last up to 8000 hours in ECO+ Mode.
- Stream 1080p 3D content to your projector wirelessly with the optional WHD200, which is sold separately. It can be powered via the onboard USB power port.
UPC: 796435812560 In the Box Optoma Technology HD29Darbee Full HD DLP Home Theater Projector Remote Control with Batteries Lens Cap AC Power Cord Limited 1-Year Warranty Limited 90-Day Warranty More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology HD29Darbee Full HD DLP Home Theater Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology HD29DARBEE Specs | | | Display Technology | 1 x 0.65" (1.65 cm) DC3 DMD DLP | | Native Resolution | Full HD (1920 x 1080) | | Maximum Resolution | WUXGA (1920 x 1200) | | Brightness | 3200 lumens | | Dynamic Contrast Ratio | 30,000:1 | | Displayable Colors | 1.07 billion | | Lamp Life | Dynamic Mode: 8000 hours
ECO Mode: 6000 hours
Bright Mode: 5000 hours | | Keystone Correction | Vertical: ±40° | | Uniformity | 80% | | Offset | 116% | | Aspect Ratio | Native: 16:9
Supported: 16:10, 4:3 | | Throw Ratio | 1.48 to 1.62:1 ±3% (distance/width) | | Image Size (Diagonal) | 27.88 to 305.3" (70.82 to 775.46 cm) | | Projection Distance | 59 to 394" (149.86 to 1000.76 cm) | | | | Computer Resolutions | WUXGA, UXGA, SXGA+, WXGA+, WXGA, SXGA, XGA, SVGA, VGA | | Color Systems | NTSC, PAL, SECAM | | 3D | Supports all HDMI 1.4a mandatory 3D formats (frame pack, side-by-side, top-bottom) and upconverts frame rate from 60 Hz to 120 Hz, or 24 Hz to 144 Hz | | Scan Rate | Vertical: 24 to 85 Hz (120 Hz for 3D)
Horizontal: 15.375 to 91.146 kHz | | | | Inputs | 1 x HDMI
1 x HDMI with MHL | | Outputs | 1 x 1/8" (3.5 mm) audio | | Other Connectors | 1 x 1/8" (3.5 mm) 12 V trigger
1 x 3D-Sync port out
1 x USB power out
1 x AC power in | | | | Lens | f/2.5 to 2.67, F=21.9 to 24mm | | Zoom | Optical: 1.1x manual
Digital: 0.8 to 2x | | Focus | Manual | | | | Projection Method | Front, rear, ceiling mount, table top | | Noise Level | Eco Mode: 29 dB | | Replacement Lamp | BL-FP195A | | Speaker | 1 x 10 W | | Operating Conditions | Temperature: 41 to 104°F (5 to 40°C)
Max Altitude: 10,000' (3048 m) | | Power Requirements | 100 to 240 VAC ±10%, 50/60 Hz, auto-switching | | Power Consumption | Bright Mode, Typical: 240 W
Bright Mode, Max: 264 W
Eco Mode, Typical: 198 W
Eco Mode, Max: 218 W | | Security | Cable lock slot, security bar, keypad lock | | Dimensions (W x H x D) | 11.73 x 3.7 x 9" (29.79 x 9.39 x 22.86 cm) | | Weight | 5.1 lb (2.3 kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 15.7 x 11.1 x 6.1" |
