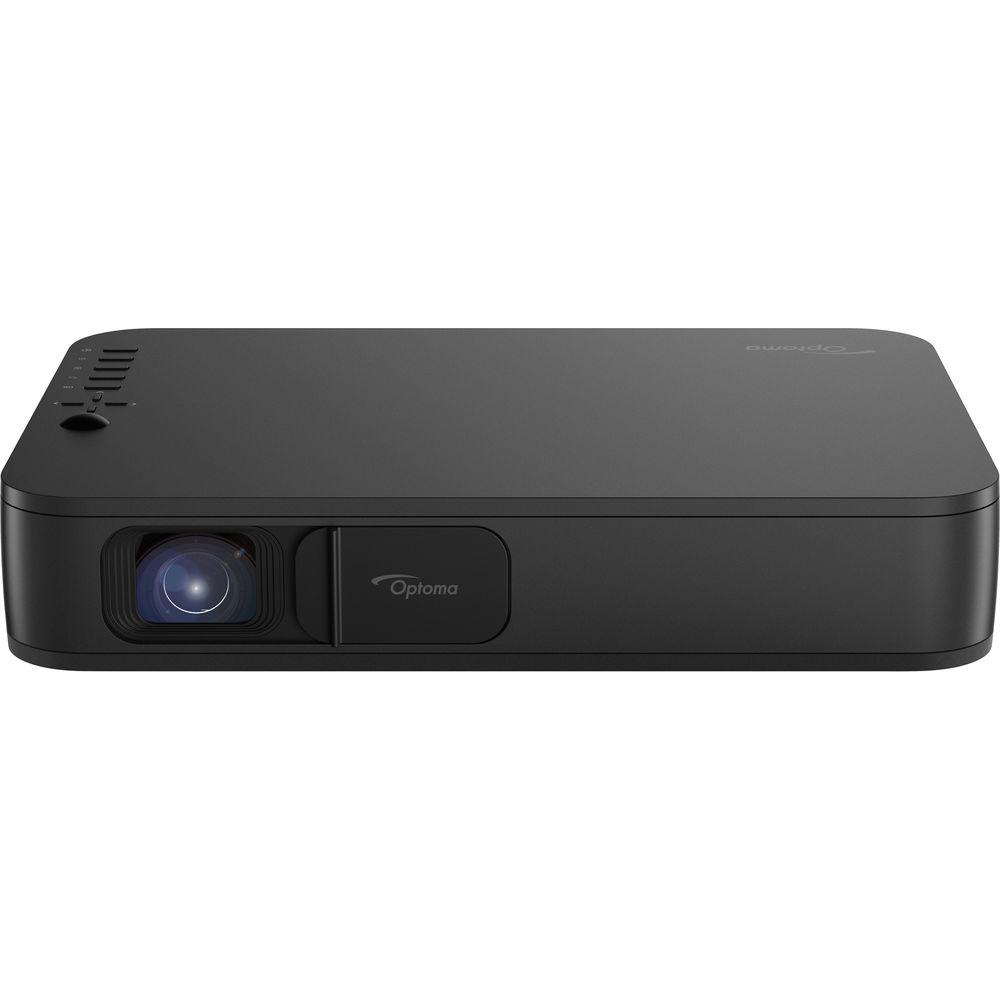

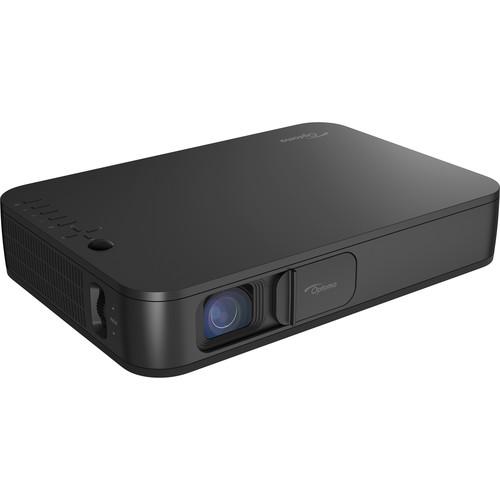

Product description Display your presentations and other media virtually anywhere with the Optoma LH150 1300-Lumen Full HD DLP Projector. It can project images up to 150" diagonal and features a Full HD 1920 x 1080 native resolution. It provides up to 1300 lumens of brightness on AC power with a 160,000:1 dynamic contrast ratio to help enhance detail and clarity.
The LH150 sports two HDMI inputs and a USB port that allows wired streaming from your compatible iOS or Android device. The rechargeable battery will last up to 2.5 hours for presenting while on the go. A carrying case and remote control are included for added convenience. -

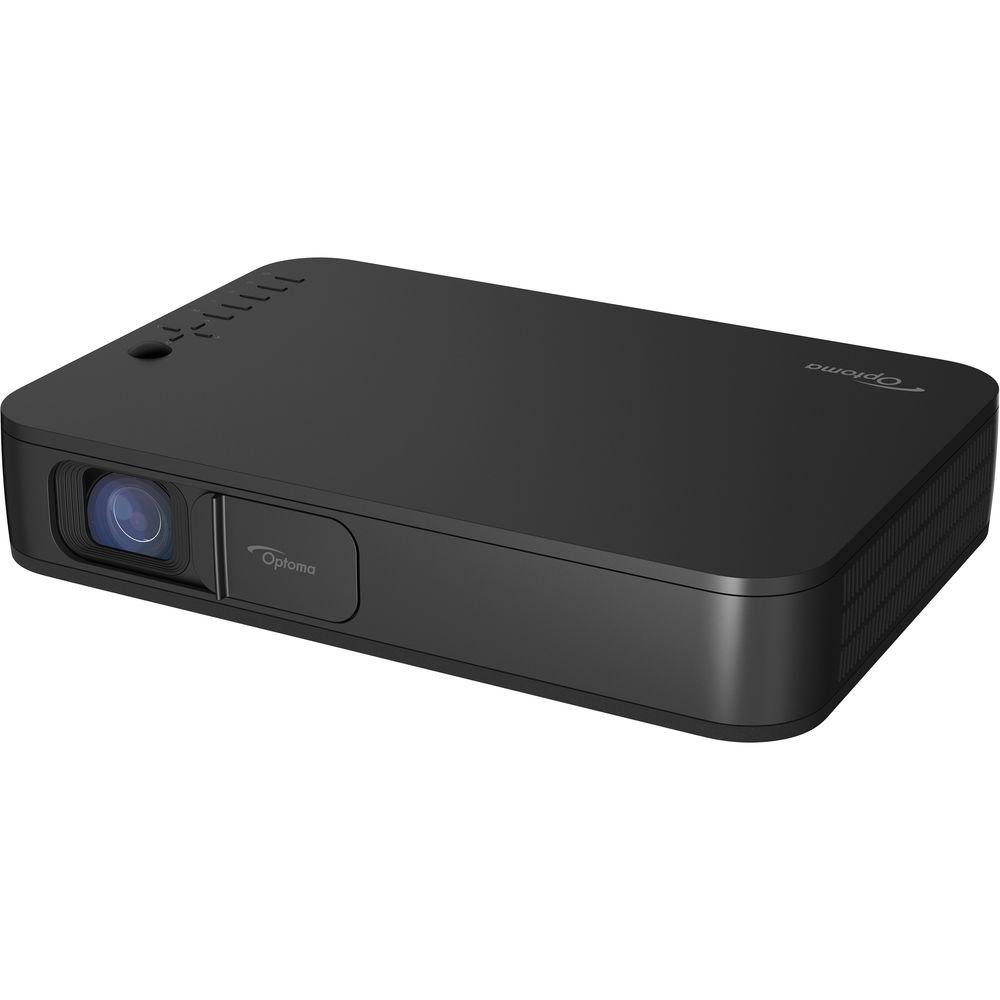

- Sliding lens cover helps protect the lens during transportation
- Portable design with included carrying case
- 12,000mAh battery lasts up to 2.5 hours in Eco mode (500-lumen output), up to 1.5 hours in Bright mode (1000-lumen output)
- USB display screen mirroring with iOS and Android devices
- Four-corner image geometry correction
- 360° and portrait orientation
- Bluetooth audio output
- Wireless presentations and images with the optional HDCast Pro module

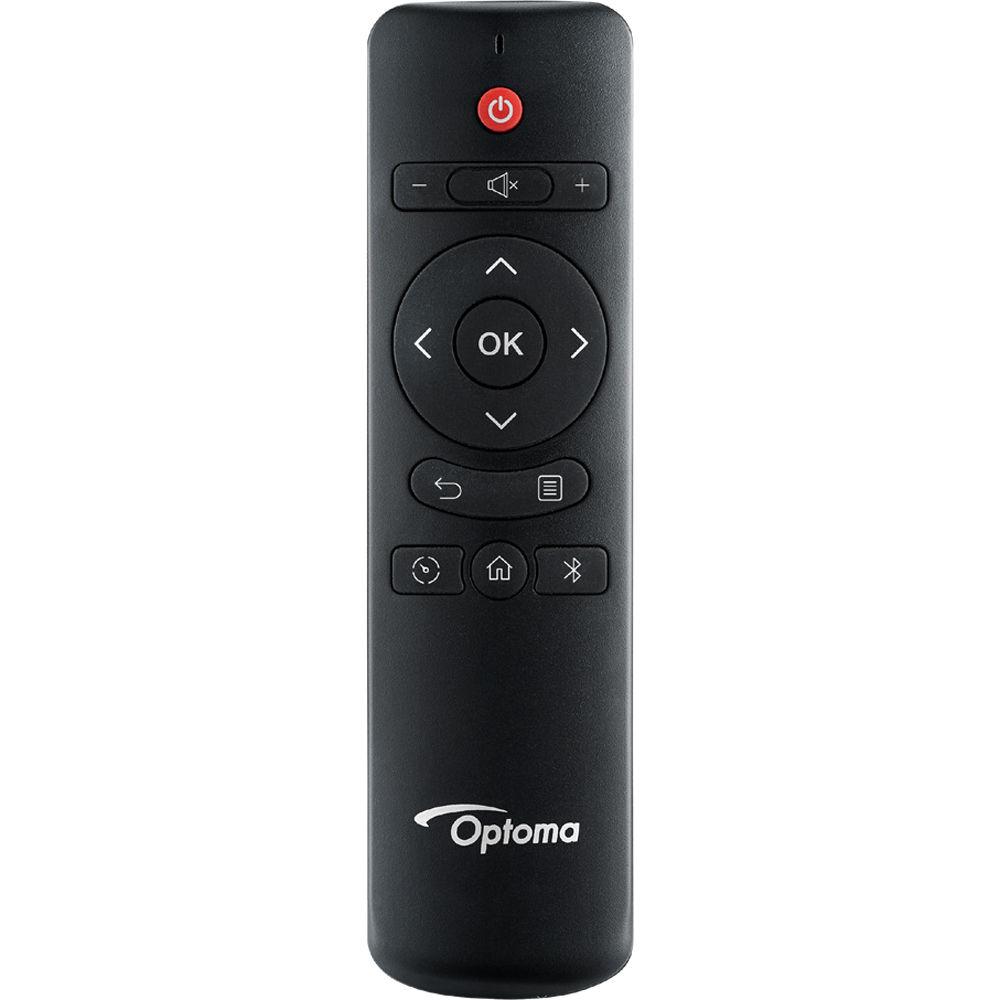

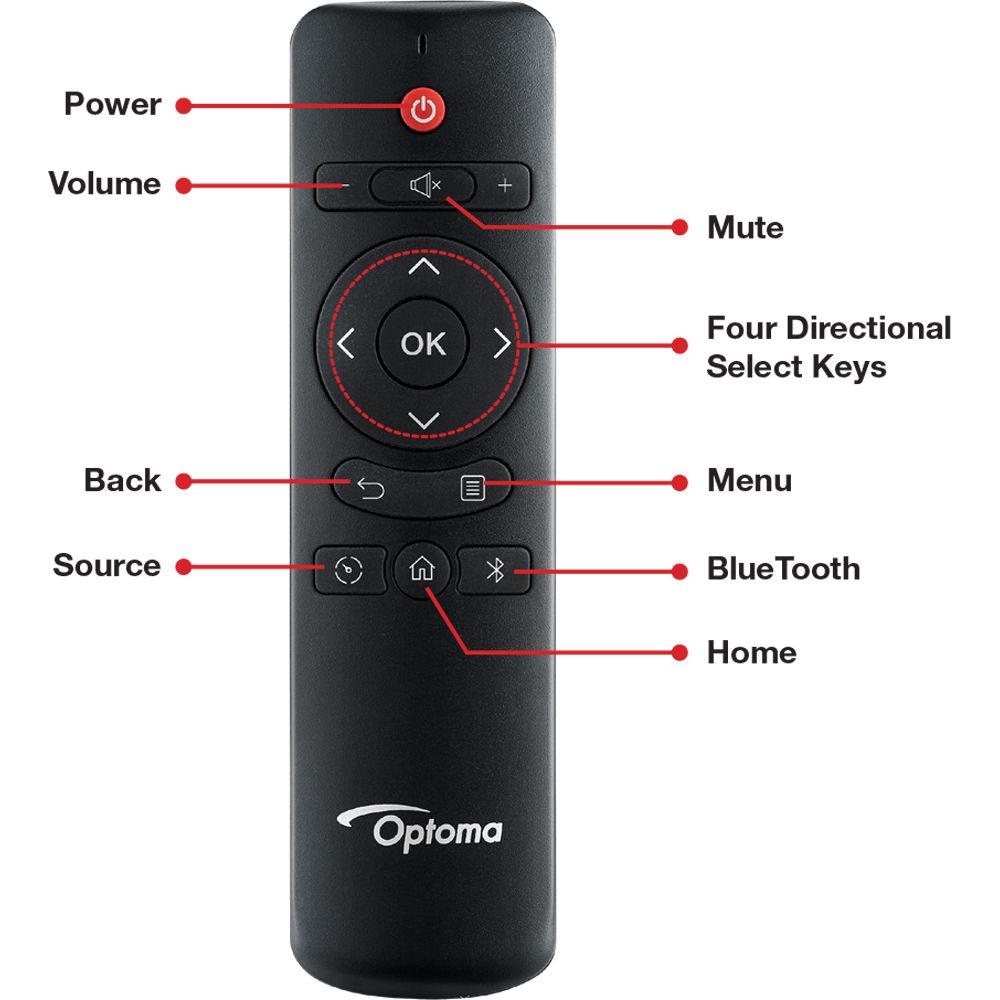

UPC: 796435442507 In the Box Optoma Technology LH150 1300-Lumen Full HD DLP Projector Remote Control with Batteries Carrying Case AC Power Cord Limited 1-Year Warranty More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology LH150 1300-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology LH150 Specs | | | Display System | 0.47" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 1300 Lumens | | Uniformity | 85% | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 160,000:1 | | Color Wheel | 3-Segment (R, G, B) | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Vertical: 24 to 85 Hz
Horizontal: 15.375 to 91.146 kHz | | | | Focus | Manual | | Lens | f/1.8 (f = 12.64 mm) | | Optical Zoom | None | | Throw Distance | 2.6 - 13.1' / 0.792 - 3.993 m | | Throw Ratio | 1.2:1 | | Projection Size | 30 - 150" / 76.20 - 381.00 cm | | | | Keystone Correction | Auto-Vertical: ± 30°

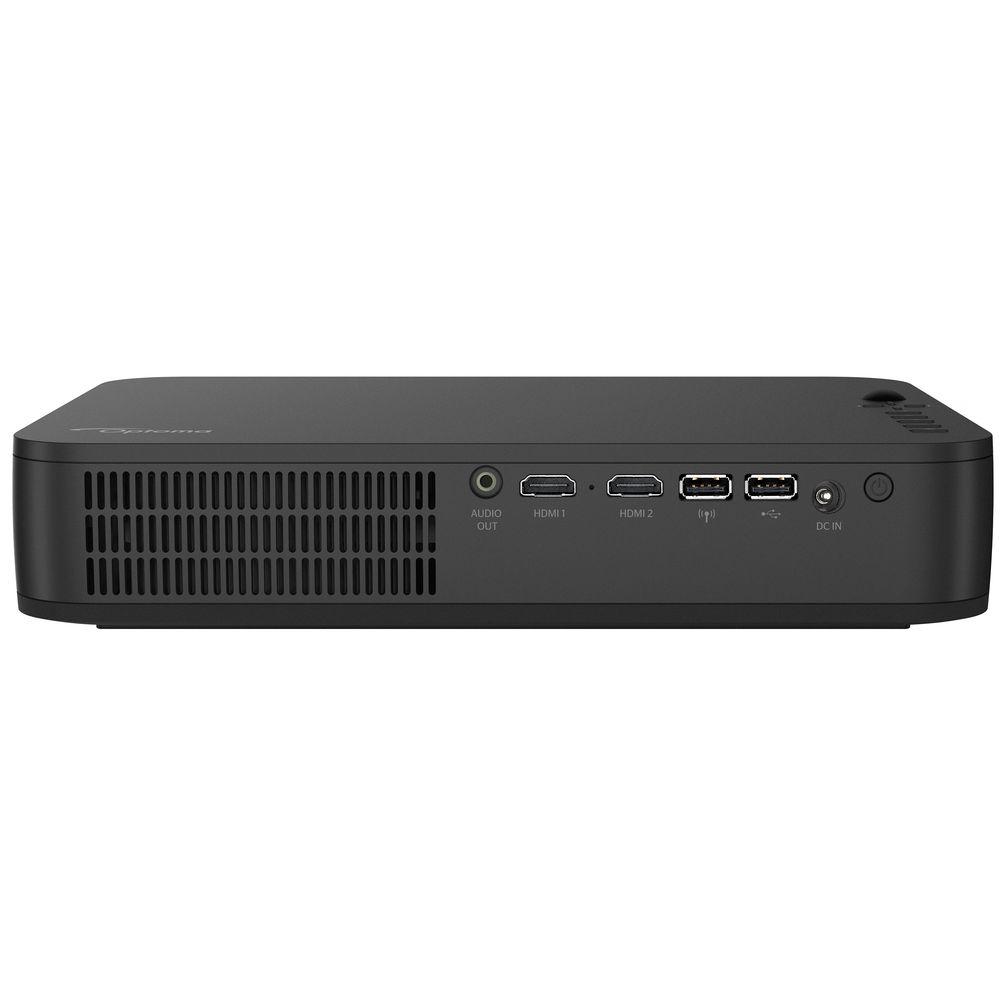

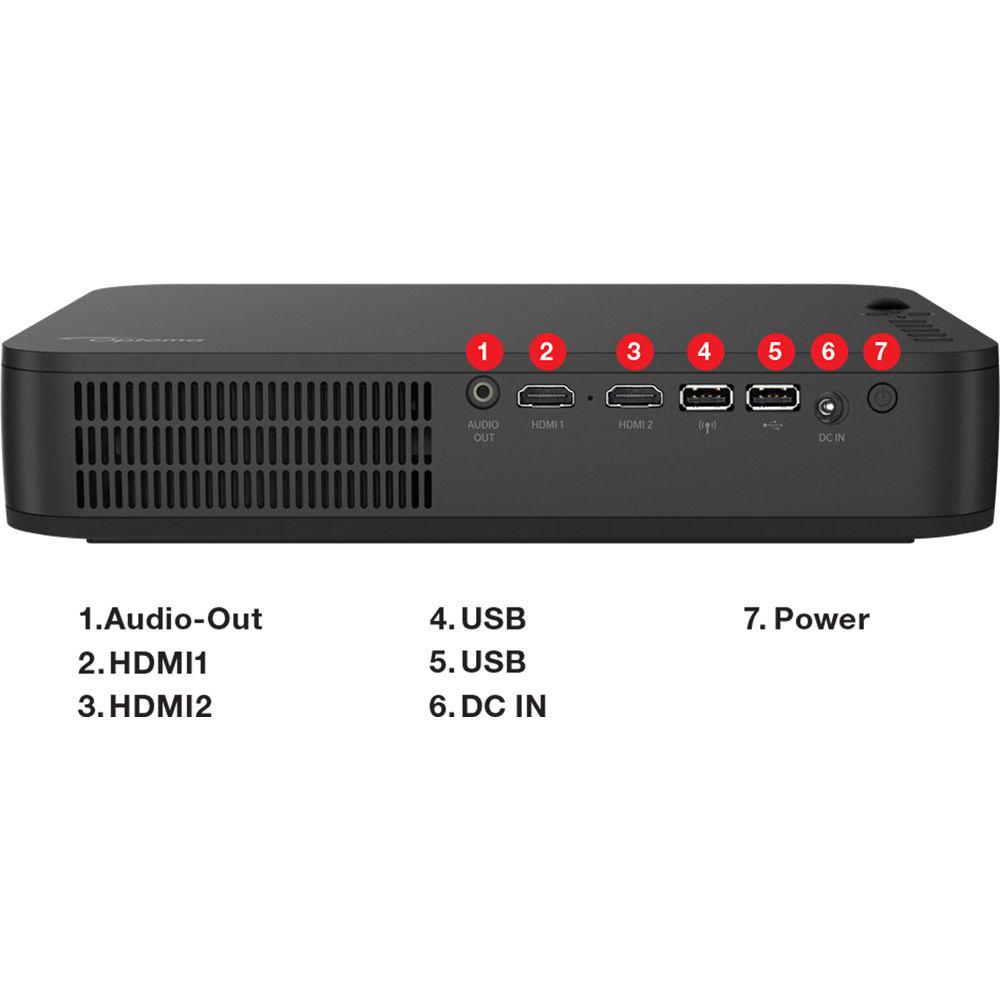

Auto-Horizontal: ± 20° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 8W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x USB 2.0 (USB Type-A) Audio, Power, Video Input/Output
1 x USB 2.0 (USB Type-A) LAN Input
1 x 1/8" (3.5 mm) Mini Audio Output | | Memory Card Slot | None | | | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | LED | | Expected Lamp Life | Low Brightness: 30,000 Hours | | Fan Noise | Medium Brightness: 30 dB | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4.74 A | | DC Power Requirements | 19 VDC | | Power Consumption | Full Brightness: 75 W
Low Brightness: 25 W | | Battery Capacity | 12000 mAh | | Max Operating Altitude | 10000' / 3048 m | | Storage Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 11.0 x 2.3 x 7.5" / 27.9 x 5.8 x 19.1 cm | | Weight | 4.7 lb / 2.13 kg | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 19.2 x 17.4 x 4.8" |
