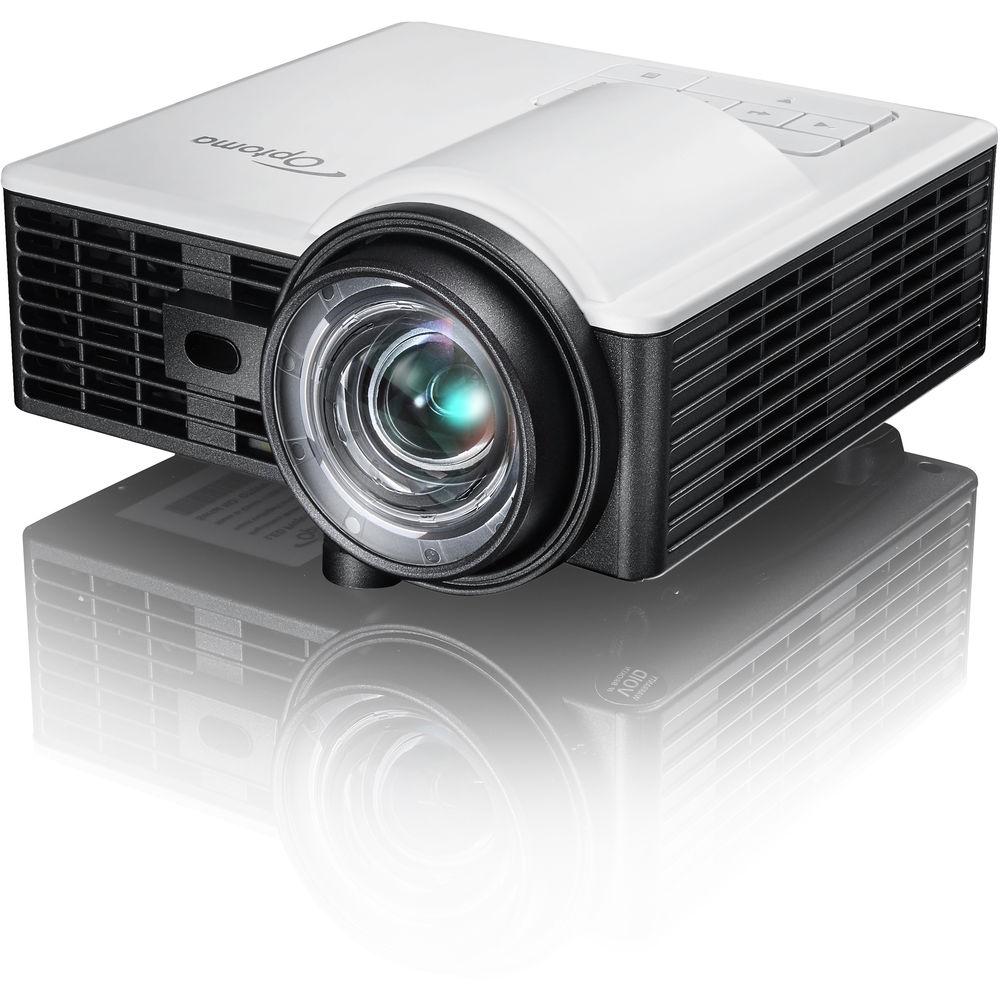

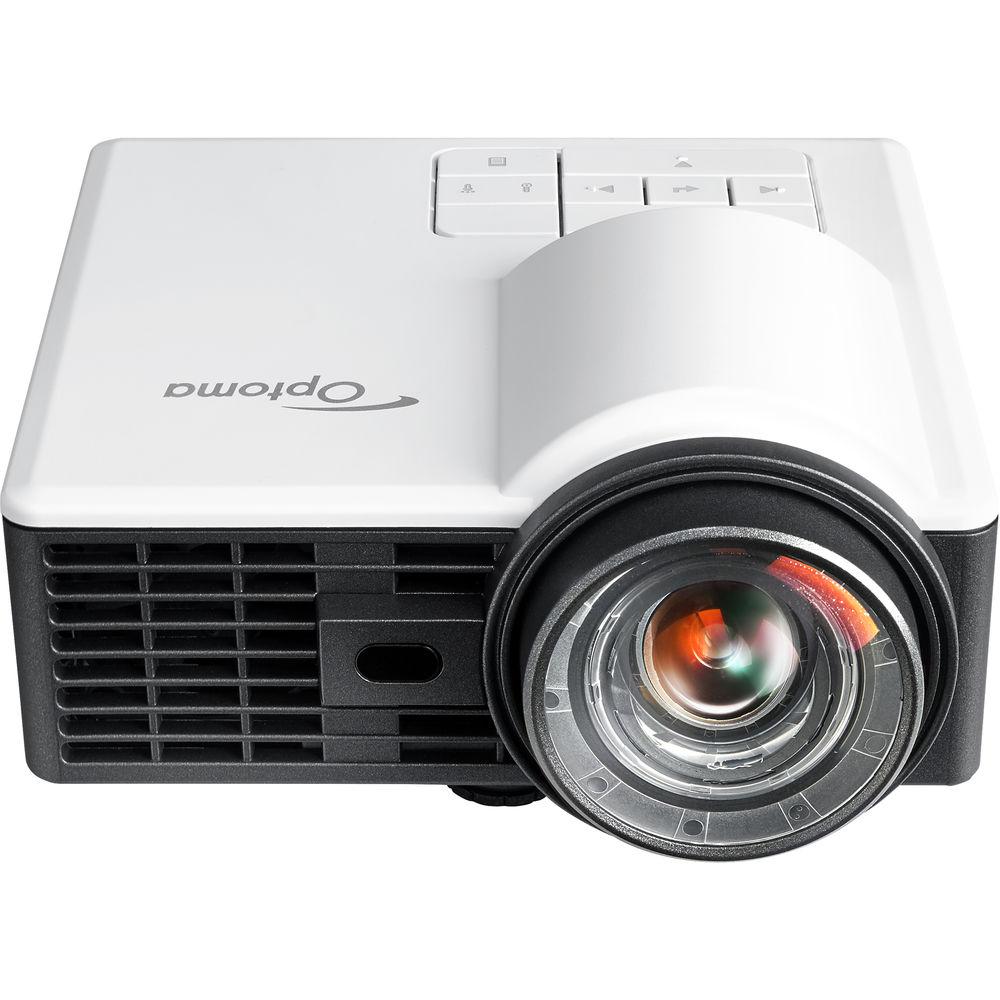

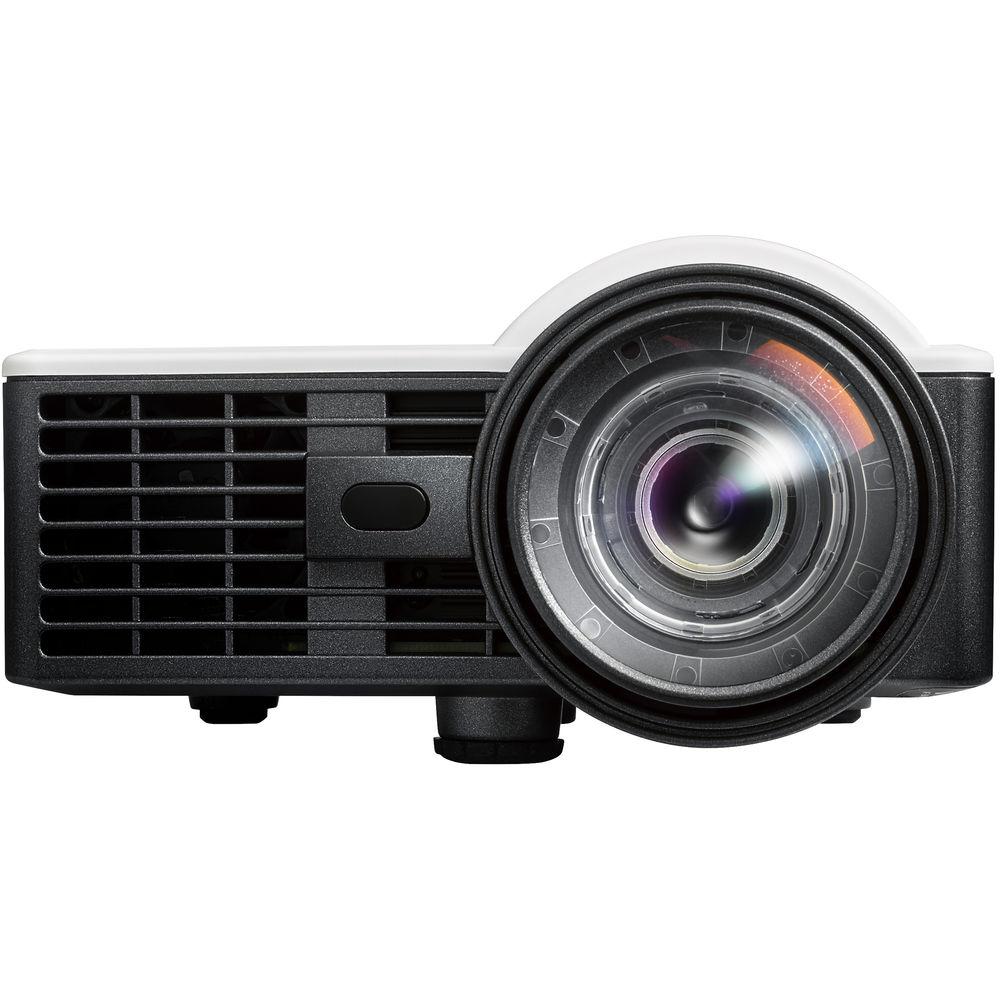

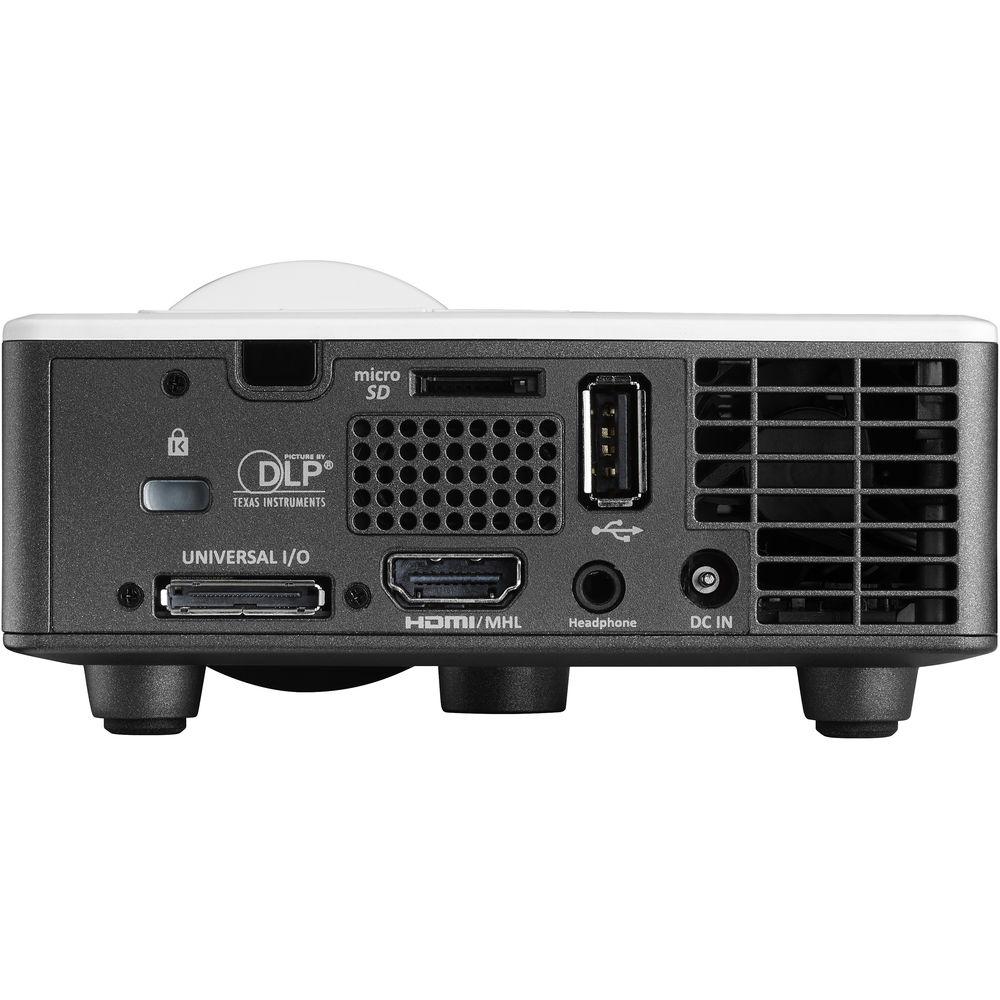

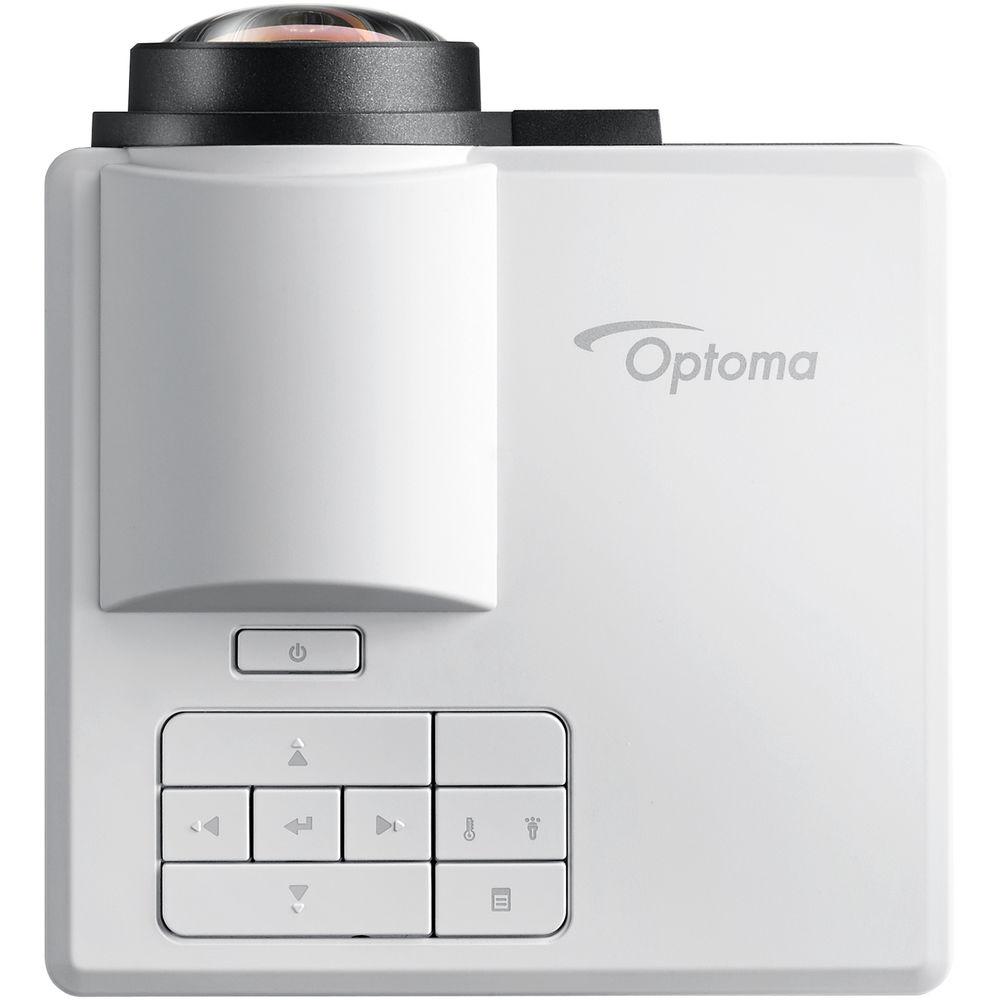

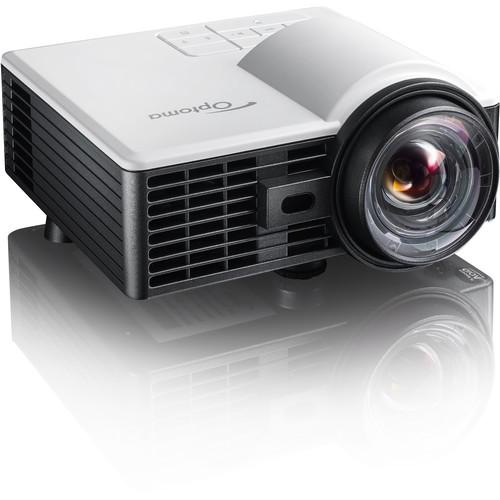

User Manual for Optoma Technology ML1050ST 1000-Lumen WXGA DLP Pico Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology ML1050ST 1000-Lumen WXGA DLP
- Product category: Pico Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Pico Projectors
 |
User manual for the Optoma Technology ML1050ST 1000-Lumen WXGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Take your presentations on the go with the Optoma Technology ML1050ST+ 1000-Lumen WXGA DLP Pico Projector. Its 1000 lumens of brightness can produce images up to 200" diagonal in low-light conditions, and its 20,000:1 dynamic contrast ratio will help enhance dark areas of the image. The LED light source has an operating life of up to 30,000 hours in Eco mode.
The ML1050ST+ has a 1.5W speaker built-in to eliminate the need for external speakers, simplifying its ease of transport and setup. It also has an onboard MHL-compatible HDMI port, microSD slot, and USB ports for added convenience. An included adapter allows VGA and composite video connectivity. The ML1050ST+ also includes a remote control. -
- Produces up to 1000-lumen WXGA images from as close as 16" from your screen
- Auto-focus lens for easy positioning and projection
- Projects 100" images nearly anywhere
- RGB LED light source with up to a 30,000-hour life
- Computer-free USB and micro SD media player, image viewer, and document reader
- HDMI with MHL 2.0 compatibility
- On-screen menu adjustment in 16 languages
- Present wirelessly with an optional USB Wi-Fi adapter
UPC: 796435442965 In the Box Optoma Technology ML1050ST+ 1000-Lumen WXGA DLP Pico Projector Remote Control with Batteries I/O VGA & Composite Video Adapter Cable AC Power Cable Power Adapter Limited 1-Year Warranty on Projector Limited 1-Year or 20,000-Hour Warranty on Light Source, Whichever Comes First More info from Optoma Technology vzvufaqc Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology ML1050ST 1000-Lumen WXGA DLP Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology ML1050ST+ Specs | | | Display System | 0.45" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 1000 Lumens | | Uniformity | 90% | | Offset | 100% ± 5% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | DLP Link 3D | Yes | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Vertical: 24 to 120 Hz
Horizontal: 31 to 135 kHz | | | | Focus | Auto | | Lens | f/1.9 (f = 8.02 mm) | | Optical Zoom | None | | Throw Distance | 16 - 135" / 40.64 - 342.9 cm | | Throw Ratio | 0.81:1 | | Projection Size | 25 - 200" / 63.50 - 508.00 cm | | | | Keystone Correction | Auto-Vertical: ± 40° | | Digital Zoom | 1.5x | | Built-In Speaker | Yes | | Speaker Power | 1.5W | | | | Inputs/Outputs | 1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
1 x Proprietary Video Input
1 x 1/8" (3.5 mm) Mini Headphone Output
1 x USB 2.0 (USB Type-A) LAN | | Memory Card Slot | 1 x microSDXC | | | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | LED | | Expected Lamp Life | Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours | | Fan Noise | Medium Brightness: 28 dB | | Security | Cable Lock Slot
Password Protection | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.7 A | | Power Consumption | Full Brightness: 77 W
Standby Mode (Lamp Off): 0.5 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 4.4 x 1.5 x 4.1" / 11.2 x 3.8 x 10.4 cm | | Weight | 14.00 oz / 397 g | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 11.0 x 11.0 x 4.0" |
