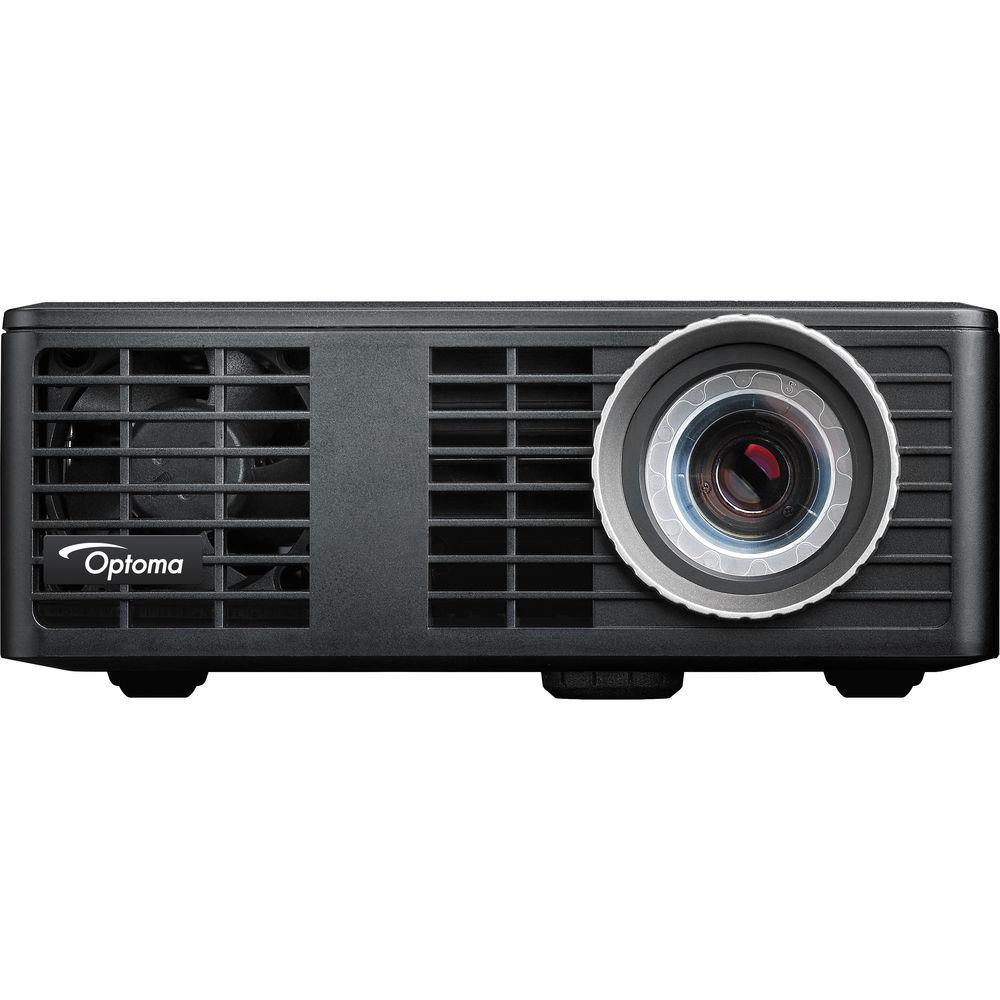

User Manual for Optoma Technology ML550 3D Ready Mobile LED Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology ML550 3D Ready Mobile
- Product category: Pico Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Pico Projectors
 |
User manual for the Optoma Technology ML550 3D Ready Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

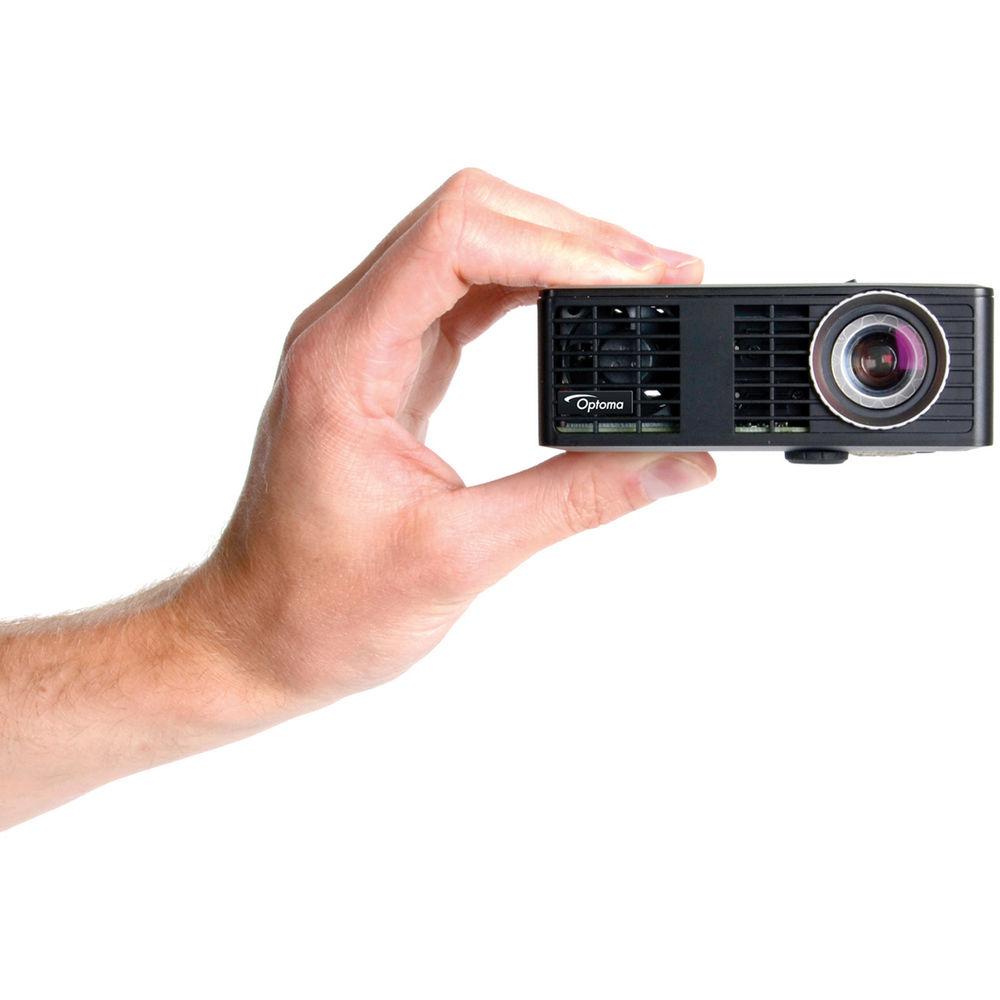

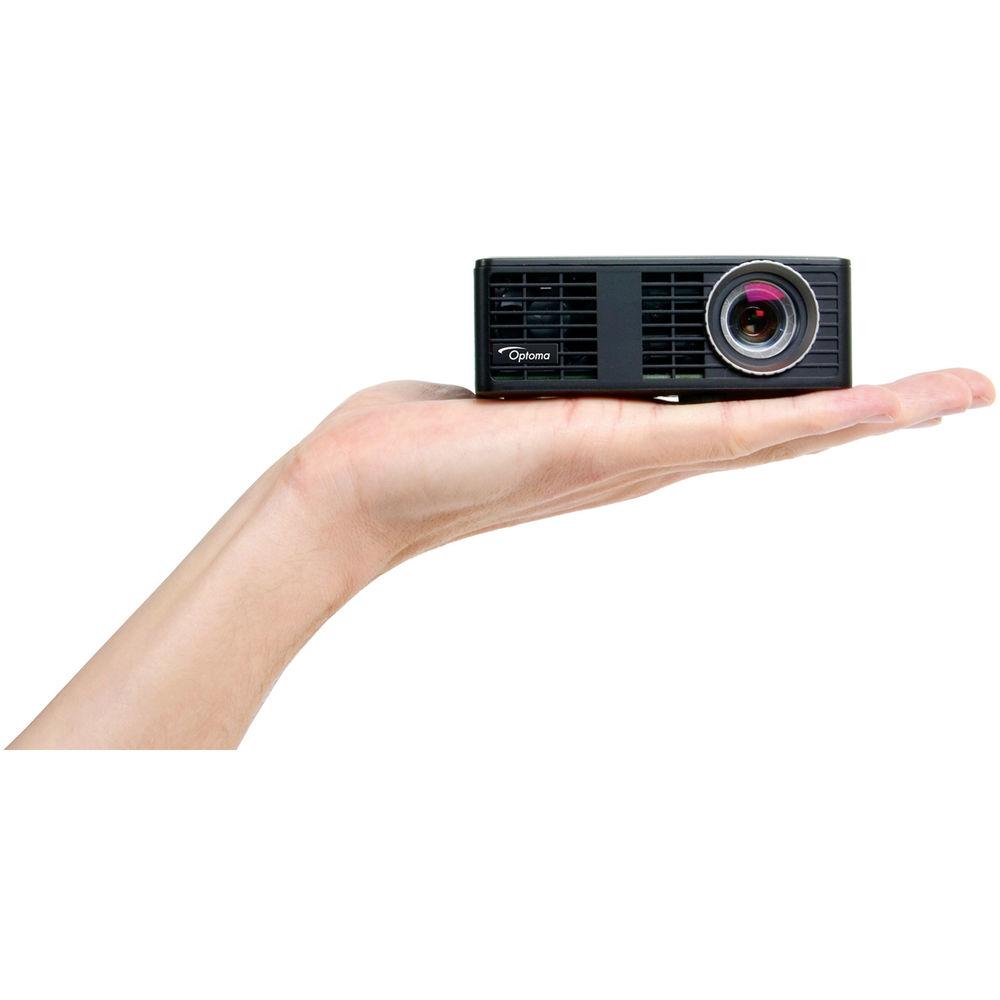

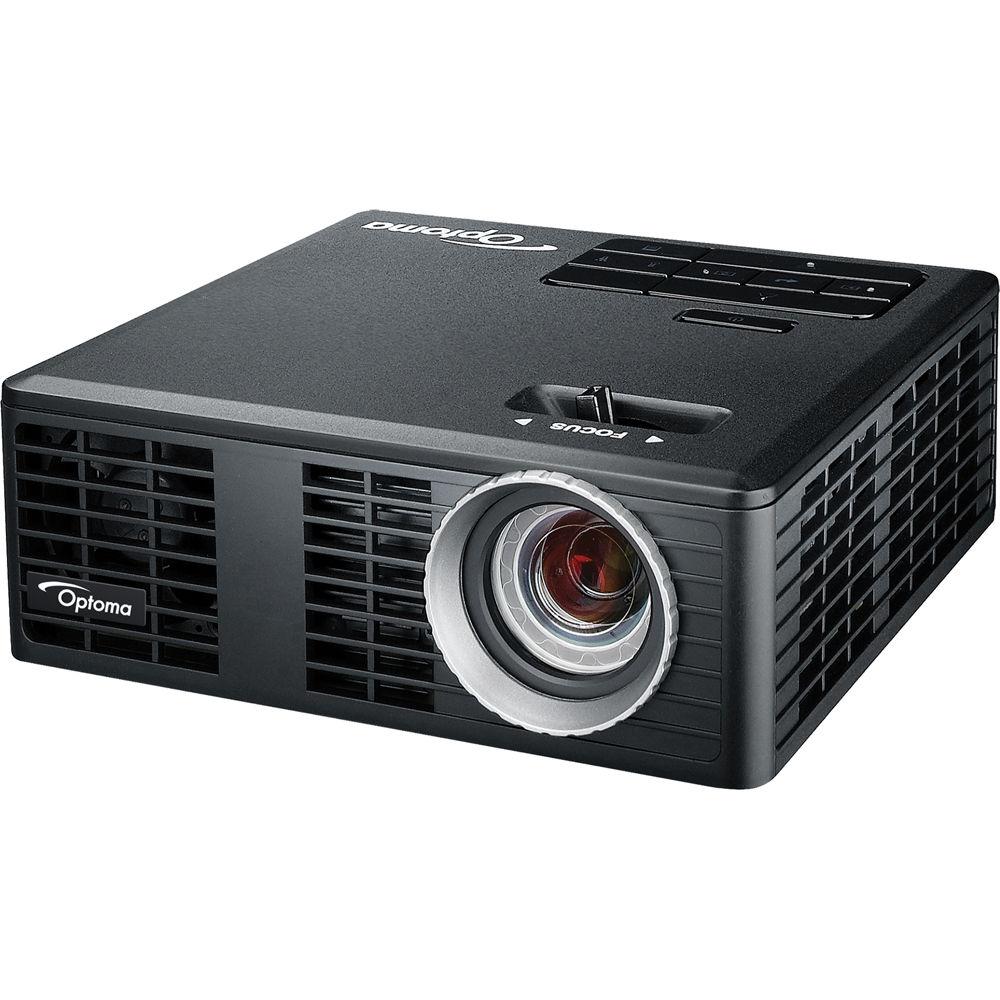

Product description The portable Optoma ML550 3D Ready Mobile LED Projector delivers 500 lumens of brightness with a sharp 10,000:1 contrast ratio. It features WXGA 1280 x 800 widescreen resolution and can project up to a 100" diagonal 2D or 3D image. The ML550 is powered by a DMD DLP chip system and its LED light source features a long lifespan of 20,000+ hours. This means you'll save money because there are no traditional projector lamps to buy or replace. LEDs are also more energy efficient and they produce less heat. This model also provides multiple connectivity options including HDMI and VGA via a 24-pin universal port. The ML550 supports PC-less presenting via USB, microSD or 1.5GB internal memory. These three options support a variety of file formats including PowerPoint, Excel and Word files/documents. The projector has a built-in 1W mono speaker as well. Other features include a low standby power consumption level that's less than 1W and a complete on-screen menu that supports adjustments in 16 different languages. This projector even affords wireless presenting, although the optional BI-EXTBGN adapter is required. - Compact design with a brightness of 500 lumens and a 10,000:1 contrast ratio
- WXGA 1280 x 800 native resolution
- View office files, videos and images without having to connect projector to a PC
- Wireless presentation capability via optional BI-EXTBGN adapter
- The LED light source saves you money since there are no lamps to buy or replace
- Projects up to a 100" diagonal image
- DMD DLP technology provides multi-color processing to produce accurate colors
- LED lamp last 20,000+ hours
- 1.5GB onboard memory and microSD card slot that supports up to 32GB cards
- 3D Ready for an immersive 3D viewing experience
- Supports 120Hz frame sequential 3D for resolutions up to XGA
- Supports 60Hz field sequential 3D for resolutions up to 480i (not compatible with 3DXL)
- Complete on-screen menu supports adjustments in 16 languages

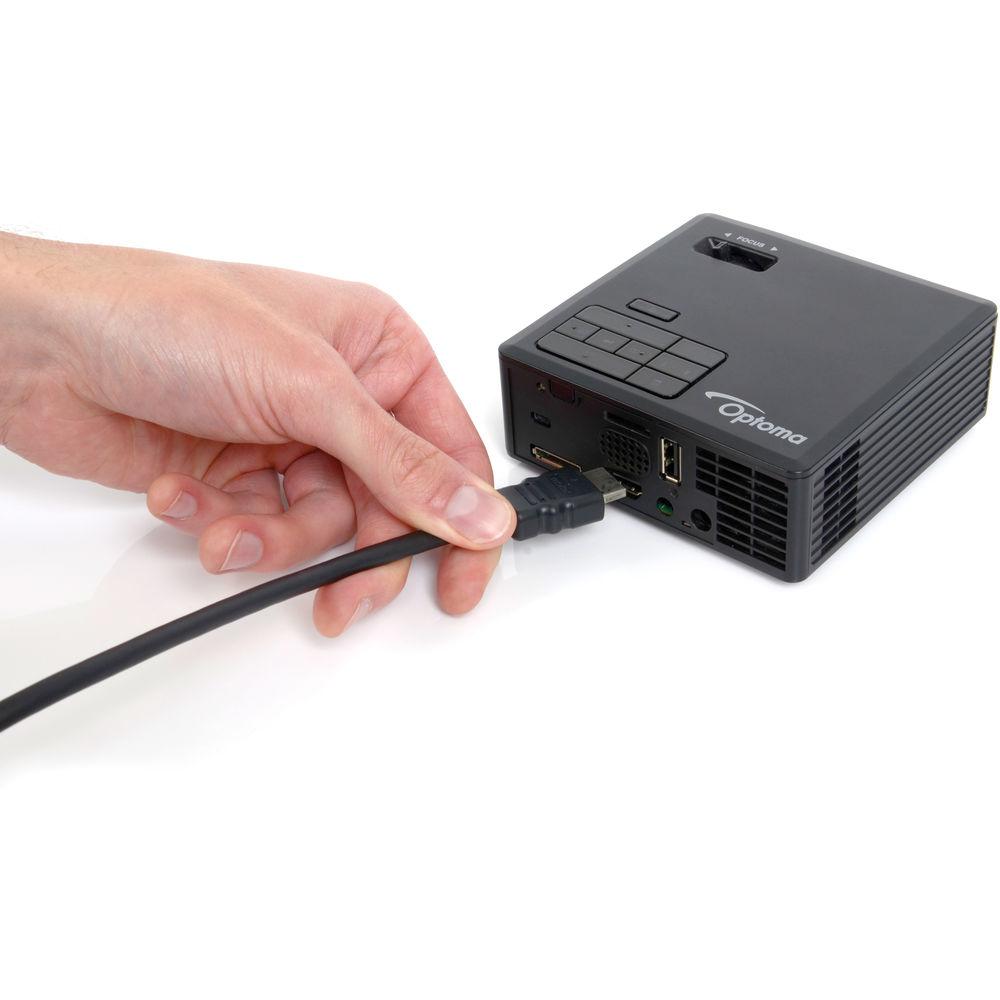

- Projector supports HDMI connectivity

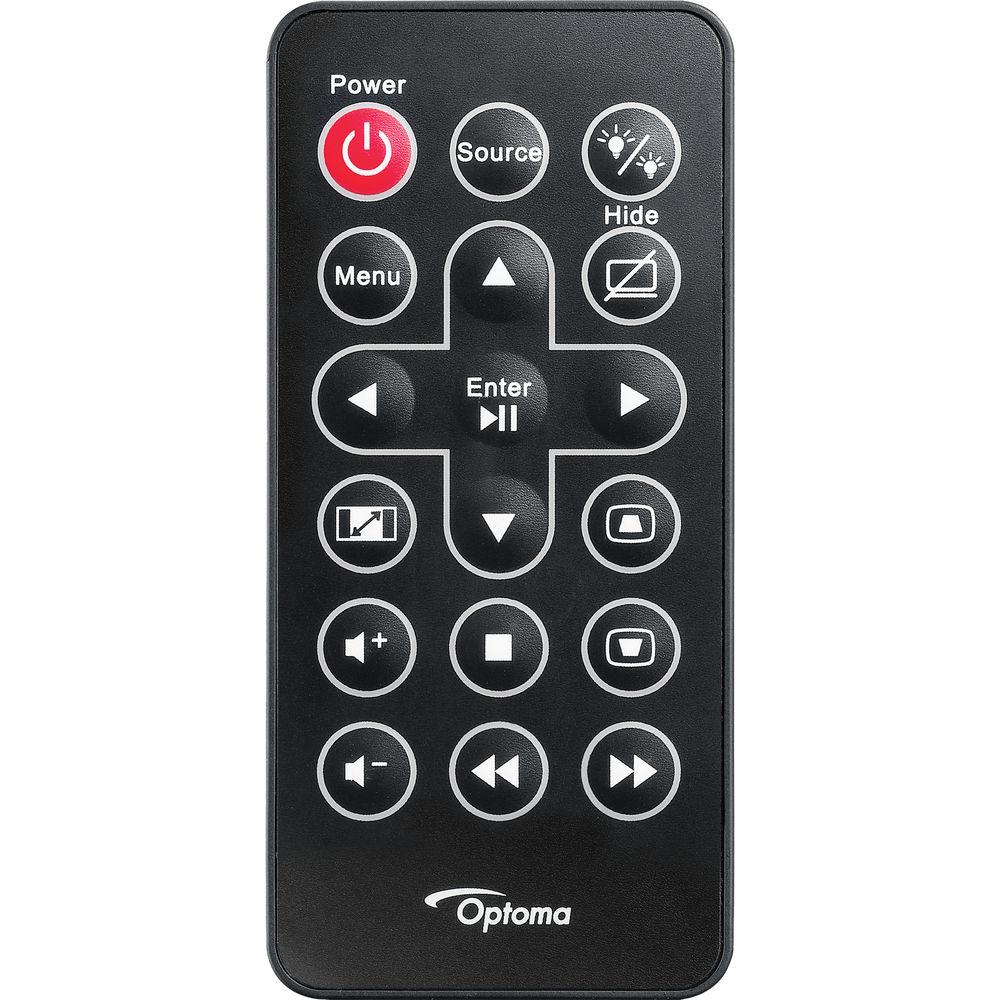

UPC: 796435418595 In the Box Optoma Technology ML550 3D Ready Mobile LED Projector AC Power Adapter Remote Control Battery (for Remote) Universal to VGA Cable Soft Carrying Case 1-Year Limited Warranty User Manual PDF 8.6mb More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology ML550 3D Ready Mobile LED Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology ML550 Specs | | | Display System | 1-Chip 0.45" DC3 DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
WXGA - 1280 x 800
WXGA+ - 1440 x 900
WSXGA+ - 1680 x 1050
Full HD 1080p - 1920 x 1080 | | Max Brightness | 500 Lumens | | Uniformity | >85% | | Offset | 100% ± 0% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Contrast Ratio | 10000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | None | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Vertical: 50 - 120 Hz

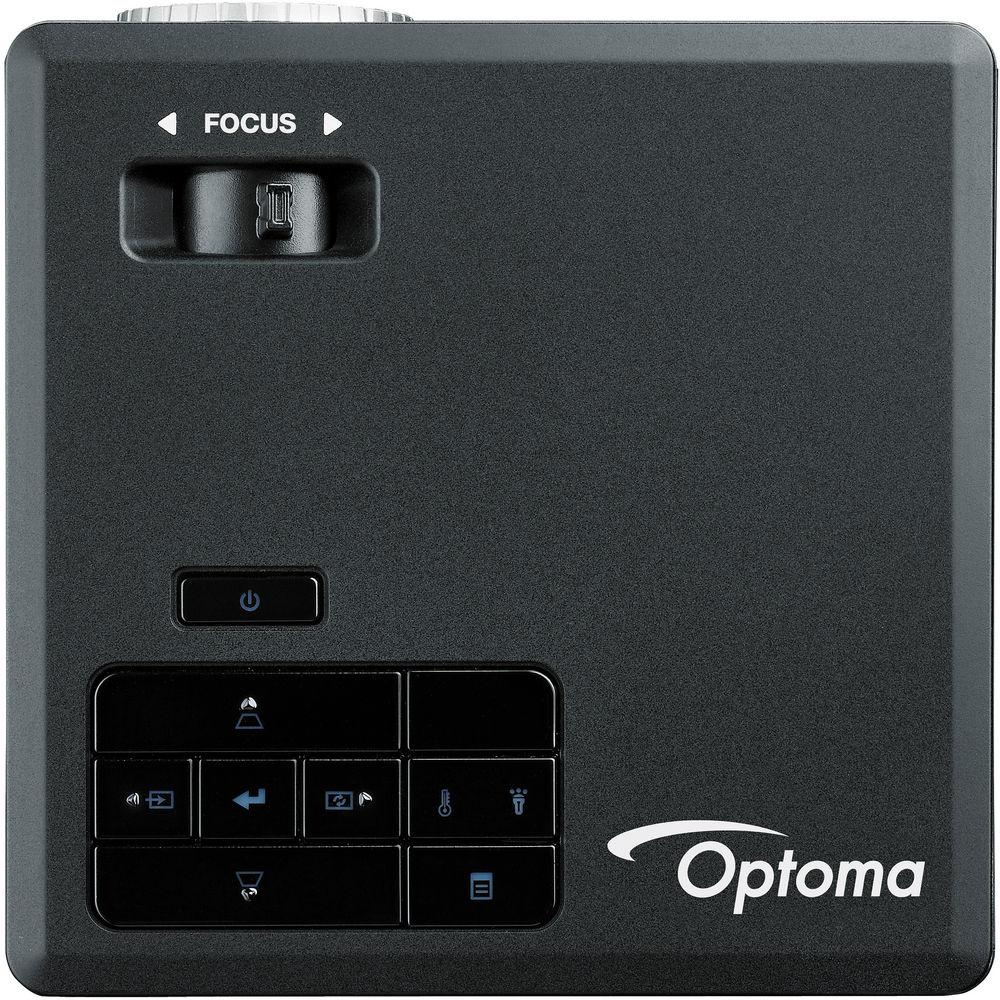

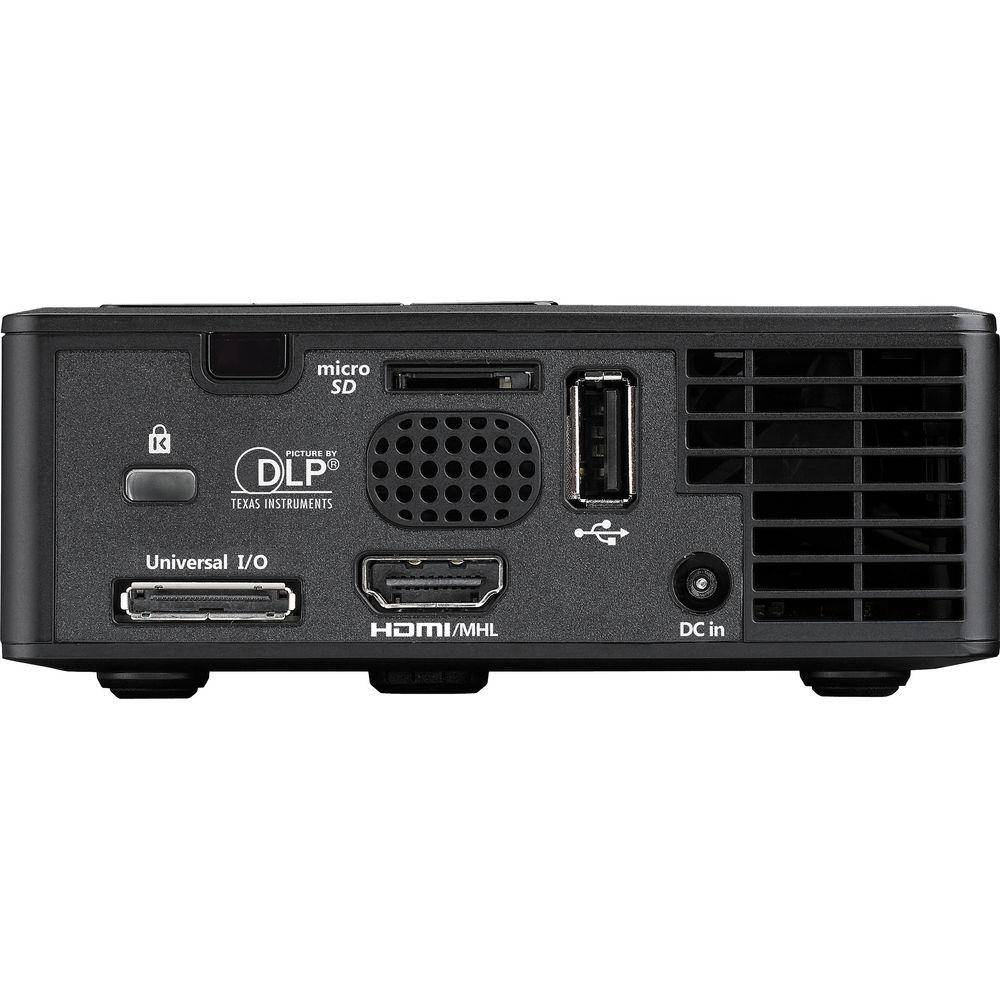

Horizontal: 15 - 100 kHz | | | | Focus | Manual | | Lens | f/2.0 (f = 14.95 mm) | | Optical Zoom | 1.7x | | Throw Distance | 1.8 - 10.6' / 0.549 - 3.231 m | | Throw Ratio | 1.5:1 | | Projection Size | 17 - 100" / 43.18 - 254.00 cm | | | | Keystone Correction | Auto-Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x USB Audio/Video (Input)
1 x 24-pin Universal Port Audio/Video (Input/Output) | | Memory Card Slot | 1 x microSD (Unspecified Type) | | Internal Storage | 1.5GB | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 30 dB | | Security | Cable Lock Slot | | Supported Audio File Types | AAC, MP3, RM, WAV, WMA | | Supported Document File Types | DAT, DOC, PDF, PPT, XLS | | Supported Photo File Types | BMP, JPEG | | Supported Video File Types | AVI, DivX, MKV, MOV, MP4, MPEG, RMVB, TS, WMV | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 62 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 4.1 x 1.5 x 4.2" / 104.1 x 38.1 x 106.7 mm | | Weight | 14.1 oz / 399.7 g projector
5.1 oz / 144.6 g power adapter | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 11.1 x 10.7 x 3.8" |
