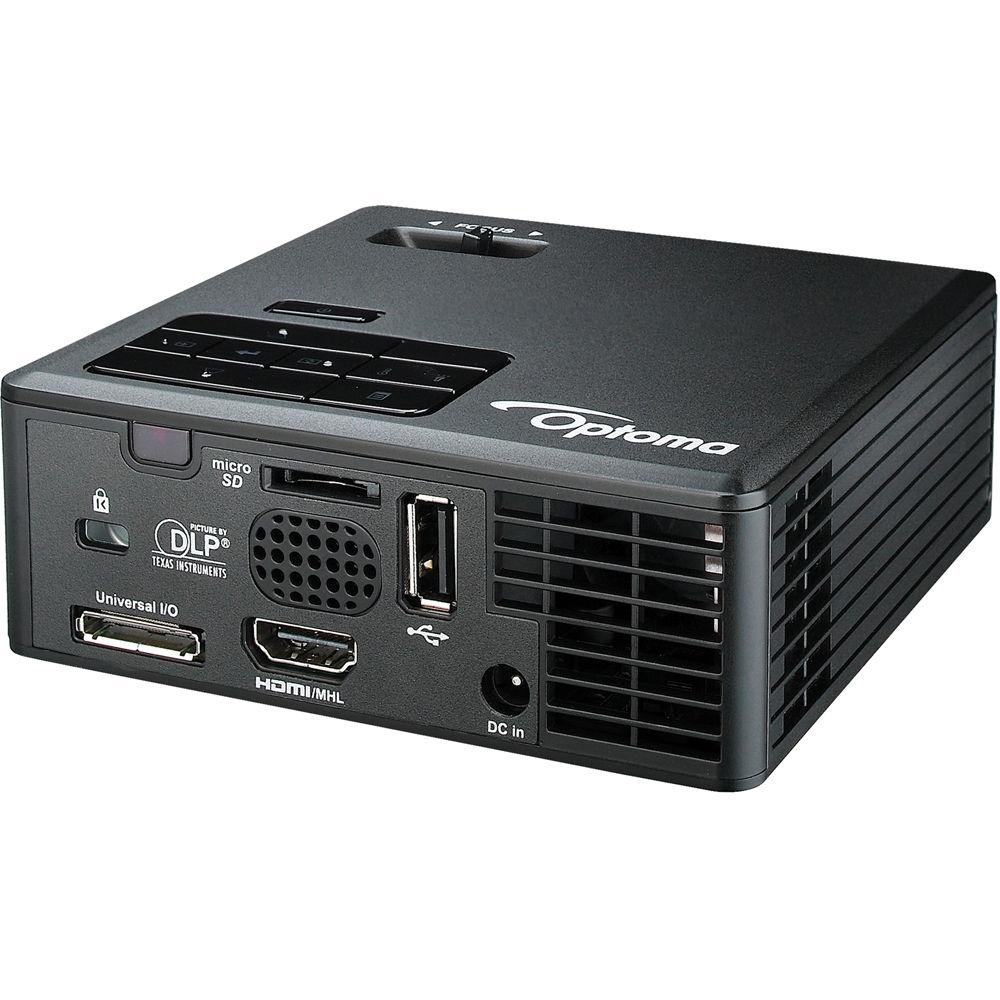

User Manual for Optoma Technology ML750 WXGA LED DLP 3D Ready Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology ML750 WXGA LED DLP
- Product category: Pico Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Pico Projectors
 |
User manual for the Optoma Technology ML750 WXGA LED DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

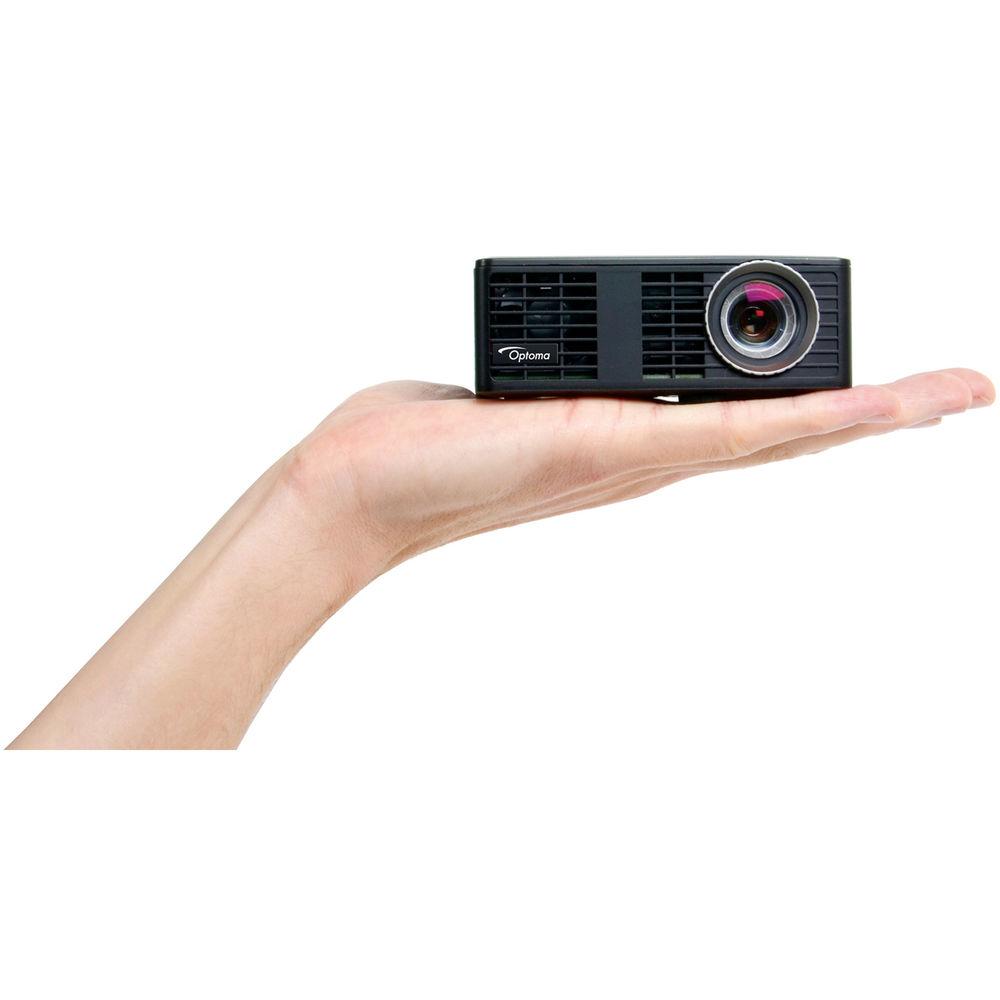

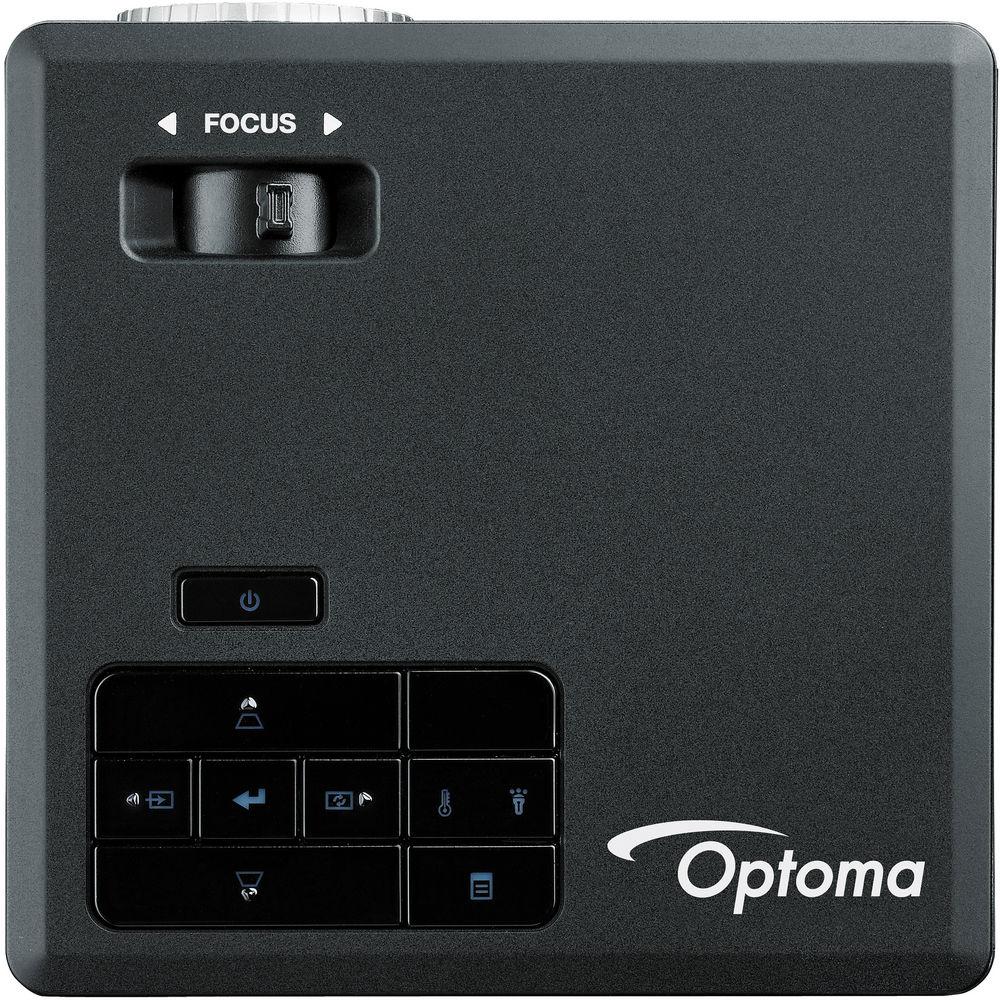

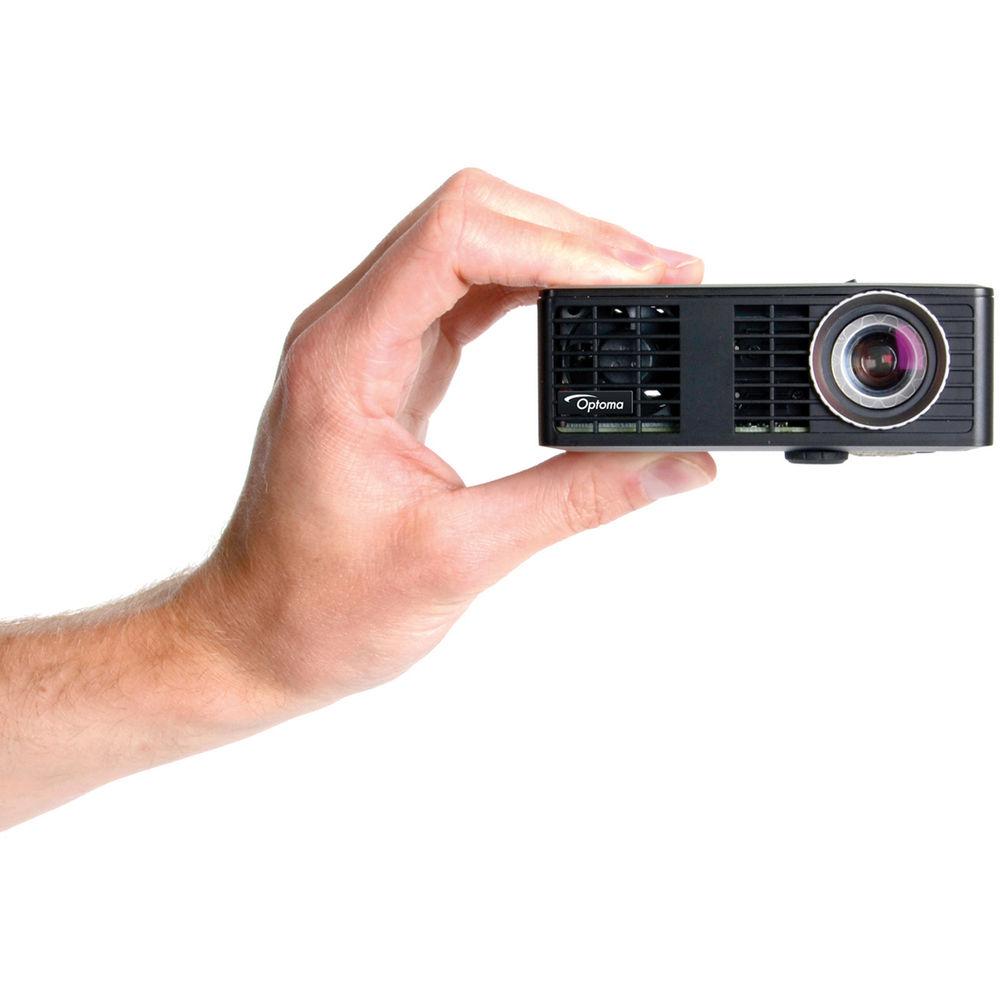

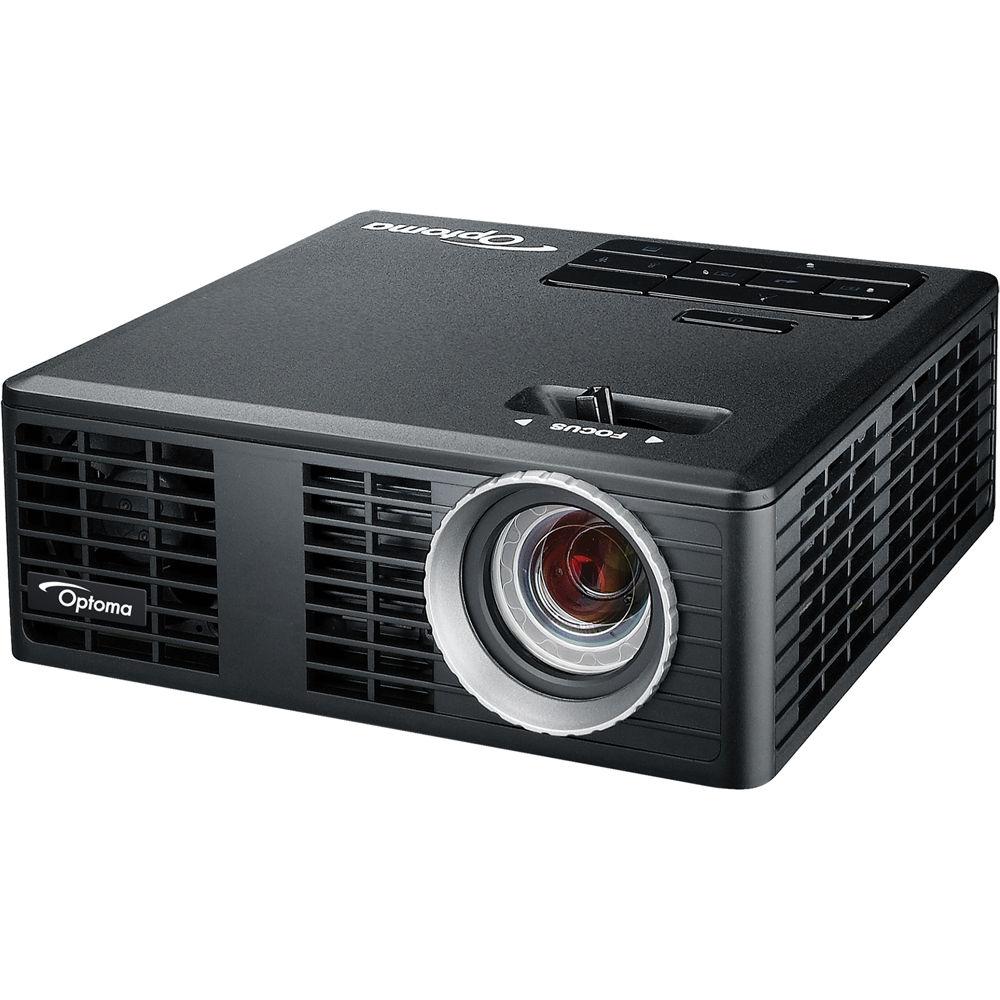

Product description The portable Optoma ML750 WXGA LED DLP 3D Ready Projector delivers 700 lumens of brightness with a sharp 10,000:1 contrast ratio. It features WXGA 1280 x 800 widescreen resolution and can project up to a 100" diagonal 2D or 3D image. The ML750 is powered by a DMD DLP chip system and its LED light source features a long lifespan of 20,000+ hours. This means you'll save money because there are no traditional projector lamps to buy or replace. LEDs are also more energy efficient and they produce less heat. This model provides multiple connectivity options including HDMI and VGA via a 24-pin universal port. Plus, you can display from your mobile device thanks to the MHL connectivity through HDMI. The ML750 supports PC-less presenting via USB, microSD or 1.5GB internal memory. These three options support a variety of file formats including audio, video, photo, PowerPoint, Excel and Word files/documents. The projector has a built-in 1W mono speaker as well. Other features include a low standby power consumption level that's less than 1W and a complete on-screen menu that supports adjustments in 16 different languages. This projector even affords wireless presenting, although the optional wireless adapter is required. - Compact and lightweight design for better portability
- Supports 700 lumens of brightness and a 10,000:1 (full on / full off) contrast ratio
- PC Free presentations with built-in Office Viewer

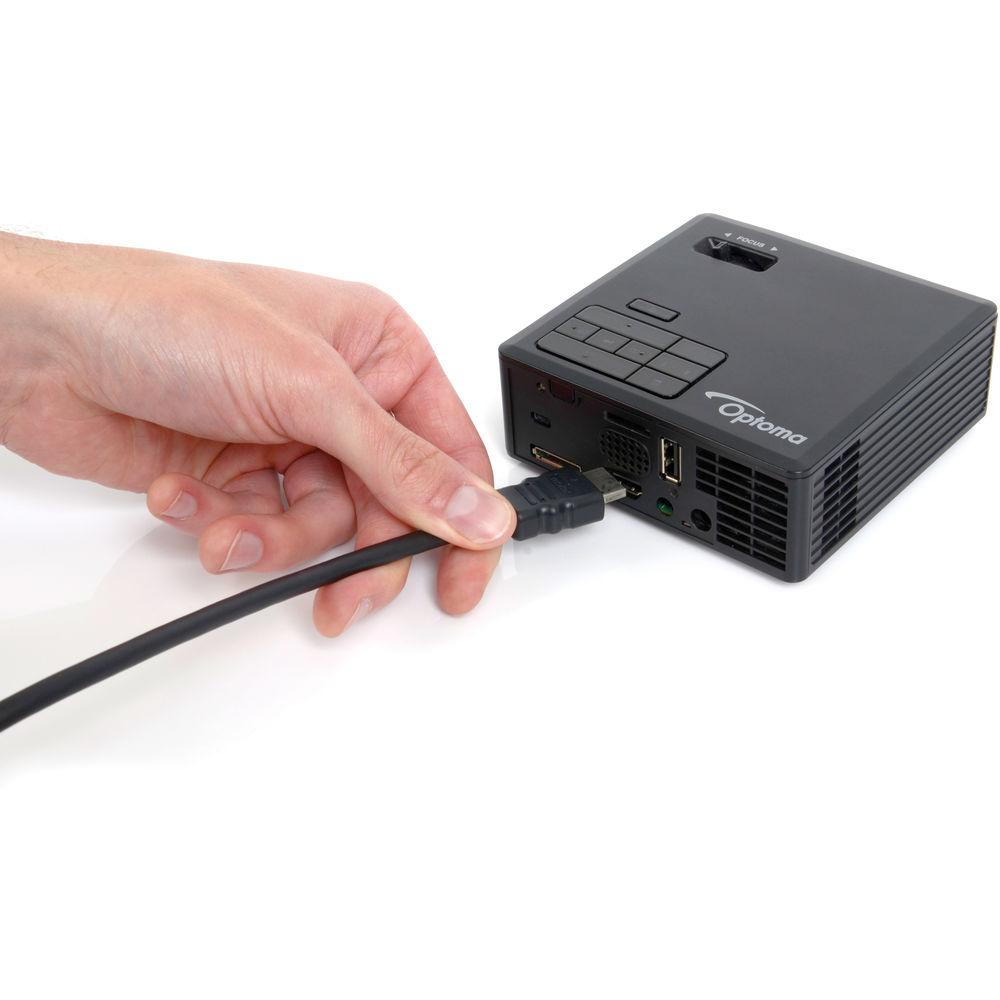

- Present directly from your mobile device via HDMI/MHL connectivity
- Wireless presentation capability via optional adapter
- Powerful LED light source means no lamps to replace
- 3D Ready for an immersive viewing experience (not compatible with 3DXL)
- Supports 120 Hz frame sequential 3D for resolutions up to XGA
- Supports 60 Hz field sequential 3D for resolutions up to 480i
- Complete on-screen menu with adjustments in 16 languages
- Universal power supply is auto-switching
- Texas Instruments DLP display technology
- Supports BrilliantColor technology
- Display documents, photos and movies via USB or microSD card

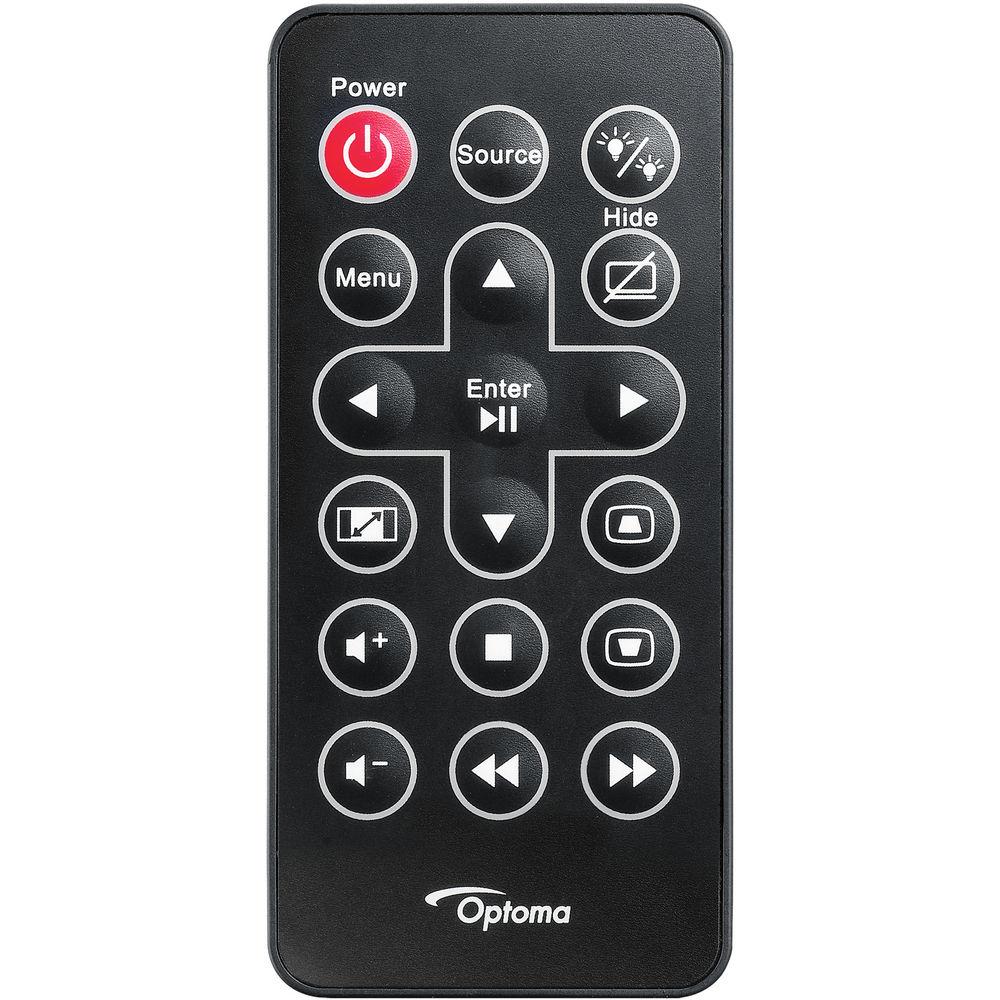

UPC: 796435419035 In the Box Optoma Technology ML750 WXGA LED DLP 3D Ready Projector Remote Control Battery (for Remote) AC Power Adapter Power Cord Universal to VGA Cable Carrying Case 1-Year Limited Warranty User Manual PDF 8.6mb More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology ML750 WXGA LED DLP 3D Ready Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology ML750 Specs | | | Display System | 1-Chip 0.45" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
WXGA - 1280 x 800
WXGA+ - 1440 x 900
WSXGA+ - 1680 x 1050
Full HD 1080p - 1920 x 1080 | | Max Brightness | 700 Lumens | | Uniformity | >85% | | Offset | 100% ± 0% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Contrast Ratio | 10000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | None | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Vertical: 50 - 120 Hz

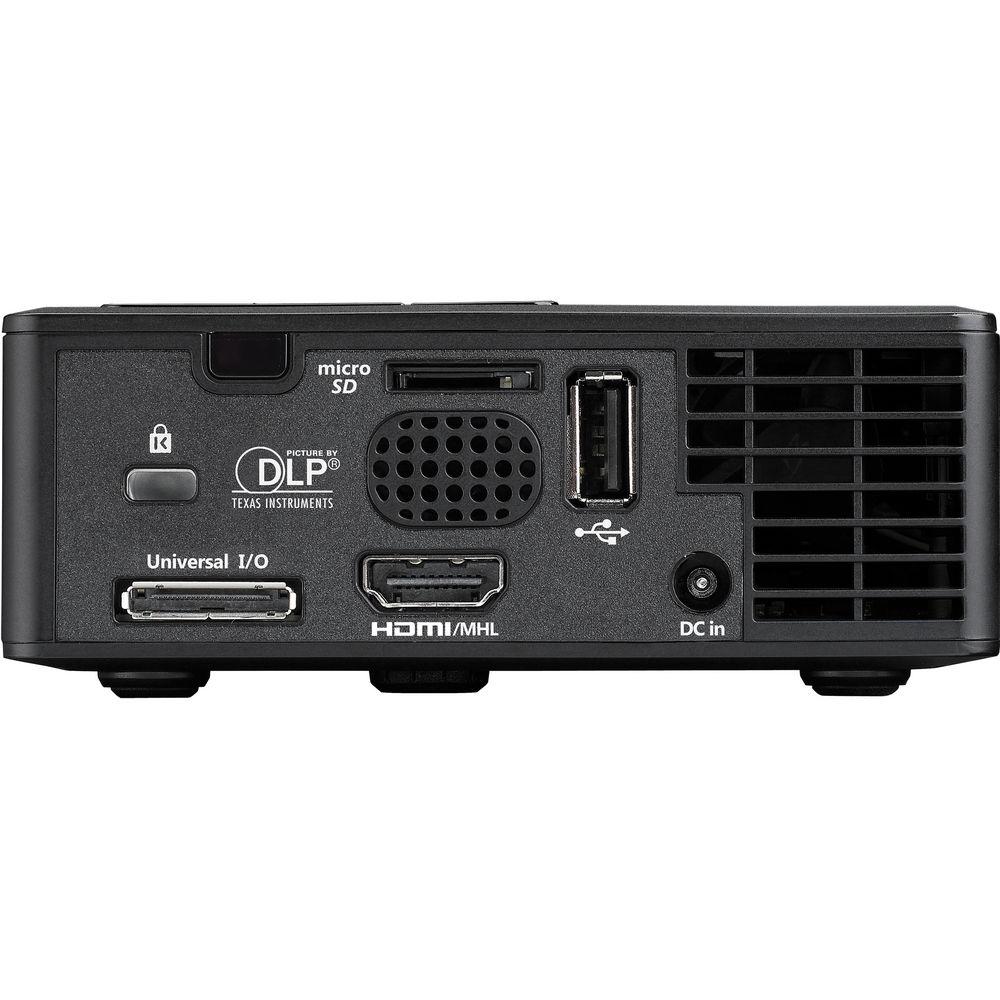

Horizontal: 15 - 100 kHz | | | | Lens | f/2.0 (f = 14.95 mm) | | Optical Zoom | 1.7x | | Throw Distance | 1.8 - 10.6' / 0.549 - 3.231 m | | Throw Ratio | 1.5:1 | | Projection Size | 17 - 100" / 43.18 - 254.00 cm | | | | Keystone Correction | Auto-Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x 24-pin Universal Port Video (Input)
1 x USB Type-A Female (Input) | | Memory Card Slot | 1 x microSD (Unspecified Type) | | Internal Storage | 1.5GB | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 30 dB | | Security | Cable Lock Slot | | Supported Audio File Types | AAC, MP3, RM, WAV, WMA | | Supported Document File Types | DAT, DOC, PDF, PPT, XLS | | Supported Photo File Types | BMP, JPEG | | Supported Video File Types | AVI, DivX, MKV, MOV, MP4, MPEG, RMVB, TS, WMV | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 62 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 4.1 x 1.5 x 4.2" / 104.1 x 38.1 x 106.7 mm | | Weight | 14.1 oz / 399.7 g projector
5.1 oz / 144.6 g power adapter | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 11.0 x 10.7 x 3.3" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
