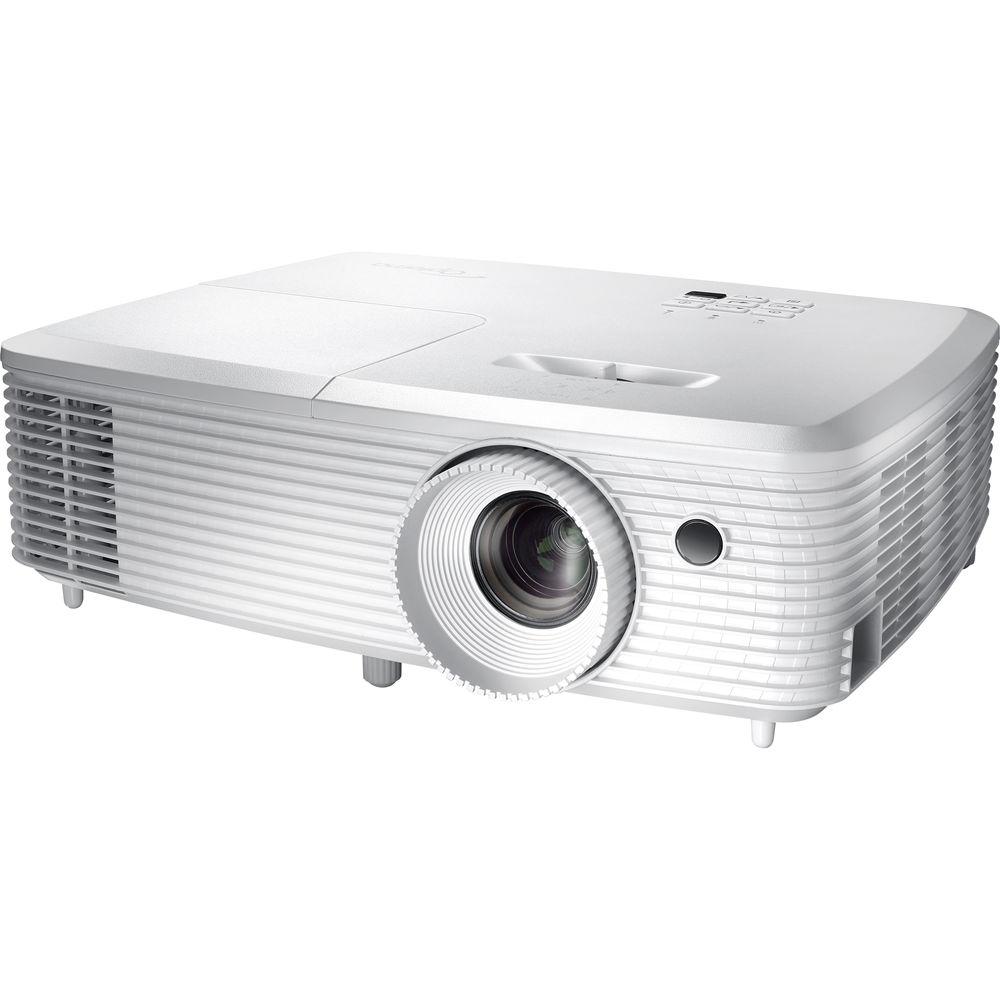

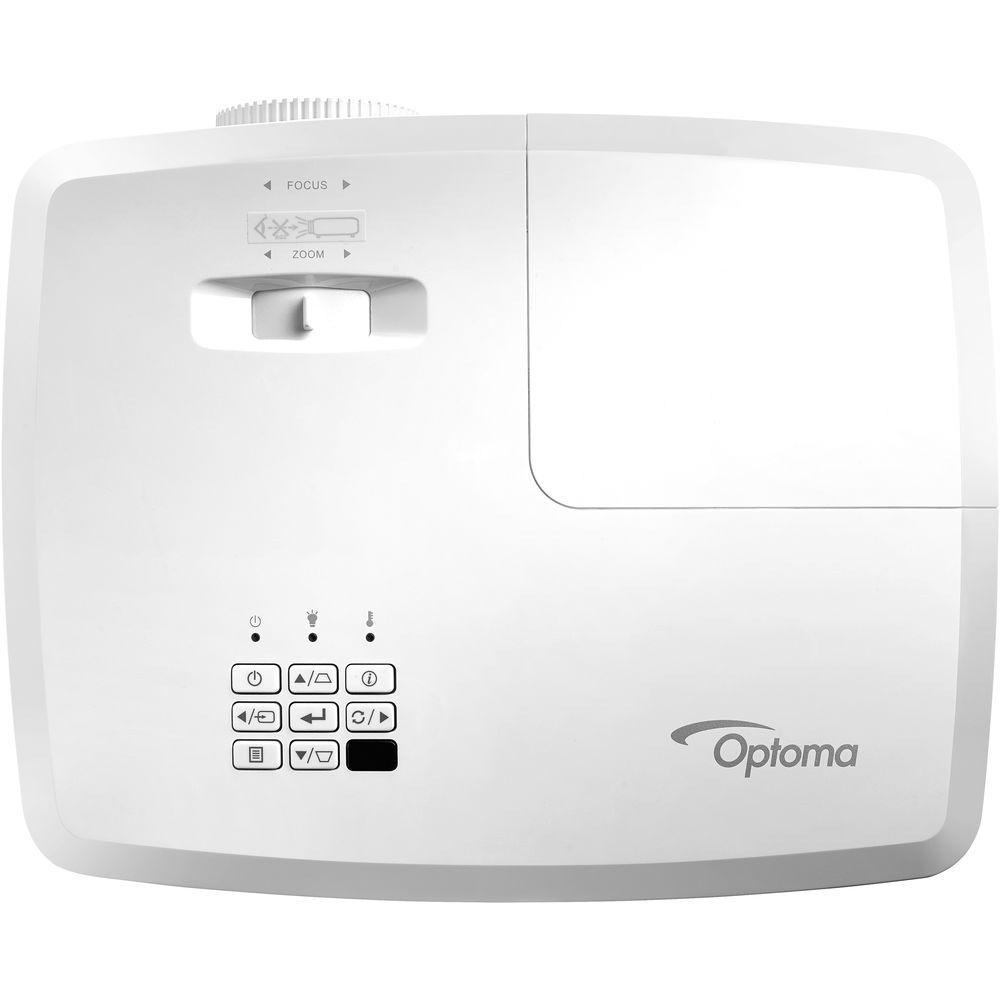

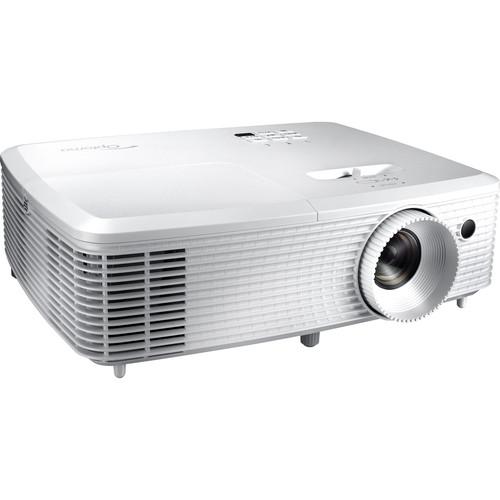

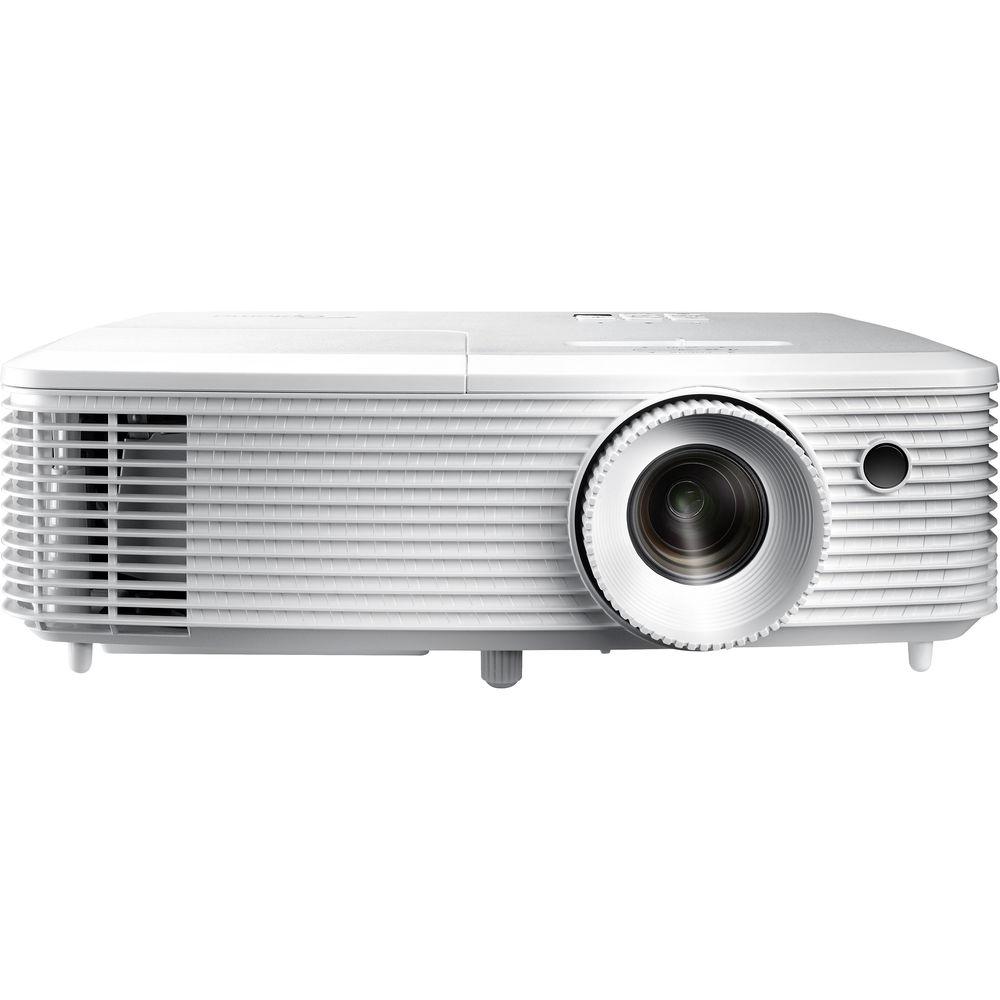

User Manual for Optoma Technology S365 3600-Lumen SVGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology S365 3600-Lumen SVGA DLP
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology S365 3600-Lumen SVGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

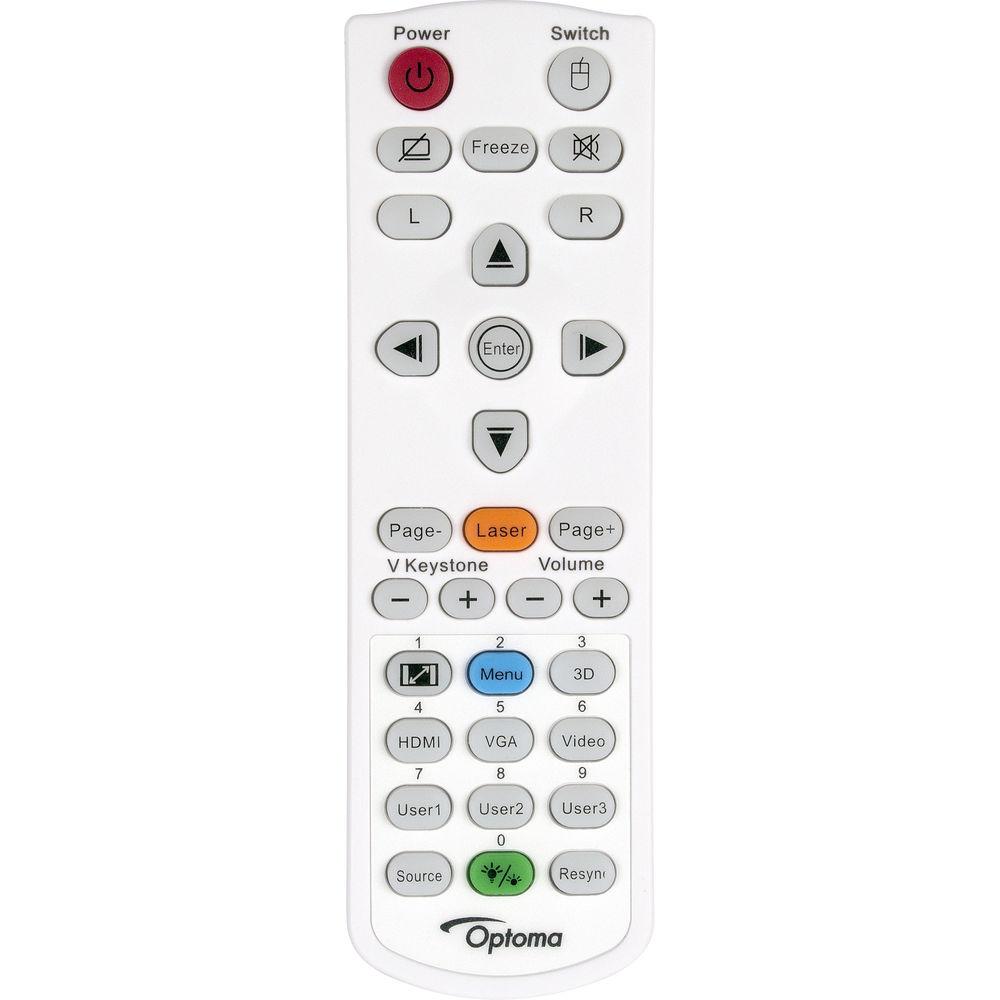

Product description Enjoy bright images and high dynamic contrast with the Optoma S365 3600-Lumen SVGA DLP Projector. Its native 800 x 600 resolution displays data clearly at various viewing distances, while its 1.95 to 2.15:1 throw ratio allows you to place the projector far from the screen without losing focus. The S365 features VGA, RCA composite video, and two HDMI inputs for connecting different types of devices; one HDMI input is MHL-compatible for wired connection of your compatible mobile device. The projector includes a carrying case and an IR remote control with a built-in laser pointer for added convenience. - SVGA (800 x 600) projection with 3600 lumens of brightness and a 22,000:1 dynamic contrast ratio
- HDMI, VGA, composite video, and 1/8" audio inputs with an 1/8" audio output
- Computer-free presentations and images – network and USB display for wired screen mirroring from your Windows or Mac computer or Android or iOS device
- Integrated 15W speaker enhances presentations and multimedia with sound
- USB Display Mode enables screen mirroring when connecting iOS and Android devices
- Designed for minimal maintenance with up to a 10,000-hour lamp life
- Optional HDCast Pro enables wireless mirroring and streaming
- Maximum of ±0.5% keystone distortion
UPC: 796435441906 In the Box Optoma Technology S365 3600-Lumen SVGA DLP Projector Remote Control with Batteries Carrying Case AC Power Cord Limited 1-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology S365 3600-Lumen SVGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology S365 Specs | | | Display System | 0.55" DC3 DMD DLP | | Native Chip Resolution | 800 x 600 (SVGA) | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 | | Max Brightness | 3600 Lumens | | Uniformity | 80% | | Offset | 115% ± 5% | | Aspect Ratio | Native: 4:3
Supported: 16:9 | | Dynamic Contrast Ratio | 22,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 720p)
Top Bottom (up to 720p) | | Color Wheel | 6-Segment (R, G, B, W, Y, C) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 25 to 85 Hz or 120 Hz
Vertical: 15 to 91 kHz | | | | Focus | Manual | | Lens | f/2.41 - 2.53 (f = 21.85 - 24.01 mm) | | Optical Zoom | 1.1x | | Throw Distance | 3.93 - 43.35' / 1.198 - 13.213 m | | Throw Ratio | 1.95 - 2.15:1 | | Projection Size | 27.34 - 304.5" / 69.44 - 773.43 cm | | | | Keystone Correction | Vertical: ± 20°

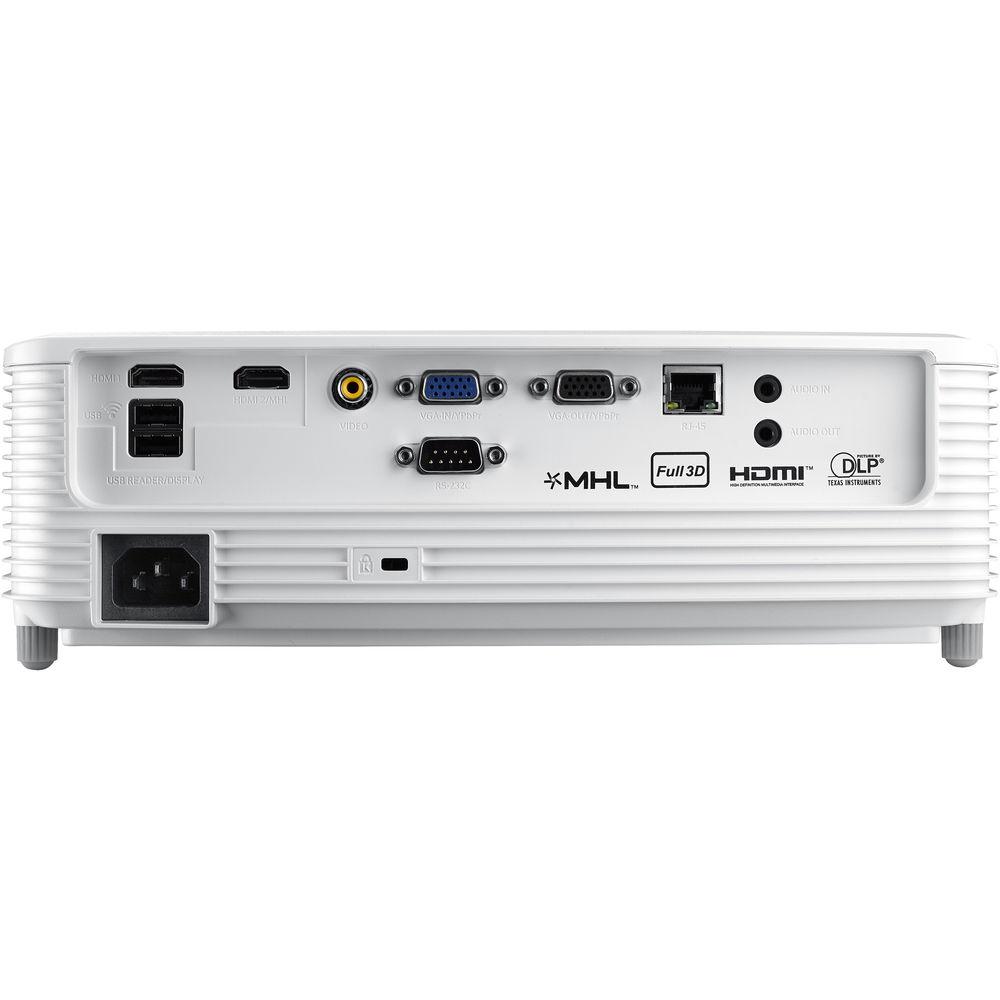

Auto-Horizontal: ± 20° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 15W | | | | Inputs/Outputs | 1 x HDMI with MHL Support Audio/Video (Input)
1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input/Output)
1 x USB LAN (Input)
1 x USB Audio/Video, Data, Power (Input/Output)
1 x USB Service (Input)
1 x 12 V Trigger Control (Output)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 195 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Medium Brightness: 6000 Hours
Medium Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 31 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Document File Types | DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX | | Supported Photo File Types | BMP, GIF, JPEG | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 294 W
Low Brightness: 228 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 11.7 x 3.8 x 9.1" / 29.7 x 9.7 x 23.1 cm | | Weight | 5.51 lb / 2.50 kg | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 15.6 x 11.0 x 6.4" |
