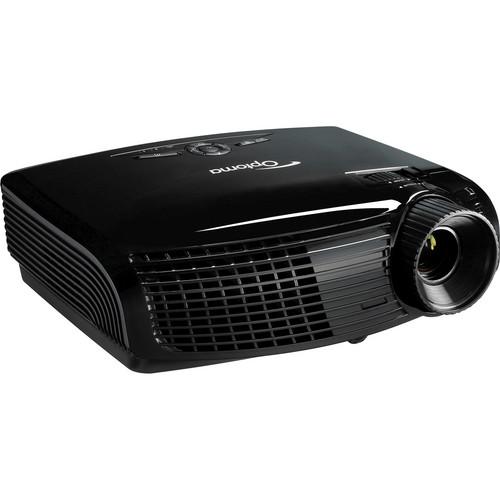

User Manual for Optoma Technology TH1020 HD 1080p DLP Projector - Refurbished Click to enlarge the picture
Contents of the user manual for the Optoma Technology TH1020 HD 1080p DLP
- Product category: Uncategorized Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Uncategorized
 |
User manual for the Optoma Technology TH1020 HD 1080p DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description The Optoma TH1020 HD 1080p DLP Projector is an ideal choice to meet both the rigors of business use and the demands of discerning home theater enthusiasts. Quality starts with the 1080p resolution, a perfect mate for digital sources like Blu-ray or fast-action games. The projector packs a powerful 3,000 ANSI lumens of brightness backed with a crisp 2,200:1 contrast ratio, enough to meet most ambient light challenges or leave the lights on for note-taking. Texas Instruments' patented DLP imager features an innovation it calls BrilliantColor. Unlike other technologies such as LCD that use just three primary colors to produce the image, DLP technology with BrilliantColor uses up to six separate colors. BrilliantColor not only improves color accuracy, it brightens secondary colors as well. This combination increases the brightness of the colors by up to 50 percent over DLP projectors without BrilliantColor for accurate, true-to-life images But the TH1020 can do a lot more than make beautiful pictures. Weighing in at 6.4 lb, there's a chance it may do some traveling and it won't have to be limited to domestic flights. It's got an international auto switching 100 - 240 volt 50 / 60 Hz power supply that draws 339W which drops to a single watt in Standby mode. The TH1020 can also project video in the NTSC, PAL and SECAM international video standards and has a multi-language OSD to facilitate operation. Optoma has built extensive connectivity into the TH1020 including HDMI, Composite, VGA, S-video and a monitor loop through which functions in both Standby and Normal modes. Lastly, to make sure that your TH1020 doesn't take unauthorized leave of the premises, security is provided by timer and password protection as well as a Kensington Lock slot. - Native 1,920 x 1,080 resolution is the highest digital standard available and a perfect match to your Blu-ray player
- Bright images and high contrast ratio - 3,000 ANSI lumens and 2,200:1 contrast ratio
- Optoma's proprietary BrilliantColor uses six colors to produce the image rather that the customary three, increasing color brightness up to 50%
- Extensive connectivity includes HDMI, VGA, Composite, S-video and USB
- Rapid power-on and shutdown - saves you time and money
- Filter-free design means low cost of ownership
- Protect your investment - control panel lock and password protection allow you to customize security settings

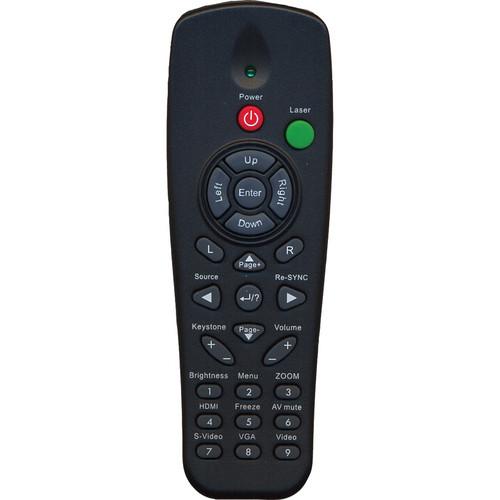

- Presentation-friendly IR remote with USB mouse function and laser pointer
- Environment-friendly: consumes 1W of power in Standby mode
- Includes Closed Captioning for noisy environments and the hearing-impaired
UPC: 796435421397 In the Box Optoma Technology TH1020 HD 1080p DLP Projector AC Power Cord VGA to VGA Cable Remote Control Unit with Batteries Carrying Case Lens Cap Multilingual CD-ROM User's Manual Quick Start Guide 90-Day Manufacture Warranty User Manual PDF 15.7mbyeraeabfeavtxcxtfczbfucu Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology TH1020 HD 1080p DLP Projector - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology EPTH1020RFBA Specs | | | Display System | -Chip 0.65" DLP | | Native Chip Resolution | 1920 x 1080 (WUXGA) | | Supported Resolutions | Full HD 1080p - 1920 x 1080
UXGA
WXGA
SXGA+
SXGA
XGA
SVGA
VGA | | Max Brightness | 3000 Lumens | | Uniformity | 85% | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Contrast Ratio | 2200:1 | | DLP Link 3D | None | | Scan | Horizontal: 15.3 to 91.1 kHz

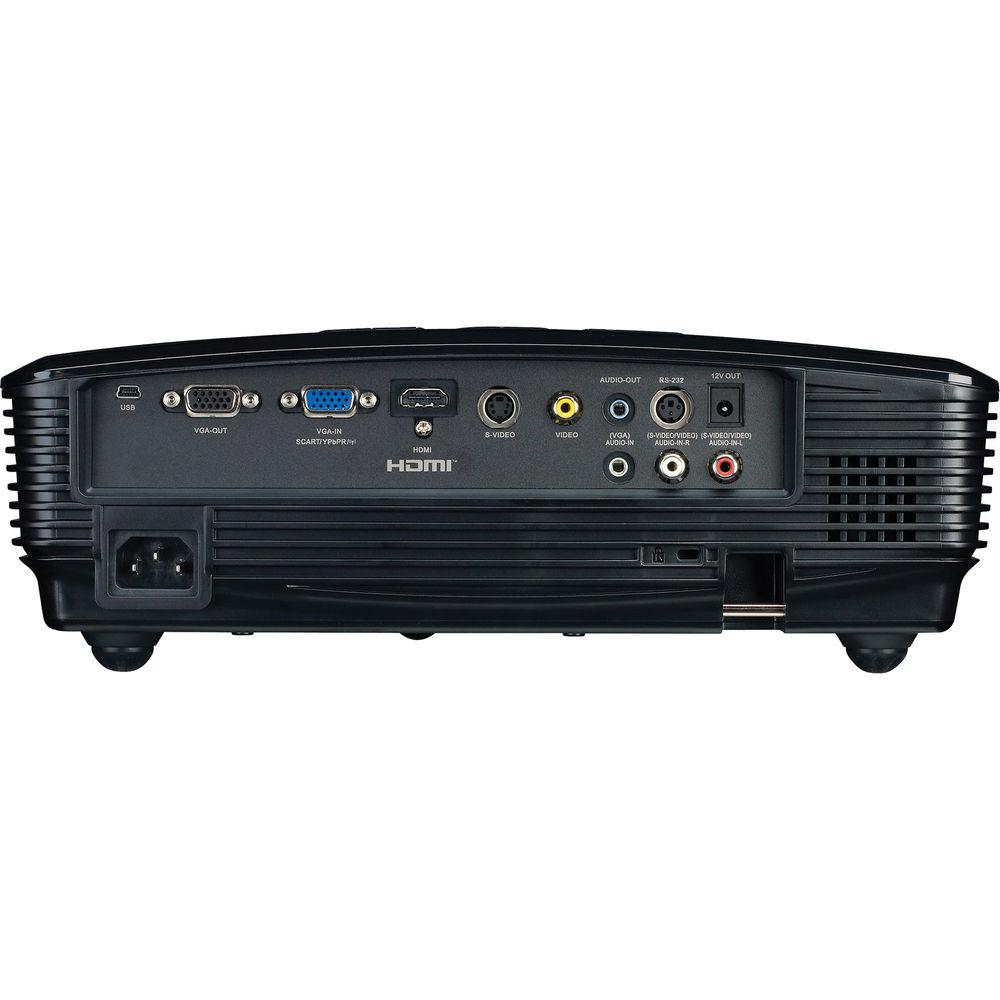

Vertical: 25 to 85 Hz | | | | Lens | f/2.5 - 2.87 (f = 22.41 - 26.82 mm) | | Lens Shift | None | | Throw Distance | 5 - 32.8' / 1.524 - 9.997 m | | Throw Ratio | 1.5 - 1.8:1 | | Projection Size | 37.6 - 301.1" / 955.04 - 7647.94 mm | | | | Keystone Correction | Vertical: ± 20° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control/Service (Input)
1 x USB Type-B Female (Input)
1 x 1/8" (3.5 mm) Mini Control
1 x VGA (DE-15) Video
1 x 12 V Trigger Control | | | | Lamp Power | 230 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Full Brightness: 2000 Hours | | Fan Noise | Medium Brightness: 28 dB
Full Brightness: 30 dB | | Security | Cable Lock Slot
Padlock
Password Protection | | Power Consumption | Full Brightness: 339 W
Medium Brightness: 281 W
Standby Mode (Lamp Off): <1 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 12.8 x 3.8 x 9.2" / 32.5 x 9.7 x 23.4 cm | | Weight | 6.4 lb / 2.90 kg | | | | Package Weight | 10.1 lb | | Box Dimensions (LxWxH) | 19.2 x 13.0 x 7.3" |
