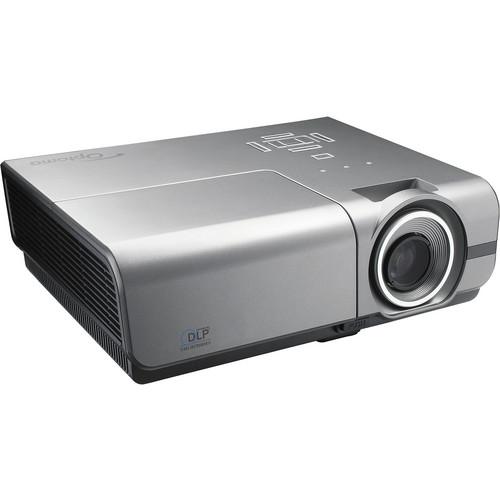

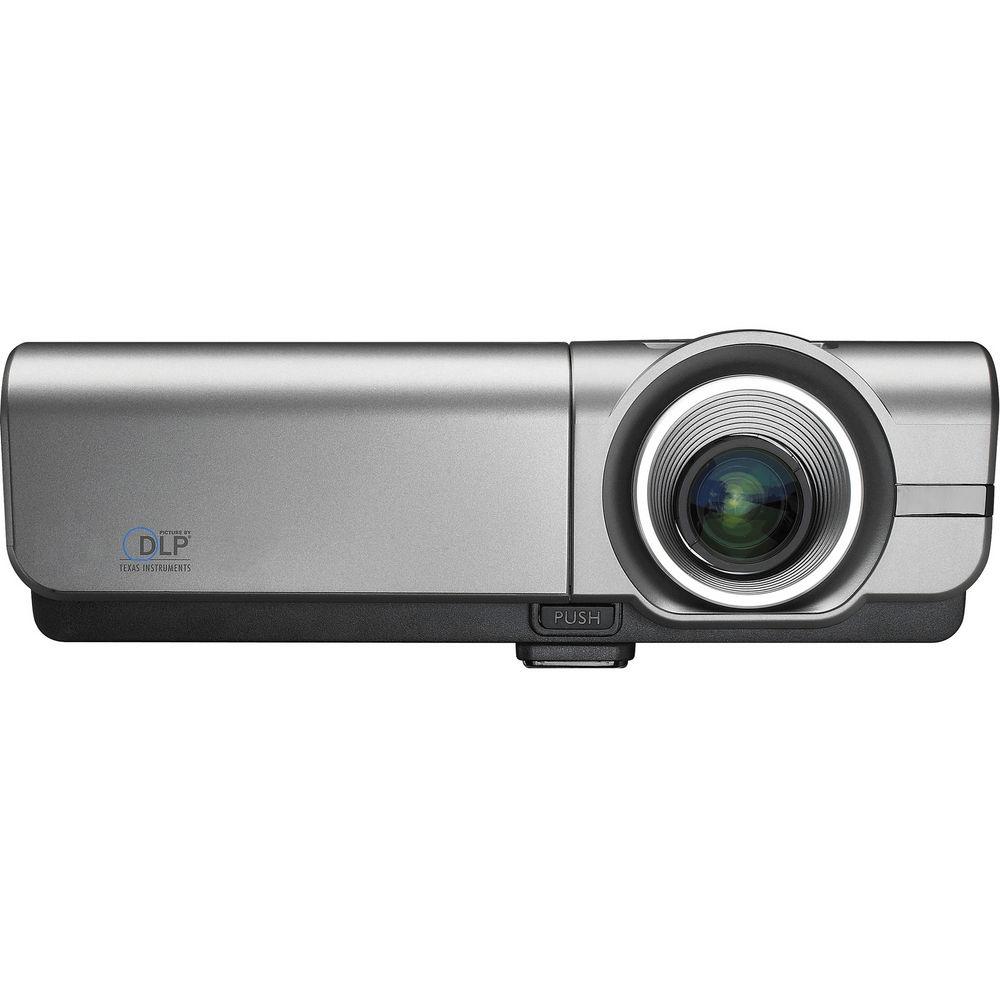

User Manual for Optoma Technology TH1060P HD DLP Projector - Refurbished Click to enlarge the picture
Contents of the user manual for the Optoma Technology TH1060P HD DLP Projector
- Product category: Uncategorized Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Uncategorized
 |
User manual for the Optoma Technology TH1060P HD DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description The Optoma TH1060P HD DLP Projector packs a lot of advanced features backed with strong specs and cutting-edge technology into a surprisingly affordable package. Its 4500 lumens of projection power combined with its 2500:1 contrast ratio and HD (1920 x 1080) resolution means it will provide a tack-sharp, vivid image in medium to large rooms and even those with high ambient light challenges. Another of the TH1060P's key features is its Texas Instruments DMD DLP chip. This 0.65" chip processes not just the three primary colors (red, green and blue), that all other chips work on but also their complements: cyan, magenta and yellow. As a result, colors are so clear and lifelike that Texas Instruments calls its latest version of the technology "BrilliantColor". DLP chips with BrilliantColor increase the brightness of colors by 50 percent vs. DLP chips without it. An added advantage of this chip is that it requires no filter that has to be periodically cleaned and replaced, an operation that can be risky in ceiling mounted installations. The projector's wide connectivity includes two HDMI, RS-232 and USB for mouse control, as well as monitor loop-through. An RJ-45 connector is also included for control of the projector or several of them, remotely over a network. And it's compatible with Creston RoomView technology which adds a wide variety of network controls. As far as audio is concerned, the 3W sound system is sufficient enough. The TH1060P is world-ready thanks to its auto-switching 100 - 240 V AC power supply and compatibility with NTSC, PAL and SECAM color systems. It's also compatible with PC and Mac resolution and frequency combinations so it's ideal for laptop-based business presentations. Additionally, closed captioning is on board for noisy environments or for the hearing-impaired. Lastly, once you've gotten used to the TH1060P's advanced features you wouldn't want it to take an unannounced leave of the premises. There's a Kensington lock, password protection and a security bar to prevent that from happening. - HD Native (1920 x 1080) DLP by Texas Instruments with BrilliantColor Technology
- Bright images and high contrast ratio - 4500 ANSI lumens and 2500:1 contrast ratio (full on/full off)
- Presentation-friendly IR remote with USB mouse function and laser pointer
- Crestron RoomView for projector management and control via RJ-45 connection
- Environment-friendly - consumes <1W of power in standby mode
- Includes closed captioning
- Bright enough for use in large conference rooms and classrooms, the Optoma TH1060P includes a wide range of analog and digital connectivity options for your high-resolution sources
UPC: 796435421830 In the Box Optoma Technology TH1060P HD DLP Projector AC Power Cord VGA to VGA Cable Remote Control with Batteries Carrying Case Lens Cap Multilingual CD-ROM User's Manual Quick Start Card 90-Day Manufacture Warranty User Manual PDF 10.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology TH1060P HD DLP Projector - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology EPTH1060PRFBA Specs | | | Display System | -Chip 0.65" DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | UXGA
WXGA
SXGA+
SXGA
XGA
SVGA
VGA | | Max Brightness | 4500 Lumens | | Uniformity | 85% | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Contrast Ratio | 2500:1 | | DLP Link 3D | None | | Scan | Horizontal: 15 to 90 kHz

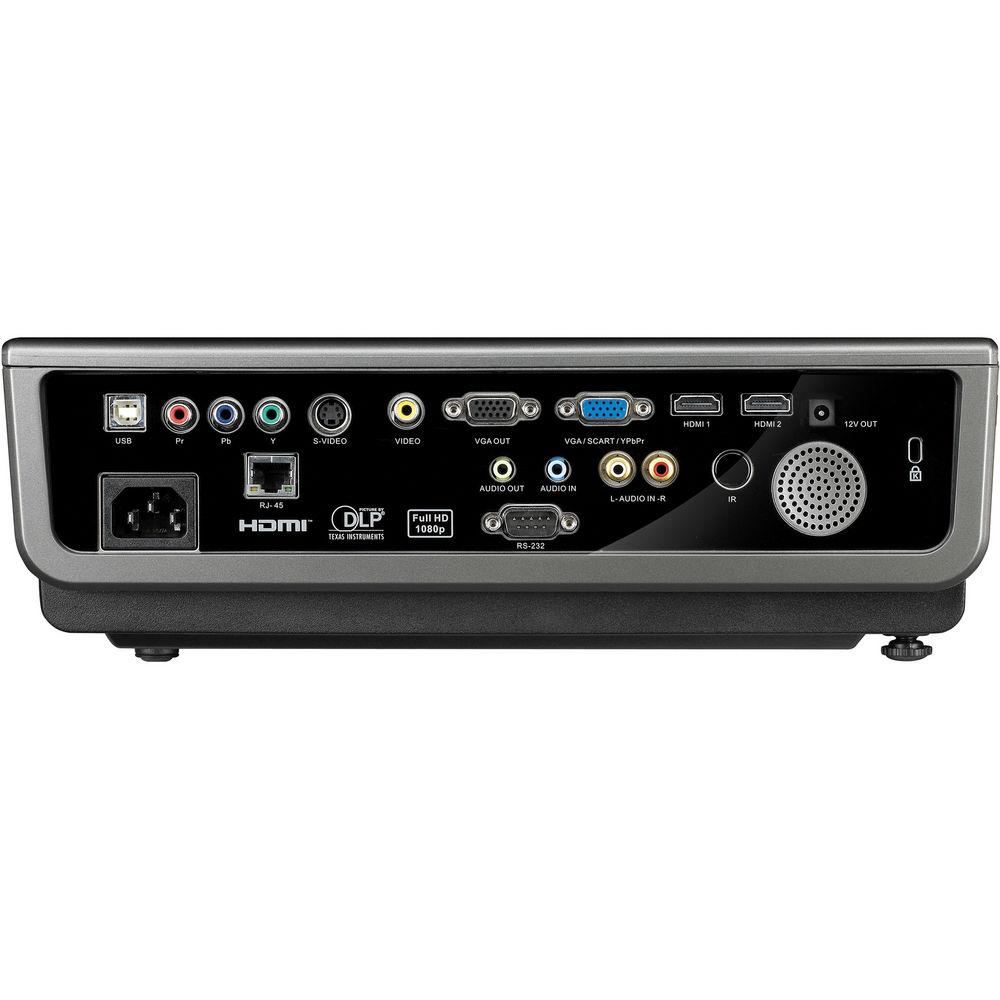

Vertical: 50 to 85 Hz | | | | Lens | f/2.5 - 2.76 (f = 23.5 - 28.2 mm) | | Lens Shift | None | | Throw Distance | 5 - 32.8' / 1.524 - 9.997 m | | Throw Ratio | 1.5 - 1.8:1 | | Projection Size | 23.6 - 300" / 599.44 - 7620.00 mm | | | | Keystone Correction | Vertical: ± 15° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Component (3RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control/Service (Input)
1 x USB Audio/Video (Input)
1 x 12 V Trigger Control | | | | Lamp Power | 300 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Full Brightness: 2000 Hours | | Fan Noise | Medium Brightness: 28 dB
Full Brightness: 30 dB | | Security | Cable Lock Slot
Padlock
Password Protection | | Power Consumption | Full Brightness: 380 W
Medium Brightness: 320 W
Standby Mode (Lamp Off): <1 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 12.8 x 4.3 x 10.2" / 32.5 x 10.9 x 25.9 cm | | Weight | 7.8 lb / 3.5 kg | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 17.5 x 15.0 x 7.9" |
