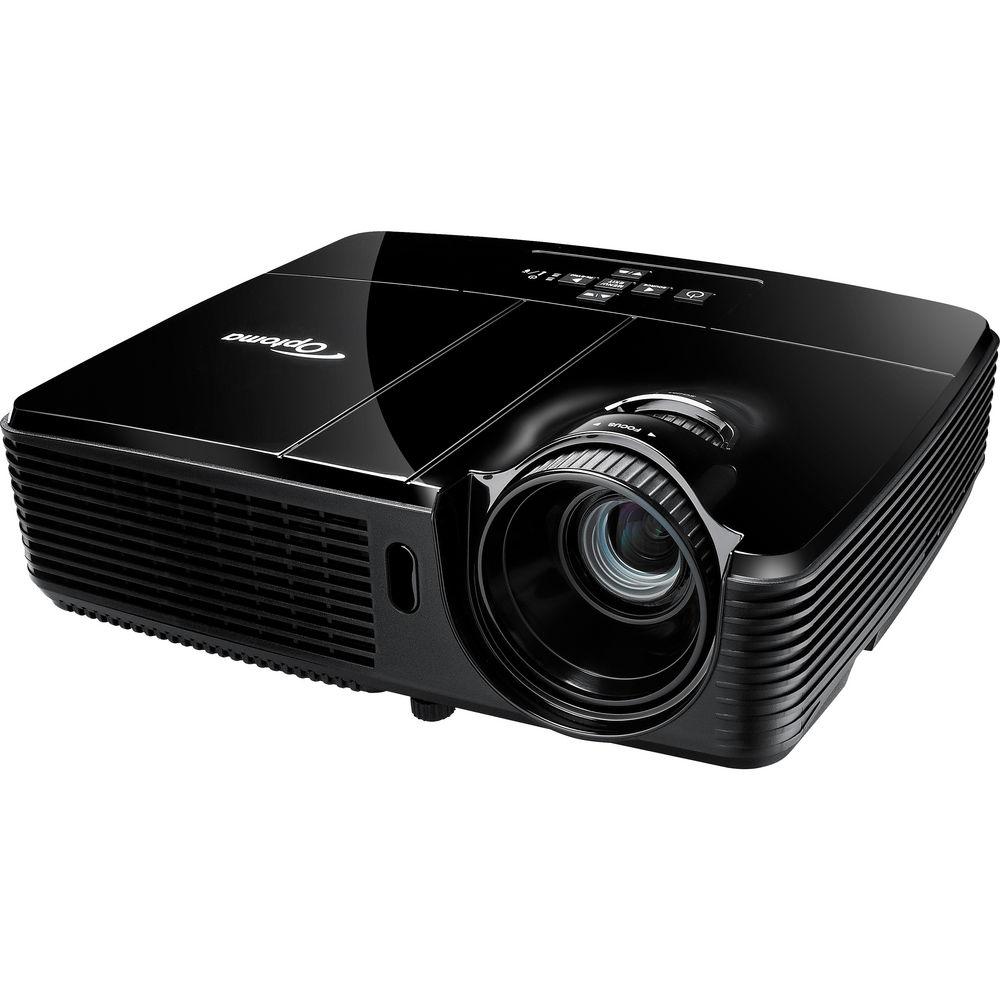

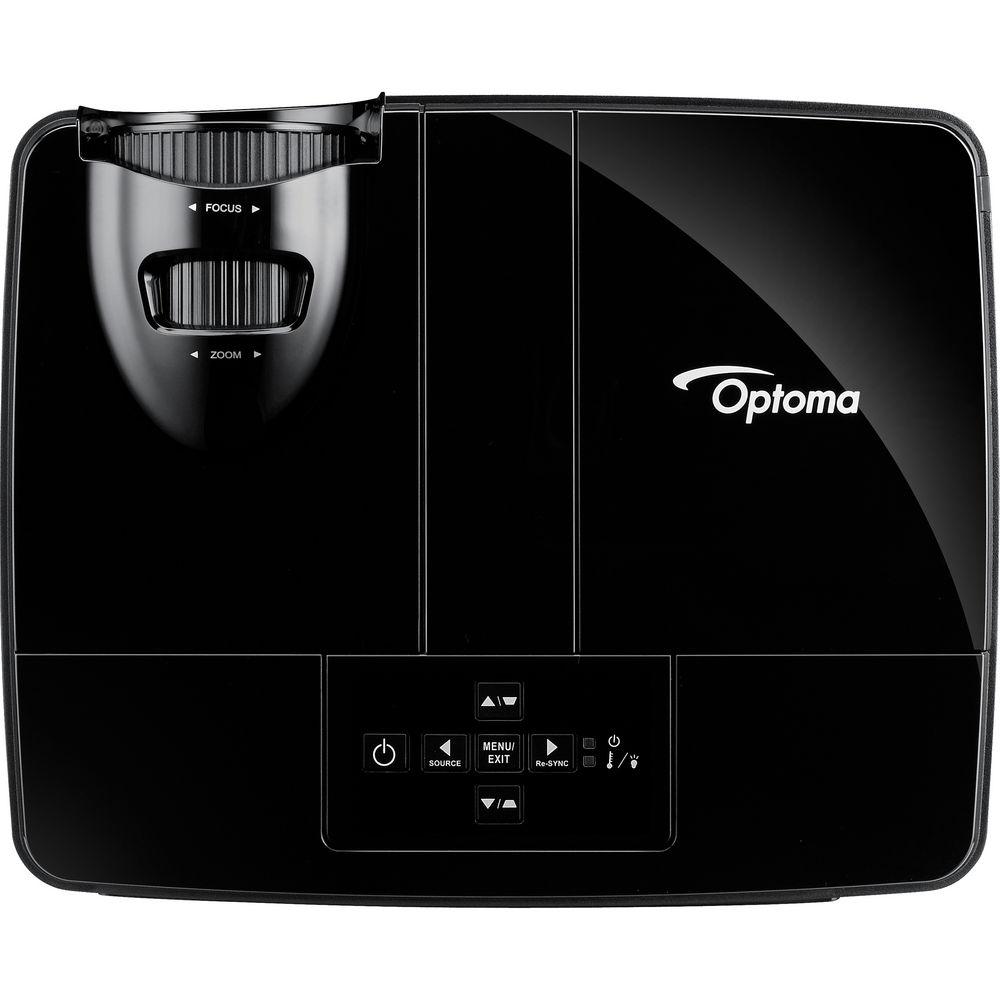

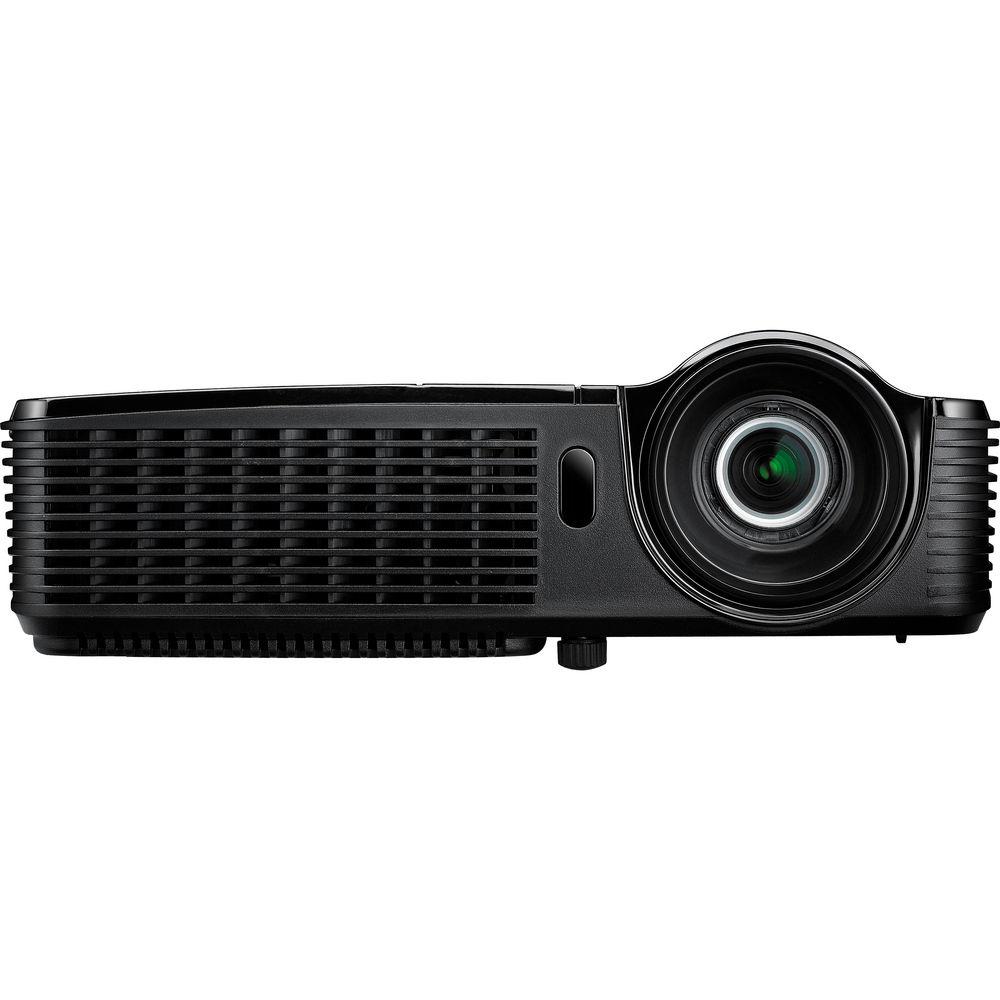

User Manual for Optoma Technology TW631-3D Multimedia Projector - Refurbished Click to enlarge the picture
Contents of the user manual for the Optoma Technology TW631-3D Multimedia Projector -
- Product category: Uncategorized Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Uncategorized
 |
User manual for the Optoma Technology TW631-3D Multimedia Projector - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description The Optoma TW631-3D Multimedia Projector packs a lot of advanced features backed with strong specs and cutting-edge technology into a surprisingly affordable package. Its 3500 lumens of projection power combined with its 10,000:1 contrast ratio and WXGA (1280 x 768) resolution means it will provide a tack-sharp, vivid image in medium to large rooms, even those with high ambient light challenges.Another of the TW631-3D's key features is its Texas Instruments DMD DLP chip. This single 0.65" DC3 DMD DLP processes not just the three primary colors that all other chips work on, (red, green and blue), but also their complements: cyan, magenta and yellow. DLP chips increase the brightness of colors by 50 percent versus DLP chips without it. An added advantage of this chip is that it requires no filter that has to be periodically cleaned and replaced, an operation that can be risky in ceiling mounted installations.The TW631-3D as its name suggests is 3D capable. Thanks to DLP link technology 3D content can be viewed with compatible 3D glasses and a 3D equipped computer. Studies show that viewers retain 3D screened information more than 2D. Imagine adding this immersive element to classes or presentations.The projector's wide connectivity includes HDMI, two VGA inputs, a RS-232 and a USB for mouse control. An RJ-45 connector is also included for control of the projector or several of them, remotely over a network. As far as audio is concerned, the 7W sound system eliminates the need for external speakers in most cases.The TW631-3D is world-ready thanks to its auto-switching 100 to 240 V AC power supply and compatibility with NTSC, PAL and SECAM color systems. It's also compatible with PC and Mac resolution and frequency combinations so it's ideal for laptop-based business presentations.Lastly, once you've gotten used to the TW631-3D's advanced features you wouldn't want it to take an unannounced leave of the premises. There's a control panel lock, password protection and a security bar to prevent that from happening. - Share everything, from lessons to presentations, and deliver superior text and images with the TW631-3D
- 3500 ANSI lumens and a 10,000:1 contrast ratio are just some features of the TW631-3D
- Easily add closed-caption content without installing additional components
- Streamline administration with network control and management via RS-232 or RJ-45 ports
- Create a rich, engaging and vivid viewing experience with 3D capabilities
- A built-in closed captioning decoder displays text from videos that have closed captioning embedded in the signal without requiring additional components
- The TW631-3D provides a lens offset of 112%
In the Box Optoma Technology TW631-3D Multimedia Projector AC Power Cord Remote Control 2 x AAA Batteries VGA to VGA Cable Carrying Case CD-ROM User's Manual Quick Start Card 90-Day Manufacture Warranty User Manual PDF 4.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology TW631-3D Multimedia Projector - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology EPTW6313DRFBA Specs | | | Display System | -Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | UXGA - 1600 x 1200
WXGA - 1280 x 768
SXGA+ - 1400 x 1050
SXGA - 1280 x 1024
XGA - 1024 x 768
SVGA - 800 x 600
VGA - 640 x 480 | | Max Brightness | 3500 Lumens | | Uniformity | 85% | | Aspect Ratio | 4:3
16:9
16:10 | | Contrast Ratio | 10000:1 | | DLP Link 3D | Yes | | Scan | Horizontal: 15.3 to 91.1 kHz

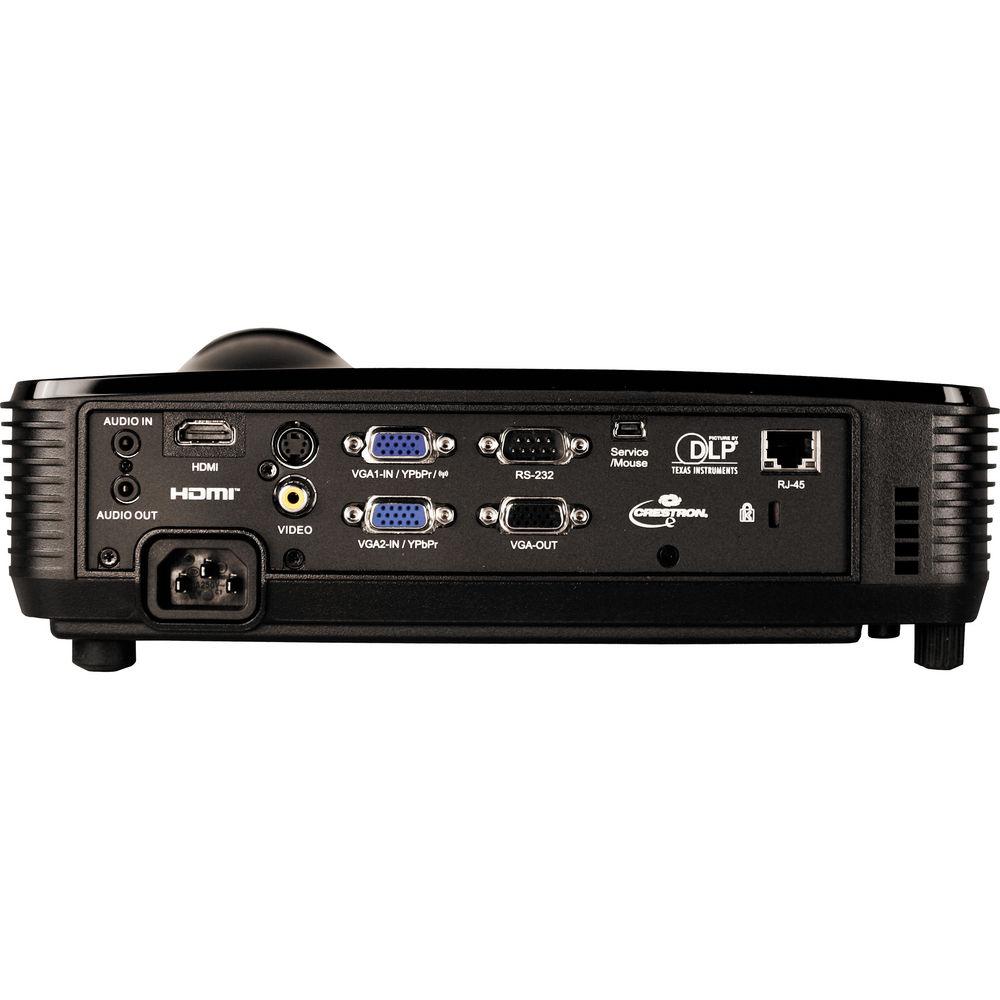

Vertical: 24 to 120 Hz | | | | Lens | f/2.57 - 2.84 (f = 21 - 25.6 mm) | | Throw Distance | 3 - 32.8' / 0.914 - 9.997 m | | Throw Ratio | 1.47 - 1.81:1 | | Projection Size | 30 - 300" / 762.00 - 7620.00 mm | | | | Keystone Correction | Vertical: ± 40° | | Picture-in-Picture | None | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x S-Video (4-Pin DIN) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN
1 x RS-232C (Unspecified Connector) Control
1 x Mini-USB Type-B Female | | | | Lamp Power | 240 W | | Expected Lamp Life | Medium Brightness: 3500 Hours
Low Brightness: 5000 Hours | | Fan Noise | Medium Brightness: 28 dB
Low Brightness: 30 dB | | Security | Cable Lock Slot
Padlock
Password Protection | | Power Consumption | Medium Brightness: 300 W
Low Brightness: 230 W
Standby Mode (Lamp Off): <1 W | | Temperature | Operating
41 to 104°F (5 to 40°C) | | Dimensions (W x H x D) | 11.0 x 3.1 x 9.1" / 27.9 x 7.9 x 23.1 cm | | Weight | 4.9 lb / 2.2 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 15.5 x 12.0 x 6.2" |
