User Manual for Optoma Technology TX330 Portable XGA DLP Projector - Refurbished

Click to enlarge the picture
Optoma Technology TX330 Portable XGA DLP Projector - Refurbished Contents of the user manual for the Optoma Technology TX330 Portable XGA DLP
  • Product category: Uncategorized Optoma Technology
  • Brand: Optoma Technology
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Optoma Technology Uncategorized

Optoma Technology TX330 Portable XGA DLP Projector - Refurbished Optoma Technology TX330 Portable XGA DLP Projector - Refurbished Optoma Technology TX330 Portable XGA DLP Projector - Refurbished Optoma Technology TX330 Portable XGA DLP Projector - Refurbished Optoma Technology TX330 Portable XGA DLP Projector - Refurbished
User manual for the Optoma Technology TX330 Portable XGA DLP contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Optoma Technology product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!



Product description

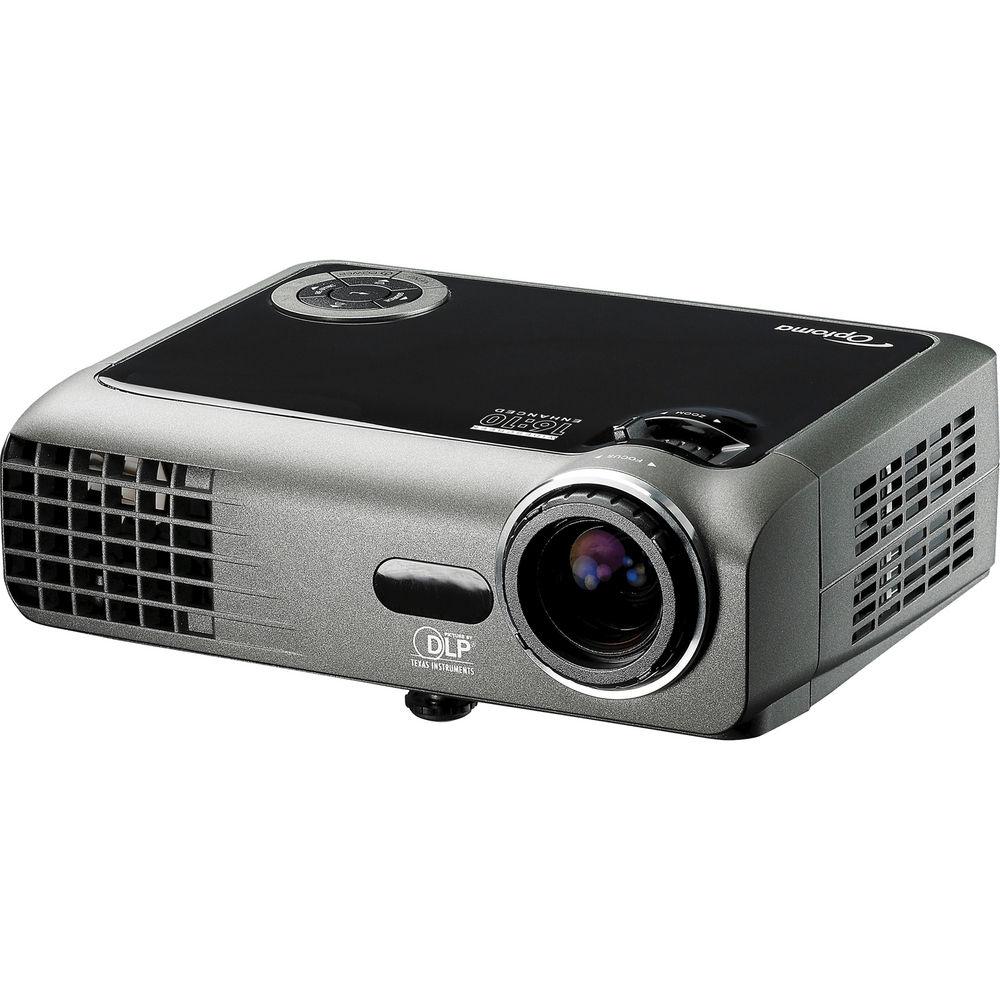

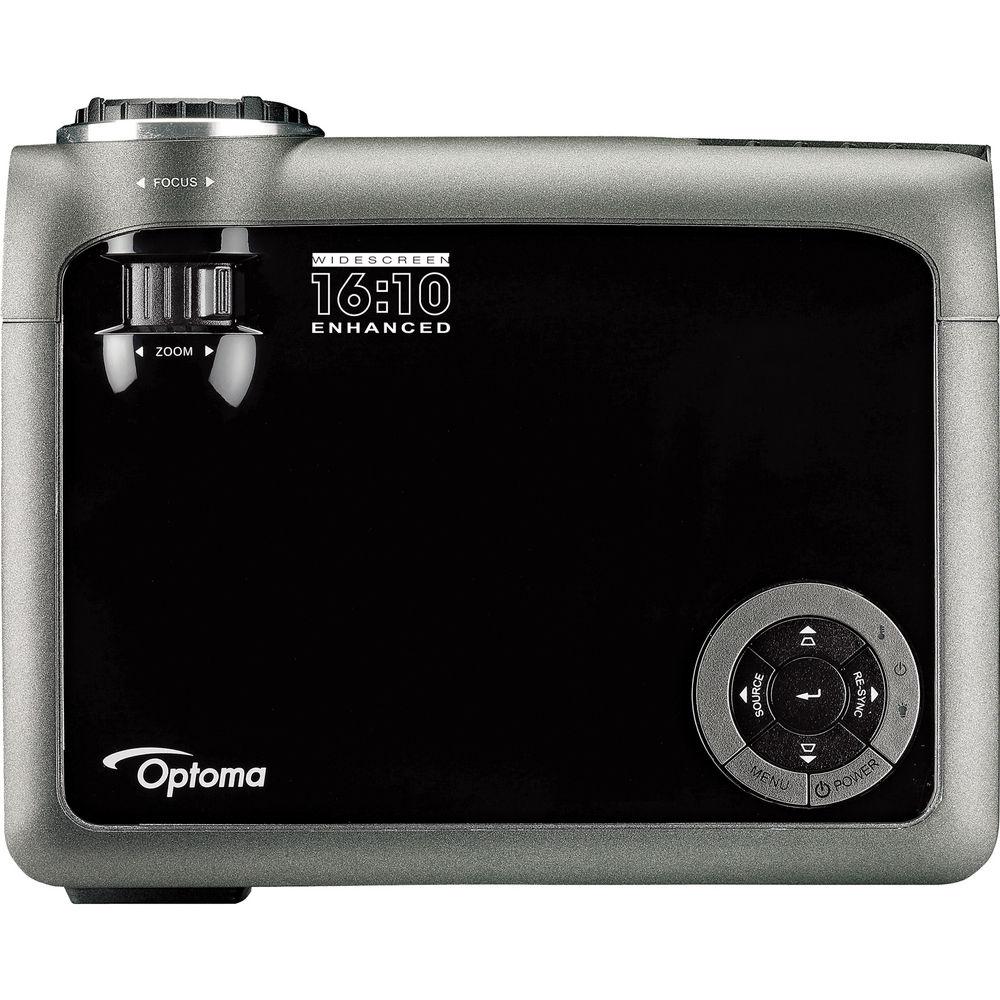

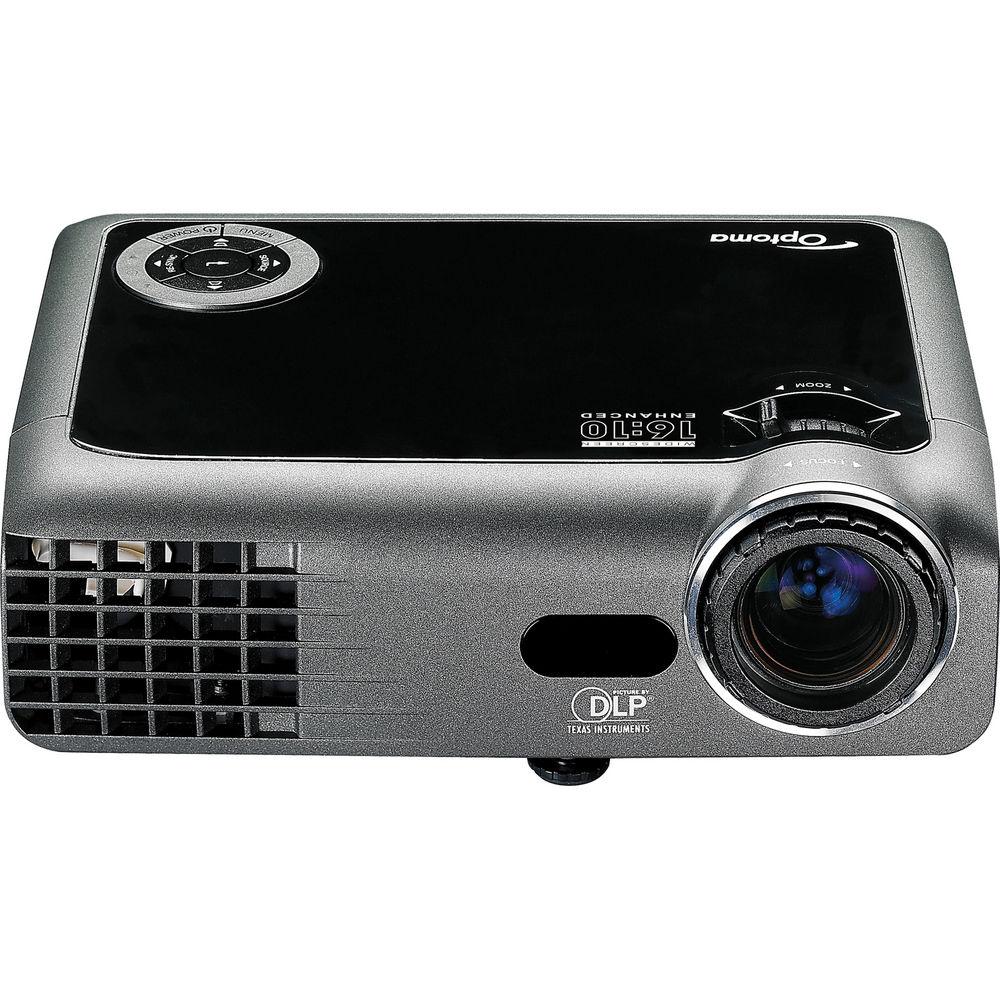

The Optoma TX330 Portable XGA Projector packs a lot of features into a surprisingly affordable package. Its 2,200 lumens of projection power combined with its 2,000:1 contrast ratio means it will provide a rich, vivid image in medium to large rooms even with some ambient light to contend with. The TX330's star attraction must surely be its Texas Instruments DMD DLP chip. This 0.55" chip processes not just the three primary colors that all other chips work on, red, green and blue, but also their complements: cyan, magenta and yellow. As a result colors are so clear and lifelike that TI calls its latest version of the technology BrilliantColor. DLP chips with BrilliantColor increase the brightness of colors by 50 percent vs. DLP chips without it. An added advantage of this chip is that it requires no filter that has to be periodically cleaned and replaced, an operation that can be risky in ceiling mounted installations. Another key attraction of this projector is its versatility and compatibility. At 2.4 lb, not only is it lighter than a lot of novels, but its power supply can auto switch between inputs of 100 - 240 Volts AC at 50/60Hz, so it's an idea travel mate. It's also compatible with about 40 PC and Mac resolution and frequency combinations so it's ideal for laptop-based business presentations. Even if the business world is the furthest thing from your mind you're in luck. The TX330 is compatible with video signals in the NTSC, PAL and SECAM standards. And it can do 720p, 1080i and 1080p high definition. Just plug it into a cable, satellite box or TV with a video out jack and you're good to go. There's a lot to like in the TX330 so you'll want to secure your investment. There's a control panel lock, password protection and a security bar through which you can lace a security cable (available separately). If you're looking for projection power, rich, vivid color and versatility in a very affordable package, the TX330 may be just the projector you're looking for.
    Ultra-portable
  • At only 2.4 lb, this projector is likely to do some traveling.
    Wide Connectivity
  • Connections include HDMI, VGA, S-Video, Composite Video and USB.
    Full Function Remote
  • Ideal presentation remote with laser pointer and page-advance features.
    Long Lamp Life
  • The TX330 offers low maintenance and a long lamp life up to 5,000 hours in Standard mode.
    2,200 Lumens and a 2,000:1 Contrast Ratio
  • The combination of 2,200 lumens of light output and a 2,000:1 contrast ratio is rare in a projector so affordable. It means that even if you don't watch in movie-theater darkness you'll enjoy a bright, vivid image.
    DMD DLP Technology by Texas Instruments
  • Those bright, vivid images are courtesy of TI's Digital Micromirror Device Digital Light Processer. That's a long name for a tiny but brilliant chip. In fact TI calls the chip's output BrilliantColor. This technology processes not just the primary colors of red, green and blue but also their complements, cyan, magenta and yellow. BrilliantColor not only improves color accuracy, it brightens secondary colors as well. A bonus of DLP chips is that they don't require filters that have to be periodically cleaned and replaced thus saving you time and money.
    World-Wide Compatibility and HDTV
  • This projector can accept from 100 - 240 volts at 50/60 Hz and it can accept and project television standards that range from the North American standard NTSC to PAL and SECAM. It also can accept and display these STDV and HDTV standards: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
UPC: 796435421786 In the Box Optoma Technology TX330 Portable XGA DLP Projector
  • AC Power Cord
  • VGA to VGA Cable
  • USB Cable

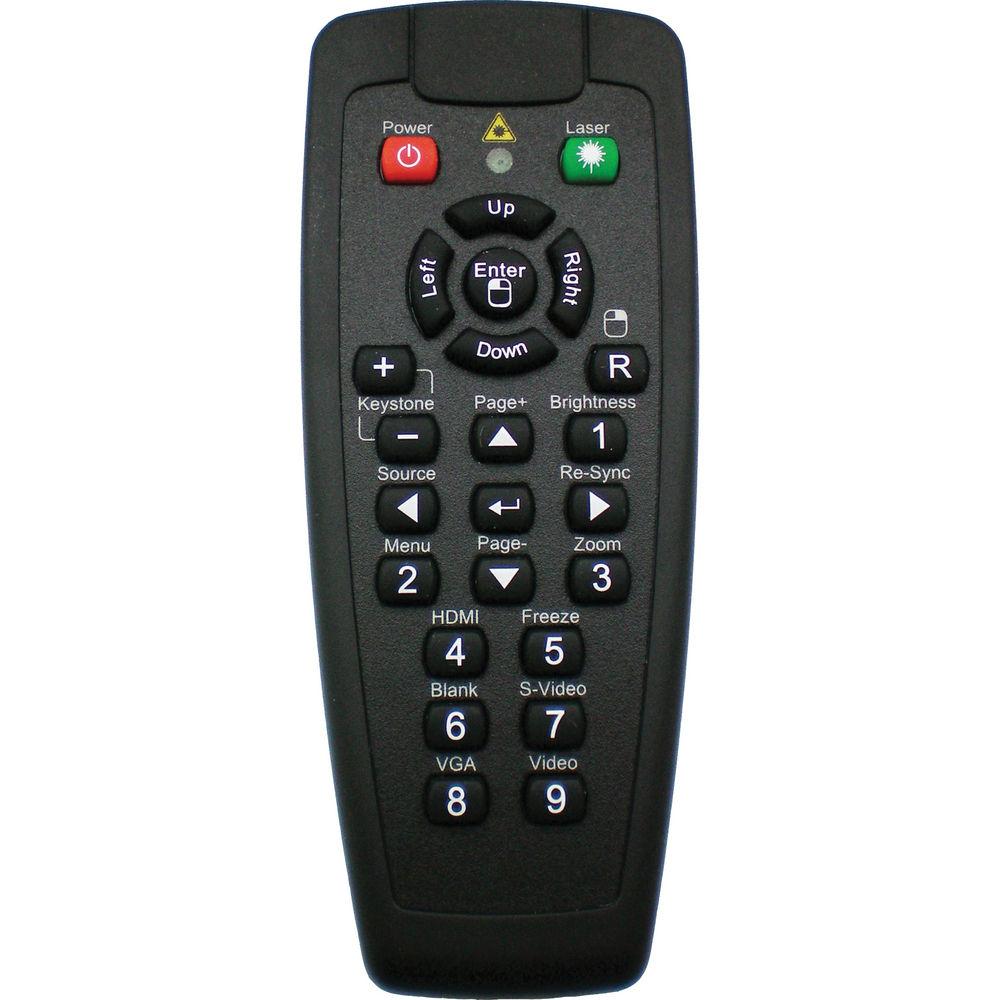

  • Remote Control
  • Soft Carrying Case
  • Quick Start Guide
  • User's Manual
  • 90-Day Manufacture Warranty
  • User Manual PDF 4.6mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Optoma Technology TX330 Portable XGA DLP Projector - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Optoma Technology EPTX330RFBA Specs

    Display System -Chip 0.65" DLP
    Native Chip Resolution 1024 x 768 (XGA)
    Supported Resolutions VGA
    SVGA
    SXGA
    SXGA+
    WXGA
    SXGA+ - 1400 x 1050
    Max Brightness 2200 Lumens
    Uniformity 85%
    Aspect Ratio Native: 4:3
    Supported: 16:9
    Contrast Ratio 2000:1
    DLP Link 3D None
    Scan Horizontal: 15 to 100 kHz
    Vertical: 43 to 85 Hz
    Lens f/2.41 - 2.55 (f = 21.8 - 23.98 mm)
    Lens Shift None
    Throw Distance 3 - 39.37' / 0.914 - 12 m
    Throw Ratio 1.95 - 2.15:1
    Projection Size 22.9 - 302" / 581.66 - 7670.80 mm
    Keystone Correction Vertical: ± 18°
    Ceiling Mountable Yes
    Rear Screen Projection Yes

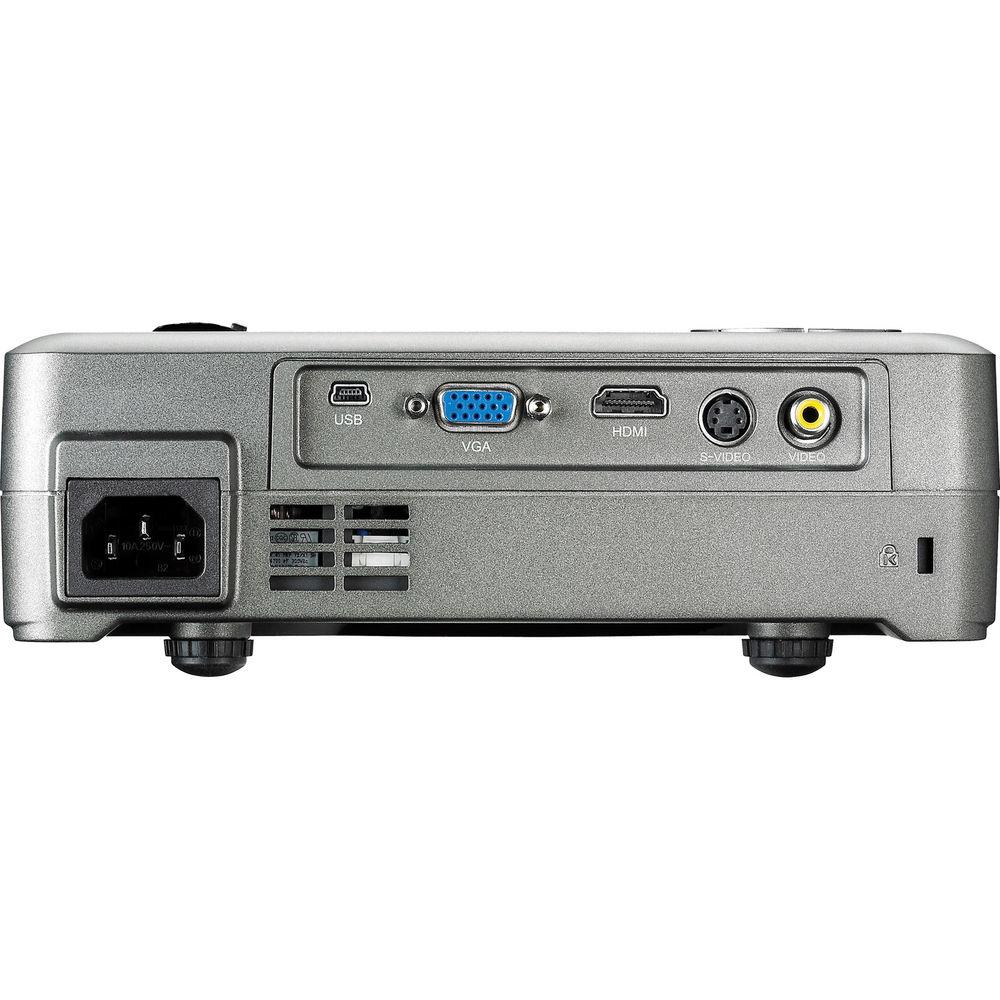

    Inputs/Outputs 1 x HDMI Audio/Video (Input)
    1 x S-Video (4-Pin DIN) Video (Input)
    1 x VGA (DE-15) Video (Input)
    1 x Composite (RCA) Video (Input)
    1 x USB Audio/Video (Input)
    1 x RS-232C (Unspecified Connector) Control/Service (Input)
    Lamp Power 165 W
    Expected Lamp Life Medium Brightness: 5000 Hours
    Full Brightness: 3000 Hours
    Fan Noise Medium Brightness: 31 dB
    Full Brightness: 33 dB
    Security Cable Lock Slot
    Power Consumption Medium Brightness: 225 W
    Standby Mode (Lamp Off): 1 W
    Temperature Operating
    41 to 104°F (5 to 40°C)
    Humidity: 0 - 80%
    Dimensions (W x H x D) 8.0 x 6.1 x 2.5" / 20.3 x 15.5 x 6.3 cm
    Weight 2.4 lb / 1.1 kg
    Package Weight 5.35 lb
    Box Dimensions (LxWxH) 13.2 x 11.1 x 6.5"
