User Manual for Optoma Technology UHD60 3000-Lumen HDR XPR UHD DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology UHD60 3000-Lumen HDR XPR
- Product category: Home Theater Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Home Theater Projectors
 |
User manual for the Optoma Technology UHD60 3000-Lumen HDR XPR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Shedding Light on the New Optoma HDR UHD Projector Read More - UHD60 product video USA no URL

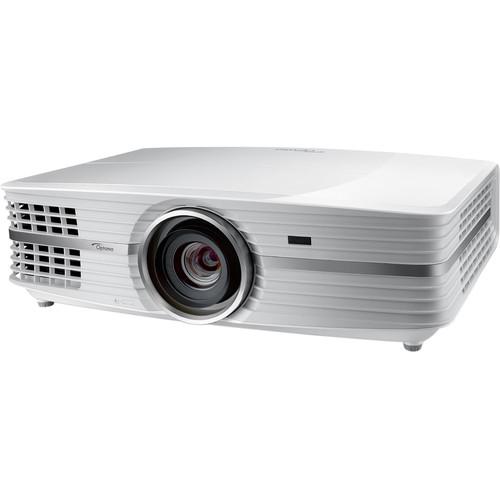

Enjoy UHD content with the Optoma UHD60 3000-Lumen HDR XPR UHD DLP Projector. Its 3000 lumens of brightness will overcome ambient light in many installations, while its 1,000,000:1 dynamic contrast ratio will help enhance detail in dark areas of the image. The 3840 x 2160 resolution projected via XPR technology will help ensure that text and images are clear.

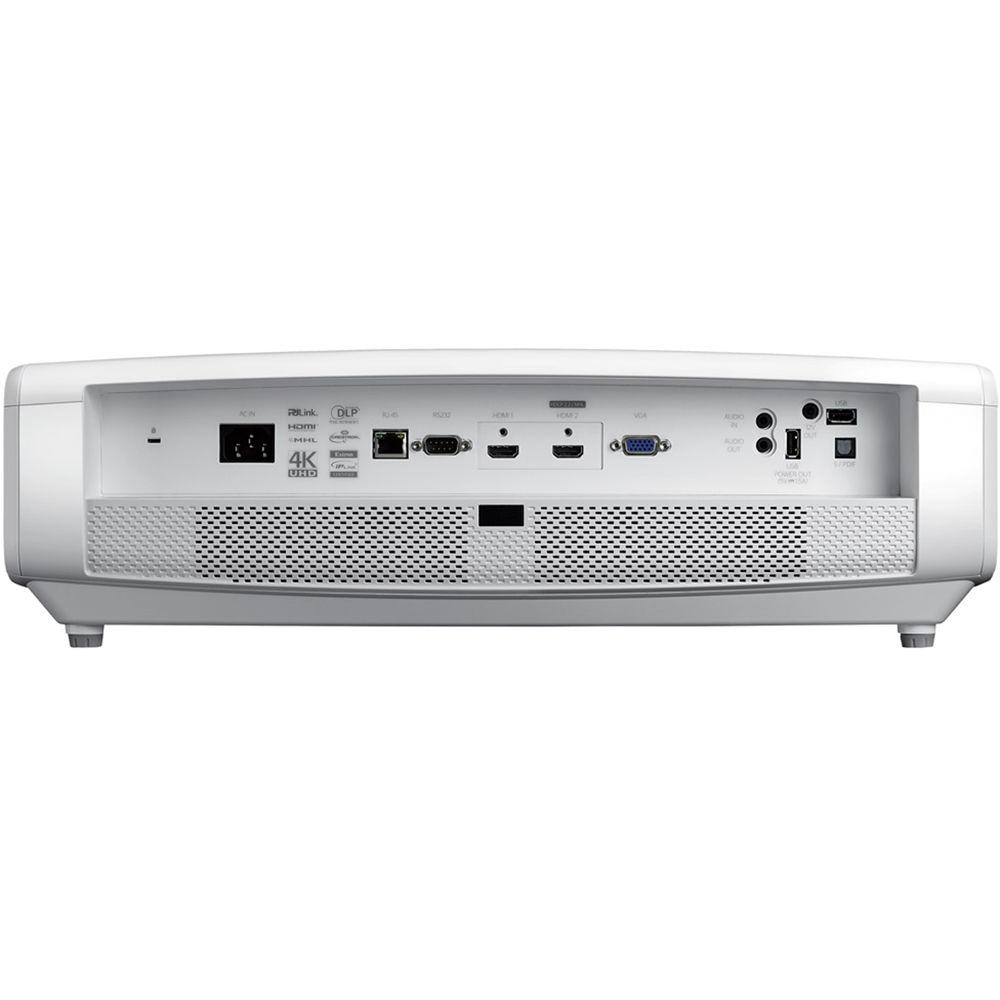

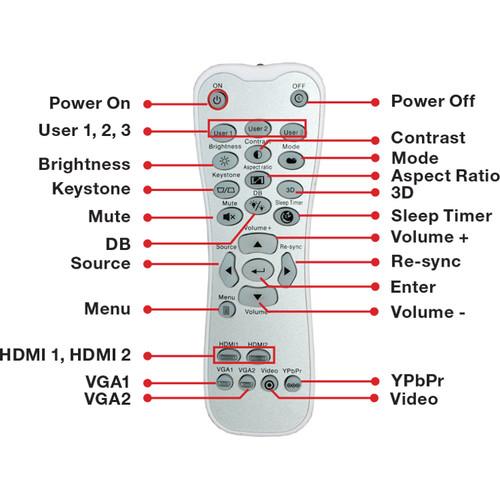

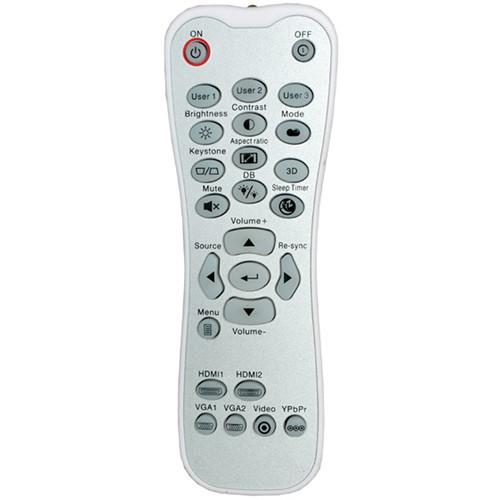

The UHD60 has VGA and two HDMI inputs to support a variety of sources. One HDMI input is MHL-compatible for connecting mobile devices, such as your smartphone or tablet, and the projector has a USB power output to help conserve your device's battery life. Its analog audio input and output will allow you to either use the built-in 4W speakers or output your audio to an external system. The projector is controllable via Ethernet and RS-232, and includes an IR remote control. - XPR Technology Projects UHD Resolution
- XPR technology combines image processing with the ability of the DMD's mirrors to shift at the microsecond level to allow each mirror to project two pixels per frame, creating a UHD 4K image from an otherwise non-UHD chip.
- XPR UHD (3840 x 2160 / 2160p) resolution, plus 3000 lumens of brightness and Rec. 709 color accuracy
- HDR-compatible and equipped with HDR10 for bright whites and deep blacks, plus Rec. 2020 and DCI-P3 color gamuts to help create lifelike color
- Dynamic Black delivers 1,000,000:1 dynamic contrast ratio for enhanced black levels
- HDMI 2.0 and HDCP 2.2 offer UHD 4K video bandwidth and device compatibility
- Vertical lens shift and 1.6x zoom provide an intuitive and flexible installation
- UltraDetail allows for fine adjustments to image clarity and sharpness
- Two 4W stereo speakers and an optical output to your A/V receiver
UPC: 796435812645 In the Box Optoma Technology UHD60 3000-Lumen HDR XPR UHD DLP Projector Remote Control with Batteries HDMI Cable Lens Cap Multilingual CD-ROM AC Power Cord Limited 2-Year Warranty Limited 90-Day Warranty Buying Guide to Projectors Peter Ward_1 05/10/2017 More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology UHD60 3000-Lumen HDR XPR UHD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

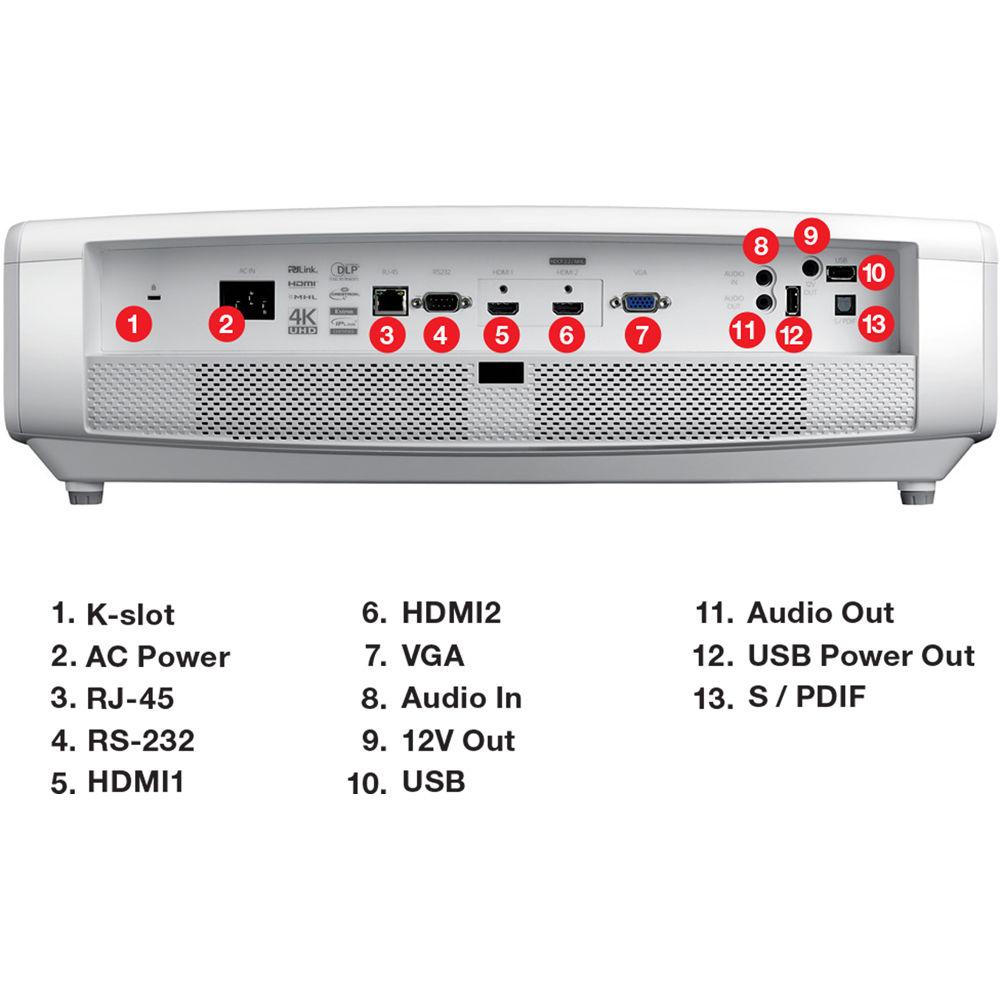

Technical parametersOptoma Technology UHD60 Specs | | | Display System | 0.66" DMD DLP | | On-Screen Resolution | Up to UHD 4K (3840 x 2160) | | Supported Resolutions | Maximum: DCI 4K - 4096 x 2160 @ 60 Hz | | Max Brightness | 3000 Lumens | | Uniformity | 65% | | Offset | 100% | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 1,000,000:1 | | Scan | Vertical: 24 to 120 Hz
Horizontal: 31 to 135 kHz | | | | Focus | Manual | | Lens | f/2.5 - 3.26 (f = 20.91 - 32.62 mm) | | Lens Shift | Vertical: 15 ± 5% | | Throw Distance | 4.2 - 30.5' / 1.28 - 9.296 m | | Throw Ratio | 1.39 - 2.22:1 | | Projection Size | 26.45 - 302.2" / 67.18 - 767.59 cm | | | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x S/PDIF Audio (Output)
1 x USB Power (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | | | Expected Lamp Life | Full Brightness: 4000 Hours
Low Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 28 dB
Low Brightness: 25 dB | | Security | Cable Lock Slot
Password Protection | | Power Consumption | Full Brightness: 317 W
Full Brightness: 348 W
Low Brightness: 259 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 19.6 x 13.0 x 6.0" / 49.8 x 33.0 x 15.2 cm | | Weight | 16.00 lb / 7.26 kg | | | | Package Weight | 23.5 lb | | Box Dimensions (LxWxH) | 23.0 x 18.5 x 12.5" |
