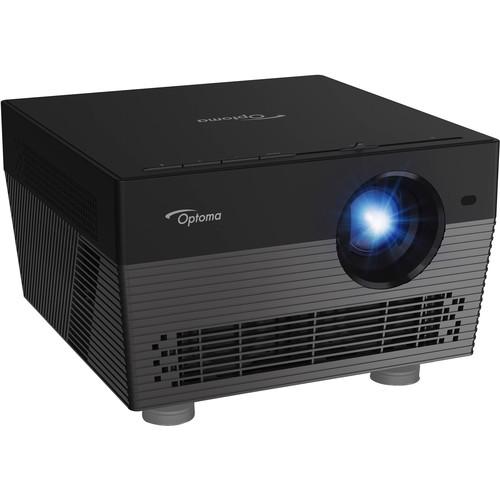

User Manual for Optoma Technology UHL55 HDR XPR UHD DLP Home Theater Projector with Wi-Fi Click to enlarge the picture
Contents of the user manual for the Optoma Technology UHL55 HDR XPR UHD
- Product category: Home Theater Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Home Theater Projectors
 |
User manual for the Optoma Technology UHL55 HDR XPR UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

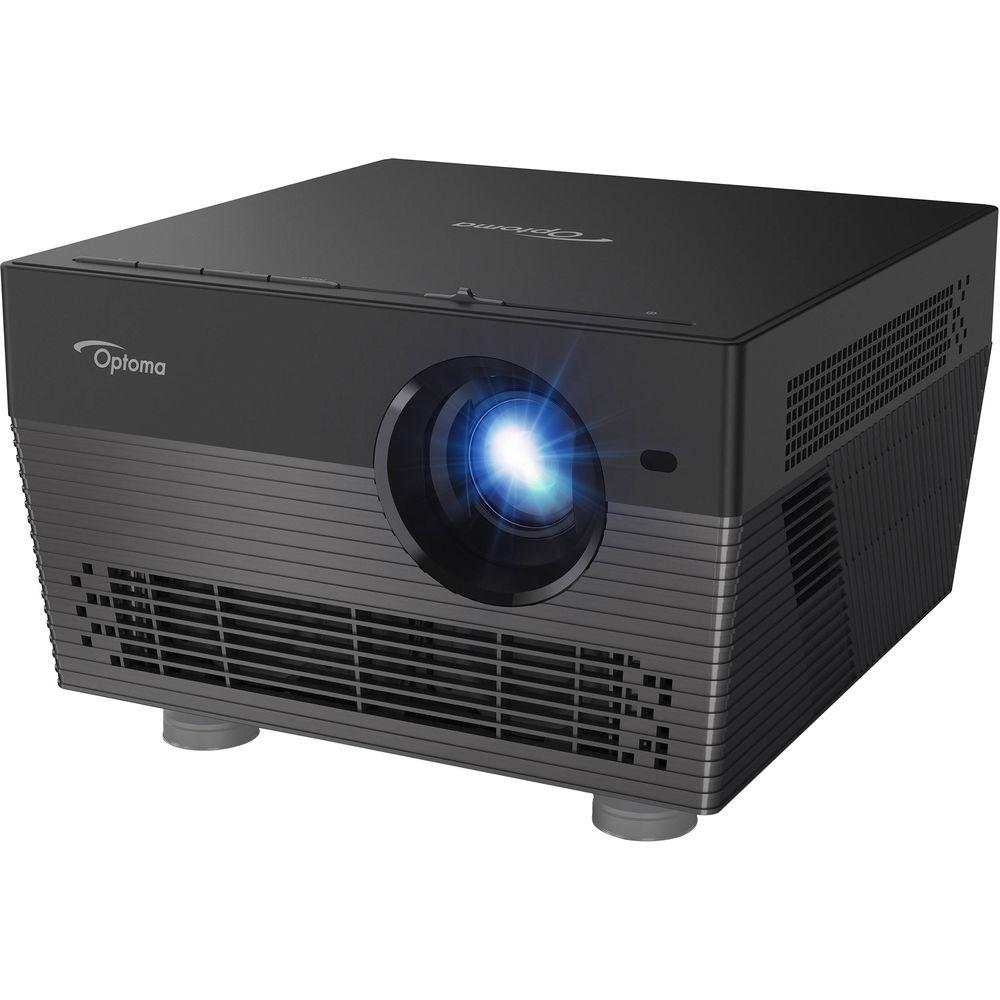

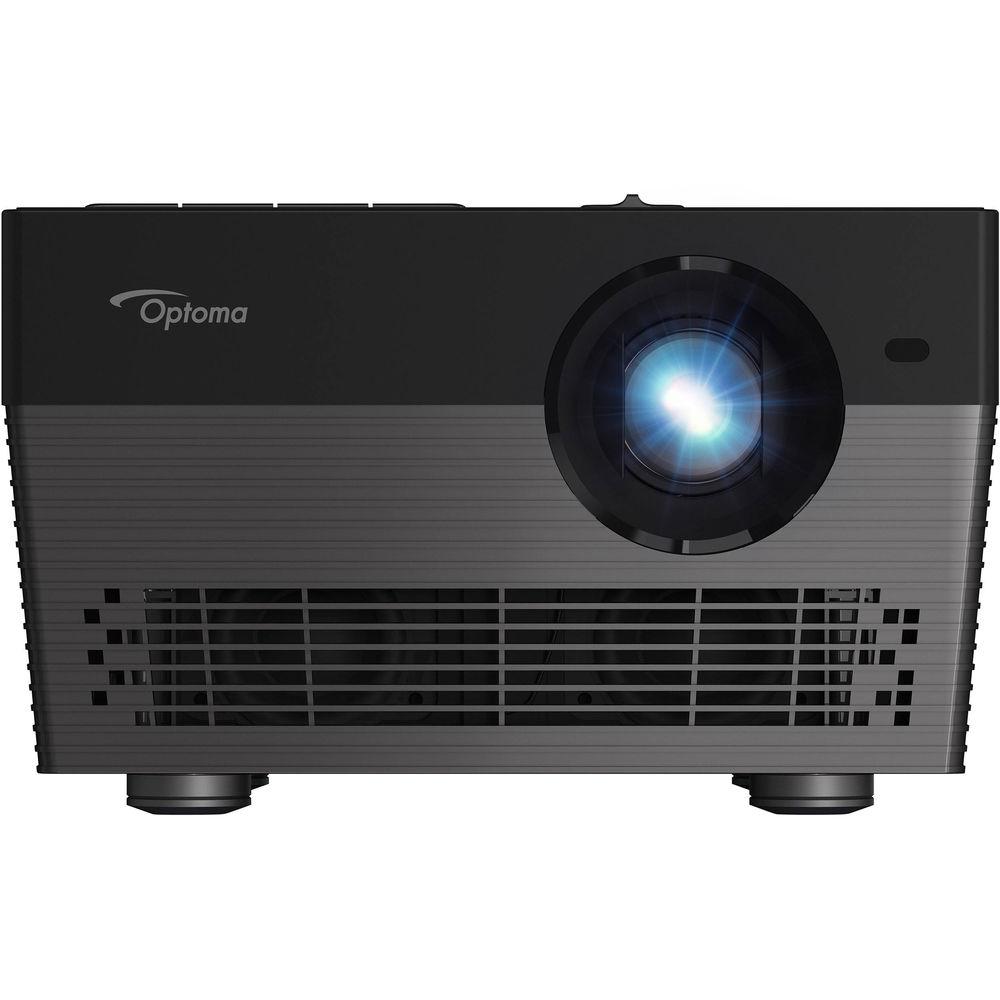

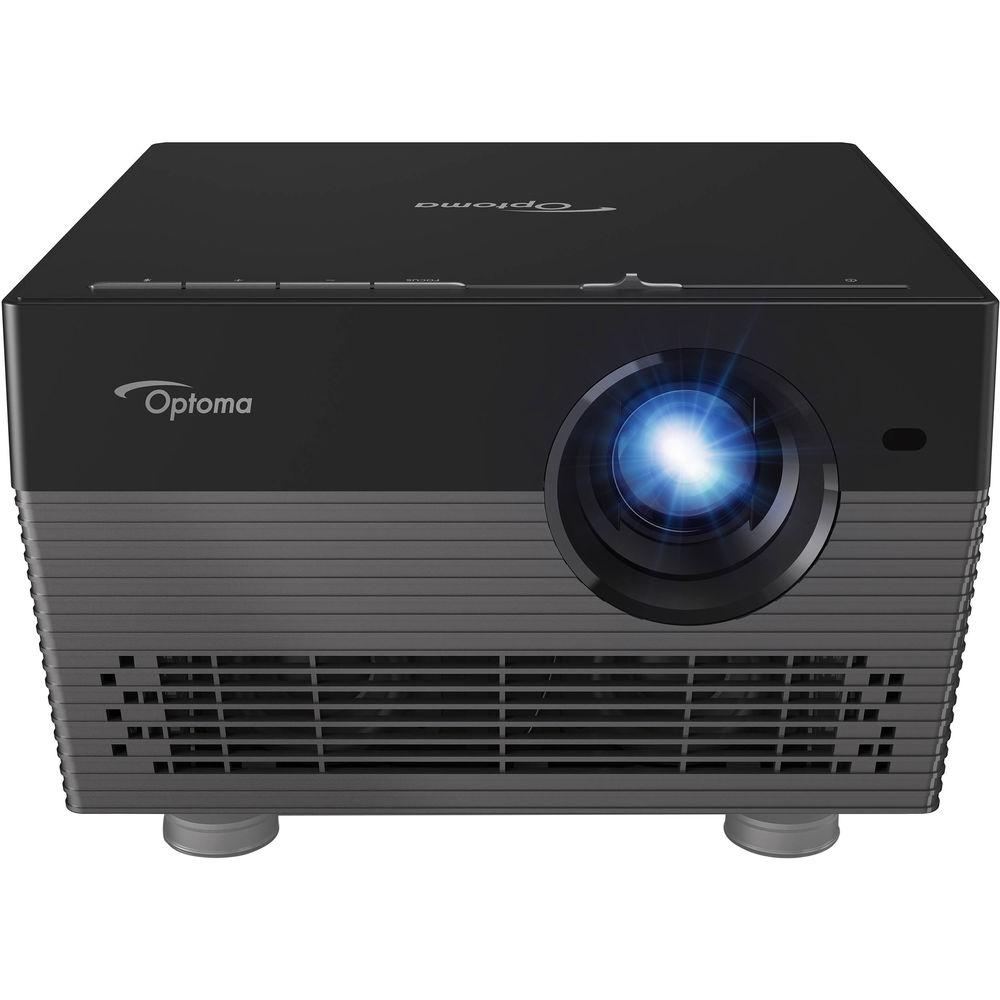

Product description Buying Guide to Projectors Read More Enjoy Amazon Alexa and Google Assistant functionality plus HDR 4K content with the Optoma UHL55 HDR XPR UHD DLP Home Theater Projector. Its 1500 lumens of brightness will overcome ambient light in most home installations, while its 250,000:1 dynamic contrast ratio will help enhance detail in dark areas of the image. It upscales many resolutions to near-4K to help ensure that text and images are clear.
The UHL55 can be controlled by Amazon Alexa and the Google Assistant for hands-free voice control. It has two HDMI inputs to support digital source devices, such as Blu-ray players and cable/satellite boxes. Its TOSLINK and analog audio outputs will allow you to either use the dual built-in 8W speakers or output your audio to an external system. The projector is controllable via Ethernet thanks to Crestron RoomView compatibility, and includes an HDMI cable and a backlit Bluetooth remote control. Note: Virtual assistant capability and language compatibility varies by region and is not universal. Please see the manufacturer's or website for more information. - XPR UHD Resolution
- XPR technology combines image processing with the ability of the DMD's mirrors to shift at the microsecond level to allow each mirror to project two pixels per frame, creating a UHD 4K image from an otherwise non-UHD chip.
- Android OS Features
-
- Supports apps such as Firefox, TED TV, Netflix (1080p), Smart YouTube TV (4K), Spotify Music for Android TV, BBC News, CBC News, and NBA for Android TV. The Optoma Marketplace app store is available, as is the InfoWall app for customized information display.
- Autoplay of PDF, PowerPoint, and image files from USB storage devices in 3, 5, 10, and 20 second intervals
- iOS & Android companion apps available
- Amazon Alexa Features
- Available commands include power on/off, volume control, input source switching, and media player controls (play, stop, pause, next, previous, fast forward, rewind, restart).
- Google Assistant Features
- Available commands include power on/off, volume control, input source switching, media player controls (play, stop, pause, next, previous, fast forward, rewind, restart), display mode adjustment, HDR picture mode adjustment, and PureMotion settings.
- Additional Features
-
- Upscales to near-4K UHD resolution with up to 1500 lumens of brightness and four HDR10 picture modes
- RGBB LED light source with up to a 30,000-hour life
- Stereo NuForce audio with Dolby Digital decoding and Bluetooth audio input and output

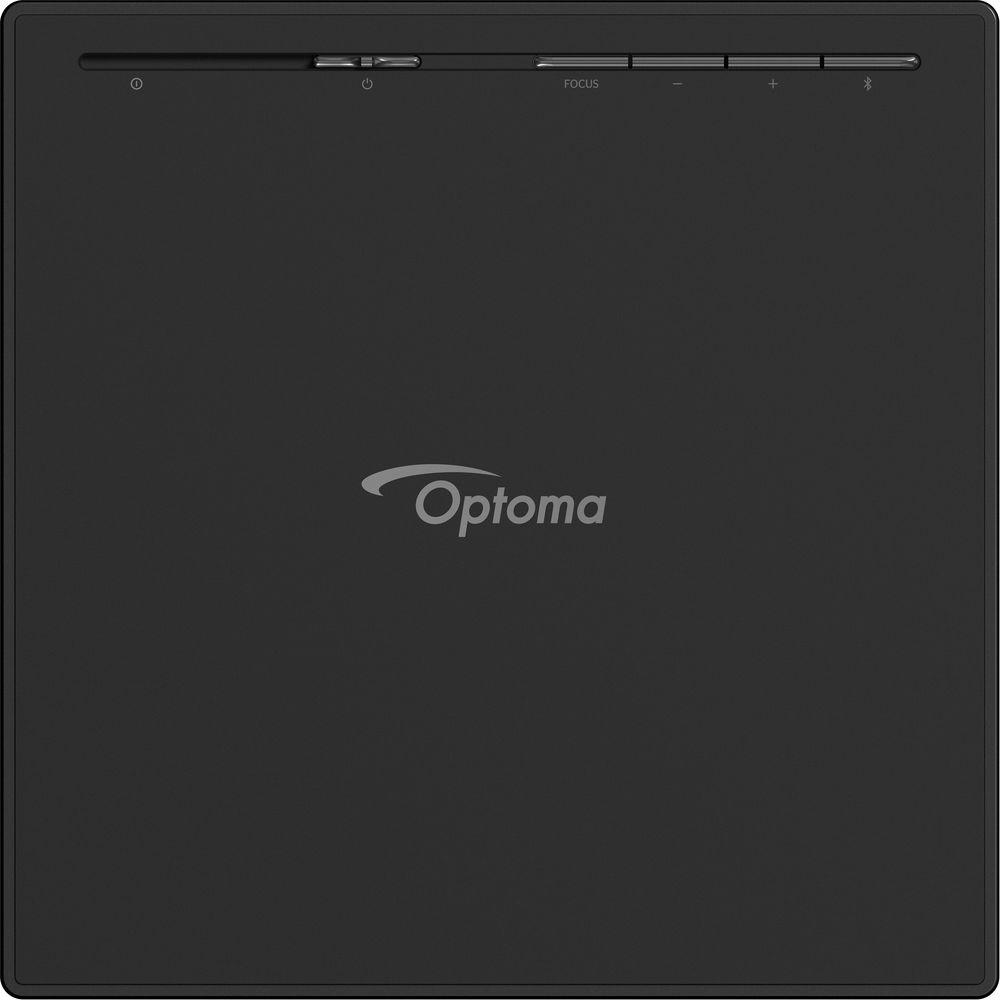

- Protective sliding lens cover and power switch
- Auto focus and auto keystone for easy placement and playback
- REC.709 color gamut compatibility helps provide rich, accurate color
- The DCI-P3 color gamut is equivalent to color in the CIE 1931 color space for vivid colors
- HDR10 compatibility (REC.2020)
- HDR SIM is designed to simulate HDR effects in non-HDR content
- Upscales WXGA, 720p, 1080p, WUXGA, and 1440p resolutions and frame rates up to near-UHD 4K, 60 Hz
- Normal, Bright, Detail, and Film picture modes
- Mouse, keyboard, and game controller support via USB
- Compatible with Crestron Roomview software
- On-screen menu adjustment in 27 languages

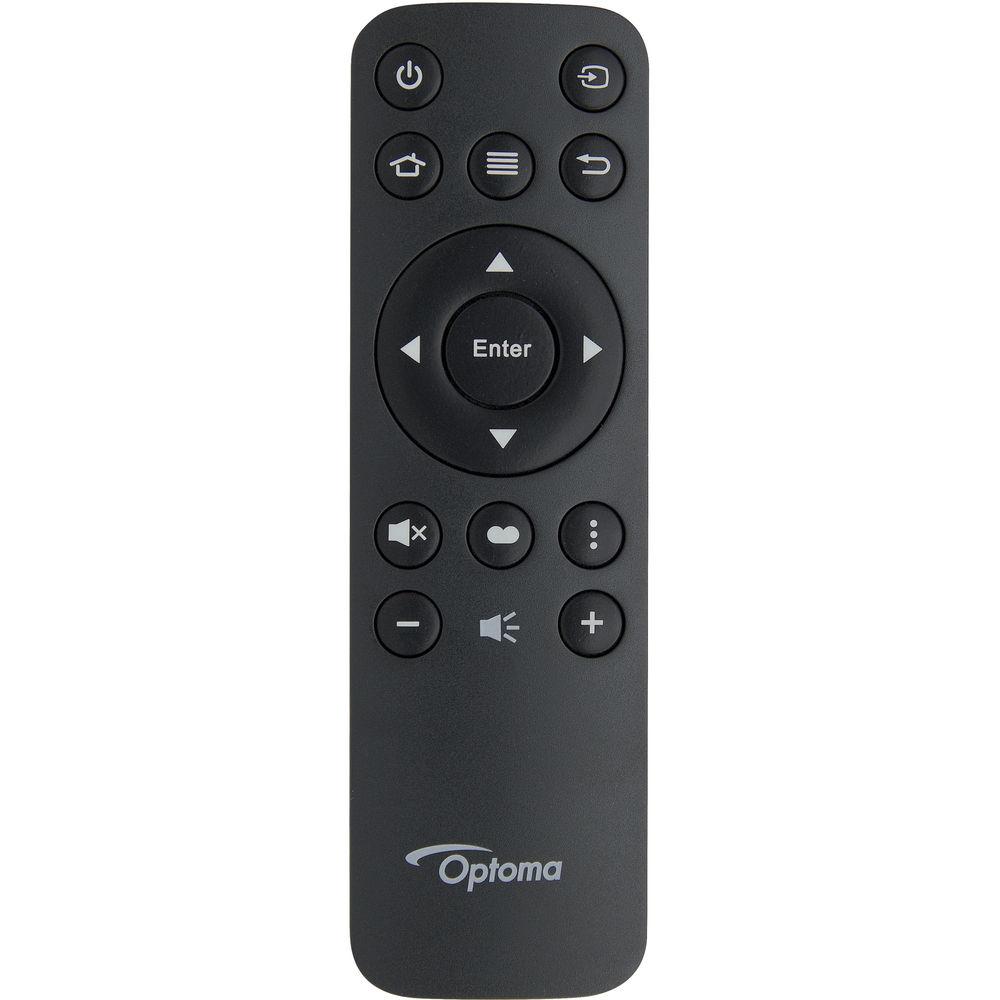

UPC: 796435442811 In the Box Optoma Technology UHL55 HDR XPR UHD DLP Home Theater Projector with Wi-Fi Bluetooth Remote Control HDMI Cable Power Adapter with Cable Limited 2-Year Warranty Limited 2-Year or 20,000-Hour Warranty on Light Source, Whichever Comes First More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology UHL55 HDR XPR UHD DLP Home Theater Projector with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology UHL55 Specs | | | Display System | 0.47" DMD DLP | | On-Screen Resolution | Up to UHD 4K (3840 x 2160) via XPR | | Supported Resolutions | Maximum: UHD 4K - 3840 x 2160 | | Max Brightness | 1500 Lumens | | Uniformity | 80% | | Offset | 100% | | Aspect Ratio | Native: 16:9
Supported: 16:10
Supported: 4:3 | | Dynamic Contrast Ratio | 250,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 1080p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 24 to 120 Hz
Horizontal: 31 to 135 kHz | | | | Focus | Auto | | Optical Zoom | None | | Throw Distance | 2.6 - 17.4' / 0.792 - 5.304 m | | Throw Ratio | 1.2:1 | | Projection Size | 30 - 200" / 76.20 - 508.00 cm | | | | Keystone Correction | Auto | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x USB 2.0 (USB Type-A) Audio, Video Input
1 x USB 3.1 Gen 1 (USB Type-A) Audio, Video Input
1 x TOSLINK Audio Output
1 x 1/8" (3.5 mm) Mini Audio Output
1 x Ethernet (RJ45) LAN | | Memory Card Slot | None | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | Android | | Wireless LAN / Wi-Fi | Yes, Built-in | | Bluetooth | 4.0 | | | | Light Source | LED | | Expected Lamp Life | Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours | | Fan Noise | Medium Brightness: 28 dB | | Security | Cable Lock Slot
Password Protection | | Supported Audio File Types | AAC, FLAC, MP3, WAV | | Supported Document File Types | DOC, PDF, PPT, XLS | | Supported Photo File Types | BMP, GIF, JPEG | | Supported Video File Types | AVI, H.264, HEVC, M4V, MKV, MOV, MP4, TS | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 170 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 8.6 x 5.3 x 8.6" / 21.8 x 13.5 x 21.8 cm | | Weight | 8.7 lb / 3.95 kg | | | | Package Weight | 13.21 lb | | Box Dimensions (LxWxH) | 13.6 x 13.1 x 11.3" |
