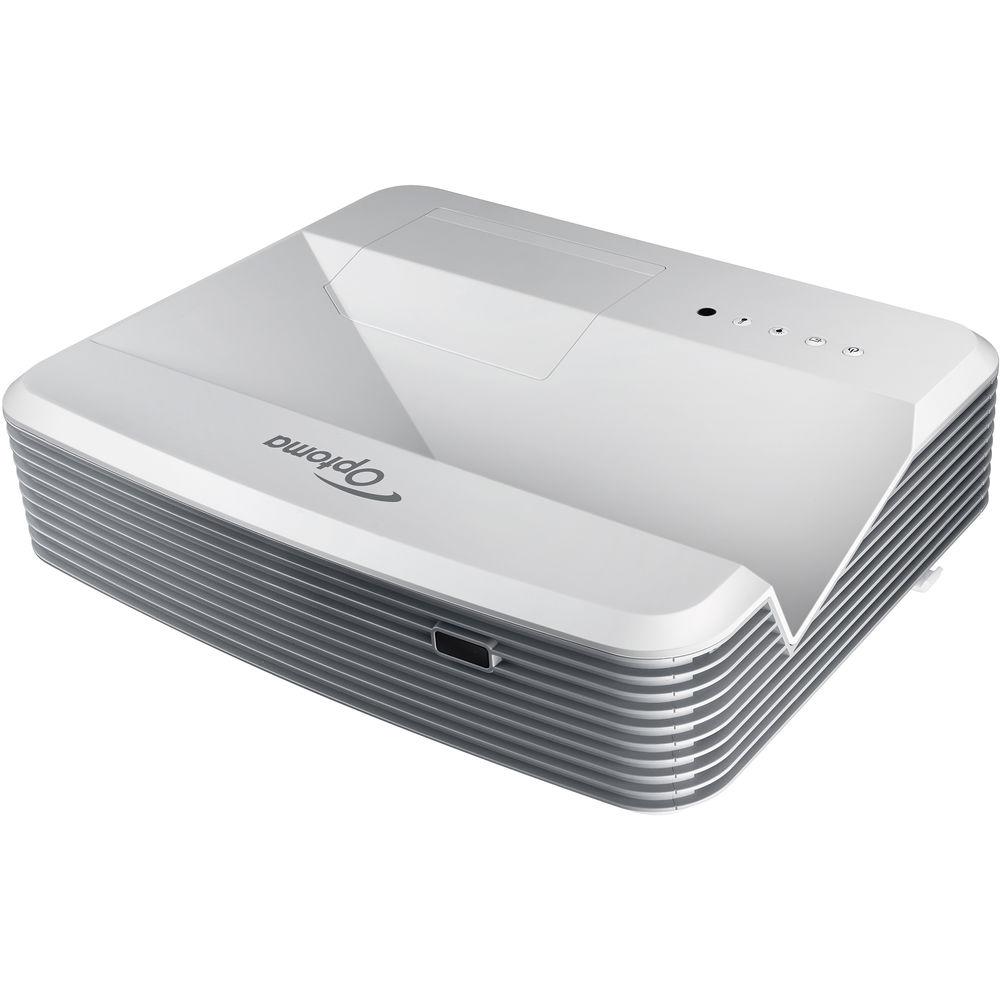

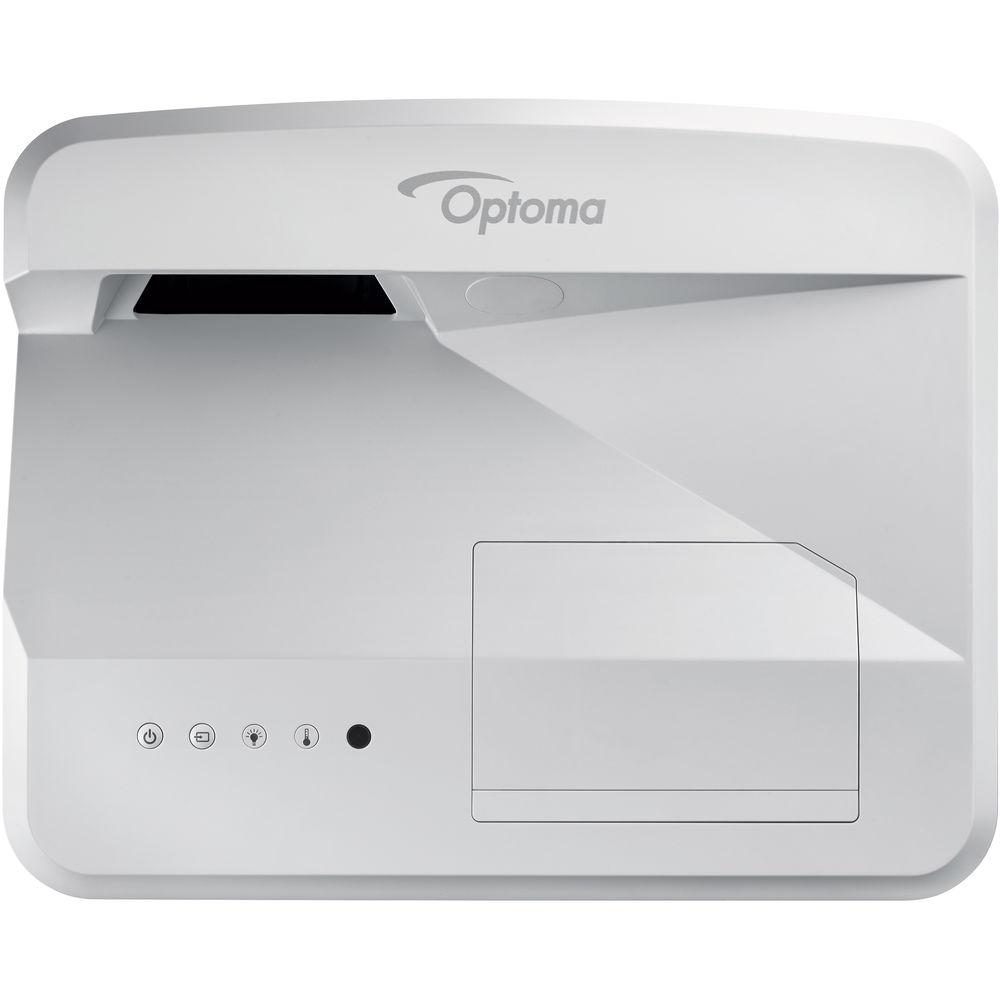

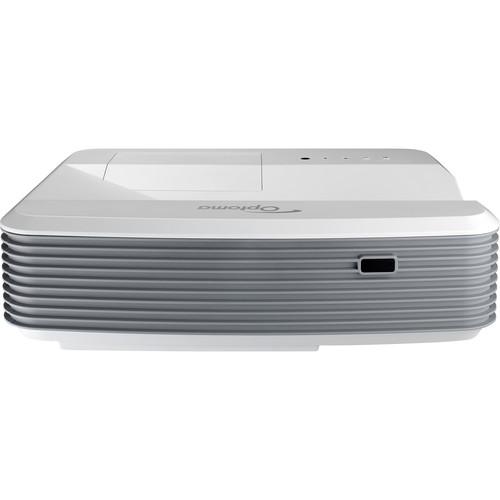

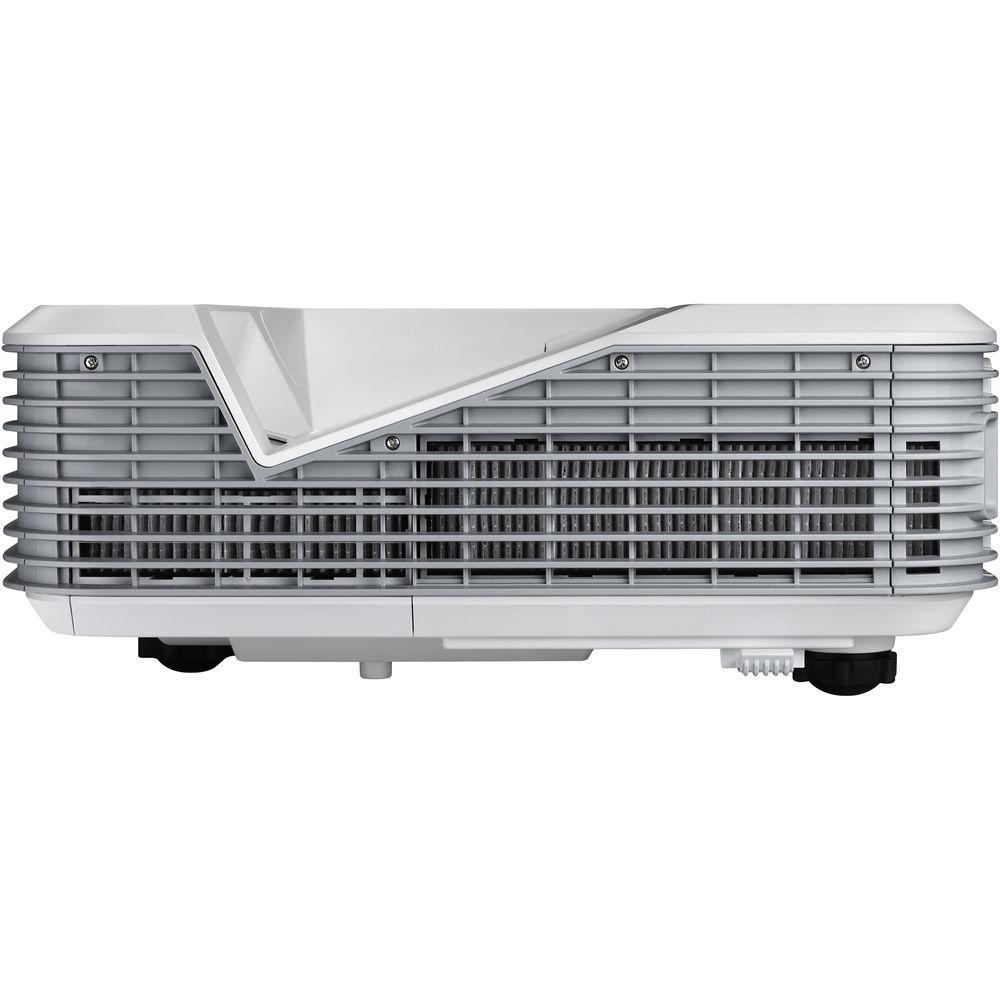

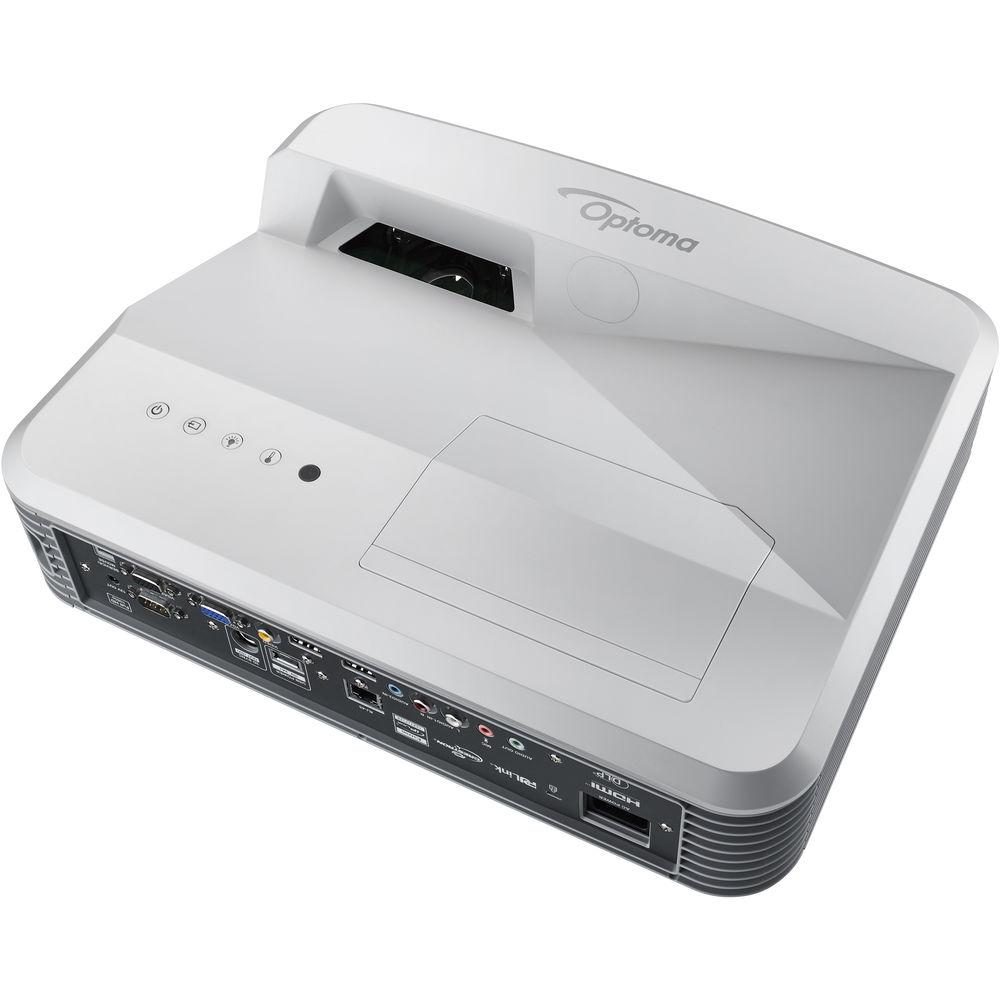

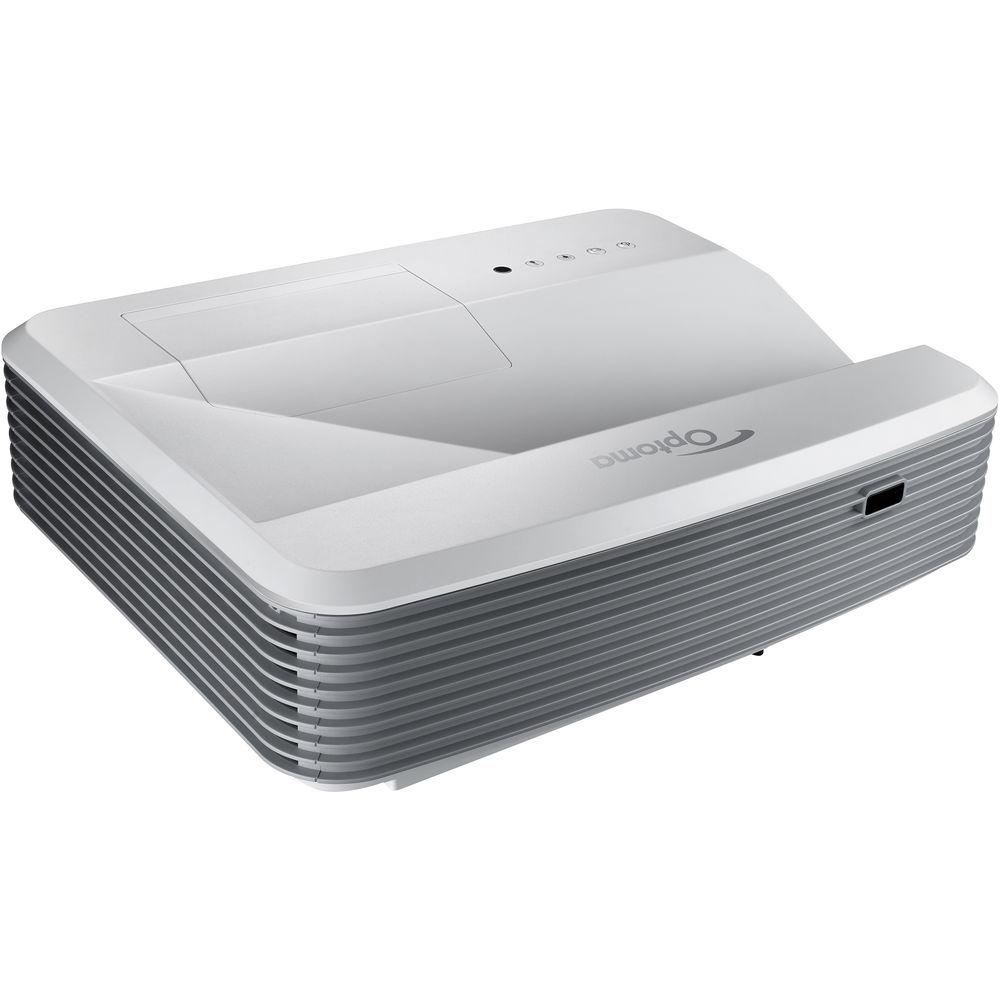

User Manual for Optoma Technology W319UST 3300-Lumen WXGA Ultra-Short-Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology W319UST 3300-Lumen WXGA Ultra-Short-Throw
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology W319UST 3300-Lumen WXGA Ultra-Short-Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Enjoy bright, clear images at short throw distances with the Optoma W319UST 3300-Lumen WXGA Ultra-Short-Throw DLP Projector. Its 3300 lumens of brightness will overcome ambient light in many settings, while its 18,000:1 dynamic contrast ratio and 1280 X 800 native resolution will help ensure that detail is clear. It has an ultra-short 0.27:1 throw ratio, which will allow you to place the projector within 2' of the screen to prevent the casting of shadows by people walking in front of it.
The W319UST has two VGA and two HDMI inputs to support a variety of devices; one VGA input can alternatively function as an output to allow you to daisy-chain the image to another projector or display, while the analog audio input and output will do the same for your audio. The W319UST has a built-in 16-Watt speaker to eliminate the need for a separate speaker system. It is controllable via Ethernet, RS-232, or the included IR remote control. A VGA cable and a USB cable are also included for instant connectivity. - Ultra-Short Throw
- With the ultra-short-throw lens, you can project a 100" image from just 24" away from the screen or wall, allowing you to place the projector close to the wall, reducing shadows, making the W319UST well suited for interactive and other presentation applications.
- High 18,000:1 Dynamic Contrast Ratio with BrilliantColor Technology
- With bright whites and rich blacks, text appears crisp and clear for use in business and education installations. BrilliantColor technology helps the projector produce vibrant, natural-looking images.
- 3D-Capable
- The W319UST can display 3D content from almost any 3D source including 3D Blu-ray players, 3D broadcasting, and gaming consoles. Support for 144 Hz refresh rate helps provide flicker-free images.
- Integrated Speaker
- The built-in speaker allows you to set up and present without an external set of speakers.
- Eco+ Technology
- Eco+ technology brings together high contrast, enhanced lamp life, and energy-saving features.
- Energy Saving Modes
- Using the built-in lamp modes, you can reduce the power consumption of the projector by up to 70%, extending lamp life while lowering the total cost of ownership and reducing maintenance.
- Quick Resume Function
- Quick Resume allows the projector to be instantly powered on again if it is accidentally switched off.
- Auto Power Off Function
- There may be instances when the projector is left running when not in use. To help save energy, the Auto Power Off feature automatically turns the projector off after a set period of time if it is not being used.
- Eco AV Mute
- Stay in control of your presentation with Eco AV Mute. Direct your audience's attention away from the screen when it is no longer needed by blanking the image. This reduces the power consumption by up to 70%, further prolonging the life of your lamp.
- Designed for a Long Lamp Life
- The included lamp can last up to 65,000 hours in Eco+ Mode.
- Remote Mouse

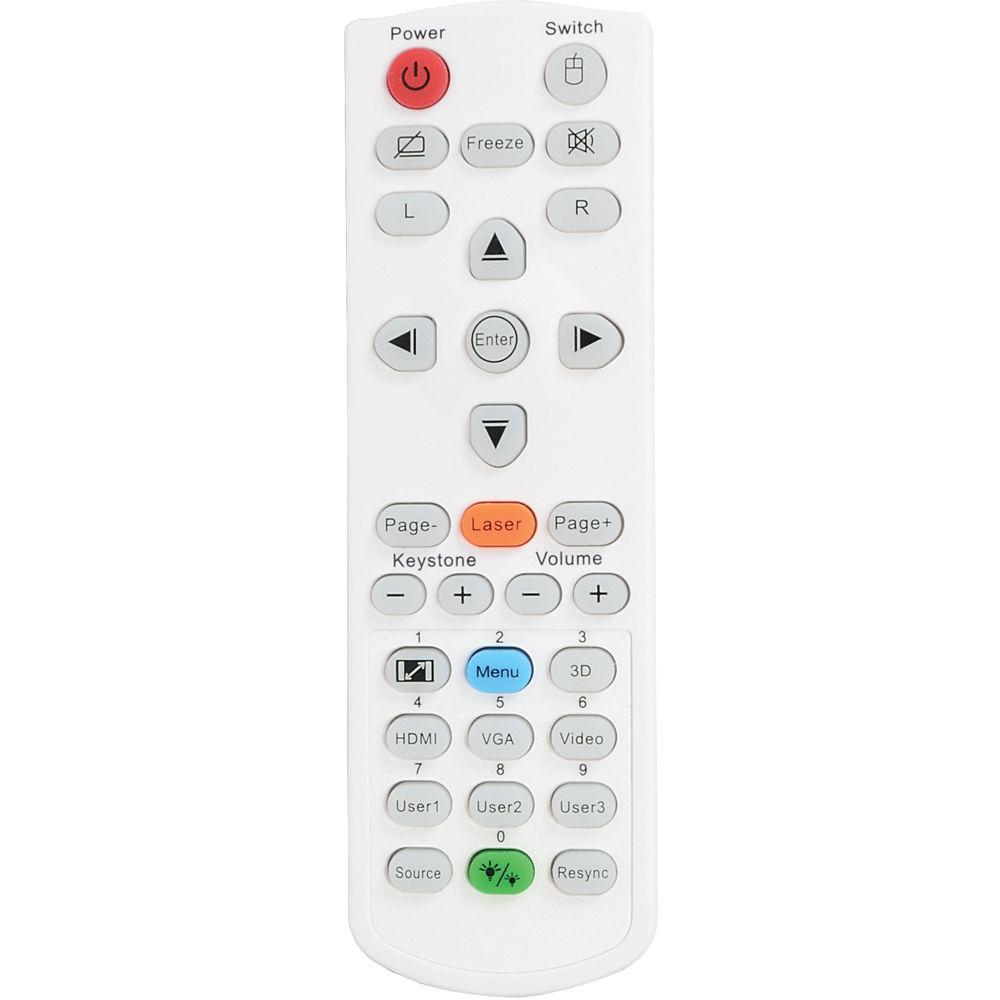

- Control computer functions with the remote mouse function on the included remote control.
- Networking and Control
- You can remotely control and monitor the projector using a range of options. A set of RS-232 commands makes it easy to manage by using nearly any control system. Dynamic discovery protocol is incorporated, allowing for installation with AMX control systems. Using optional compatible RoomView software, you can power on/off, monitor, manage, and control up to 250 projectors at the same time from nearly any computer.
- USB Power
- You can use the USB port to power an HDMI dongle, such as your Google Chromecast or the optional Optoma WHD200 wireless HDMI device.
UPC: 796435419899 In the Box Optoma Technology W319UST 3300-Lumen WXGA Ultra-Short-Throw DLP Projector Remote Control with Batteries VGA Cable USB Cable AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Brochure PDF 982.2kbudcswqfezzuw More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology W319UST 3300-Lumen WXGA Ultra-Short-Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology W319UST Specs | | | Display System | 0.65" DC3 DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3300 Lumens | | Uniformity | 85% | | Offset | 115% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 18,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080p)
Frame Packing (up to 1080p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15.3 - 91.1 kHz

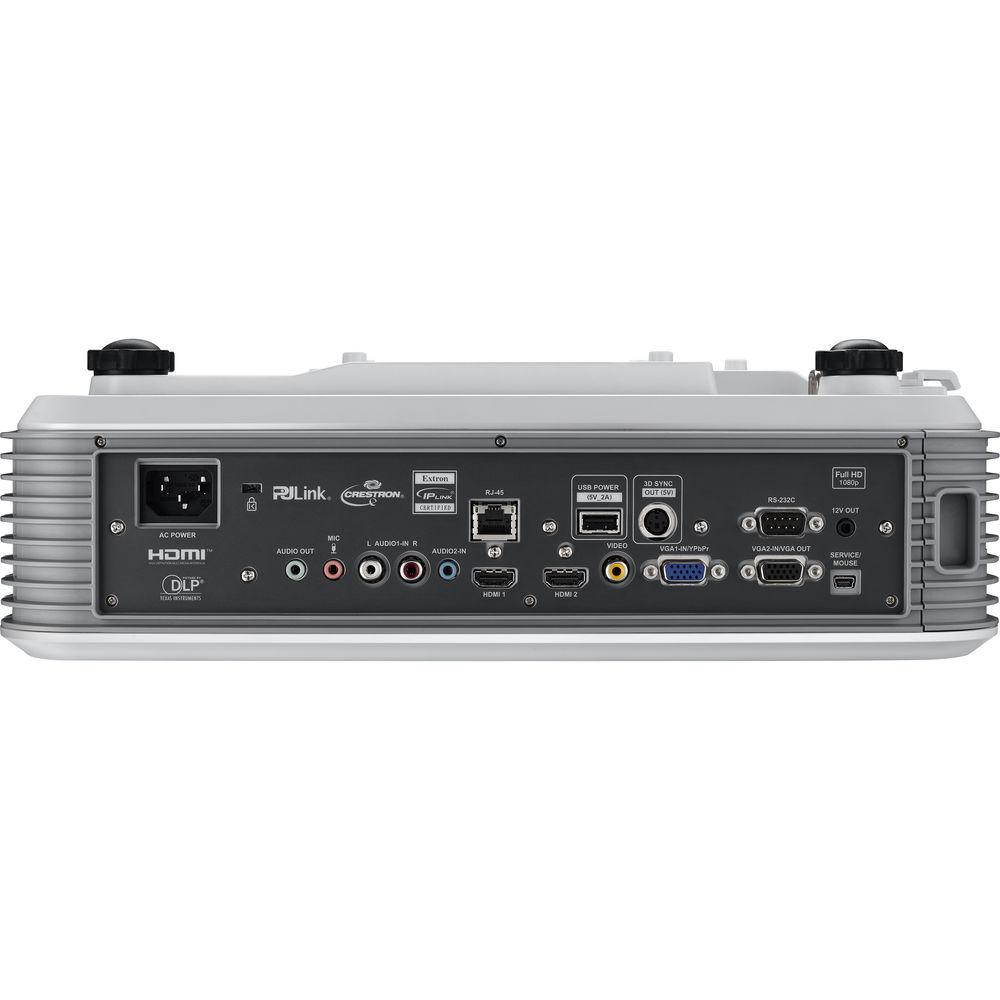

Vertical: 24 - 85 Hz or 120 Hz | | | | Focus | Manual | | Lens | f/2.4 (f = 3.72 mm) | | Optical Zoom | None | | Throw Distance | 19.1 - 25.8" / 48.514 - 65.532 cm | | Throw Ratio | 0.27:1 | | Projection Size | 85 - 115" / 215.90 - 292.10 cm | | | | Keystone Correction | Manual-Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Input/Output)
1 x Composite (RCA) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input/Output)
1 x VESA 3D Sync Video (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x 12 V Trigger Power (Output)
1 x USB Power (Output)
1 x USB Control/Service (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 190 W | | Expected Lamp Life | Full Brightness: 4500 Hours
Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 36 dB
Low Brightness: 29 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 350 W
Low Brightness: 300 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 15.2 x 4.7 x 12.2" / 385.0 x 120.0 x 310.0 mm | | Weight | 10.53 lb / 4.78 kg | | | | Package Weight | 14.55 lb | | Box Dimensions (LxWxH) | 19.3 x 15.5 x 8.7" |
