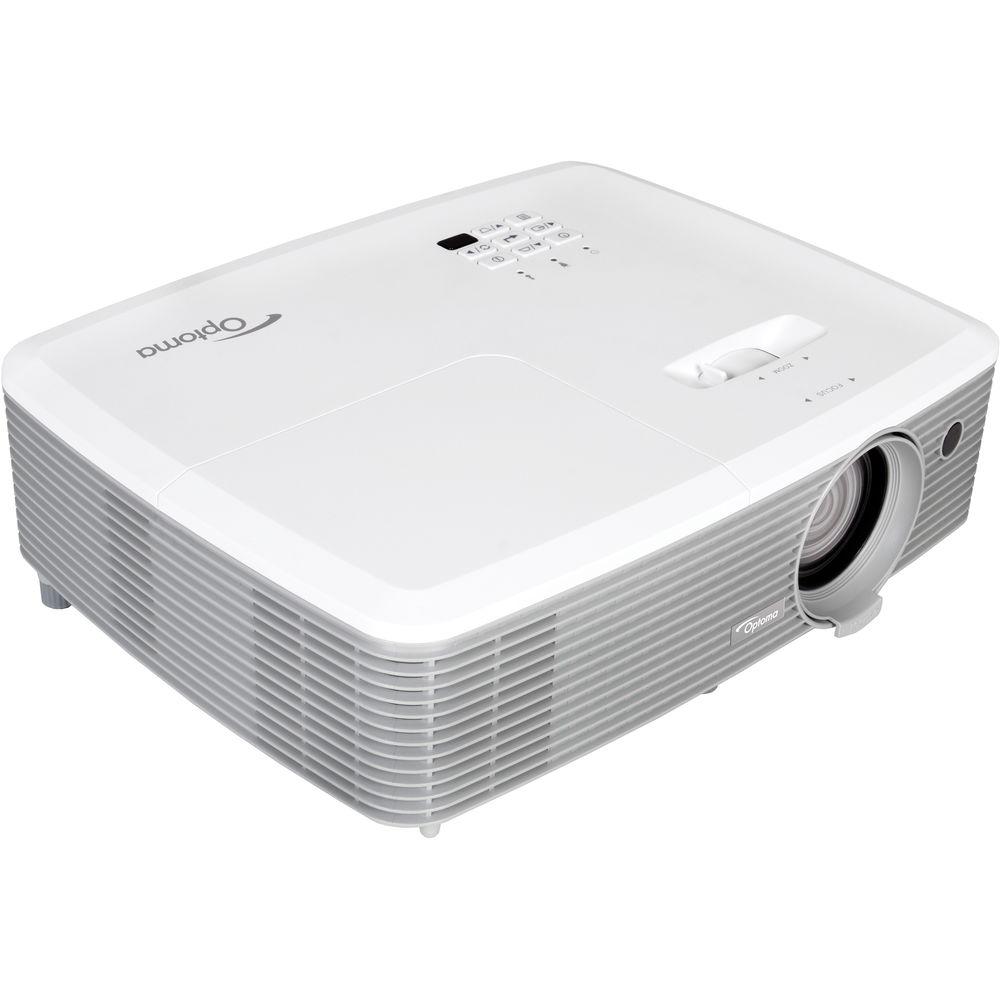

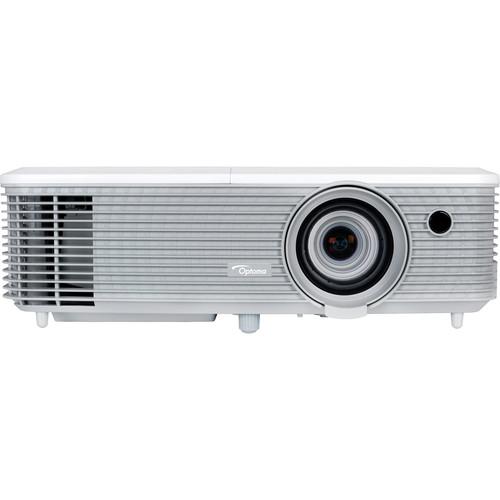

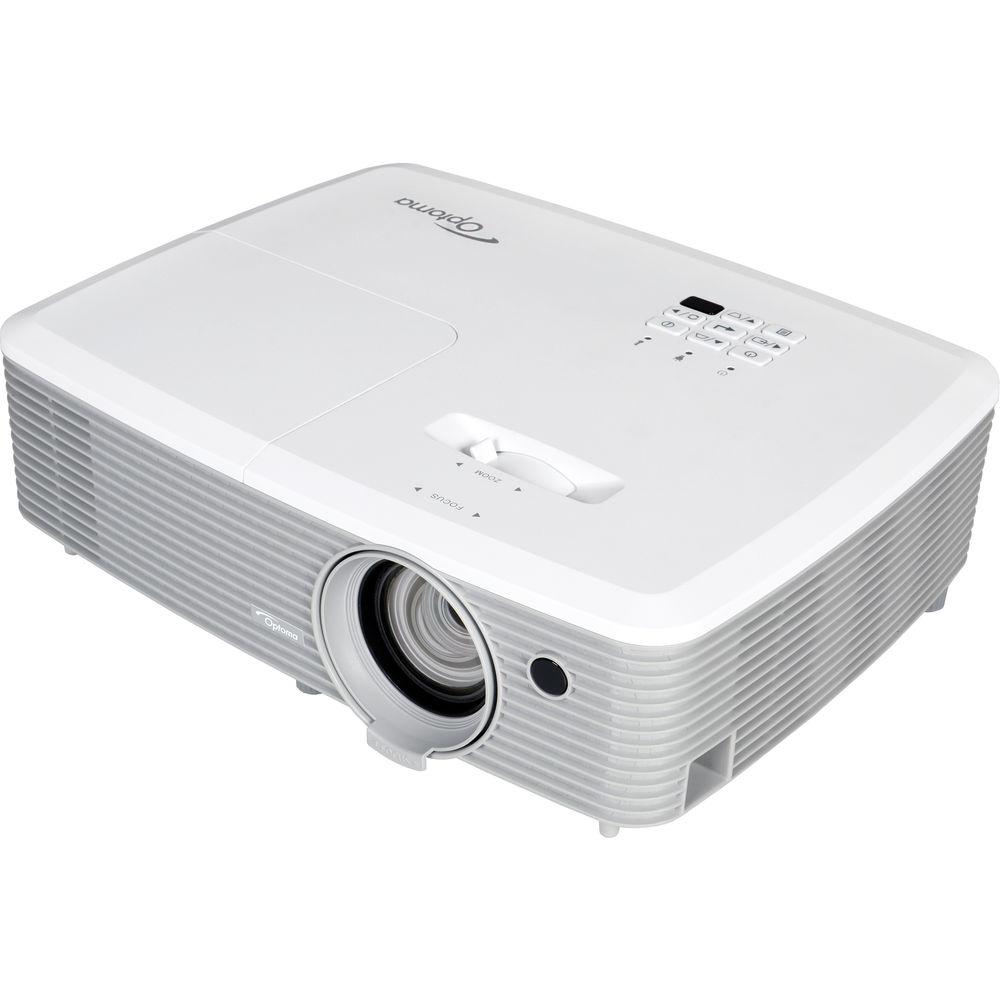

Product description Enjoy bright, clear images with the Optoma W331 3300-Lumen WXGA DLP Projector. Its 3300 lumens of brightness will overcome ambient light in many cases while its 22,000:1 contrast ratio and WXGA (1280 x 800) native resolution will help ensure that detail is clear. It has a 1.55 to 1.73:1 throw ratio, which will allow you to place the projector far from the screen without losing focus.

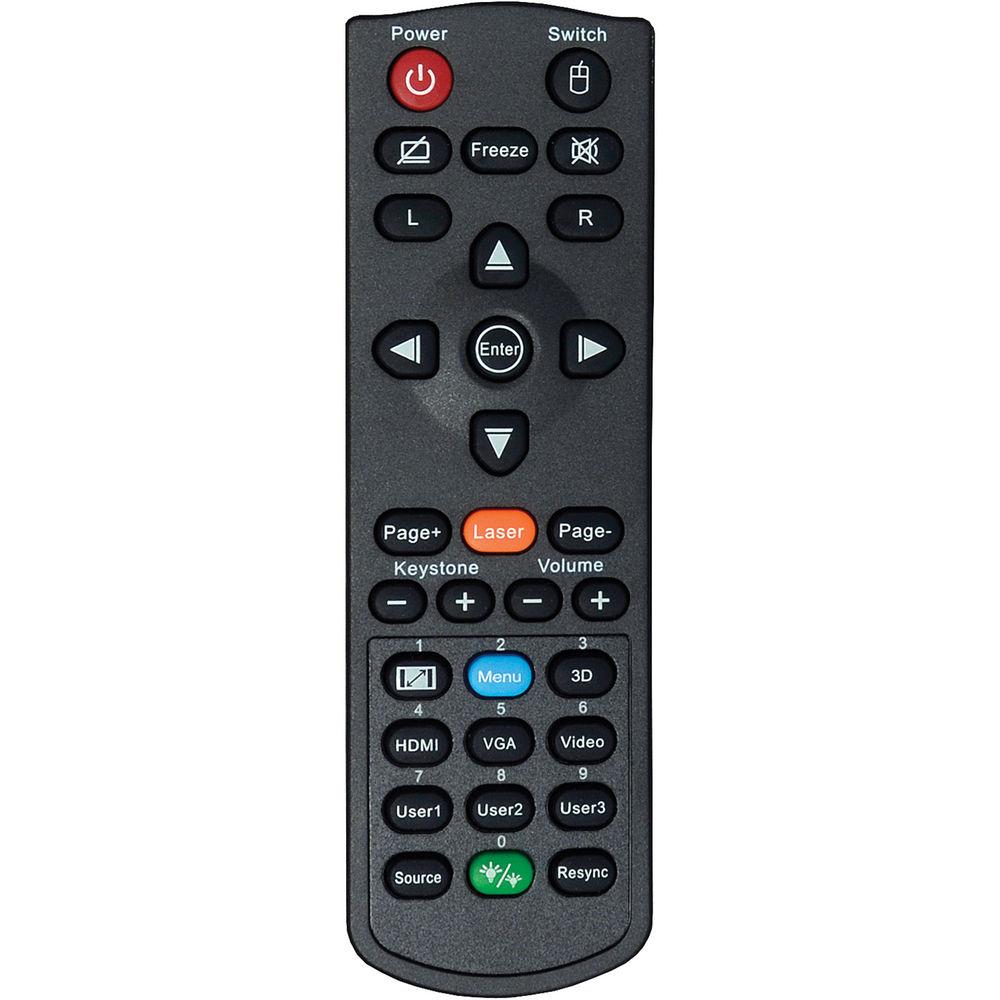

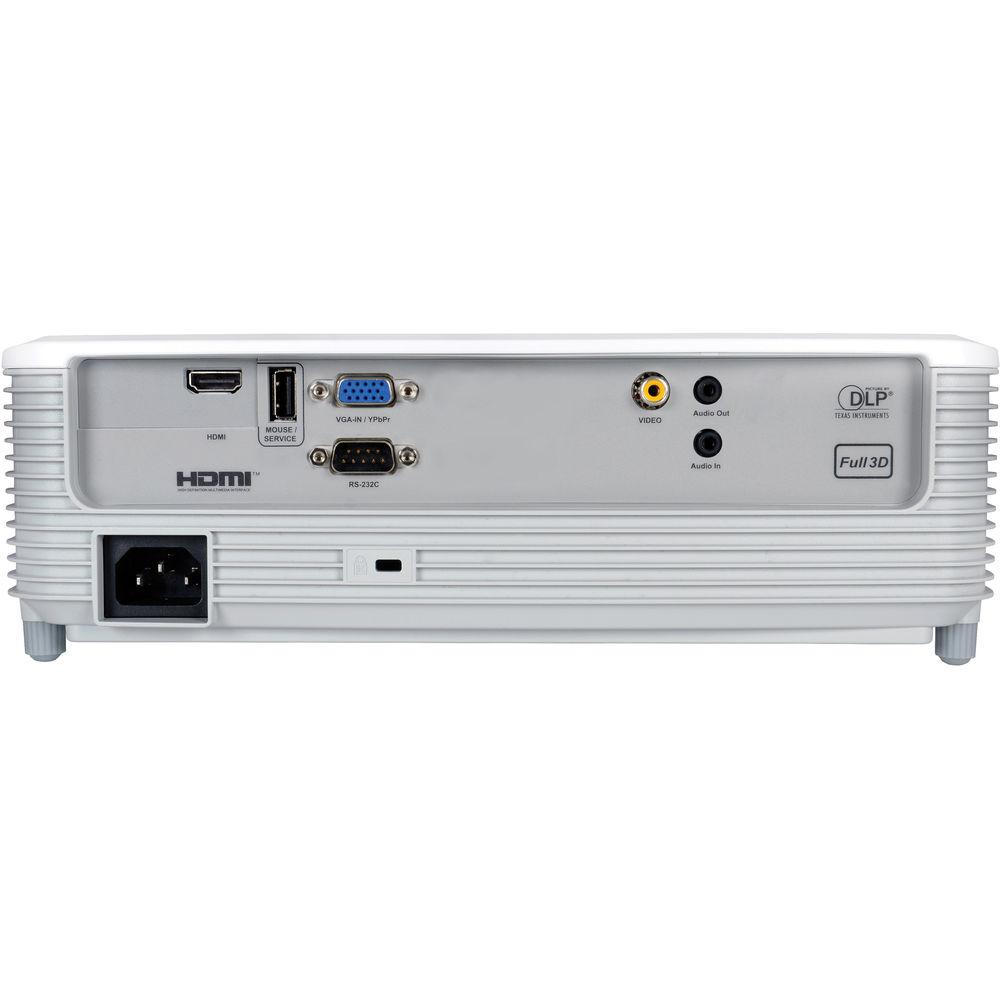

The W331 has VGA, composite, and HDMI inputs to support a variety of devices. Its analog audio input and output will allow you to daisy chain the audio to an external speaker setup. The projector will connect wirelessly with an optional WHD200 system. The W331 has a built-in 2-Watt speaker to eliminate the need for a separate speaker system. It is controllable via RS-232 or the included IR remote. - BrilliantColor Technology
- For natural-looking images, the W331 incorporates BrilliantColor multicolor processing technology. This projector also conforms to the sRGB color standard to produce enhanced true-to-life color.
- High 22,000:1 Contrast Ratio
- With bright whites and rich blacks, images come alive and text appears crisp and clear.
- Full 3D
- The W331 can display 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting, and compatible game consoles. Support for 144 Hz refresh rate provides ultra-smooth flicker-free images.
- Wireless Ready
- Stream 1080p 3D content to your projector wirelessly with the optional WHD200.
- Integrated Speaker
- A built-in speaker provides sound that is easy to set up without the need for external speakers.
- Energy Saving
- Using the specially designed lamp modes, you can reduce the power consumption by up to 70%. Each mode also has a positive effect on the lamp life, lowering the total cost of ownership and reducing maintenance.
- Eco+ Mode
- Eco+ technology brings together high contrast, improved lamp life, and energy saving features that are easy to use while reducing power consumption.
- Eco AV Mute
- Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen by blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.
- Auto Power Off
- To help save energy, the "Auto Power Off" feature automatically turns off the projector after a set period of time if it is not being used
- Long Lamp Life
- Reduce the number of lamp changes with lamp life of up to 10,000 hours using the Education Cycle.
UPC: 796435440046 In the Box Optoma Technology W331 3300-Lumen WXGA DLP Projector Remote Control with Battery VGA Cable AC Power Cord Limited 1-Year Warranty on Projector Limited 90-Day Warranty on Lamp Brochure PDF 188.8kb More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology W331 3300-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology W331 Specs | | | Display System | 1-Chip 0.65" DC3 DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3300 Lumens | | Uniformity | 75% | | Offset | 115% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Contrast Ratio | 22000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 1080p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15.3 to 91.1 kHz
Vertical: 24 to 85 Hz or 120 Hz | | | | Lens | f/2.5 - 2.67 (f = 21.86 - 24 mm) | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.281 - 39.37' / 1 - 12 m | | Throw Ratio | 1.55 - 1.73:1 | | Projection Size | 26.87 - 316.5" / 68.25 - 803.91 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Service (Input) | | | | Lamp Power | 195 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Low Brightness: 29 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Simplified English
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 225 W
Low Brightness: 187 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 11.7 x 9.1 x 3.8" / 298.0 x 230.0 x 96.5 mm | | Weight | 4.8 lb / 2.2 kg | | | | Package Weight | 7.305 lb | | Box Dimensions (LxWxH) | 15.85 x 11.2 x 6.15" |
