User Manual for Optoma Technology W490 5000-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology W490 5000-Lumen WXGA DLP
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology W490 5000-Lumen WXGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Enjoy bright images and high dynamic contrast with the Optoma W490 5000-Lumen WXGA DLP Projector. Its native 1280 x 800 resolution displays data and images clearly at various viewing distances, while its 1.48 to 2.35:1 throw ratio allows you to place the projector far from the screen without losing focus. The W490 features VGA, RCA composite video, and three HDMI inputs for connecting different types of devices. Two HDMI inputs are MHL-compatible for wired mirroring of your compatible smart device. The projector includes a VGA cable and an IR remote control for added convenience. - High 10,000:1 Dynamic Contrast Ratio
- Add more depth to your image with a high-contrast ratio. With bright whites and rich blacks, images are more lifelike and text appears crisp and clear.
- 3D Projection
- The W490 can display 3D content from almost any 3D source, including Blu-ray players, broadcasting, and game consoles.
- Integrated Speakers
- The built-in speakers allow audio to accompany your video without having to set up external speakers.
- Energy-Saving Modes
- With different energy-saving modes, you can reduce power consumption by up to 70%. Each energy-saving mode also extends lamp life, lowering the total cost of ownership and reducing maintenance costs and time.
- Auto Power Off
- To help save energy, the Auto Power Off feature automatically turns off the projector after a set time if it is not being used.
- Eco AV Mute
- This feature allows you to direct your audience's attention away from the screen by blanking the image when it's no longer needed, reducing power consumption by up to 70%.
- Vertical Lens Shift
- Vertical lens shift helps to simplify installation by providing a wider range of projector placement possibilities, allowing for more options for position and screen size.
- Four-Corner Adjustment
- Individually warp each corner of the image to create a square image for image stacking, uneven walls, or where projector placement is awkward and an angled installation is required.
- 1.6x Optical Zoom
- A 1.6x zoom enables placement possibilities at a variety of distances from your projection surface. This allows the W490 to replace a number of different legacy projectors in various installations.
- MHL Connectivity
- Connect your compatible smartphone or tablet with a single cable using an MHL connection, allowing you to view presentations, documents, videos, and photos from your device on the big screen.
- BrilliantColor Technology
- BrilliantColor multi-color processing technology helps produce vibrant, natural-looking images.
- Quick Resume
- This feature allows the projector to be instantly powered back on if it is accidentally switched off.
- USB Power
- Use the USB power port to provide power to an HDMI dongle, such as the Optoma WHD200 wireless HDMI device or a Google Chromecast.
- Networking and Control Options
-
- LAN control: Using Crestron RoomView software, you can power on/off, manage, and control up to 250 projectors at the same time from nearly any computer. You can also schedule them to power on/off, control and alter their settings, send emergency text broadcasts, and automatically receive updates for lamp maintenance.
- RS-232: The W490 includes a set of RS-232 commands, allowing it to be integrated into nearly any control system.
- AMX compatibility: Dynamic discovery protocol is built into the projector for installation within AMX control systems.
UPC: 796435419806 In the Box Optoma Technology W490 5000-Lumen WXGA DLP Projector Remote Control with Batteries VGA Cable AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More info from Optoma Technology zedxvfauytudstzxvszaetxawwzyzyrreqtybc Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology W490 5000-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology W490 Specs | | | Display System | 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p | | Max Brightness | 5000 Lumens | | Uniformity | 70% | | Offset | 96% - 112% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 10,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 1080p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15.375 to 91.146 kHz
Vertical: 24 to 85 Hz | | | | Focus | Manual | | Lens | f/2.5 - 3.26 (f = 20.91 - 32.63 mm) | | Lens Shift | Vertical: ± 16% | | Optical Zoom | Manual: 1.6x | | Throw Distance | 4.265 - 31.496' / 1.3 - 9.6 m | | Throw Ratio | 1.48 - 2.35:1 | | Projection Size | 25.6 - 301.1" / 65.02 - 764.79 cm | | | | Keystone Correction | Vertical: ± 30°

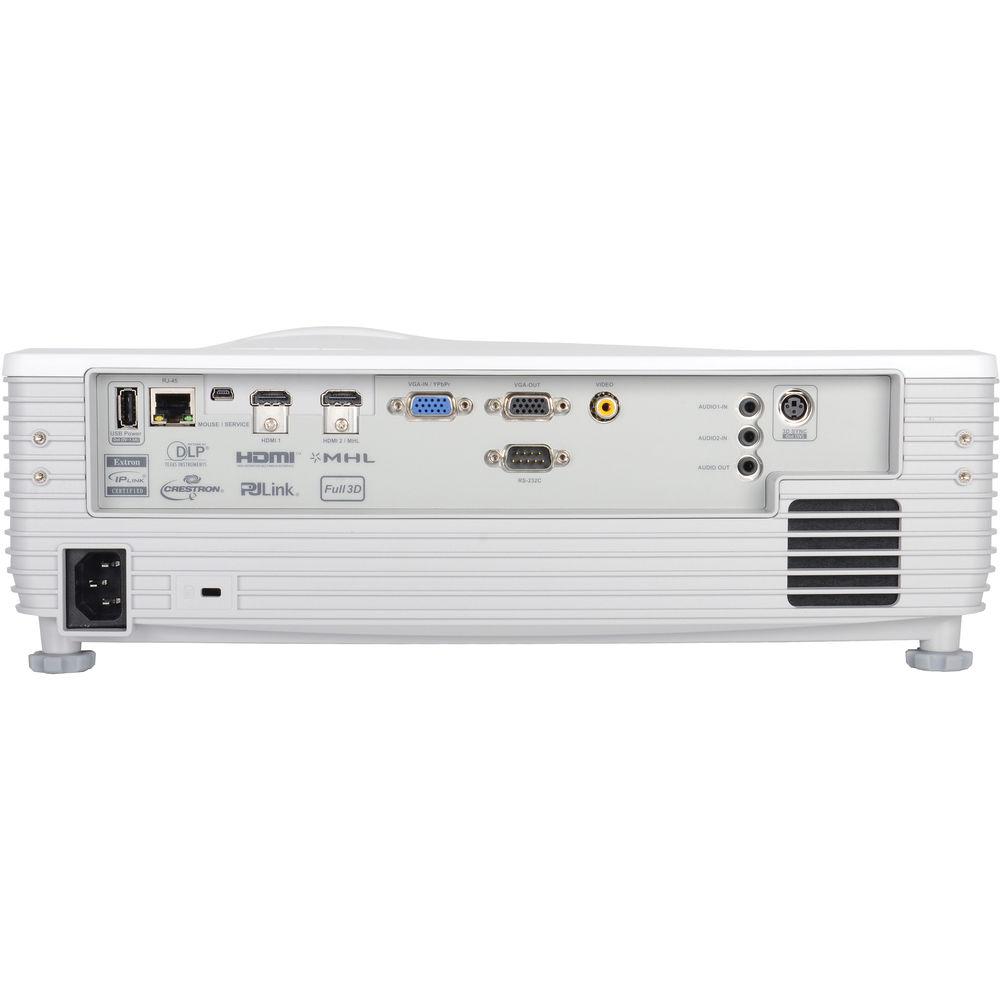

Horizontal: ± 30° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 32W | | | | Inputs/Outputs | 2 x HDMI with MHL Support Audio/Video (Input)
1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Mini-USB Control/Service (Input)
1 x USB Power (Output)

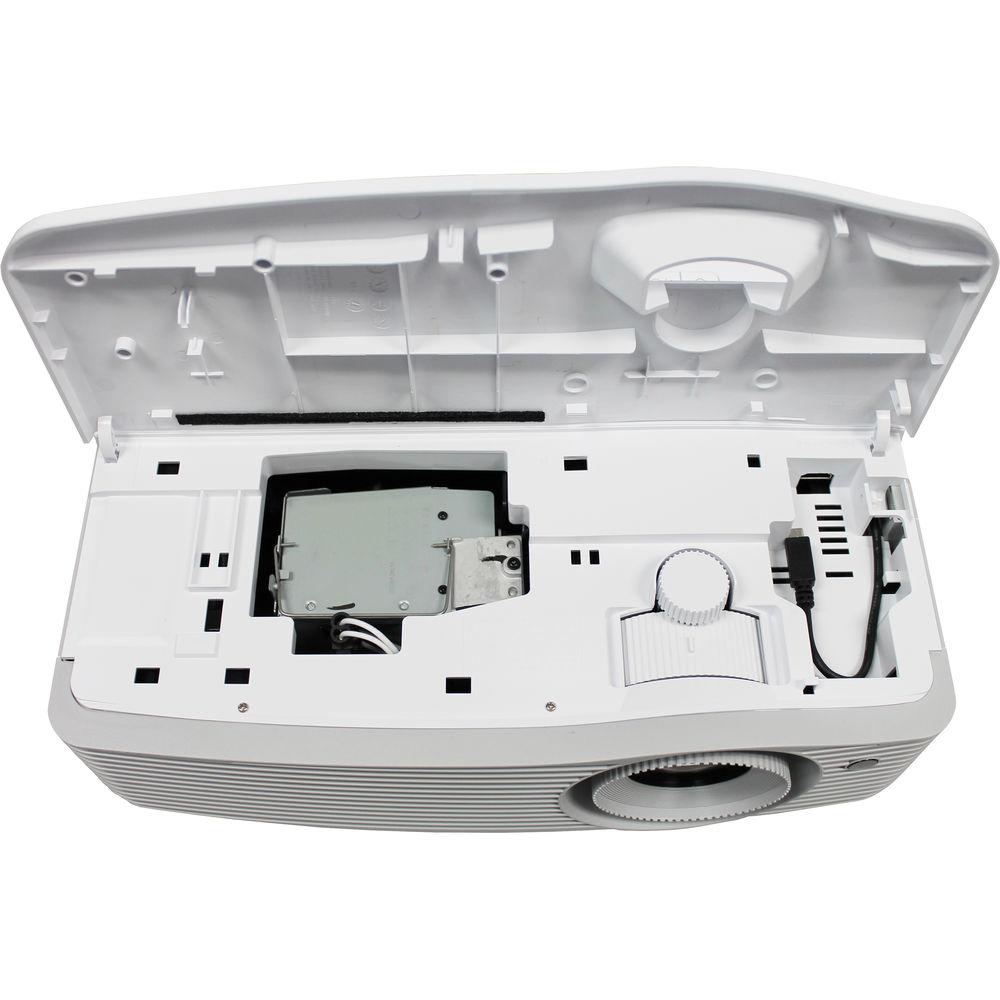

1 x VESA 3D Sync Video (Output) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 310 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Low Brightness: 3500 Hours | | Fan Noise | Low Brightness: 29 dB | | Security | Cable Lock Slot
Keypad Lock
Security Bar | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 421 W
Low Brightness: 329 W
Standby Mode (Lamp Off): <0.5 W | | Operating Temperature | 41 to 113°F / 5 to 45°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 14.5 x 5.2 x 11.6" / 36.9 x 13.2 x 29.5 cm | | Weight | 10.2 lb / 4.6 kg | | | | Package Weight | 13.9 lb | | Box Dimensions (LxWxH) | 19.4 x 15.2 x 7.2" |
