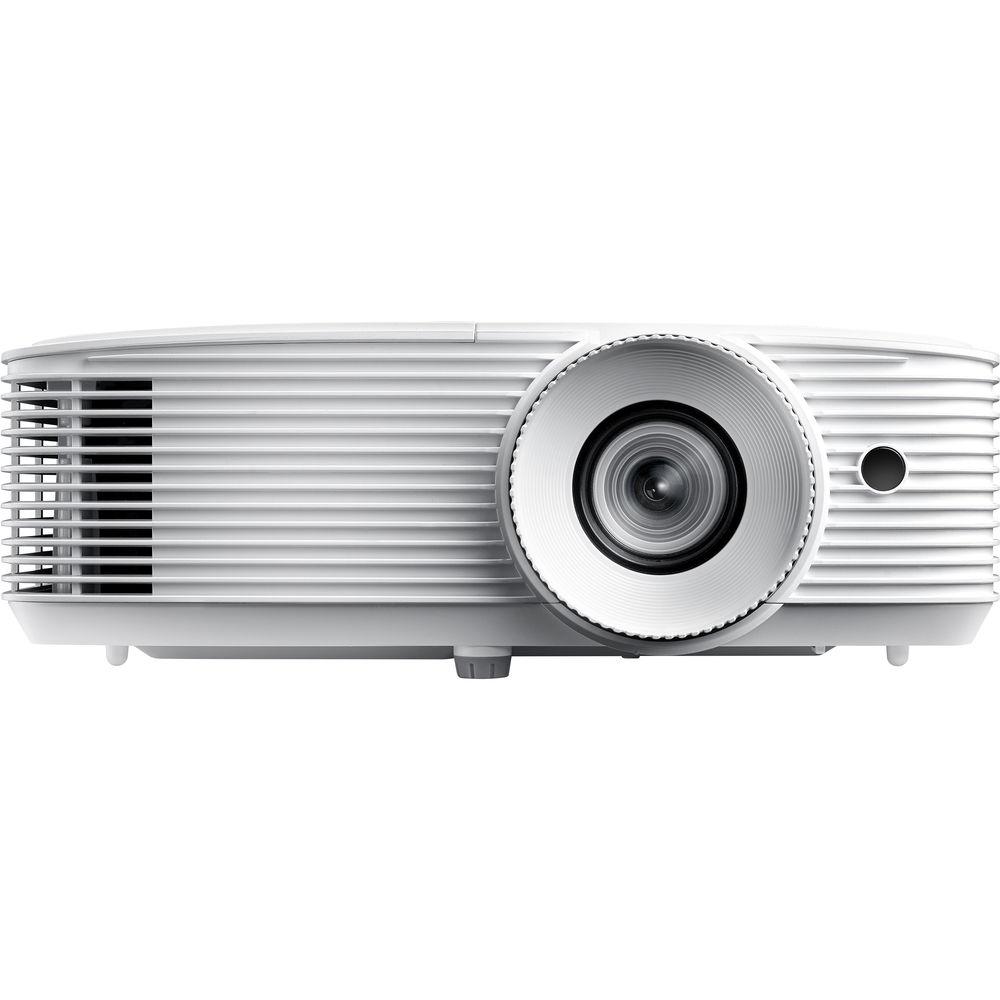

User Manual for Optoma Technology WU334 3600-Lumen WUXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology WU334 3600-Lumen WUXGA DLP
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology WU334 3600-Lumen WUXGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

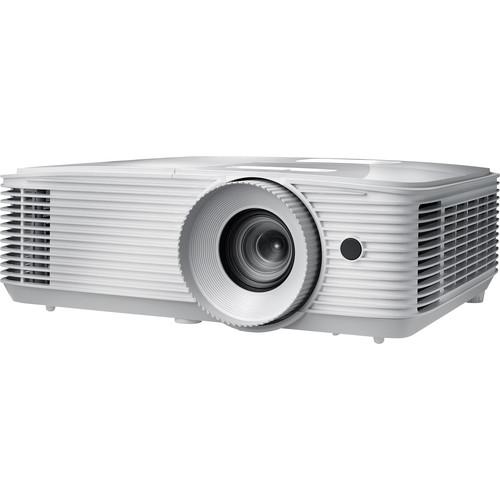

Product description Enjoy bright images with high contrast with the Optoma WU334 3600-Lumen WUXGA DLP Projector. Its native 1920 x 1200 resolution displays data, video, and images clearly at various viewing distances, while its 1.47 to 1.62:1 throw ratio allows you to place the projector far from the screen without losing focus. The WU334 features VGA, RCA composite video, and two HDMI inputs for connecting different types of devices. One HDMI input is MHL-compatible for wired mirroring of your compatible smart device. The projector includes a carrying case and an IR remote control for added convenience. -
- Designed for bright, high-resolution images with 3600 lumens of brightness, WUXGA resolution, and a 20,000:1 dynamic contrast ratio

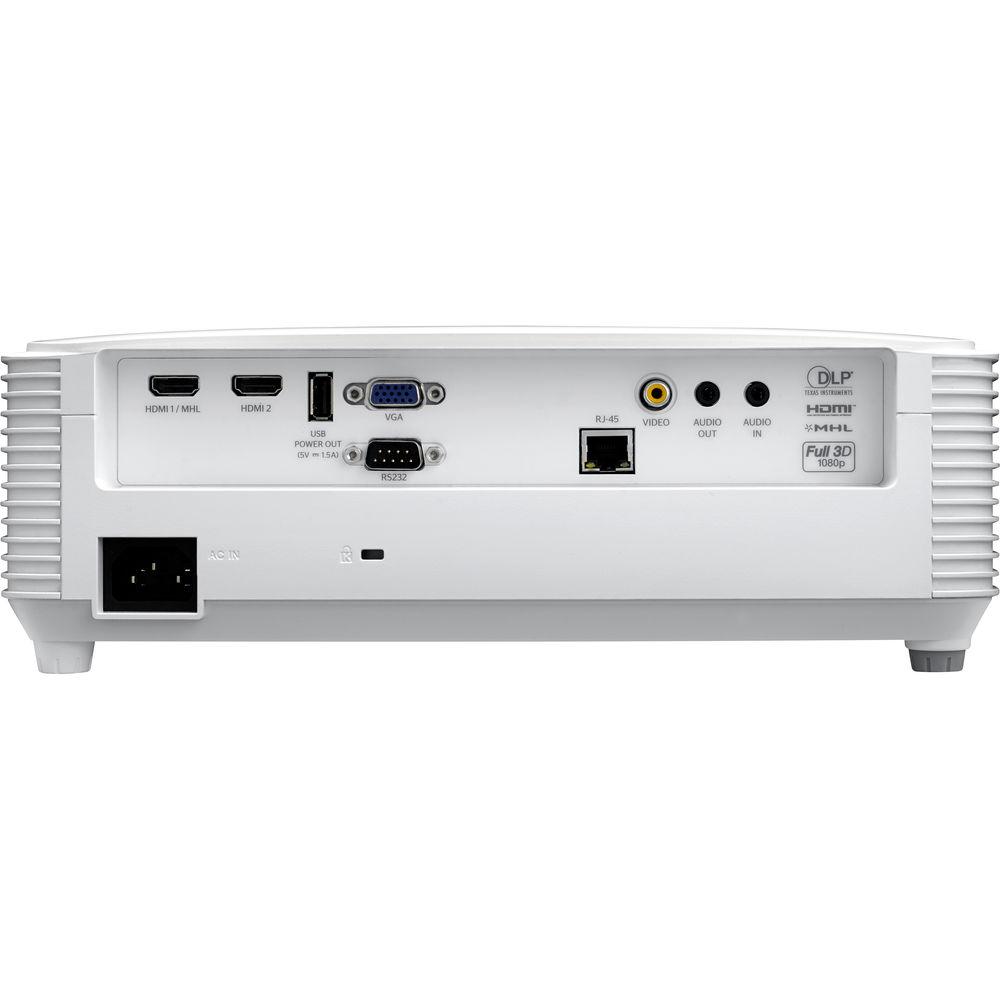

- I/O support for HDMI, HDMI with MHL, VGA, and composite video, plus audio in, audio out, USB power, and RS-232C
- Integrated 10-watt speaker eliminates the need for an external speaker system

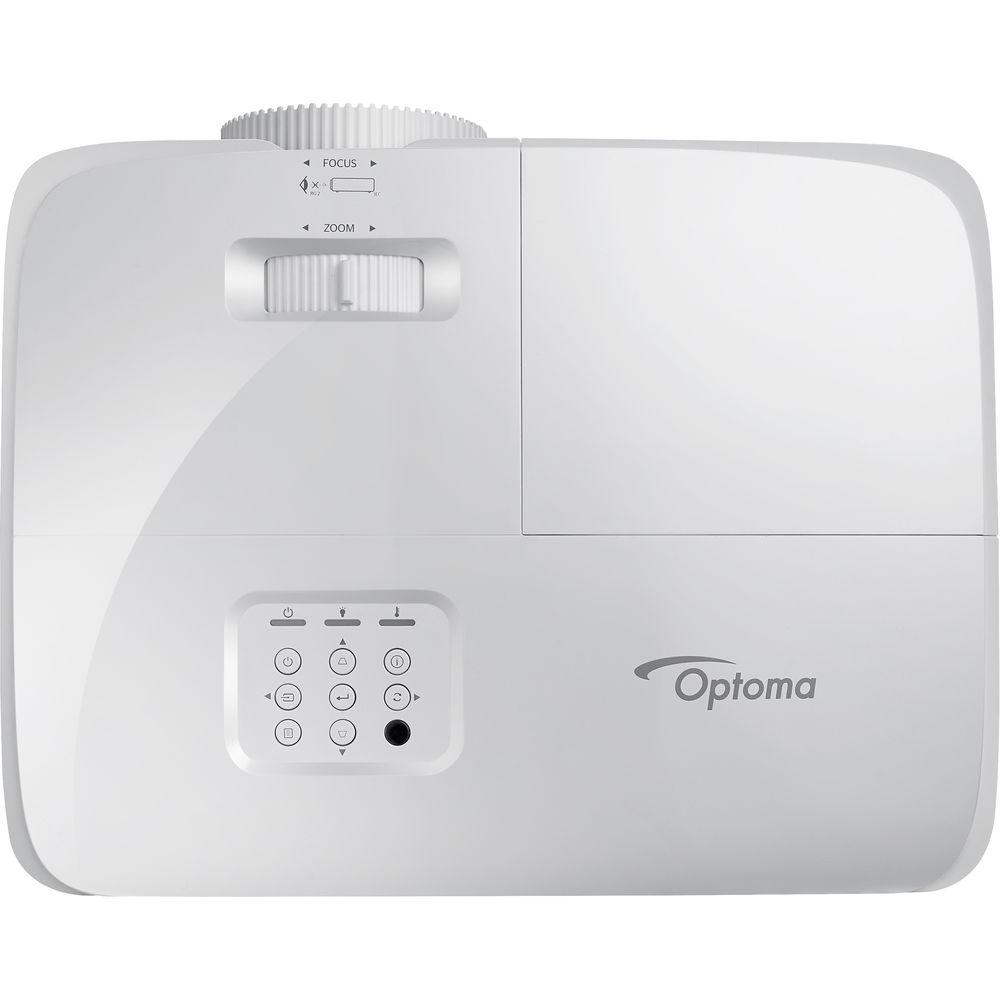

- Flexible installations with 1.3x zoom and RJ-45 connectivity
- Engineered for minimal maintenance with up to a 15,000-hour lamp life
- Stream wirelessly with the optional HDCast Pro adapter
UPC: 796435441685 In the Box Optoma Technology WU334 3600-Lumen WUXGA DLP Projector Remote Control with Batteries Carrying Case AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More info from Optoma Technology yzwwdewcszyasxwwtewtbryxfdufe Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology WU334 3600-Lumen WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology WU334 Specs | | | Display System | 0.48" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3600 Lumens | | Uniformity | 70% | | Offset | 116% ± 5% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 1080p)
Top Bottom (up to 1080p) | | Color Wheel | 5-Segment (R/G/B/W/Y) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 15 to 91 kHz
Horizontal: 25 to 85 Hz or 120 Hz | | | | Lens | f/2.1 - 2.31 (f = 15.59 - 17.14 mm) | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.2 - 35.29' / 0.975 - 10.756 m | | Throw Ratio | 1.47 - 1.62:1 | | Projection Size | 29 - 300" / 73.66 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 3500 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 32 dB
Low Brightness: 27 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 330 W
Low Brightness: 210 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 12.4 x 4.3 x 9.2" / 31.5 x 10.9 x 23.4 cm | | Weight | 6.75 lb / 3.06 kg | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 18.0 x 13.0 x 6.0" |
