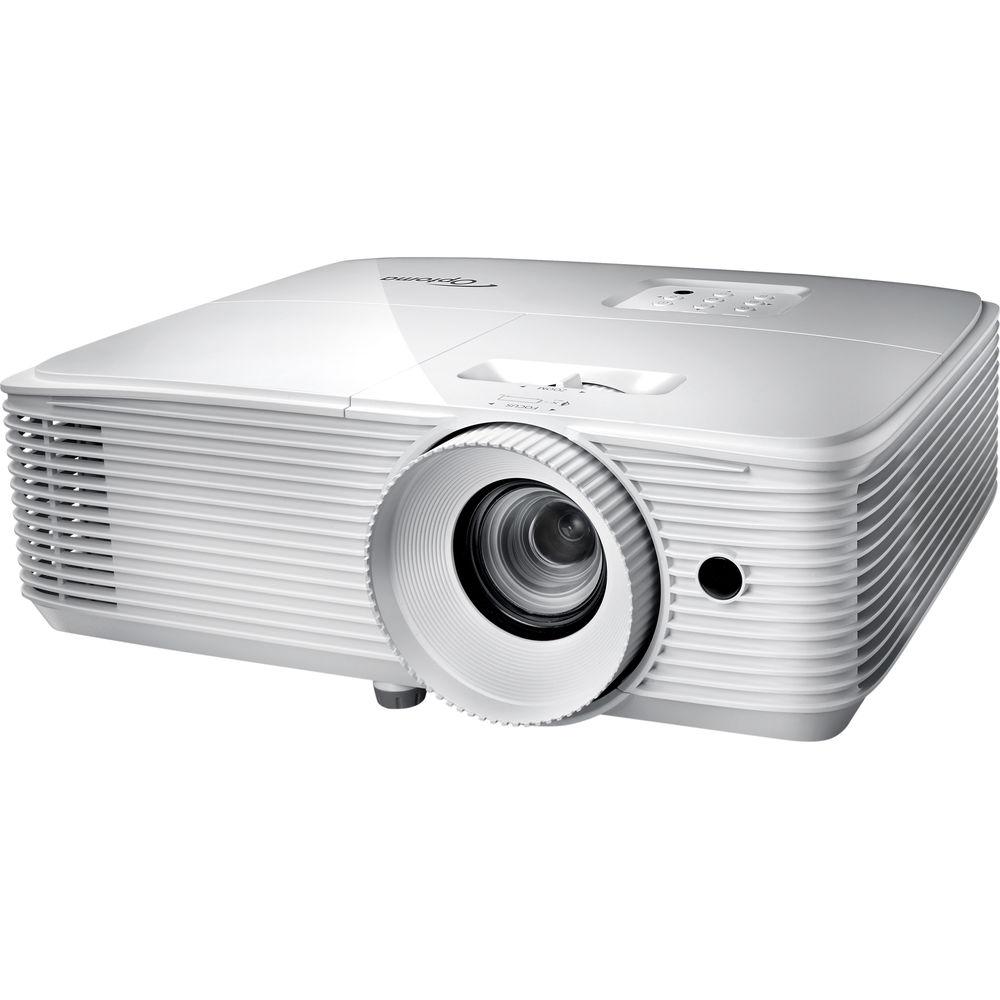

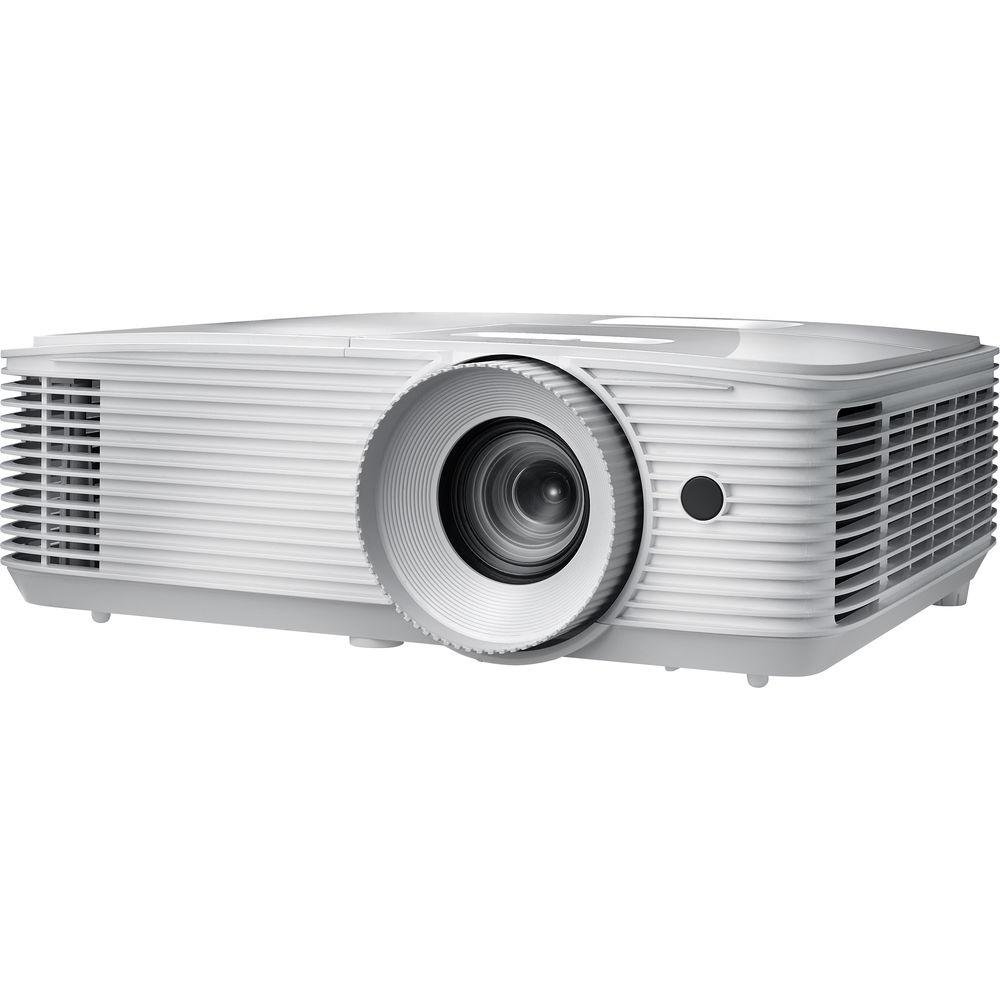

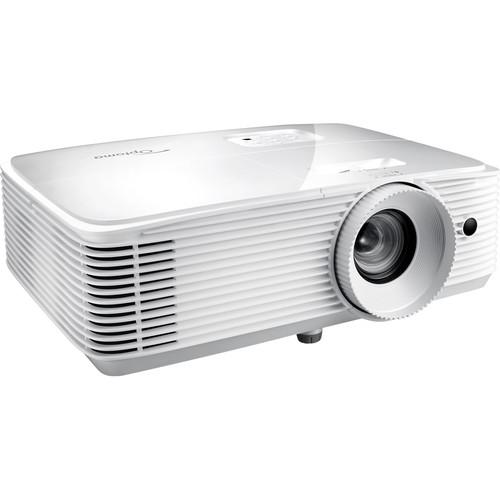

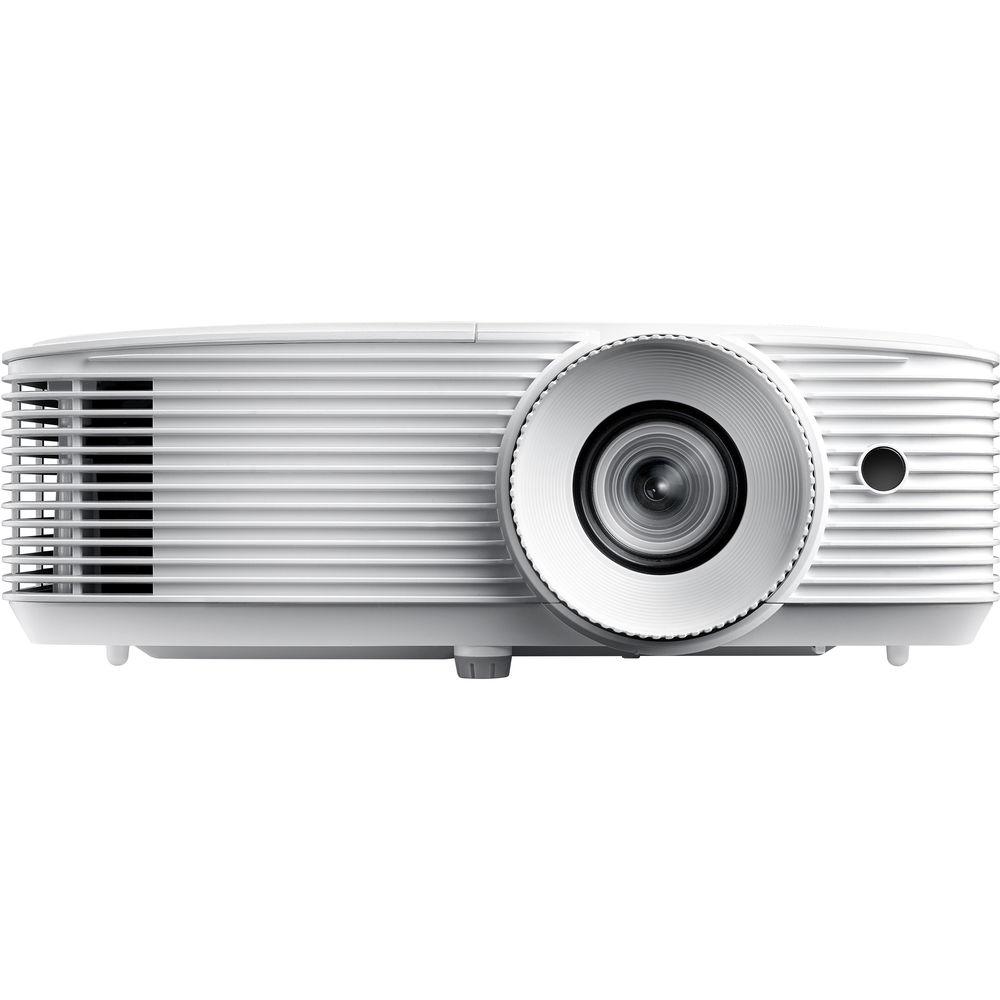

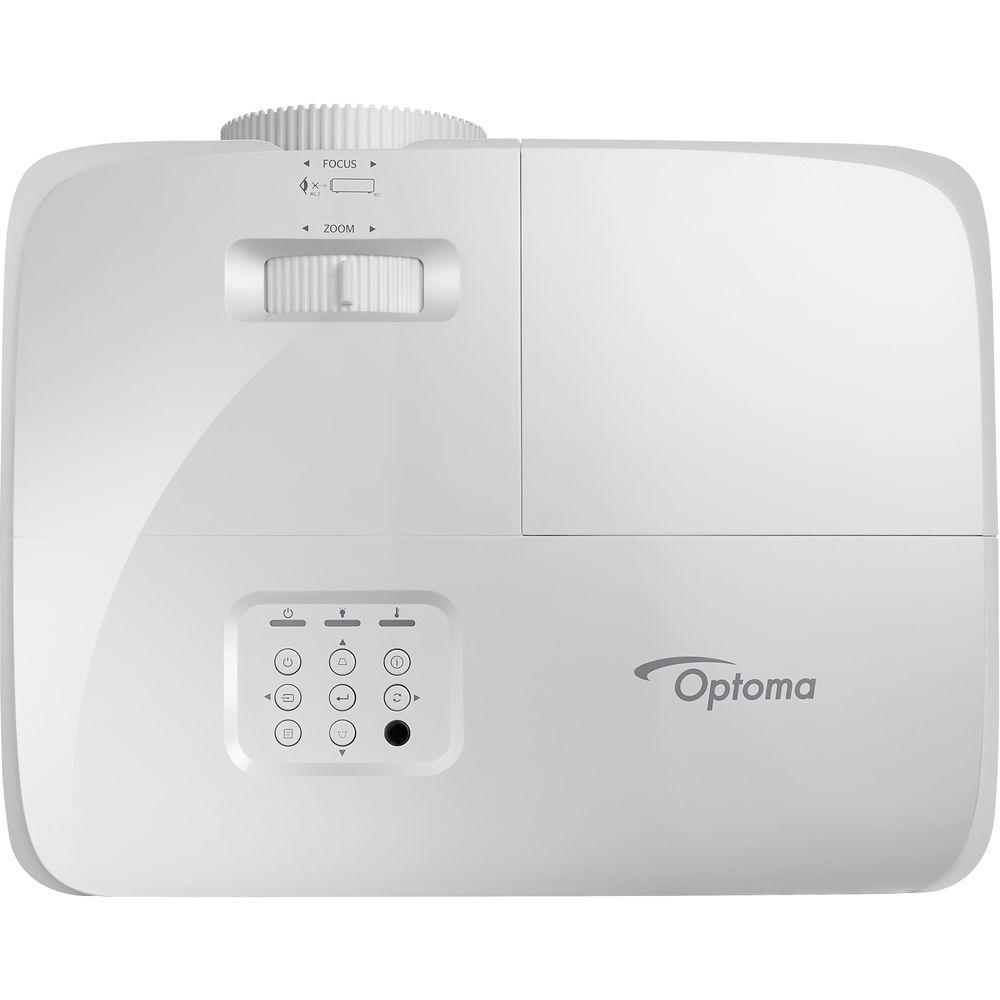

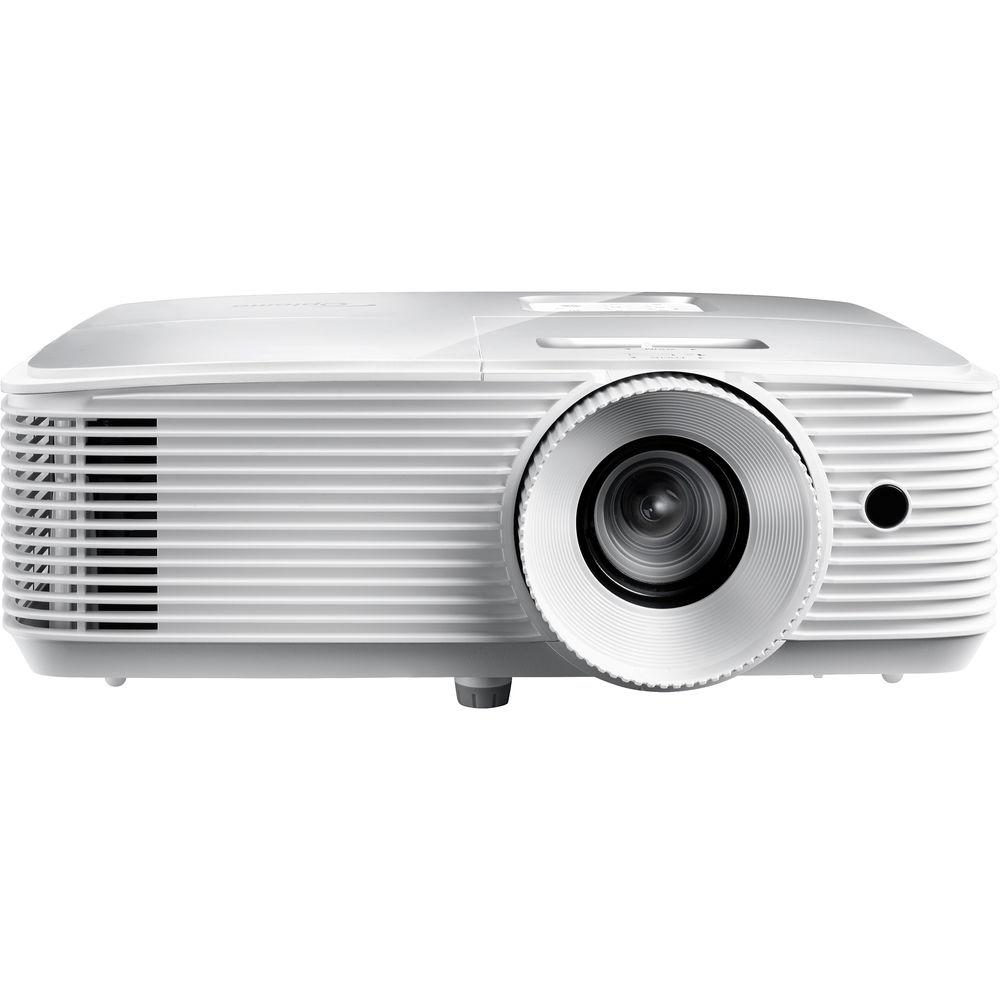

User Manual for Optoma Technology WU336 3400-Lumen WUXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology WU336 3400-Lumen WUXGA DLP
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology WU336 3400-Lumen WUXGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Enjoy bright images and high dynamic contrast with the Optoma WU336 3400-Lumen WUXGA DLP Projector. Its native 1920 x 1200 resolution displays data, video, and images clearly at various viewing distances, while its 1.58 to 2.06:1 throw ratio allows you to place the projector far from the screen without losing focus. The WU336 features VGA, RCA composite video, and two HDMI inputs for connecting different types of devices. One HDMI input is MHL-compatible for wired mirroring of your compatible smart device. The projector includes a carrying case and an IR remote control for added convenience. -
- WUXGA projection with 3400 lumens of brightness and a 20,000:1 dynamic contrast ratio

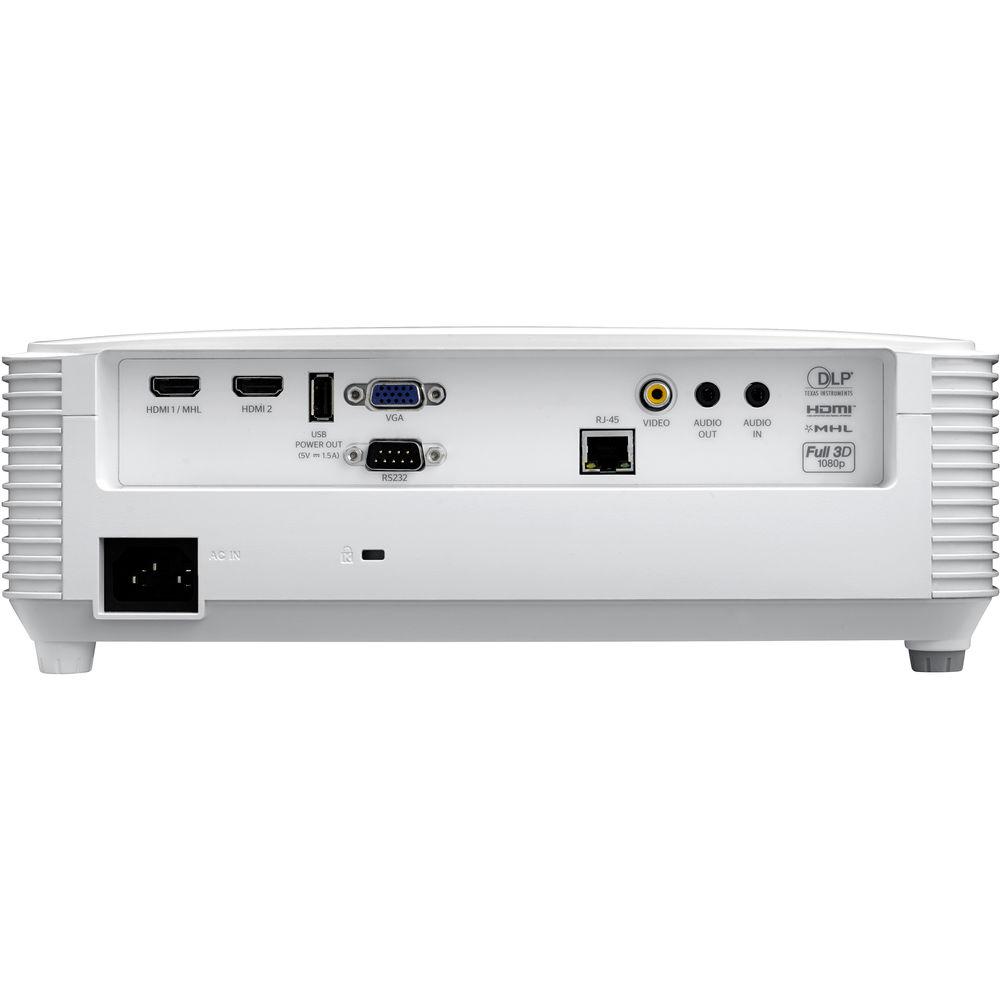

- I/O support includes HDMI, HDMI with MHL, VGA, composite, and 1/8" audio inputs, plus a 1/8" audio output, USB power output, and RS-232C control
- Integrated 10-Watt speaker mitigates the need for an external speaker setup
- Flexible installations with 1.3x optical zoom and Ethernet connectivity
- Minimal maintenance with up to a 15,000-hour lamp life
- Optional HDCast Pro enables wireless mirroring and streaming
UPC: 796435441708 In the Box Optoma Technology WU336 3400-Lumen WUXGA DLP Projector Remote Control with Batteries Carrying Case AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology WU336 3400-Lumen WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology WU336 Specs | | | Display System | 3-Chip 0.48" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3400 Lumens | | Uniformity | 70% | | Offset | 116% ± 5% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 720p)
Top Bottom (up to 720p) | | Color Wheel | 6-Segment (R/G/B/W/Y/C) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 25 to 85 Hz or 120 Hz
Vertical: 15 to 91 kHz | | | | Lens | f/2.43 - 2.78 (f = 16.91 - 21.6 mm) | | Optical Zoom | Manual: 1.3x | | Throw Distance | 3.9 - 33.46' / 1.189 - 10.199 m | | Throw Ratio | 1.58 - 2.06:1 | | Projection Size | 27 - 299" / 68.58 - 759.46 cm | | | | Keystone Correction | Manual-Vertical: ± 40° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 3500 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 32 dB
Low Brightness: 27 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 330 W
Low Brightness: 230 W | | Dimensions (W x H x D) | 12.4 x 4.3 x 9.2" / 31.5 x 10.9 x 23.4 cm | | Weight | 6.7 lb / 3.0 kg | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 15.6 x 13.4 x 6.4" |
