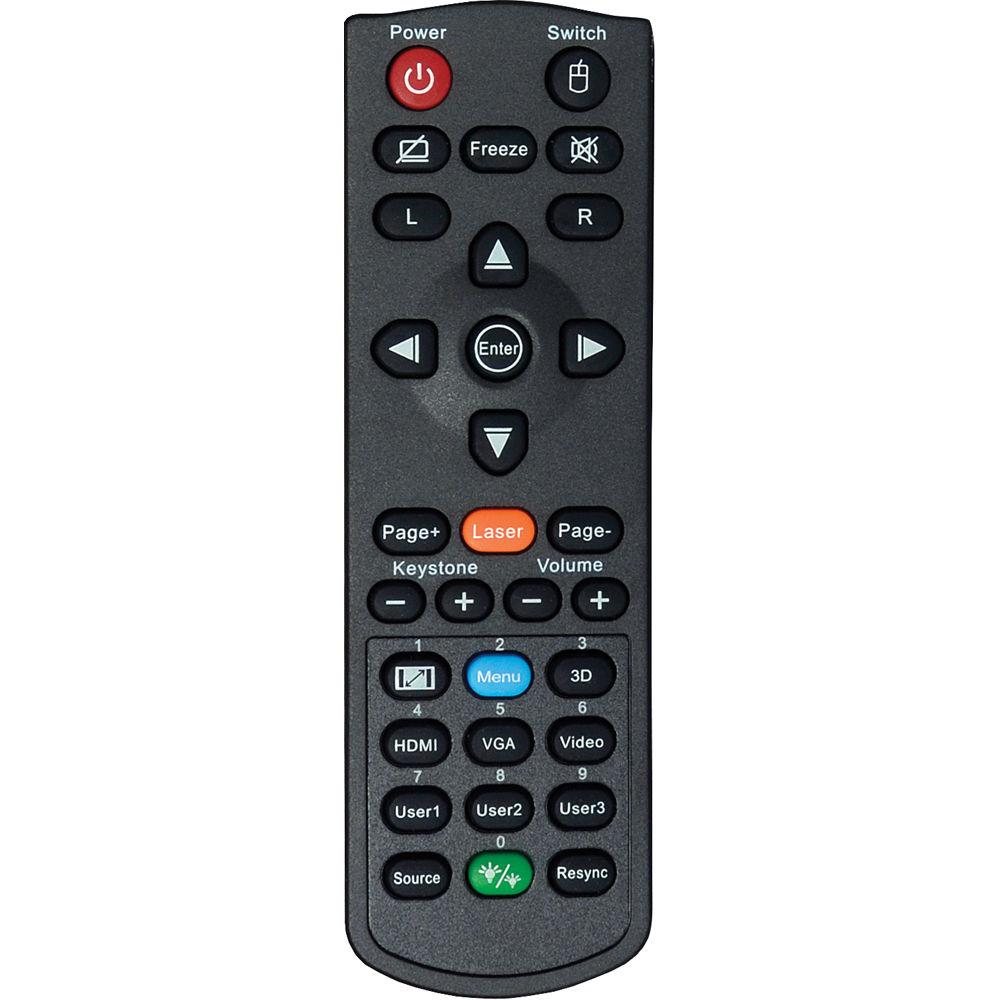

Product description Enjoy bright images and high dynamic contrast with the Optoma WU416 4200-Lumen WUXGA DLP Projector. Its native 1920 x 1200 resolution displays data and images clearly at various viewing distances, while its 1.4 to 2.24:1 throw ratio allows you to place the projector far from the screen without losing focus. The WU416 features VGA, RCA composite video, and two HDMI inputs for connecting different types of devices. Both HDMI inputs are MHL-compatible for wired mirroring of your compatible smart device. The projector includes a VGA cable and an IR remote control with a built-in laser pointer for added convenience. - 1.6x Optical Zoom
- Optical zoom enables additional placement possibilities at a variety of distances from the projection screen, allowing you to replace a greater variety of legacy projectors while retaining a diverse choice of positioning options.
- WUXGA Resolution
- WUXGA resolution provides detailed images from HD content without downscaling or compression, making the WU416 suitable for edge blending and high-resolution projections.
- Eco+ Technology
- Eco+ technology is designed to bring together high contrast, enhanced lamp life, and energy-saving features to reduce power consumption.
- Eco AV Mute
- Eco AV mute allows you to direct your audience's attention away from the screen when it is no longer needed by blanking the image. This reduces the power consumption by up to 70%, further prolonging the life of your lamp.
- Auto Power-Off Function
- To help save energy when the projector is left running but not in use, the Auto Power-Off feature automatically turns the projector off after a set period of time.
- High 20,000:1 Dynamic Contrast Ratio with BrilliantColor Technology
- The 20,000:1 dynamic contrast ratio helps produce bright whites and rich blacks, allowing text to appear crisp and clear. For vibrant, natural-looking images, the WU416 incorporates BrilliantColor multicolor processing technology.
- 3D-Capable
- The WU416 can display 3D content from almost any 3D source, including 3D Blu-ray players, broadcasting, and gaming consoles. Support for 144 Hz rapid refresh rate provides smooth, flicker-free images.
- Up to 6500-Hour Lamp Life
- The included lamp can last up to 6500 hours in Eco+ mode.
- Vertical Lens Shift
- Lens shift helps provide a wide range of projector placement possibilities, making it easier to position the projector in the room while enabling a wider range of screen size options.
- USB Power
- You can use the USB port to power a separately sold HDMI dongle, such as a Google Chromecast.
- Integrated Speaker
- The built-in speaker offers audio support, mitigating the need for an external speaker system.
- Quick Resume Function
- The Quick Resume feature allows the projector to be instantly powered on again, if it is accidentally switched off.
- Remote Mouse Control
- The projector supports a USB mouse. You can keep your audience's attention focused on the right things by using the remote with USB mouse control.
- Networking and Control
- You can remotely control and monitor the projector using various options. A set of RS-232 commands makes it easy and simple to manage by using nearly any control system; dynamic discovery protocol is incorporated, allowing for easy installation with AMX control systems; and by using optional RoomView software, you can power on/off, monitor, manage, control, send emergency texts to, and automatically receive email updates for lamp maintenance for up to 250 projectors at the same time from any compatible computer via a LAN.
UPC: 796435440039 In the Box Optoma Technology WU416 4200-Lumen WUXGA DLP Projector Remote Control 2 x AAA Batteries VGA Cable USB Cable Carrying Case AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Guides & Manuals zedxvfauytudstzxvszaetxawwzyzyrreqtybc More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology WU416 4200-Lumen WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Optoma Technology WU416 4200-Lumen WUXGA DLP Projector can be downloaded in PDF format at the link stated below.
Technical parametersOptoma Technology WU416 Specs | | | Display System | 0.67" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 4200 Lumens | | Uniformity | 70% | | Offset | 115% ± 5% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 1080p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15.375 to 91.146 kHz

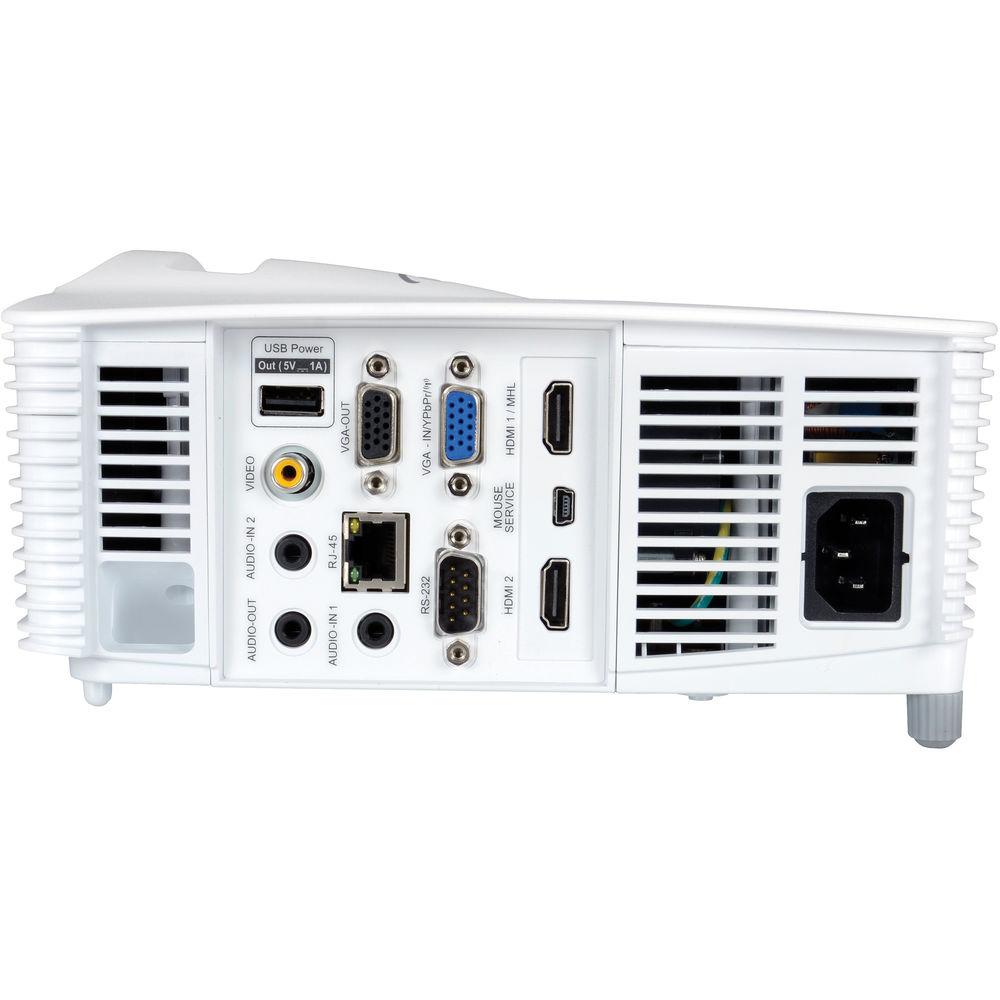

Vertical: 24 to 85 Hz or 120 Hz | | | | Focus | Manual | | Lens | f/2.5 - 3.26 (f = 20.91 - 32.62 mm) | | Lens Shift | Vertical: + 15.4% | | Optical Zoom | Manual: 1.6x | | Throw Distance | 4.265 - 30.84' / 1.3 - 9.4 m | | Throw Ratio | 1.4 - 2.24:1 | | Projection Size | 26.94 - 305.1" / 68.43 - 774.95 cm | | | | Keystone Correction | Vertical: ± 40° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Control (Input)
1 x Mini-USB Service (Input)
1 x USB Power (Output) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Expected Lamp Life | Full Brightness: 3000 Hours
Low Brightness: 6500 Hours | | Fan Noise | Low Brightness: 29 dB | | Security | Cable Lock Slot
Keypad Lock
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Norwegian
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Turkish | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 353 W
Low Brightness: 283 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 12.4 x 4.4 x 8.8" / 31.5 x 11.2 x 22.4 cm | | Weight | 6.8 lb / 3.1 kg | | | | Package Weight | 10.05 lb | | Box Dimensions (LxWxH) | 16.0 x 11.5 x 6.4" |
