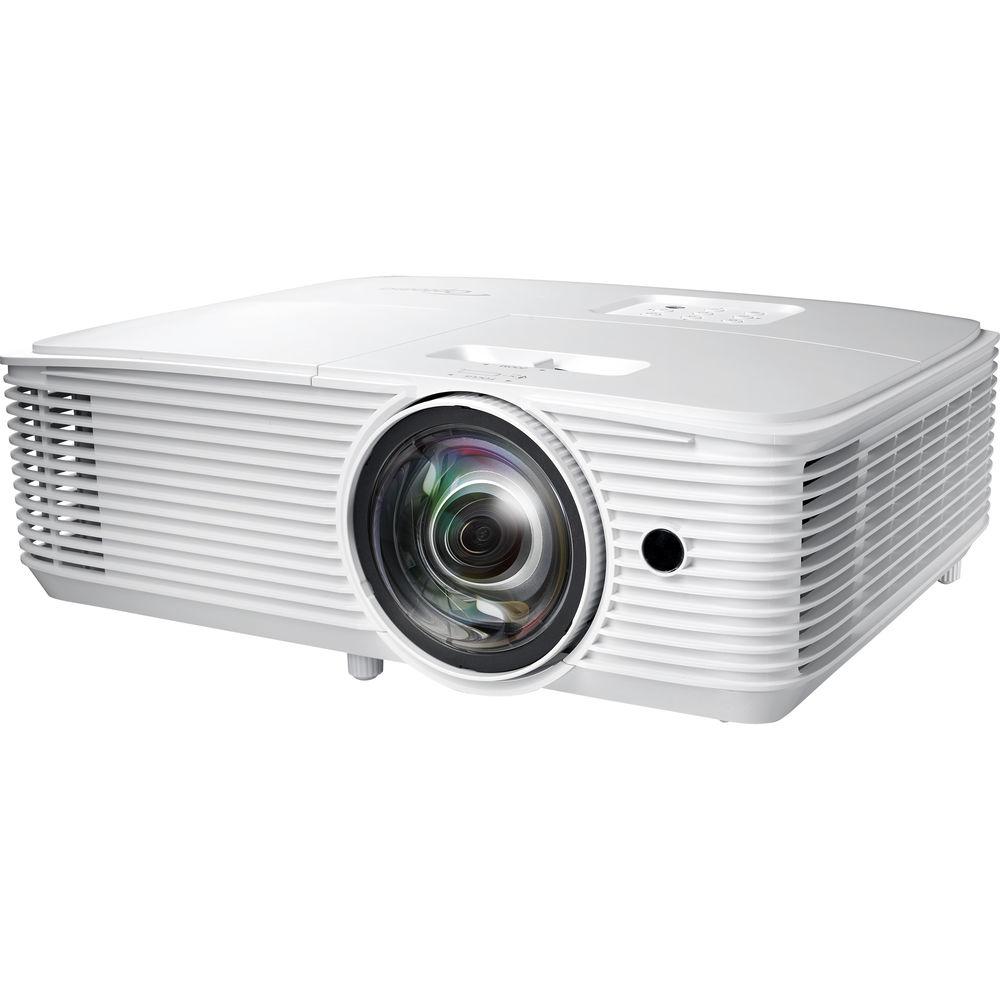

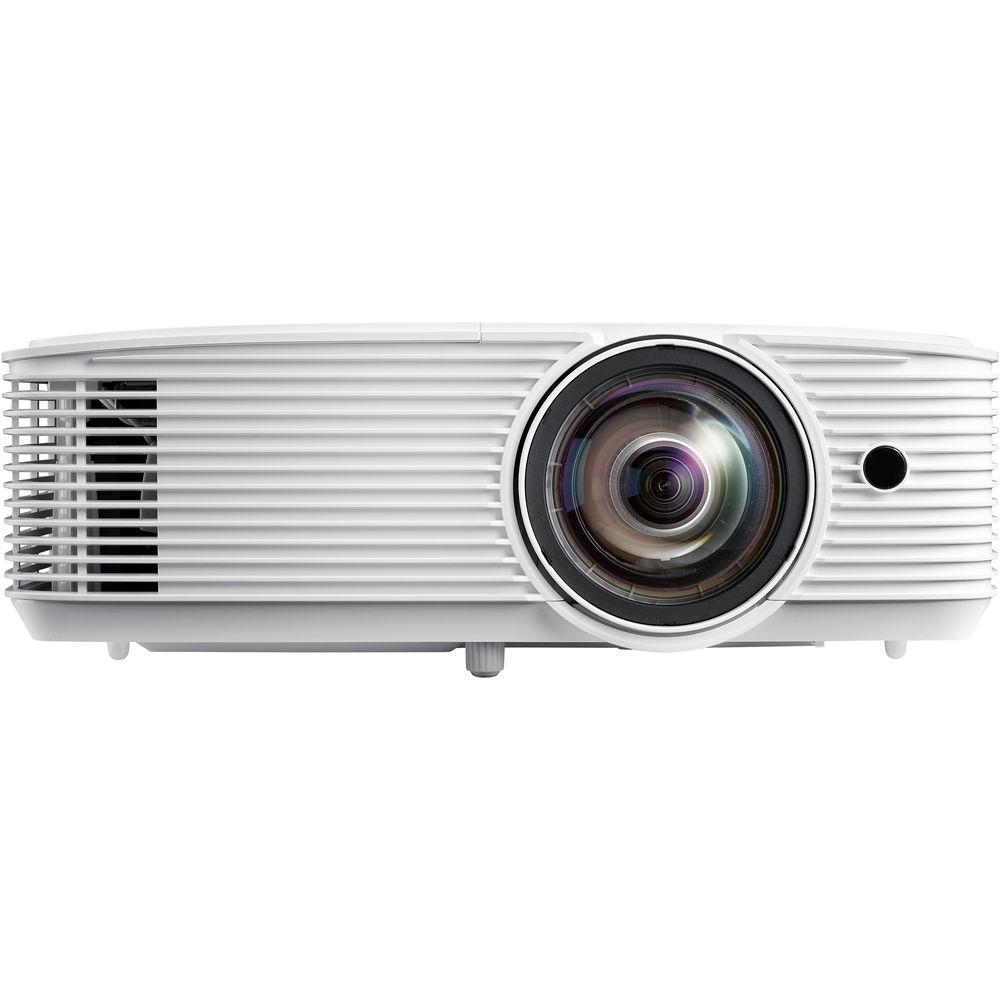

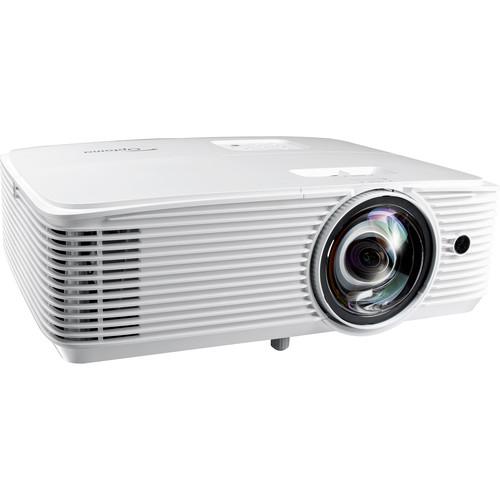

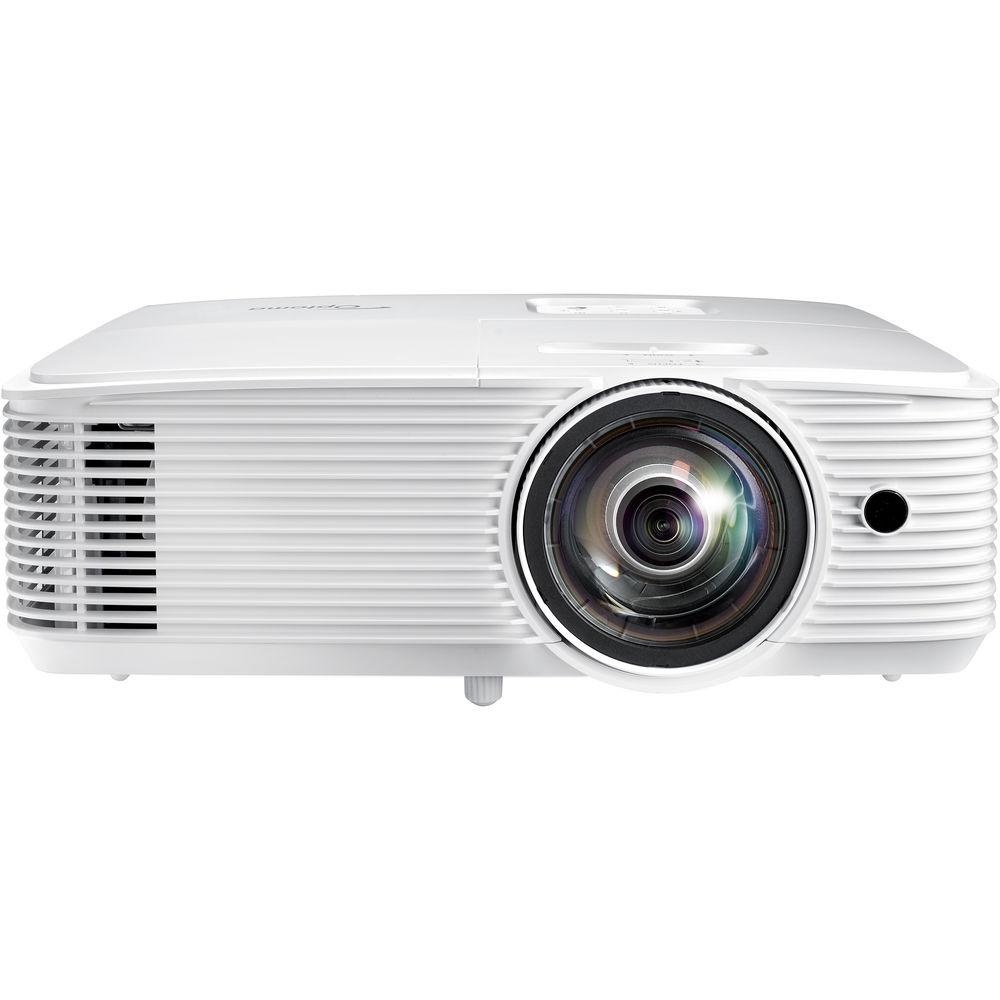

User Manual for Optoma Technology X318ST 3300-Lumen XGA Short-Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology X318ST 3300-Lumen XGA Short-Throw
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology X318ST 3300-Lumen XGA Short-Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Reduce the chance of shadows crossing your presentation with the Optoma X318ST 3300-Lumen XGA Short-Throw DLP Projector. Its short 0.62:1 throw ratio will allow you to place it roughly 11' from your screen and still produce a 300" image. Its 3300 lumens of brightness combined with its 20,000:1 dynamic contrast ratio will help images appear bright and clear in many settings, while its 1024 x 768 native resolution will help ensure that no detail is lost in large projections.
The X318ST has VGA, composite video, and two HDMI inputs to support a variety of devices; one HDMI input is MHL-compatible, allowing you to stream from your compatible mobile device while simultaneously powering your device via one cable. Its VGA output will let you daisy-chain the image to another projector or display while the analog audio input and output will do the same for your audio. The projector includes an IR remote control and a carrying case as an added convenience. - DLP Technology
- DLP imaging technology helps provide high contrast, a fast response time, and virtually no color degradation.
- Short-Throw Projection
- With a short-throw lens, this projector can produce large screen sizes from a short distance.
- HDMI Link
- HDMI Link lets you to turn on and off two or more HDMI-CEC compliant devices using a single remote control.
- 3D
- This projector can display 3D content from almost any compatible source, including 3D Blu-ray players, 3D broadcasting, and 3D game consoles. Support for 144 Hz refresh rate provides smooth, flicker-free images. Compatible 3D glasses are required and sold separately.
- Rec.709 Color
- The X318ST can reproduce the Rec.709 color gamut for vibrant, saturated colors, making it well suited for gaming and animated videos.
- MHL Connectivity
- Connect your compatible smartphone or tablet to the projector using an MHL-compatible HDMI cable to view presentations, documents, videos, and photos on the big screen.
UPC: 796435442729 In the Box Optoma Technology X318ST 3300-Lumen XGA Short-Throw DLP Projector Remote Control with Laser Pointer for EH417 Projector Batteries Lens Cap Carrying Case AC Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology X318ST 3300-Lumen XGA Short-Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology X318ST Specs | | | Display System | 0.55" DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 | | Max Brightness | 3300 Lumens | | Offset | 115% ± 5% | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing
Side by Side
Top Bottom | | Color Wheel | 6-Segment (R, G, B, W, Y, C) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15.375 to 91.146 kHz

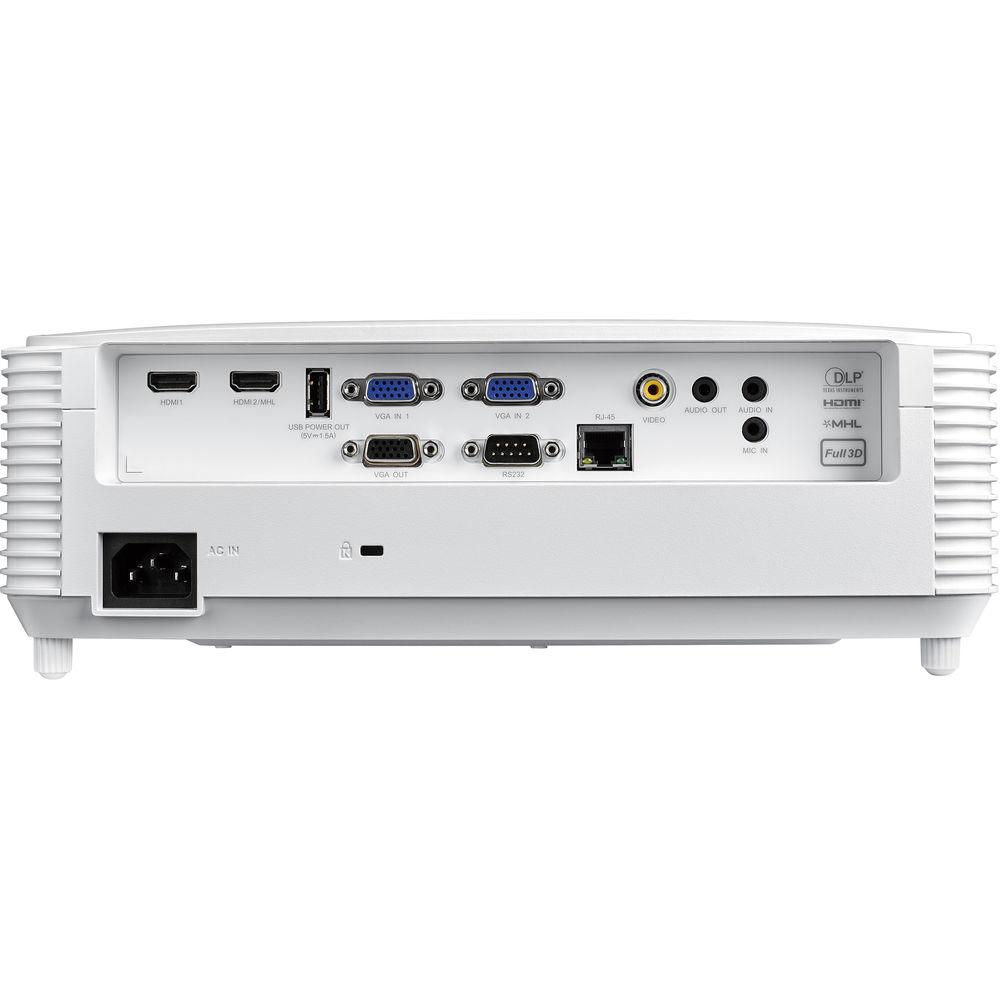

Vertical: 50 to 85 Hz or 120 Hz | | | | Focus | Manual | | Lens | f/2.7 (f = 7.15 mm) | | Optical Zoom | None | | Throw Distance | 1.31 - 11.15' / 0.399 - 3.399 m | | Throw Ratio | 0.62:1 | | Projection Size | 31.9 - 303.9" / 81.03 - 771.91 cm | | | | Keystone Correction | Vertical: ± 20° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
2 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Input
1 x USB 2.0 (USB Type-A) Power Output
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Microphone Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x RJ45 LAN
1 x RS-232 (DE-9) Control | | | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 203 W | | Expected Lamp Life | Full Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Low Brightness: 28 dB | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 267 W
Low Brightness: 261 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 0 - 85% | | Dimensions (W x H x D) | 12.4 x 4.3 x 9.6" / 31.5 x 10.9 x 24.4 cm | | Weight | 6.7 lb / 3.04 kg | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 16.1 x 13.4 x 6.7" |
