User Manual for Optoma Technology X343 3600-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology X343 3600-Lumen XGA DLP
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology X343 3600-Lumen XGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

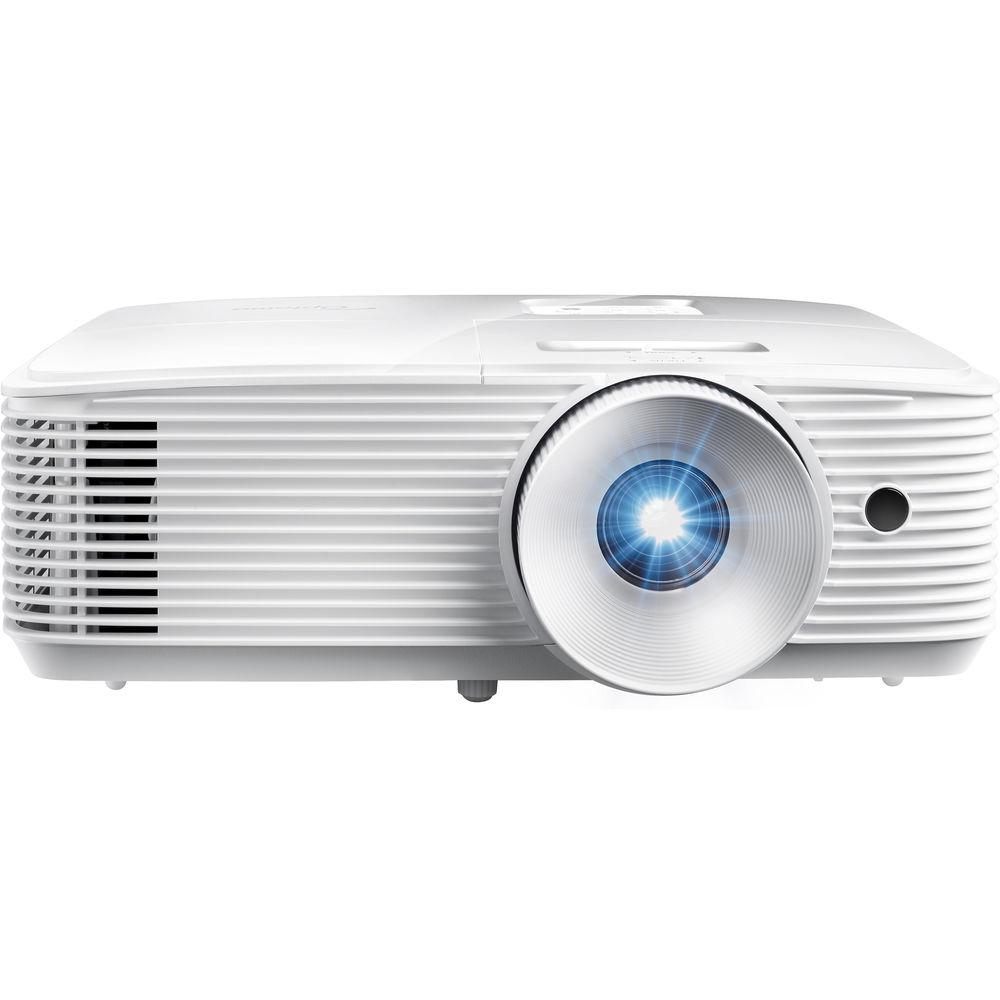

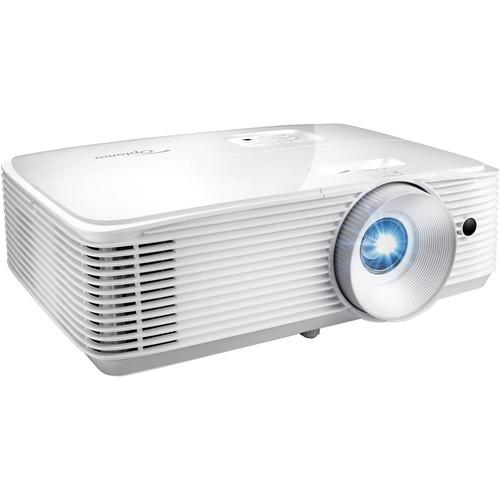

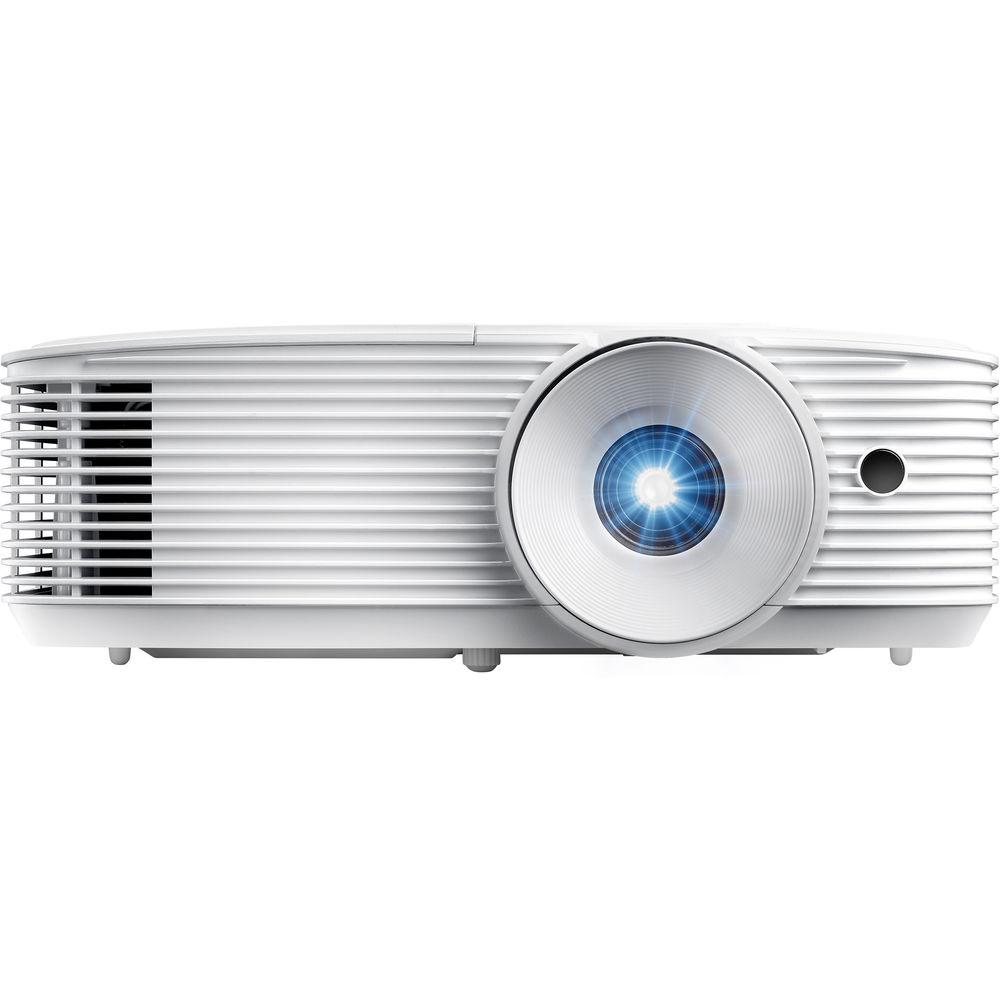

Product description Enjoy bright images and high dynamic contrast with the Optoma X343 3600-Lumen XGA DLP Projector. Its native 1024 x 768 resolution displays data and images clearly at various viewing distances, while its 1.94 to 2.15:1 throw ratio allows you to place the projector relatively far from the screen without losing focus.

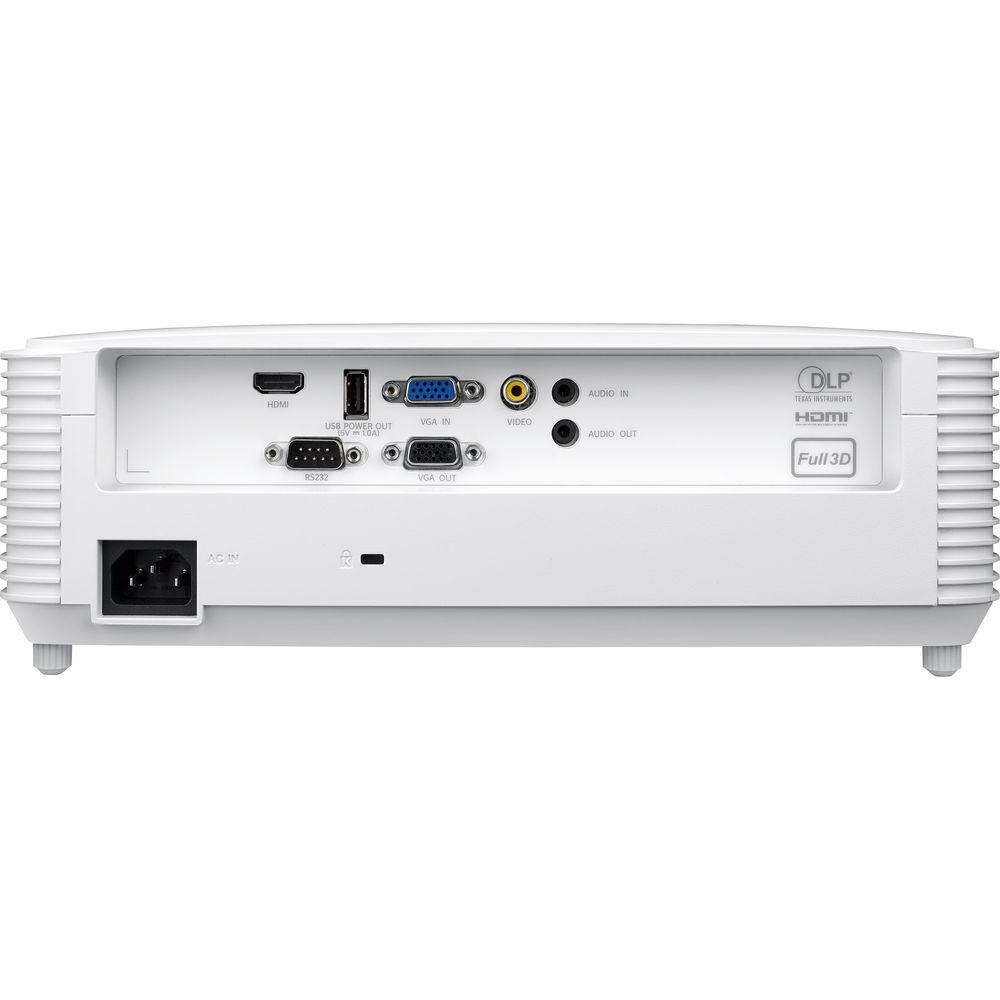

The X343 features HDMI, VGA, and RCA composite video inputs for connecting a variety of source device types. A VGA output allows you to daisy-chain the video signal to additional projectors or displays, and an analog audio input and output and built-in speaker enable audio to accompany your video. An IR remote is included as an added convenience. - Designed for Enhanced Color
- The X343 can produce the Rec.709 color gamut, which is the international HDTV standard to guarantee accurate reproduction of cinematic color as the director intended. It can also create saturated colors for gaming and animated content.
- High Dynamic Contrast
- The 22,000:1 dynamic contrast ratio helps add depth to your image, producing bright whites and rich blacks for vibrant images and clear text.
- Full 3D
- With optional 3D glasses, you can enjoy 3D content from nearly any 3D source, including Blu-ray players, broadcast, and game consoles. The X343 supports 144 Hz refresh rate for flicker-free images.
- Quick Resume
- The quick resume feature allows the projector to be instantly powered on within 100 seconds of turning it off.
- Auto Power Off
- To help save energy, this feature automatically turns off the projector after a set period of time if it's not being used.
- Eco+
- Reduced-energy lamp modes help lower power consumption by up to 70%, lowering the total cost of ownership and reducing maintenance time.
- AV Mute
- When enabled via the remote or network management, the projector dims the video output to conserve energy.
- Additional Features
-
- HDMI version 1.4a
- RoHS compliant
- Vertical keystone adjustment helps provide easy positioning
UPC: 796435442484 In the Box Optoma Technology X343 3600-Lumen XGA DLP Projector Remote Control Power Lead Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology X343 3600-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology X343 Specs | | | Display System | 0.55" DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: UXGA - 1600 x 1200 | | Max Brightness | 3600 Lumens | | Uniformity | 80% | | Offset | 115% ± 5% | | Aspect Ratio | Native: 4:3
Supported: 16:9 | | Dynamic Contrast Ratio | 22,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 1080p)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15.3 to 91.1 kHz
Vertical: 50 to 85 Hz or 120 Hz | | | | Focus | Manual | | Lens | f/2.41 - 2.53 (f = 21.85 - 24 mm) | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.9 - 46.9' / 1.189 - 14.295 m | | Throw Ratio | 1.94 - 2.15:1 | | Projection Size | 27.7 - 304.4" / 70.36 - 773.18 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x USB 2.0 (USB Type-A) Power Output
1 x RS-232 (DE-9) Control | | Memory Card Slot | None | | | | Lamp Power | 203 W | | Expected Lamp Life | Full Brightness: 6000 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Medium Brightness: 27 dB | | Security | Cable Lock Slot
Keypad Lock
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Farsi
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Slovak
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 10 - 85% | | Dimensions (W x H x D) | 12.4 x 3.9 x 9.6" / 31.5 x 9.9 x 24.4 cm | | Weight | 6.7 lb / 3.04 kg | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 15.5 x 13.0 x 6.5" |
