User Manual for Optoma Technology X600 XGA DLP Full 3D Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology X600 XGA DLP Full
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology X600 XGA DLP Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

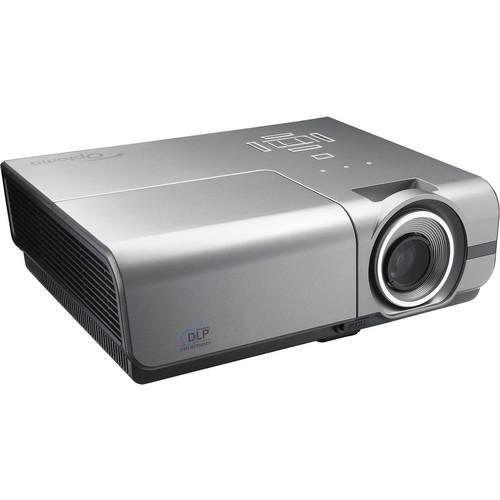

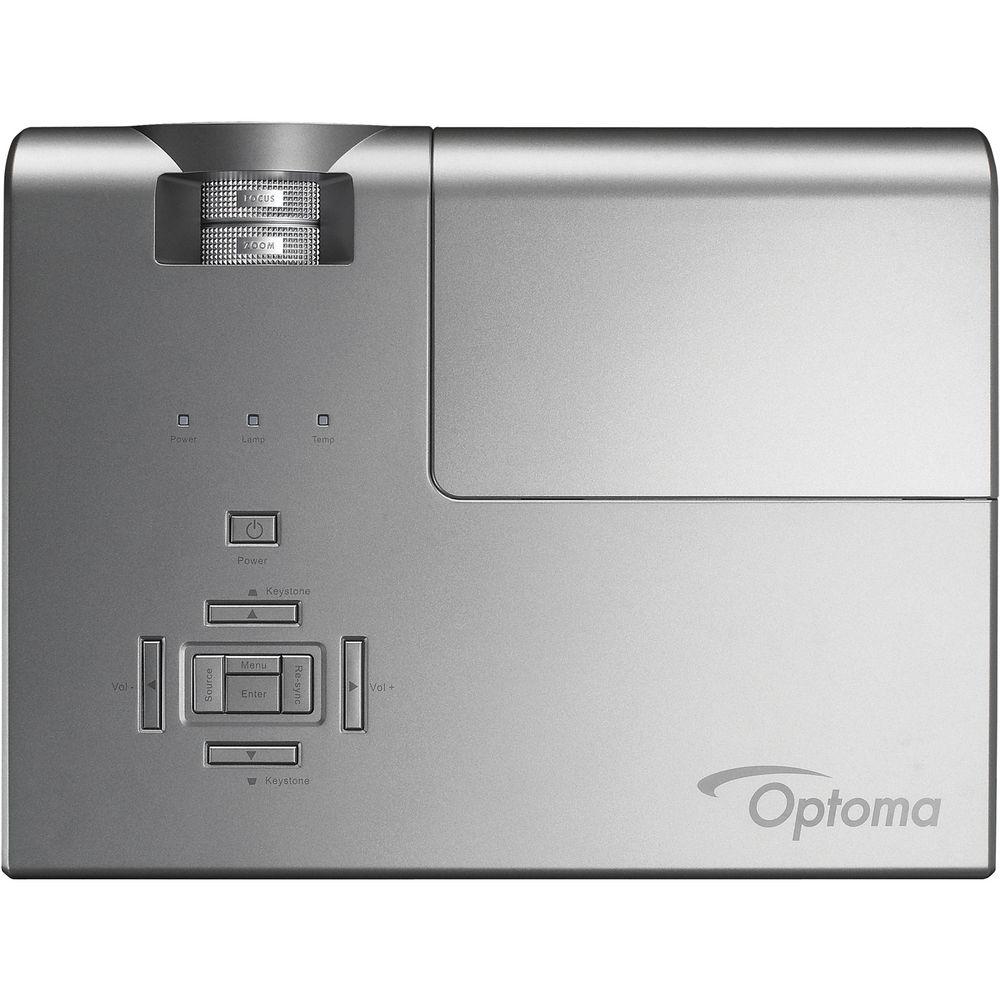

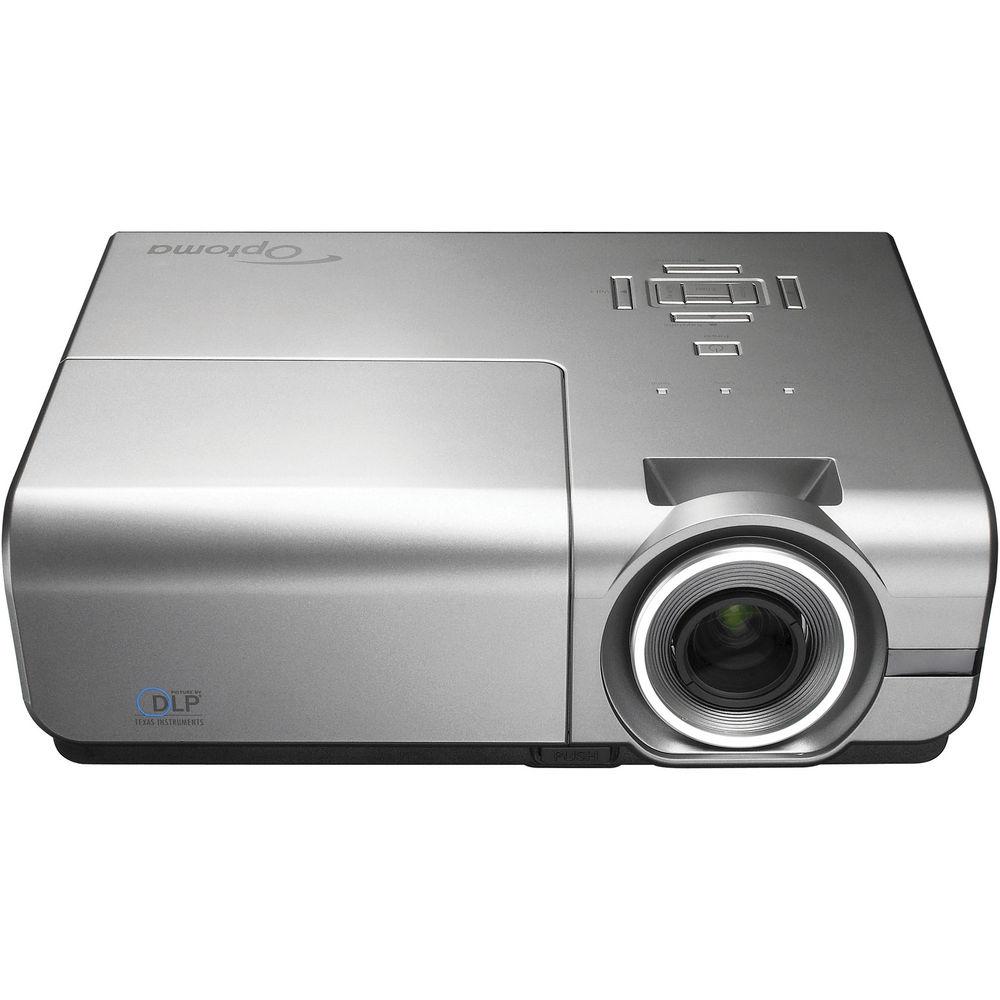

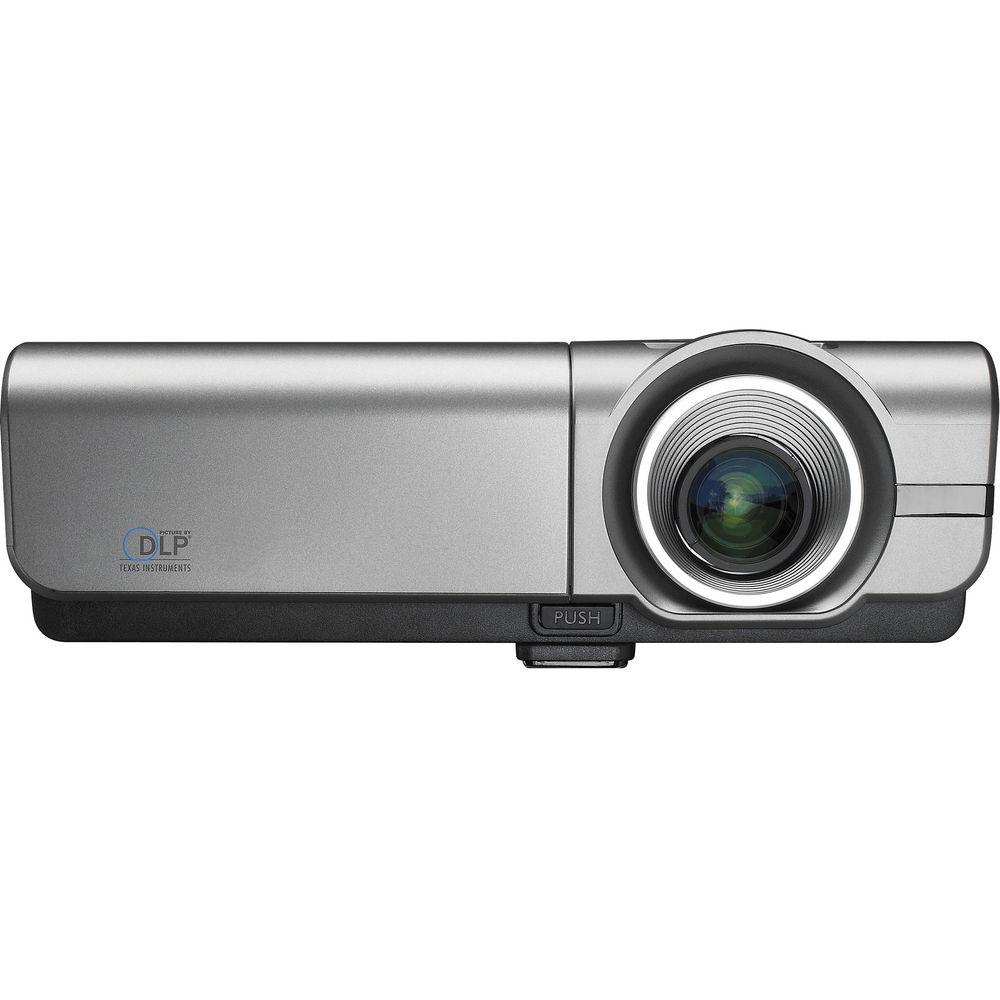

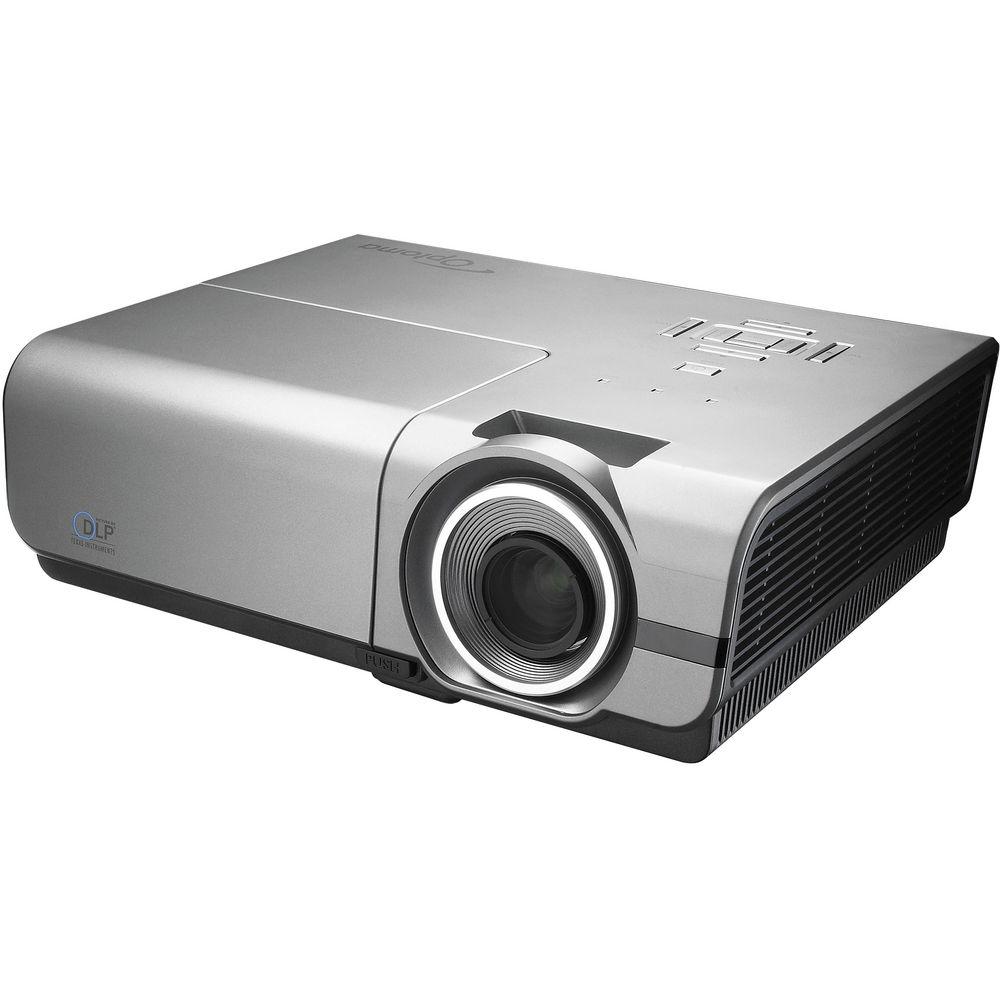

Product description The Optoma X600 XGA DLP Full 3D Projector delivers 6000 lumens of brightness with a low noise level of only 28dB. It features a sharp 10,000:1 contrast ratio, support for a variety of 3D formats, and an XGA 1024 x 768 native resolution. The projector is powered by a DLP chip system and the lamp features a long life up to 3500 hours. The X600 features BrilliantColor technology as well, which provides multi-color processing that produces accurate colors on the screen. The X600 offers several input options including dual HDMI, DisplayPort, VGA, composite video and more. It can project up to a 300" diagonal screen size and it offers a complete on-screen menu that supports adjustments in 26 languages. Other features include a less than 1W standby power consumption level, ceiling mount capabilities, rear screen projection and a remote control with IR mouse and laser functionality. - The 6000 lumens bright output makes this model ideal for large screen applications
- DisplayPort and HDMI ports for full digital connectivity
- Full 3D compatibility allows for immersive presentations (3D glasses required and sold separately)
- Supports all HDMI 1.4a mandatory 3D formats, side-by-side format and top and bottom format
- Over the network management and control capability for large installations
- Supports Crestron RoomView for over the network control and management of up to 250 projectors
- Texas Instruments DLP display technology
- Supports BrilliantColor technology
- Loop through connectivity via monitor D-Sub 15-pin VGA output
- Loop through connectivity via stereo 3.5mm mini-jack audio output(functional in normal or standby mode)
- Complete on-screen menu with adjustments in 26 languages
- Universal power supply is auto-switching

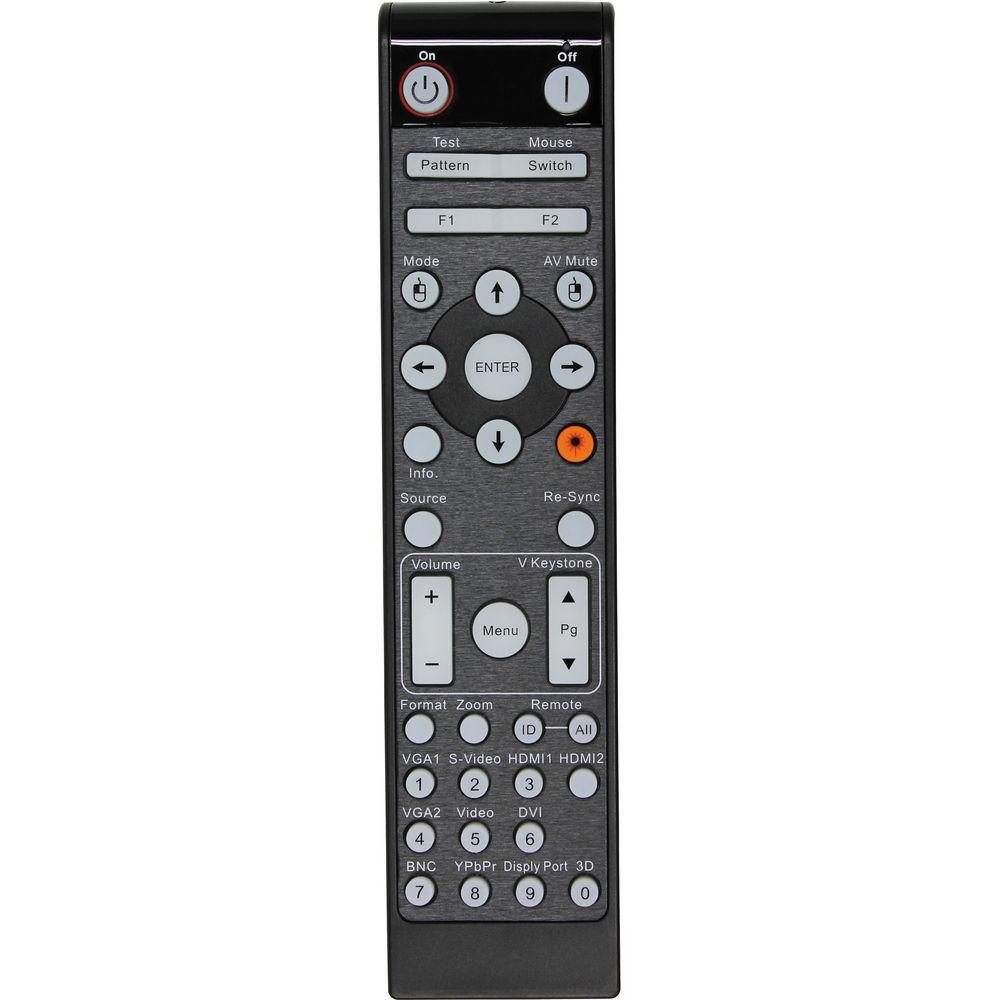

- Includes an IR remote mouse control with laser
UPC: 796435418649 In the Box Optoma Technology X600 XGA DLP Full 3D Projector AC Power Cord VGA to VGA Cable IR Remote Mouse Control with Laser 2 x Batteries (for Remote) Carrying Case Lens Cap Multilingual CD-ROM User's Manual 3-Year Limited Optoma Express Service Warranty 1-Year Limited Lamp Warranty More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology X600 XGA DLP Full 3D Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology X600 Specs | | | Display System | 1-Chip 0.55" DC3 DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
WXGA - 1280 x 800
UXGA - 1600 x 1200
Full HD 1080p - 1920 x 1080
WUXGA - 1920 x 1200 | | Max Brightness | 6000 Lumens | | Uniformity | 85% | | Offset | 112% ± 0% | | Aspect Ratio | Native: 4:3
Supported: 16:9 | | Contrast Ratio | 10000:1 | | DLP Link 3D | Yes | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 50 to 85 Hz
Vertical: 120 to 120 Hz
Vertical: 144 to 144 Hz
Horizontal: 31 to 90 kHz

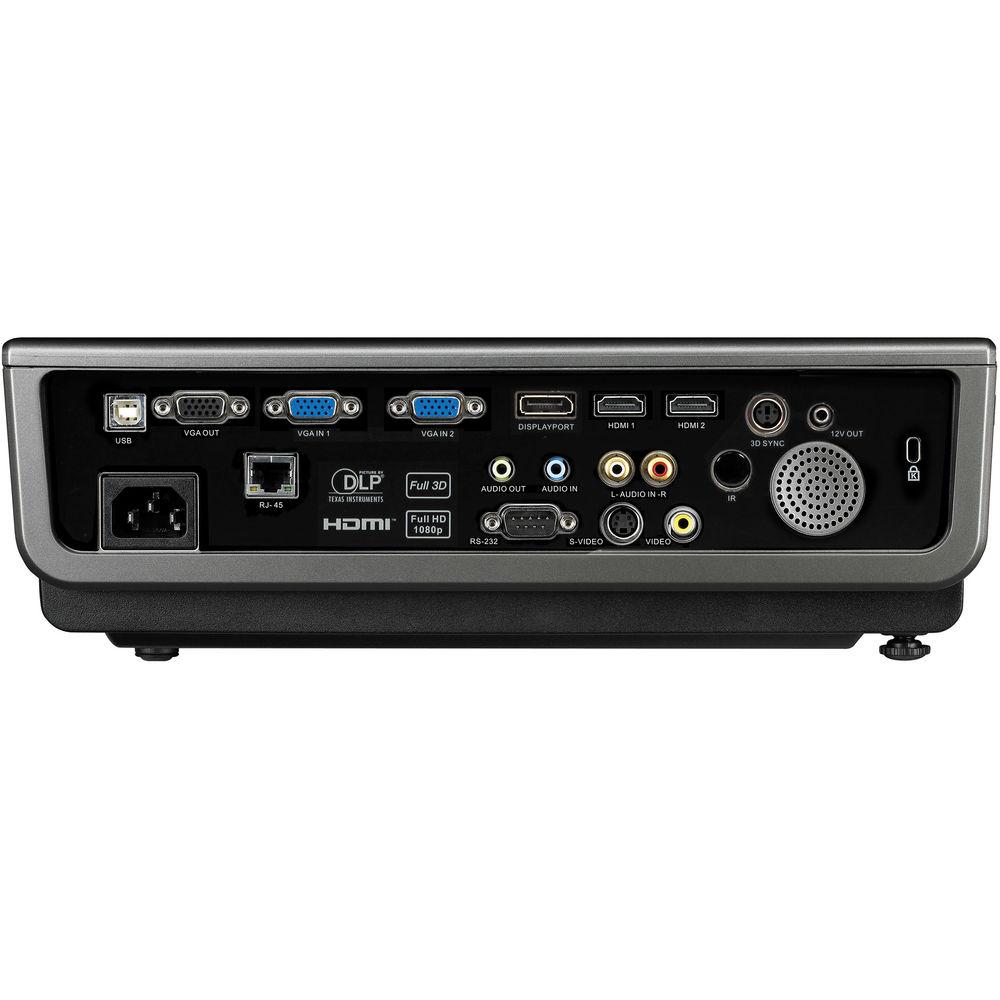

Horizontal: 15 to 15 kHz | | | | Focus | Manual | | Lens | f/2.6 - 2.81 (f = 26.9 - 29.84 mm) | | Optical Zoom | Manual: 1.2x | | Throw Distance | 3.28 - 39.4' / 1 - 12.009 m | | Throw Ratio | 1.8 - 2.1:1 | | Projection Size | 23.4 - 300" / 59.44 - 762.00 cm | | | | Keystone Correction | Vertical: ± 15° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 3W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x DisplayPort Video (Input)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x VGA (DE-15) Video (Output)
1 x USB Type-B Female
1 x RS-232C (Unspecified Connector) Control
1 x Ethernet (RJ45) LAN
1 x VESA 3D Sync Control
1 x 1/8" (3.5 mm) Mini Control
1 x 12 V Trigger Control (Output) | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 310 W | | Expected Lamp Life | Full Brightness: 2500 Hours
Medium Brightness: 3500 Hours | | Fan Noise | Medium Brightness: 28 dB | | Security | Cable Lock Slot
Padlock
Security Bar | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 380 W
Medium Brightness: 300 W
Standby Mode (Lamp Off): <1 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 12.8 x 4.3 x 10.2" / 325.1 x 109.2 x 259.1 mm | | Weight | 8.2 lb / 3.7 kg | | | | Package Weight | 12.25 lb | | Box Dimensions (LxWxH) | 17.8 x 15.2 x 7.5" |
