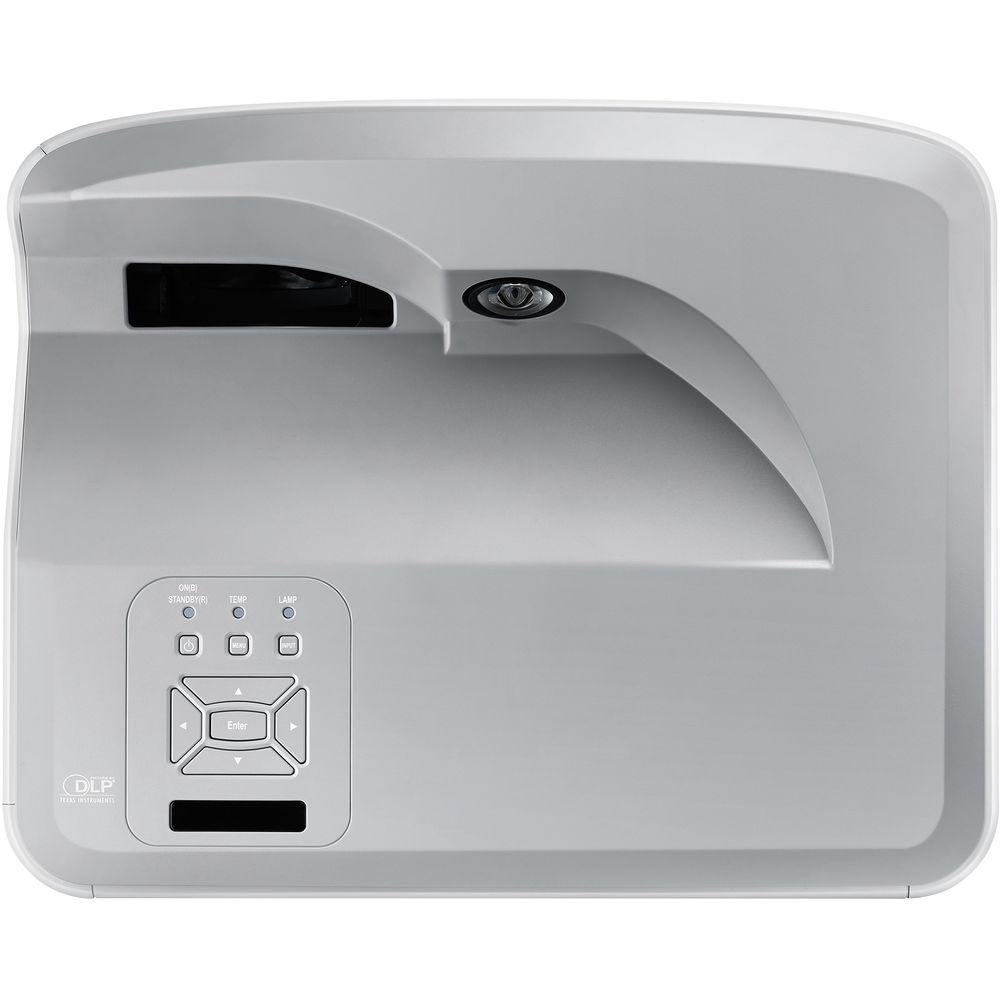

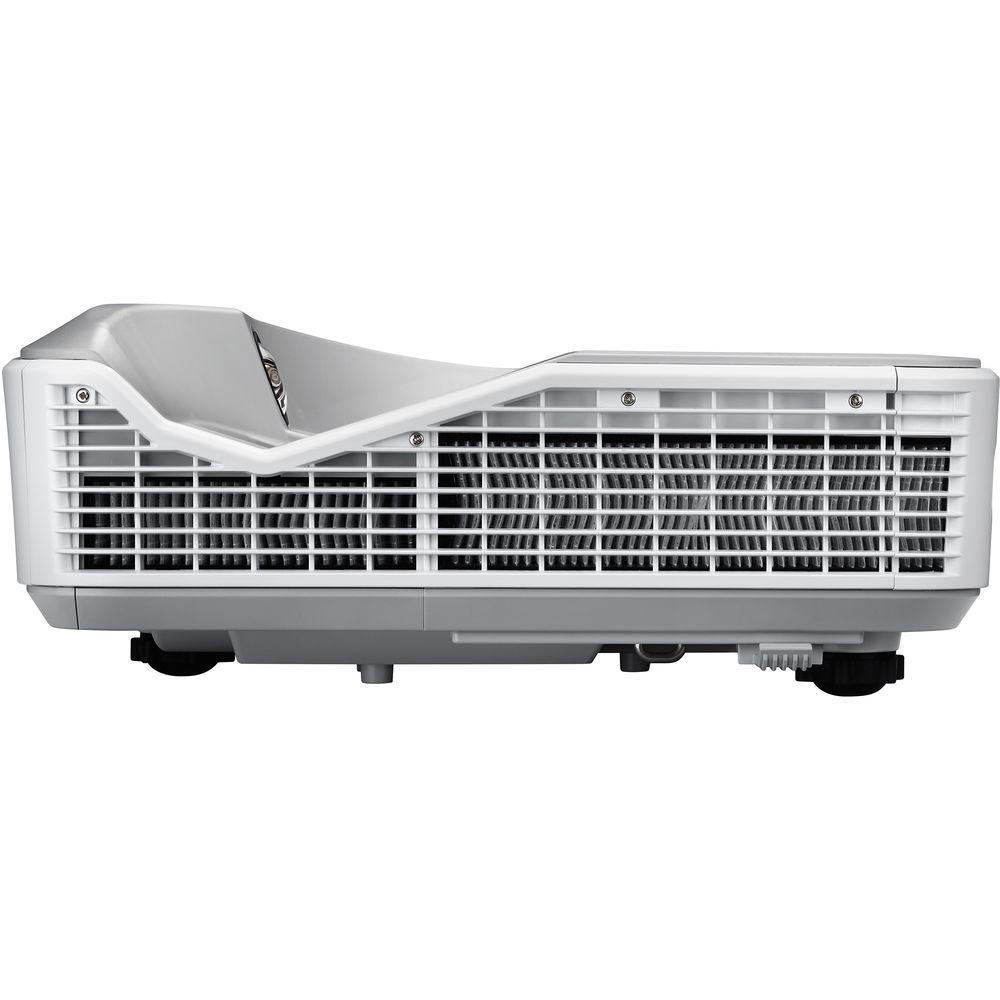

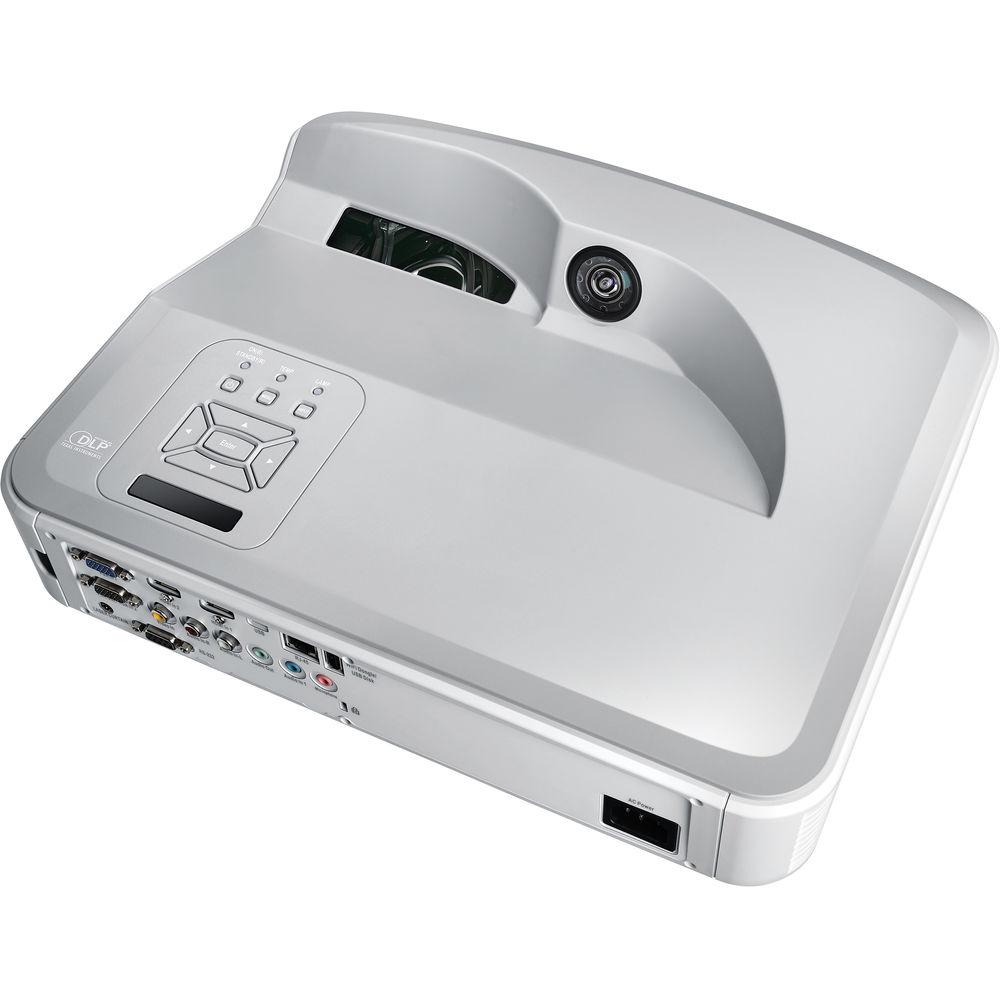

User Manual for Optoma Technology ZW300UST 3200-Lumen WXGA Ultra-Short Throw Laser DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology ZW300UST 3200-Lumen WXGA Ultra-Short
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology ZW300UST 3200-Lumen WXGA Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Enjoy bright, clear images with the Optoma ZW300UST 3200-Lumen WXGA Ultra-Short Throw Laser DLP Projector. Its 3200 lumens of brightness will overcome ambient light in many cases, while its 22,000:1 native contrast ratio and WXGA (1280 x 800) native resolution will help ensure that detail is clear. It has an ultra-short 0.27:1 throw ratio, which will allow you to place the projector within 2.25' of the screen to prevent the casting of shadows by people walking in front of it.
The ZW300UST has one VGA and two HDMI inputs to support a variety of devices; one HDMI input is MHL-compatible for connecting mobile devices or HDMI dongles such as a Chromecast or Fire TV. Its VGA output will allow you to daisy-chain the image to another projector or display, while the analog audio input and output will do the same for your audio. The ZW300UST has a built-in 10-Watt speaker to eliminate the need for a separate speaker system. It is controllable via Ethernet, RS-232, or the included IR remote control. A VGA cable is also included for instant connectivity. - The 3200 lumens of brightness and 100,000:1 dynamic contrast ratio of the ZW300UST combine to help produce bright imagery with sharp text.
- The built-in computer-free USB media player supports playback of video and audio files along with shared images and presentations.

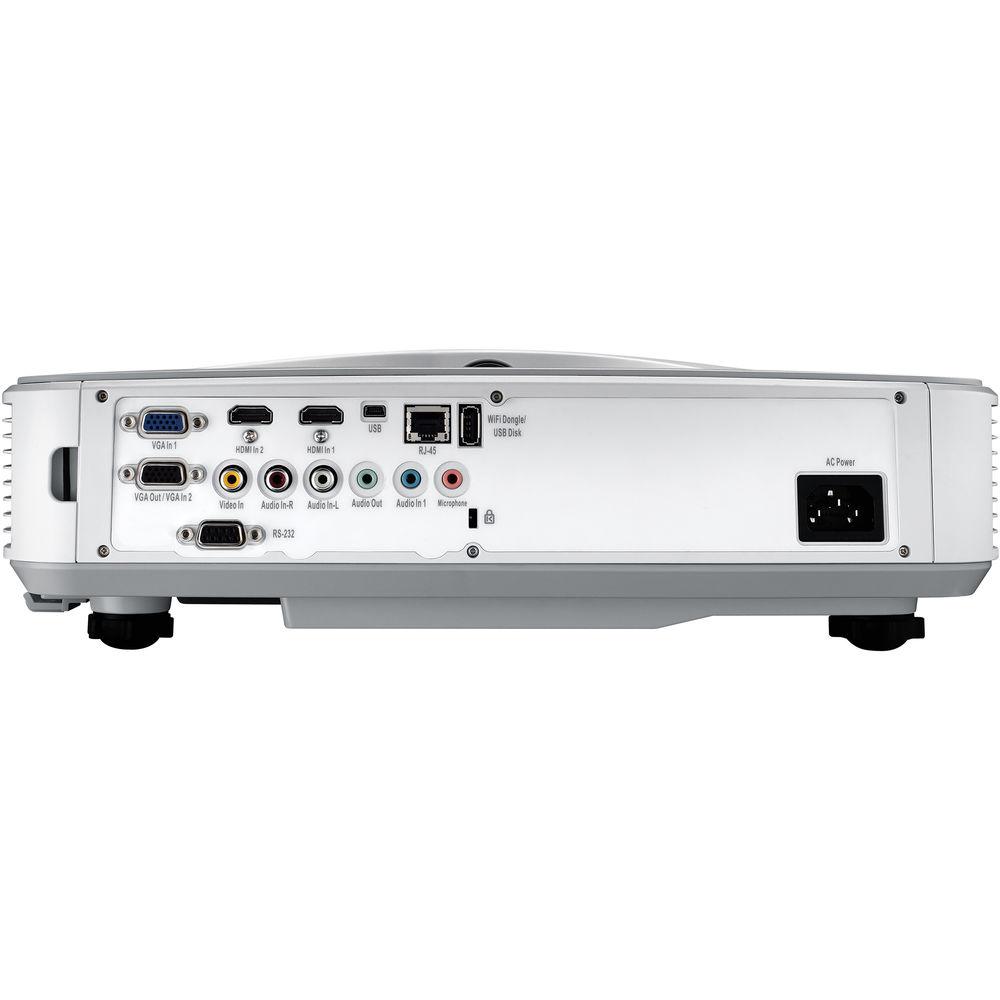

- I/O connectivity includes HDMI, HDMI with MHL compatibility, VGA, Ethernet LAN, two audio inputs, and USB power.
- The projector's laser phosphor light source provides up to 20,000 hours of total projection time.
- Built-in 10-Watt speakers help enhance presentations with audio.
- Onboard HDMI MHL port supports a variety of optional HDMI dongles, including Optoma's HDCast Pro, Chromecast, Fire TV, & more.

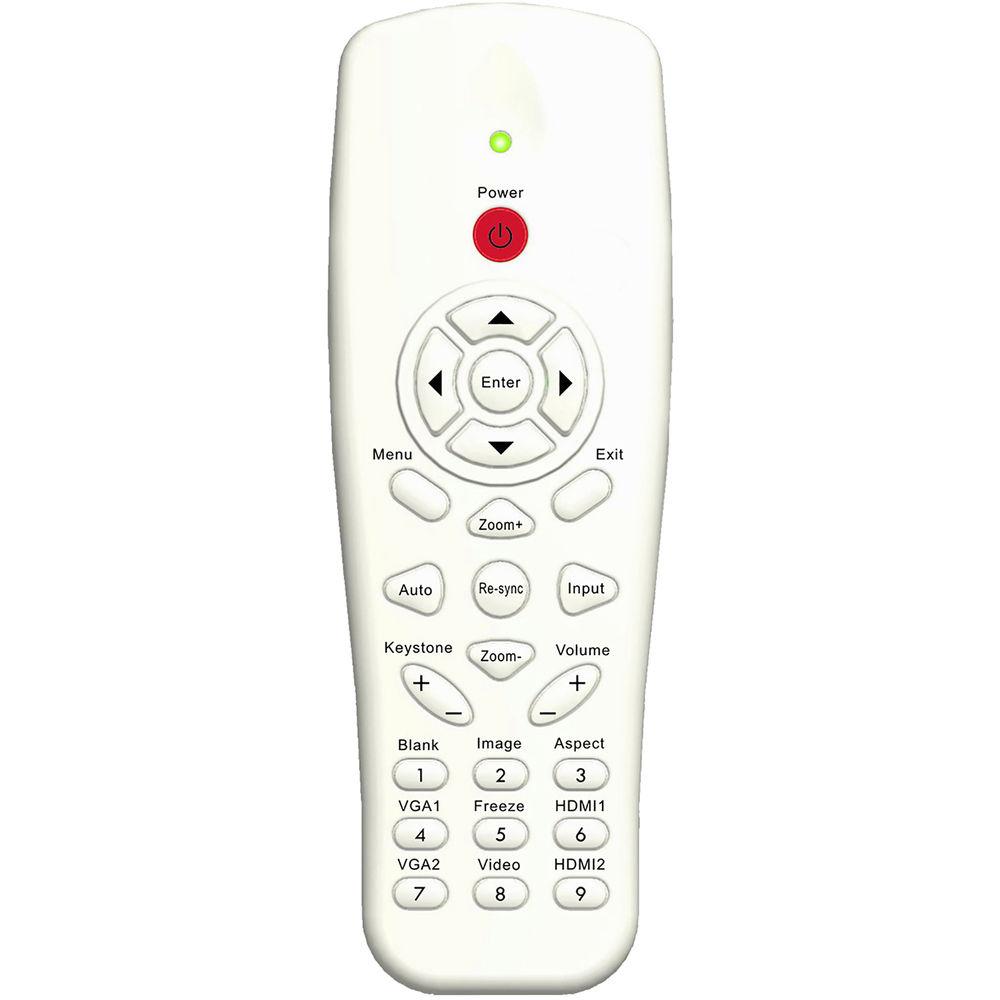

UPC: 796435440893 In the Box Optoma Technology ZW300UST 3200-Lumen WXGA Ultra-Short Throw Laser DLP Projector Remote Control with Batteries VGA Cable AC Power Cord Limited 3-Year Warranty on Projector Limited 5-Year or 20,000-Hour Warranty on Light Source, Whichever Comes First More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology ZW300UST 3200-Lumen WXGA Ultra-Short Throw Laser DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology ZW300UST Specs | | | Display System | 1-Chip 0.65" DC3 DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3200 Lumens | | Uniformity | 80% | | Offset | 120% ± 3% | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Contrast Ratio | 22000:1 | | Dynamic Contrast Ratio | 100,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing
Side by Side
Top Bottom | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15.375 to 91.146 kHz
Vertical: 24 to 85 Hz or 120 Hz | | | | Focus | Manual | | Lens | f/2.5 - 3.26 (f = 20.91 - 32.62 mm) | | Throw Distance | 19.4 - 27" / 49.276 - 68.58 cm | | Throw Ratio | 0.27:1 | | Projection Size | 85 - 115" / 215.90 - 292.10 cm | | | | Keystone Correction | Vertical: ± 40° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Power (Output)
1 x USB Service (Input)
1 x Ethernet (RJ45) LAN (Input) | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 32 dB | | Security | Cable Lock Slot
Keypad Lock
Security Bar | | Supported Audio File Types | MP3, WMA | | Supported Document File Types | DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX | | Supported Photo File Types | BMP, GIF, JPEG | | Supported Video File Types | DivX, H.263, H.264, MKV, MPEG, MP4, MPEG2, , VC-1, WMV, Xvid | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 335 W
Low Brightness: 225 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 15.0 x 5.0 x 12.5" / 38.1 x 12.7 x 31.8 cm | | Weight | 12.3 lb / 5.58 kg | | | | Package Weight | 18.85 lb | | Box Dimensions (LxWxH) | 18.8 x 16.4 x 12.5" |
