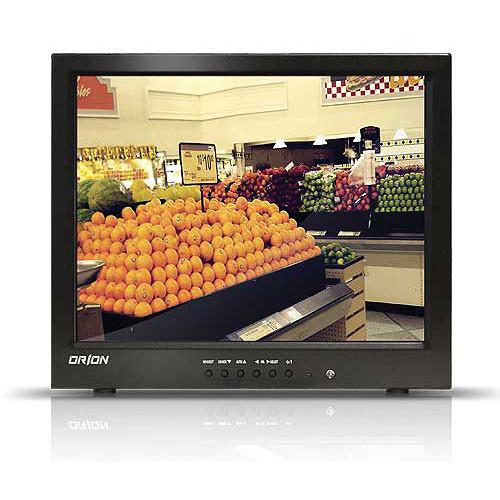

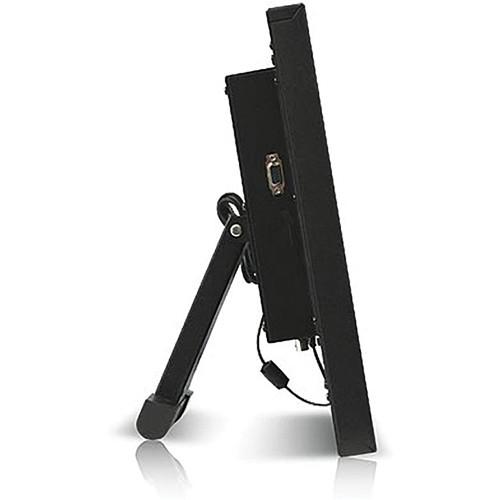

Product description The Orion Images 15" LCD CCTV Monitor is expressly designed for 24/7 CCTV environments, with a superior image quality and a durably constructed metal cabinet and an LCD protection glass. This monitor can be readily mounted on a desk using the tiltable stand, or optionally installed on a wall or inside a rack chassis (additional hardware required).
Along with a high resolution of 1024 x 768 pixels this monitor employs a 3D comb filter plus a deinterlace function in addition to a 700:1 contrast ratio, and a brightness level of 250 nits. Together these will ensure a high degree of color fidelity, image brightness and picture clarity, of the sort expected in critical security applications.

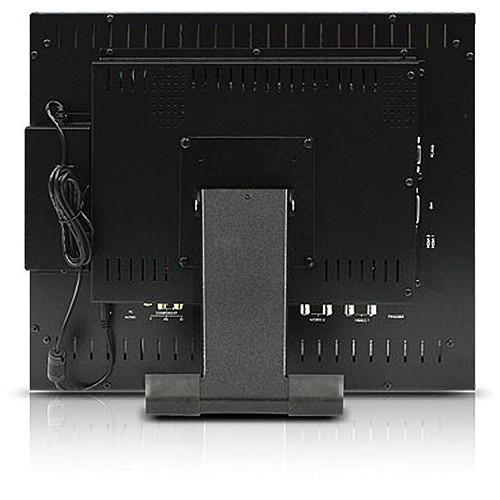

For compatibility with a range of CCTV devices, this monitor offers 2 BNC, 1 S-video, and 1 VGA video inputs. Each BNC input is paired with a loop through BNC output for passing on its signal to other video devices. This monitor also offers full audio functionality with RCA and PC stereo inputs and 2 built-in speakers. There's also a trigger sensor for detecting and displaying an alarm alert.
With NTSC/PAL compatibility and an included universal power supply, this monitor can be readily used in the USA and Europe. The menu system on this monitor can be viewed in English, Spanish, French, German, and Italian. - Durably constructed monitor with all metal industrial cabinet and LCD protection glass
- Superior image quality with 1024 x 768 resolution, 3D comb filter, and deinterlacing function
- Versatile connectivity with composite, S-video, and VGA inputs
- Optional mounting hardware available for wall (WB-5, WB-10, WB-30, WB-31), ceiling (CMK-01) or rack (RMK-08) installations.
UPC: 836228001150 In the Box Orion Images 15" LCD CCTV Monitor User Manual Power Adapter Power Cord VGA Cable Remote Control with Batteries 2 Year Parts & Labor Warranty Brochure PDF 1.5mbzbbatefystdrybu Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 15" LCD CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 15RTC Specs | Screen Size | 15" | | Resolution | Max. Resolution: 1024 x 768 @ 75Hz | | Pixel Pitch | 0.297 x 0.297mm | | Brightness | 250cd/m² | | Contrast Ratio | 700:1 | | Aspect Ratio | 4:3 | | Viewing Angle | 140° / 125° (H/V) | | Display Colors | 16.2 Million | | Response Time | < 8ms | | Video System | NTSC / PAL | | Frequency | 31~48 KHz / 55~75 KHz (H/V) | | Video Input | BNC x2
S-video x1
VGA x1 | | Video Output | BNC x2 - loop through
S-video x1 - loop through | | Audio Input | RCA x2 (1 left, 1 right)
PC stereo x1 (3.5mm mini) | | Speaker | Built-in - 2x 2W | | Filter | 3D Comb Filter / Deinterlace | | Trigger Input | Yes (NO / NC) | | Sequencer | Auto Sourcing Sequencing: Yes | | Languages | English, Spanish, French, German, Italian | | Dimensions (WxHxD) | 13.7 x 11.7 x 2.3" (348 x 297 x 58mm) | | Weight | 10.6 lbs (4.8kg) | | Material | Color: Black
Material: Steel | | Adjustments | Desk Top Stand: Tilt Back | | MTBF | 30,000 Hours | | Power Requirements | 100-240 VAC (includes 12 VDC power adapter) | | Power Consumption | < 35W | | Operating Temperature | 32 ~ 122°F (0 ~ 50°C) | | VESA Mount Size | 75 x 75mm (BS M4 x 10mm Screw) | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 20.2 x 16.7 x 6.8" |
