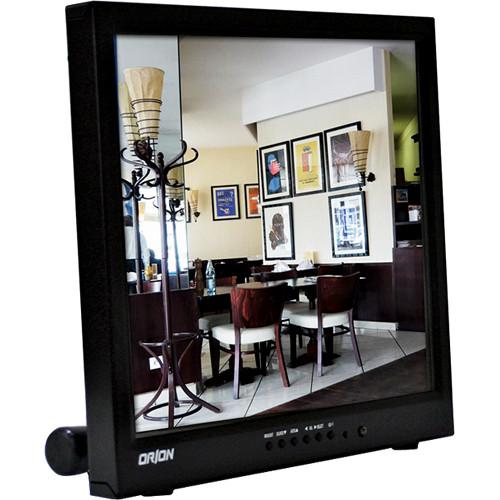

Product description The Orion Images 17" LCD CCTV Monitor is expressly designed for 24/7 CCTV environments, with a superior image quality and a durably constructed metal cabinet with an LCD protection glass. This monitor can be readily mounted on a desk using the tiltable stand, or optionally installed on a wall or inside a rack chassis (additional hardware required).
Along with a high resolution of 1280 x 1024 pixels this monitor employs a 3D comb filter plus a deinterlace function, in addition to an 800:1 contrast ratio, and a brightness level of 250 nits. Together with a noise reduction feature these will ensure a high degree of color fidelity, image brightness and picture clarity, of the sort expected in critical security applications.
For compatibility with the latest CCTV equipment, this monitor offers a multitude of video input options including composite, component, S-video, DVI-D, and HDMI ports. Composite and S-video inputs are paired with loop through video outputs for passing the signal on to other video devices. PIP/PBP functionality allows 2 different signal sources to be displayed simultaneously on the same screen.
This monitor also offers full audio functionality with RCA and PC stereo inputs and 2 built-in speakers. There's also a trigger sensor for detecting and displaying an alarm alert.
With NTSC/PAL compatibility and an included universal power supply, this monitor can be readily used in the USA and Europe. The menu system on this monitor can be viewed in English, Spanish, French, German, and Italian. - Durably constructed monitor with all metal industrial cabinet and LCD protection glass
- Superior image quality with 1280 x 1024 resolution, 3D comb filter, and deinterlacing function
- Versatile connectivity with composite, component, S-video, VGA, DVI-D, and HDMI connectors
- Full audio capabilities with stereo RCA and PC inputs, and 2 built-in 2W speakers
- PIP (Picture in Picture) and PBP (Picture by Picture) functionality for viewing multiple video sources on the same screen
- Sturdy desk mounting with integrated, tiltable desk stand
- Optional mounting hardware available for wall (WB-5, WB-10, WB-30, WB-31), ceiling (CMK-01) or rack (RMK-08) installations.
UPC: 836228001174 In the Box Orion Images 17" LCD CCTV Monitor User Manual Power Adapter Power Cord VGA Cable Remote Control with Batteries Trigger Cable 2 Year Parts & Labor Warranty Brochure PDF 1.4mbfubcfzzcwzdxycswbbtvbsftxd Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 17" LCD CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 17RTC Specs | Screen Size | 17" | | Resolution | Max. Resolution: 1280 x 1024 @ 75Hz | | Pixel Pitch | 0.264 x 0.264mm | | Brightness | 250cd/m² | | Contrast Ratio | 800:1 | | Aspect Ratio | 4:3 | | Viewing Angle | 170° / 160° (H/V) | | Display Colors | 16.7 Million | | Response Time | < 5ms | | Video System | NTSC / PAL | | Frequency | 50~64 KHz / 55~75 KHz (H/V) | | Video Input | BNC x2
S-video x1
VGA x1
Component x1 (3-RCA)
DVI-D x1
HDMI x1 | | Video Output | BNC x2 - loop through
S-video x1 - loop through | | Audio Input | RCA x3 (left + right)
PC stereo x1 (3.5mm mini) | | Speaker | Built-in - 2x 2W | | Filter | 3D Comb Filter / Deinterlace | | Noise Reduction | Yes | | Picture in Picture (PIP) | PIP / PBP | | Trigger Input | Yes (NO / NC) | | Sequencer | Auto Sourcing Sequencing: Yes | | Languages | English, Spanish, French, German, Italian | | Dimensions (WxHxD) | 15 x 13.2 x 4.7" (381 x 335 x 119mm) | | Weight | 12.8 lbs (5.8kg) | | Material | Color: Black
Material: Steel | | Adjustments | Desk Top Stand: Tilt Back | | MTBF | 50,000 Hours | | Power Requirements | 100-240 VAC (includes 12 VDC power adapter) | | Power Consumption | < 40W | | Operating Temperature | 32 ~ 122°F (0 ~ 50°C) | | VESA Mount Size | 100 x 100mm (BS M4 x 10mm Screw) | | | | Package Weight | 14.6 lb | | Box Dimensions (LxWxH) | 19.0 x 18.6 x 9.7" |
