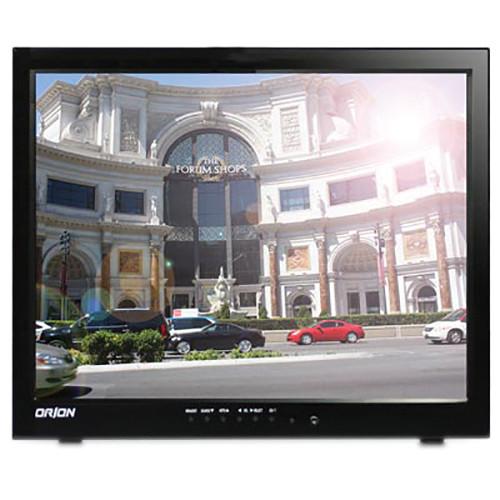

Product description The black 17RTCSR 17" Sunlight Readable LED-Backlit Monitor with Transflective Technology from Orion Images offers enhanced high brightness LCD color display for high ambient light applications. This transflective-enhanced anti-glare display is readable under all lighting conditions including direct or indirect sunlight - the stronger the ambient light the brighter the image. The advantage of transflective technology is that there is no extra heat generation and lower power consumption, and contrast and brightness is naturally brighter to help preserve the life of the back light. This monitor is designed for use in applications such as industrial machinery, kiosks, ATM machines, and order confirmation systems.
The transflective sunlight readable LCD enhances panel PC systems in terms of brightness, dimming range, and viewing pleasure. This transflective LCD holds both transmissive and reflective properties; the method of image display depends upon the conditions of the ambient environment. The display uses a backlight with a transmissive property in dark environments, and uses external light with a reflective property in bright environments. - Features
-
- Sunlight-readable ultra-bright LED with transflective technology
- Transflective technology that allows for better color performance and color characteristics
- 1000 nit (indoor) / 1500 nit (outdoor) brightness
- 3D comb filter, deinterlace, transflective enhancement, multi-language
- BNC video 2 In / 2 Out, S-video 1 In / 1 Out, DVi-D 1 In, HDMI 2 In, VGA 1 In, component 1 In, audio 3 In, pc stereo 1 In
- Built-in speakers
- Wall and rack mount kit
- Applications
-
- Public Information Display (Bus, Railway, Airport)
- Digital Signage (Advertisement)
- ATM, Outdoor Kiosk (Bank, Shopping Mall, Theater)
- Gas Pump (Gas Station)
UPC: 836228000467 In the Box Orion Images 17RTCSR 17" Sunlight Readable LED-Backlit Monitor with Transflective Technology (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 17RTCSR 17" Sunlight Readable LED-Backlit Monitor with Transflective Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 17RTCSR Specs | Screen Size | 17" (43.1 cm) | | Native Resolution | 1280 x 1024 at 75 Hz | | Pixel Pitch | 0.264 x 0.264 mm | | Brightness | 1000 cd/m2 (indoor) / 1500 cd/m2 (outdoor) | | Contrast Ratio | 1,000:1 | | Aspect Ratio | 5:4 | | Viewing Angle (H/V) | 170° / 160° | | Display Color | 16.2 million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | | | Video In / Out (BNC Type) | 2 In / 2 Out | | S-Video In/Out | 1 In / 1 Out | | VGA | In: 15 Pin D-Sub: 1 In | | Component Input | 1 In | | DVI-D In / HDMI In | 1 In / 2 In | | Audio In (RCA Type) | 3 In | | PC Stereo In | 1 In | | Transmitter | Remote Control: Yes | | Audio | Built-in Speakers: 1 W x 2 | | | | Filter Type | 3D Comb | | Deinterlacing | Yes | | Noise Reduction | Yes | | Multi-Display Function | PIP / PBP | | Trigger Source Switching | Yes (NO / NC) | | Auto Source Sequencing | Yes | | LCD Protection Glass | Yes | | Transflective Enhancement | Yes | | Multi Language Subtitle | English, Spanish, French, German, Italian | | | | Power Consumption | < 40 W
100 to 240 VAC (50/60 Hz) | | Electrical Ratings | 12 VDC | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | VESA Mount Size | 100 x 100 mm | | Mount | WB-5, WB-10, WB-30, WB-31 | | Rack / Ceiling | RMK-08 / CMK-01 | | | | Dimensions (W x H x D) | 14.9 x 13.2 x 3.4" (37.8 x 33.5 x 8.6 cm) | | Weight | 13.1 lb (5.9 kg) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 19.0 x 19.0 x 9.5" |
