User Manual for Orion Images 18REDE Full HD LED Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images 18REDE Full HD LED
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
 |
User manual for the Orion Images 18REDE Full HD LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|

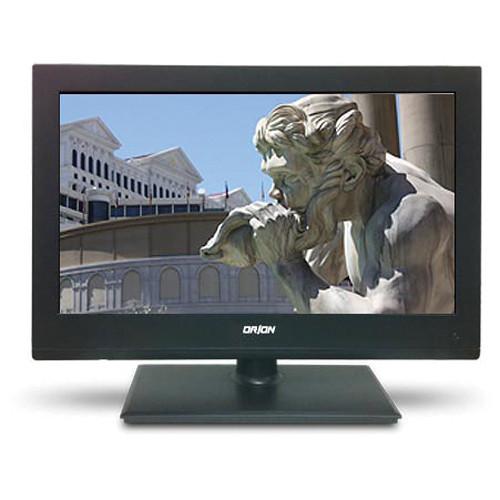

Product description The Orion Images 18REDE Full HD LED Monitor (18.5"), with LED BLU (Back Light Unit), exceeds the NTSC color gamut standard by 23%, thereby offering vivid visuals with real world colors. In addition, the LED BLU uses eco-friendly material (no mercury or halogen).
The display delivers high-quality images in 16.7 million colors at a full HD resolution up to 1366x768 at 60Hz. It has a contrast ratio of 1000:1, a luminance of 250cd/m², and wide viewing angles of 160° (H) / 160° (V) that allow you to view the displayed images clearly from extreme angles - whether room corners or even when the monitor is mounted at a height. With a response time of less than 5ms, the monitor displays clear images with less blurring effect.

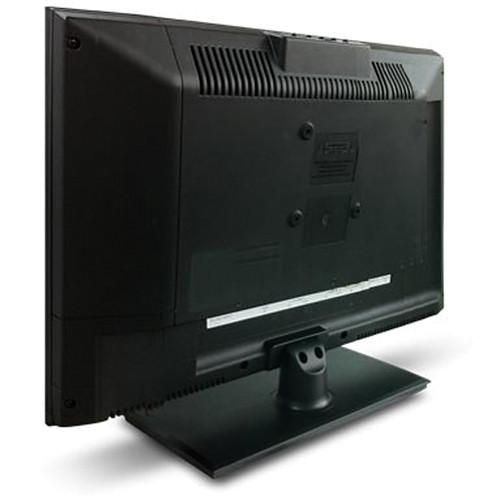

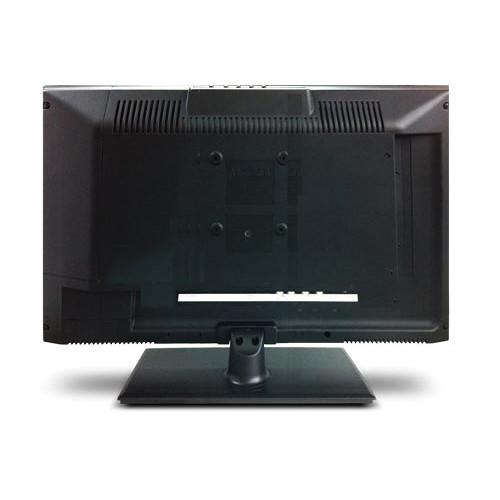

Dot crawl is reduced using the 2D comb filter to ensure a sharp picture with reduced noise. Equipped with multi-language support, the full HD monitor offers intuitive and convenient interface for easy operation. Featuring standard 2.9 x 2.9" (75 x 75mm) VESA mounting holes, the monitor can be wall or ceiling-mounted. - LED BLU (Back Light Unit) - exceeds the NTSC color gamut standard (100%) by 23%, thereby offering vivid visuals with real world colors; uses eco-friendly material (no mercury or halogen)
- Delivers high-quality images in 16.7 million colors at a full HD resolution up to 1366x768 at 60Hz
- Wide viewing angles of 160° (H) / 160° (V) that allow you to view the displayed images from extreme angles
- Response time of less than 5ms - displays clear images with less blurring effect
- 2D comb filter - reduces dot crawl and ensures sharp picture with less noise
- Multi-language support - offers intuitive and convenient interface for easy operation
- 2.9 x 2.9" (75 x 75mm) VESA mounting holes
- Optional wall and ceiling mount
UPC: 836228005189 In the Box Orion Images 18REDE Full HD LED Monitor (18.5") 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 18REDE Full HD LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 18REDE Specs | Screen Size | 18.5" (47cm) | | Panel/Display Type | LED BLU | | Resolution | 1366x768 @ 60Hz | | Pixel Pitch | 0.24825 x 0.24825mm | | Brightness | 250cd/m² | | Contrast Ratio | 1000 : 1 | | Aspect Ratio | 16 : 9 | | Viewing Angle | 160° / 160° (H/V) | | Display Colors | 16.7 Million | | Response Time | < 5ms | | Video System | NTSC / PAL | | Frequency | 31~64kHz / 55~75kHz (H/V) | | Interface | Video In / Out (BNC Type): 2 / 2
S-Video In: 1
VGA In (15 Pin D-Sub): 1
HDMI In: 1
PC Stereo In: Optional | | Speaker | Optional | | Features | Filter Type: 2D Comb Filter
Multi Language: English, French, German, Spanish, Italian | | Cabinet | Material / Color: ABS Plastic / Black
Tilt Function: Front 5° / Back 10° | | MTBF | 30,000 Hours (approx.) | | Power Requirements | AC110 ~ 230V(50/60Hz)
DC 12V / 3.7A | | Power Consumption | Max. <25W

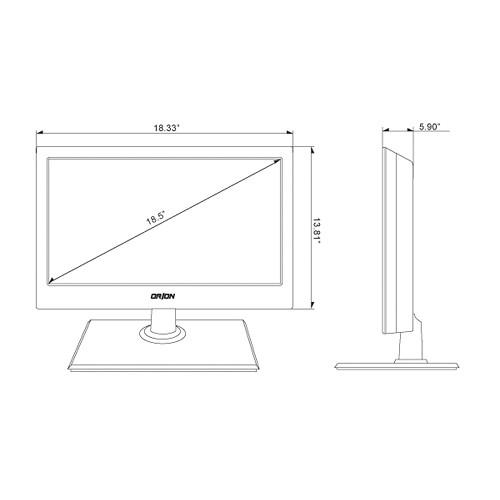

Min. <1W | | Operating Temperature | 32 ~ 122°F (0 ~ 50°C) | | Storage Temperature | -4 ~ 140°F (-20 ~ 60°C) | | VESA Mount Size | 2.9 x 2.9" (75 x 75mm) | | Regulations | RoHS, TUV-NRTL, FCC(B), CE | | Dimensions (WxHxD) | w/ stand: 18.33 x 13.81 x 5.90" (465 x 351 x 150mm) | | Weight | Net. Weight: 7.3 lb (3.3 kg)
Gross Weight: 9.2 lb (4.1 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 22.0 x 22.0 x 10.0" |
