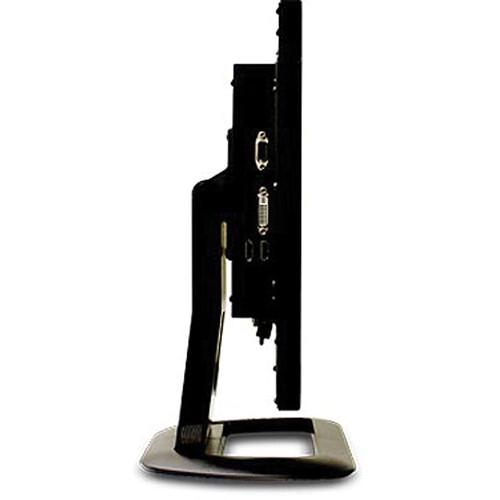

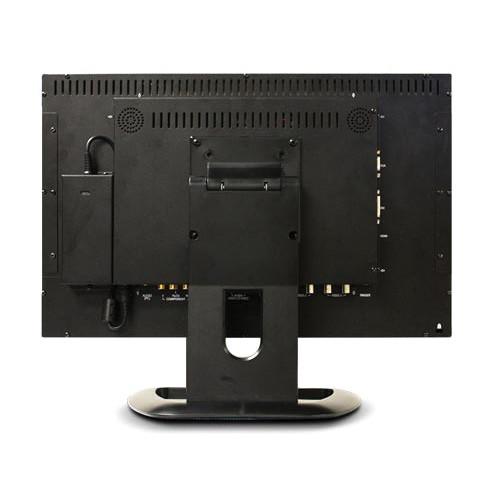

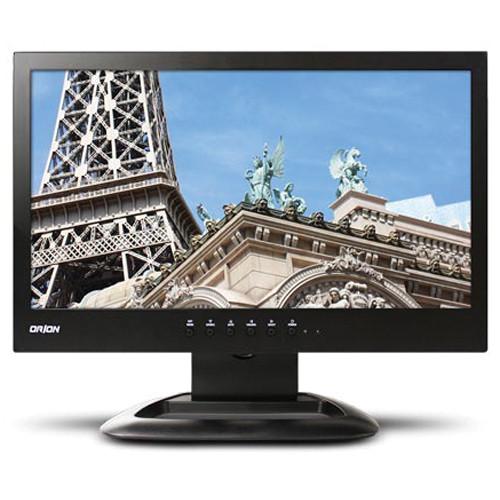

Product description The Orion Images 18REDP Wide Premium LED Monitor (18.5"), with LED BLU (Back Light Unit), exceeds the NTSC color gamut standard by 23%, thereby offering vivid visuals with real world colors. In addition, the LED BLU uses eco-friendly material (no mercury or halogen).
The display delivers high-quality images in 16.7 million colors at a resolution up to 1366 x 768 at 60 Hz. It has a contrast ratio of 1000:1, a luminance of 250 cd/m², and wide viewing angles of 160° (H) / 160° (V) that allow you to view the displayed images clearly even from room corners or when the monitor is mounted at a height.
With a response time of less than 5 ms, the monitor displays clear images with minimal blurring. Integrated 3D comb filter ensures that dot crawl is reduced to produce a sharp picture with reduced noise. De-interlace circuitry converts interlaced video (such as common analog television signals or 1080i format HDTV signals) into a non-interlaced form.
The PIP/PBP multi-display functionality allows video from 2 different signal sources to be displayed simultaneously on the same screen. Auto pixel shift reduces screen aging irregularities and burn-in caused by bright still images. Equipped with multi-language support, the monitor offers intuitive and convenient interface for easy operation. Other features of the 18.5" (47 cm) Premium LED Monitor include auto source sequencing and trigger source switching.
Built-in 2 W speakers provide sound to augment the multimedia experience, eliminating the need for external speakers. The LCD monitor with a protective glass shield has an enclosure made of electronic galvanized iron. - LED BLU (Back Light Unit) - exceeds the NTSC color gamut standard (100%) by 23%, thereby offering vivid visuals with real world colors; uses eco-friendly material (no mercury or halogen)
- Delivers high-quality images in 16.7 million colors at a resolution up to 1366 x 768 at 60 Hz
- Wide viewing angles of 160° (H) / 160° (V) that allow you to view the displayed images from extreme angles
- Response time of less than 5 ms - displays clear images with minimal blurring
- 3D comb filter - reduces dot crawl and ensures sharp picture with less noise
- De-interlace circuitry converts interlaced video (such as common analog television signals or 1080i format HDTV signals) into a non-interlaced form
- PIP/PBP multi-display functionality allows footage from 2 different signal sources to be displayed simultaneously on the same screen
- Built-in auto pixel shift - reduces screen aging irregularities and burn-in caused by bright still images
- Multi-language support - offers intuitive and convenient interface for easy operation
- Features auto source sequencing and trigger source switching
- Built-in 2 W speakers - provide sound to augment the multimedia experience, eliminating the need for external speakers
- Enclosure made of electronic galvanized iron
- Lightweight design - 12.78 lb (5.8 kg)
- 3.9 x 3.9" (100 x 100 mm) VESA mounting holes
- Optional attachable rack ears
UPC: 836228000184 In the Box Orion Images 18REDP Wide Premium LED Monitor (18.5") Remote Control 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 18REDP Wide Premium LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 18REDP Specs | Screen Size | 18.5" (47 cm) | | Back Light Unit Type | LED | | Resolution | 1366 x 768 @ 60 Hz | | Pixel Pitch | 0.30 x 0.30 mm | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle | 160° / 160° (H/V) | | Display Colors | 16.7 Million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | Frequency | 31~64 kHz / 55~75 kHz (H/V) | | Interface | Video In / Out (BNC Type): 2 / 2
S-Video In / Out: 1 / 1
VGA In (15Pin D-Sub): 1
Component: 1
DVI-D In / HDMI In: 1 / 2
Audio In (RCA Type): 3 (L+R)
PC Stereo In: 1 | | Transmitter | Remote Control: Yes | | Speaker | Built-in - 2x 2 W | | Features | Picture In Picture (PIP): Analog / Digital or Analog / Analog
Picture By Picture (PBP): Analog / Digital or Analog / Analog
Picture Enhancement: 3D Comb Filter / Deinterlace / Noise Reduction
Trigger Sensor: Yes (NO / NC)
LCD Protection Glass: Yes
Auto Pixel Shift: Yes
Auto Source Sequencing: Yes
Multi Language: English, Spanish, French, German, Italian | | Cabinet | Material / Color: Electronic galvanized Iron / Black
Base Stand: Desk Top Stand | | MTBF | 30,000 Hours (approx.) | | Power Requirements | AC100 ~ 240 V (50/60 Hz)

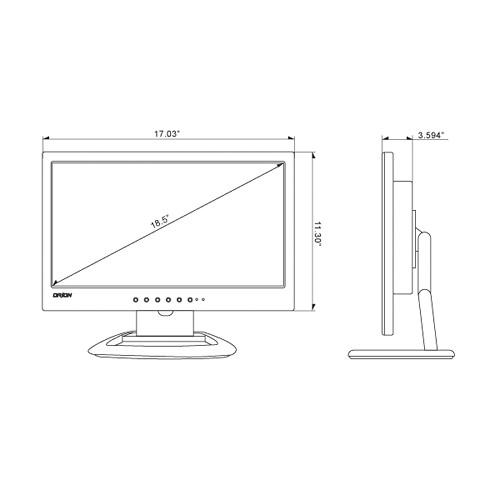

DC 12 V / 4.3 A | | Power Consumption | < 40 W | | Operating Temperature | 32 to 122° F (0 to 50° C) | | Storage Temperature | -4 to 140° F (-20 to 60° C) | | VESA Mount Size | 3.9 x 3.9" (100 x 100 mm) | | Regulations | RoHs, TUV NRTL , CB, FCC(A), CE-Emc(LVD) | | Dimensions (WxHxD) | 17.03 x 11.30 x 3.594" (432 x 287 x 91 mm) | | Weight | 12.78 lb (5.8 kg) | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 21.5 x 18.4 x 9.5" |
