User Manual for Orion Images 19HSDI3G 19" LCD HD-SDI Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images 19HSDI3G 19" LCD HD-SDI
- Product category: Production Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Production Monitors
|
User manual for the Orion Images 19HSDI3G 19" LCD HD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|

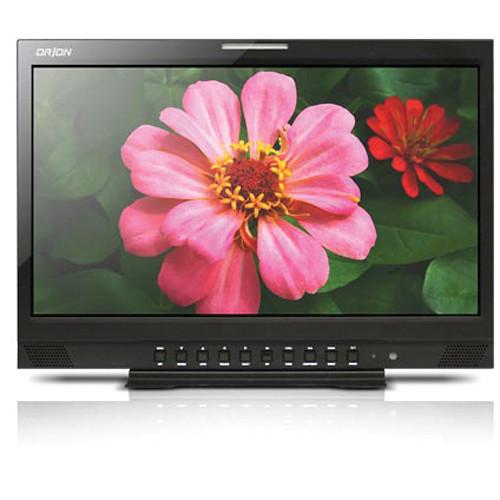

Product description The black 19HSDI3G 19" LCD HD-SDI Monitor from ORION Images Corporation incorporates the panel and image processing technology to provide high contrast and an accurate scaler. This monitor supports SD/HD/3G SDI formats. In addition, it has composite, PC (VGA), component, DVI-D, and HDMI inputs. - High performance and high contrast 18.5" (1366 x 768p) panel is used
- SD/HD/3G SDI (level A or B) is supported
- Composite, PC (VGA), component, DVI-D, and HDMI inputs
- Anti-glare treatment on the surface
- Wide 178° horizontal and vertical viewing angle
- Picture-in-Picture (PIP) mode allows an image from an AV source to be displayed as a picture within the image from a PC source (or vice-versa)
- Picture-by-Picture (PBP) mode permits images from an AV and PC source to be displayed side-by-side for split-screen viewing
- Auto Pixel Shift minutely moves pixels diagonally to prevent after-image / static image burn-in
- Front access input source selection
- Advanced auto power recovery
- 3D Comb Filter / de-interlacing
- Multi-Language: English, Spanish, French, German, Italian
UPC: 836228000252 In the Box Orion Images 19HSDI3G 19" LCD HD-SDI Monitor (Black) Remote Control Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 19HSDI3G 19" LCD HD-SDI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 19HSDI3G Specs | Screen Size | 18.5" (47.0 cm) | | Resolution | 1366 x 768 @ 60 Hz (maximum) | | Pixel Pitch | 0.300 x 0.300 mm | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178 / 178° | | Display Color | 16.7 million | | Response Time | <9 ms (gray to gray) | | Video System | NTSC / PAL | | Frequency | Horizontal: 60 to 75 kHz, Vertical: 55 to 75 kHz | | Interface | SDI: 1 in /1 out
SMPTE 125M : 525i (NTSC, 480i / 60)
1TU-R BT.601: 625i (PAL, 575i / 50)
SMPTE 296M : 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SMPTE 274M : 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080psF (30 / 29.97 / 25 / 24 / 23.98)
SMPTE 425M: 1080p (60 / 59.94 / 50)
Analog Composite: 1 in /1 out
VGA (15Pin D-Sub): 1 in (15Pin D-Sub)
Component: 1 in
DVI-D / HDMI: 1 in /2 in
Audio (RCA Type): 2 in (L + R)
PC stereo : 1 in | | Audio Communication | Built-in Speakers: 2 W x 2 | | Power | Consumption: < On, <40w , electrical ratings: 100 to 240 vac (50 > | | Temperature | Operating Temperature : 32 to 104°F (0 to 40°C), Storage Temperature : 4 to 140°F (-20 to 60°C) | | Material | Metal | | Dimensions | Outline Dimensions : 17.32 x 12.48 x 3.58" (439.90 x 316.90 x 90.90 mm) | | Net Weight | 10.8 lb (4.9 kg) | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 21.5 x 18.4 x 9.5" |
