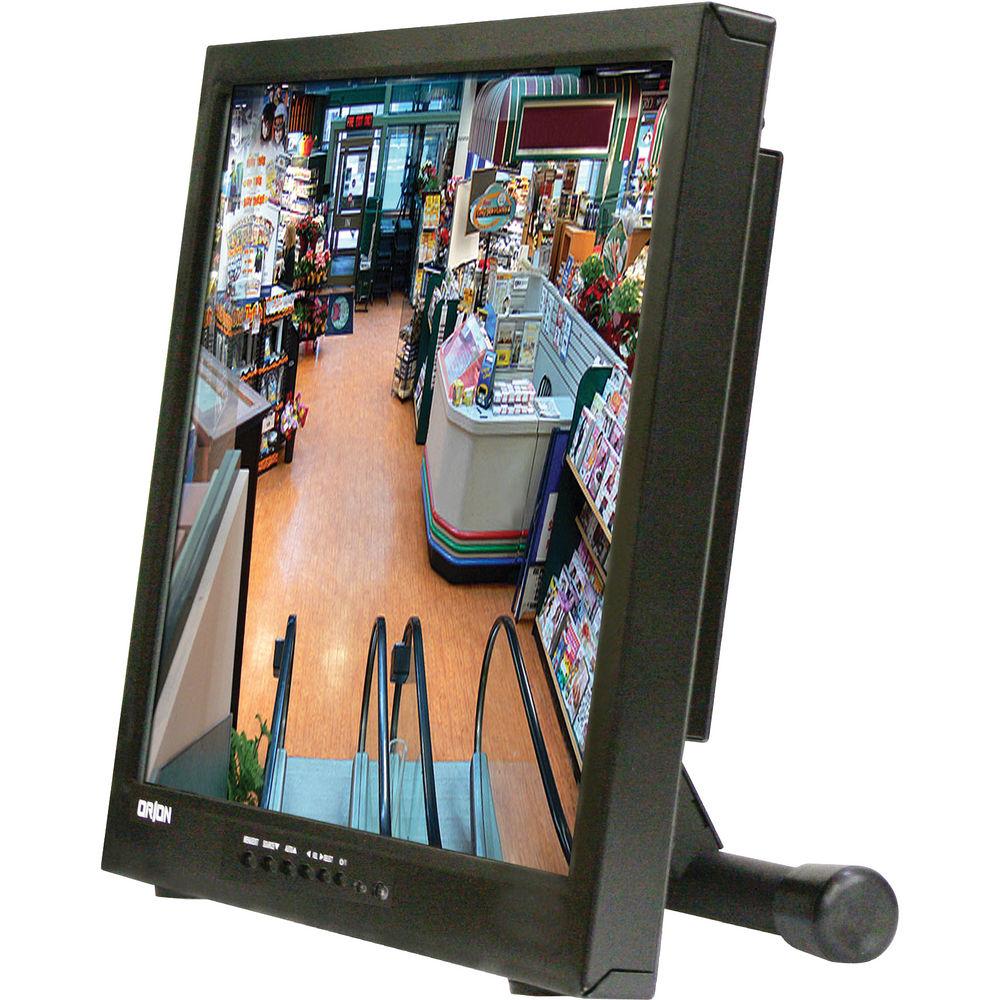

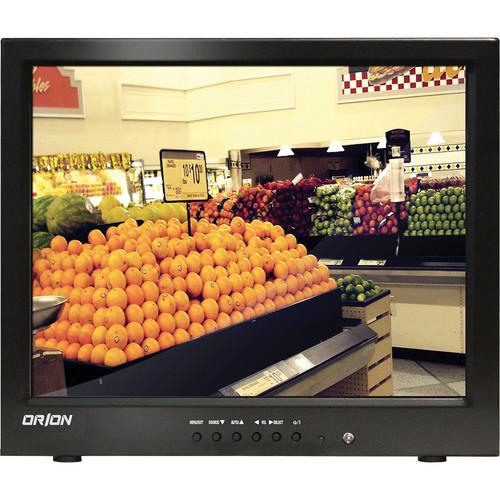

Product description The Orion Images 19RTCSR LCD CCTV Monitor (Transreflective Screen) features a 19" (48.26 cm) screen and is designed for round-the-clock operation. Along with support for up to 16.7 million colors, the monitor offers a maximum resolution of 1280 x 1024 pixels at 60 Hz. The LCD offers 300Nits brightness, 1000:1 contrast and has a response time of less than 5ms.
Featured 3D Comb filter reduces dot crawl to ensure sharp pictures with less noise and a de-interlace filter converts interlaced video into a non-interlaced form for enhanced performance. Picture-in-Picture (PIP) feature allows a video footage to be displayed on the entire TV screen while 1 or more other videos can be displayed in inset windows. The CCTV monitor features a trigger sensor and auto source sequencing. Transreflective technology provides enhanced viewability under varied lighting conditions including direct sunlight.

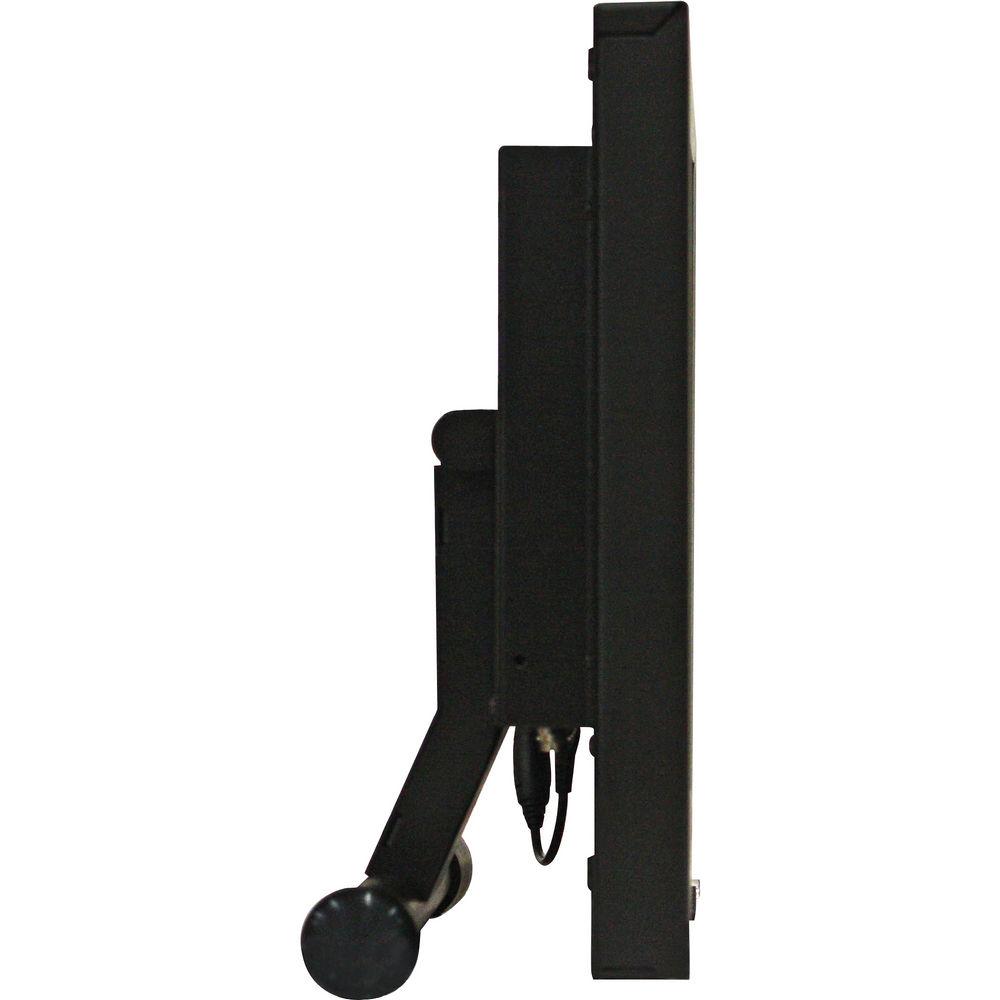

A protection glass protects the LCD screen from scratches and accidental impacts. The 19RTCSR has a metal chassis, a tilt back stand, 2 built-in speakers and comes with remote control. Offering multiple mounting options, the 19RTCSR LCD CCTV Monitor can be fixed on walls, ceilings or racks. The LCD provides multi-language support to ensure user-friendliness. - Supports round-the-clock operation
- Supports up to 16.7 million colors
- Maximum resolution - 1280 x 1024 pixels at 60 Hz
- Response time - less than 5ms
- 3D Comb filter reduces dot crawl that ensures sharp pictures with less noise
- De-interlace filter converts interlaced video into a non-interlaced form for enhanced performance
- Picture-in-Picture (PIP) feature allows a video footage to be displayed on the entire TV screen while 1 or more other videos can be displayed in inset windows
- Transreflective technology provides enhanced viewability under varied lighting conditions including direct sunlight
- Trigger sensor and auto source sequencing
- Protection glass protects the LCD screen from scratches and possible impacts
- Offers wall, ceiling and rack mount options
In the Box Orion Images 19RTCSR LCD CCTV Monitor (Transreflective Screen) Built-in Speakers (2W x 2) 1-year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 19RTCSR LCD CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

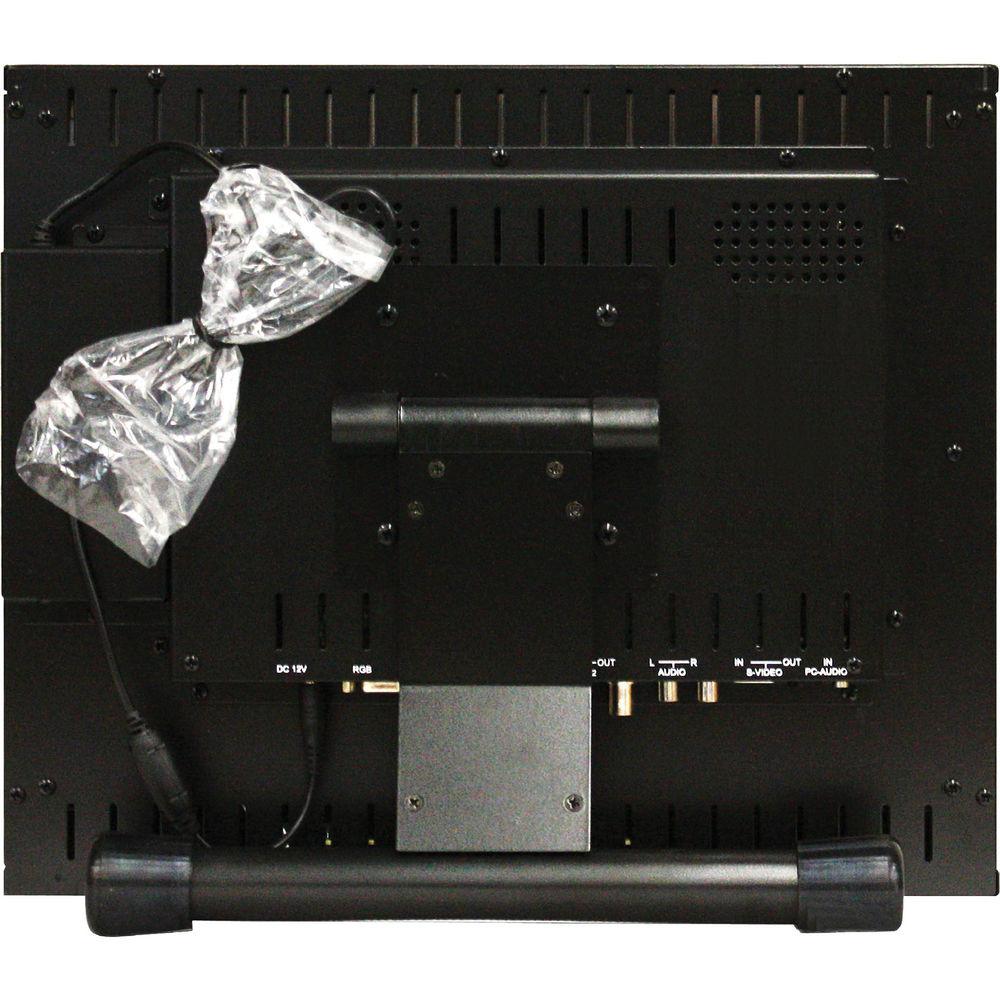

Technical parametersOrion Images 19RTCSR Specs | Screen Size | 19" (48.26 cm) | | Viewing Area | 14.8 x 11.85" (376 x 301 mm) | | Pixel Type | Active Matrix TFT | | Max Resolution | 1024 x 768 at 75Hz | | Pixel Pitch | 0.011 x 0.011" (0.297 x 0.297mm) | | Brightness | 300cd/m² | | Contrast Ratio | 1000 : 1 | | Aspect Ratio | 5 : 4 | | Viewing Angle | 160° / 160° | | Display Colors | 16.7 Million | | Response Time | < 5ms | | Video System | NTSC / PAL | | Frequency | Horizontal: 31-64 KHz(H) Vertical: 55-75 KHz(V) | | Video I/O | BNC- 2/2 S-video - 1/1 | | Inputs | RGB In(15Pin D-Sub) - 1 Component - 1 DVI In/ HDMI In - 1/1 Audio In/ Out(RCA Type) - 2/1 PC Stereo In - 1 | | Remote Control | Yes | | Speakers | Built-in (2W x 2) | | Filter | 3D Comb Filter / Deinterlace | | LCD Protection Glass | Yes | | VESA DDC Compatible | Yes | | Supported Languages | English, Spanish, French, German, Italian, Portuguese, Nederland | | Color | Black | | Material | Steel | | Tilt/Swivel Stand | Yes | | MTBF | 30,000 Hours (Approx.) | | Regulations | TUV-NRTL(=UL), CB, FCC(A), CE-Emc(LVD) | | Power | Consumption: - < 45W Electrical Ratings AC100 - 240V(50/60Hz), DC 12V / 3.5A | | Operating Temperature | 50 - 104°F (10 - 40°C) | | Storage Temperature | -20 to 60°C (-4 to 140°F) | | Mounts | VESA Mounts Size 3.93 x 3.93"/100 x 100 mm (BS M4 x 0.39"/10 mm Screw) | | Weight | Net - 15.8lbs (7.17Kg) Gross - 19.8lbs (9Kg) | | Dimensions (WxHxD) | Outline Dimension - 16.87 x 14.96 x 3.26" (428.5 x 380.2 x 83 mm)Packaging Dimension - 21.25 x 19.09 x 7.08" (540 x 485 x 180 mm) |
