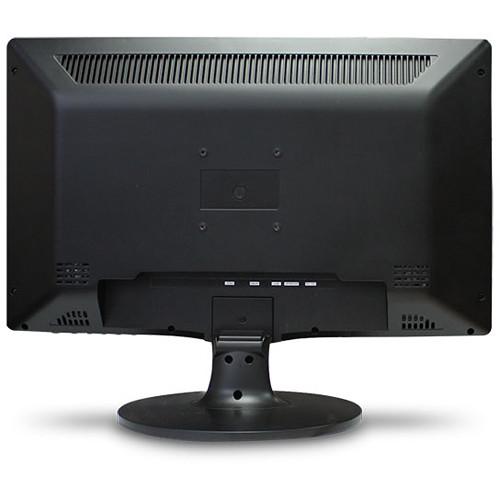

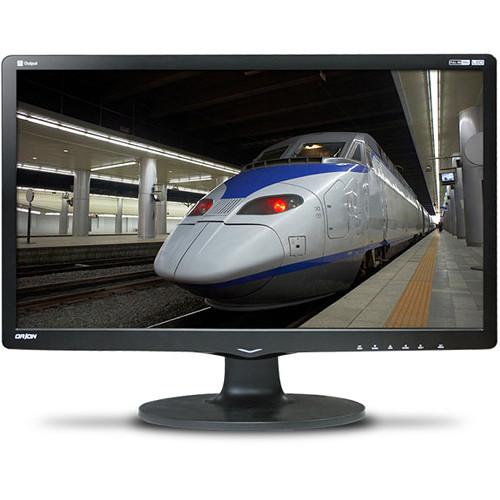

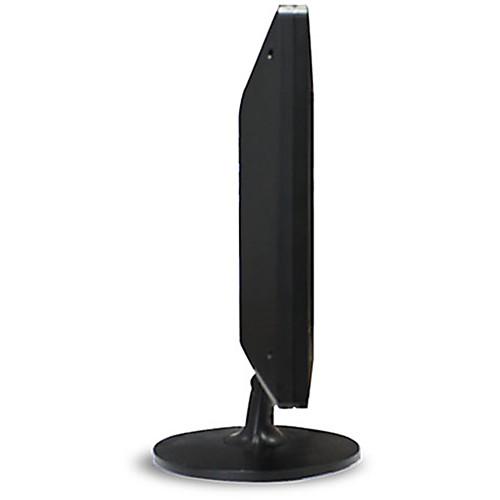

User Manual for Orion Images 21KHIP 21.5" Full HD IP Output CCTV LCD Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images 21KHIP 21.5" Full HD
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
 |
User manual for the Orion Images 21KHIP 21.5" Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description The 21KHIP 21.5" Full HD IP CCTV LCD Monitor from Orion Images is a commercial grade Full HD monitor with video output over IP, which allows the user to view and record remotely via an IP connection. Designed for continuous operation, the 21KHIP features an HDMI input (or DVI with optional adapter), ONVIF compliancy, 10/100 Ethernet connection, and an LED backlit LCD panel. - 21.5" LED BLU (back light unit) display monitor
- Ethernet 10/100 - triple streaming (H.264 / MPEG / MP4)
UPC: 836228001099 In the Box Orion Images 21KHIP 21.5" Full HD IP Output CCTV LCD Monitor Base Stand Remote Control Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 21KHIP 21.5" Full HD IP Output CCTV LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 21KHIP Specs | Screen Size | 21.5" (54.6 cm) | | Maximum Resolution | 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.248 x 0.248 mm | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle | 170°/160° | | Display Colors | 16.7 million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | Frequency | H: 31 to 48 kHz
V: 56 to 75 kHz | | Interface | 1 x HDMI
1 x Ethernet
Resolution: 1080p, 720p, D1 to QCIF
Bit Rate: 32 Kb/s to 6 MB/s
Streaming: Triple (H.264 / MPEG / MPEG4) | | Audio | 2 x 1 W | | Multi-Language | English, Spanish, French, German, and Italian | | Material | Cabinet: ABS Plastic | | Power Consumption | < 38 W | | Power Supply | 100 to 240 VAC (50/60 Hz)
12 VDC, 3.5 A | | Mounting | VESA Mount Size: 75 x 75 mm
Wall: WB-5, WB-10, WB-30, WB-31 Mounts
Ceiling: CMK-01
Rack: RMK-08 | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | With Stand: 20.15 x 15.35 x 7.88" (51.2 x 39 x 20 cm) | | Weight | With Stand: 7.7 lb (3.5 kg) |
