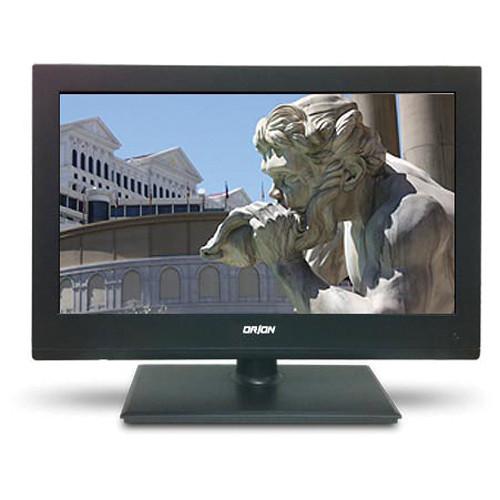

Product description The Orion Images 21REDE Full HD LED Monitor (21.5"), with LED BLU (Back Light Unit), exceeds the NTSC color gamut standard by 23%, thereby offering vivid visuals with real world colors. In addition, the LED BLU uses eco-friendly material (no mercury or halogen).
The display delivers high-quality images in 16.7 million colors at a full HD resolution up to 1920 x 1080 at 60 Hz. It has a contrast ratio of 1000:1, a luminance of 250 cd/m², and wide viewing angles of 170° (H) / 160° (V) that allow you to view the displayed images clearly from extreme angles - whether room corners or even when the monitor is mounted at a height. With a response time of less than 5ms, the monitor displays clear images with less blurring effect.

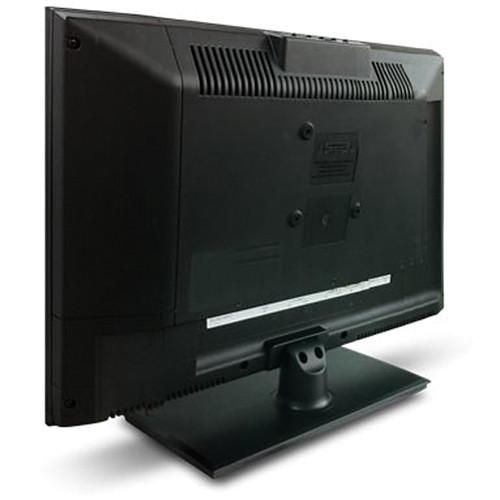

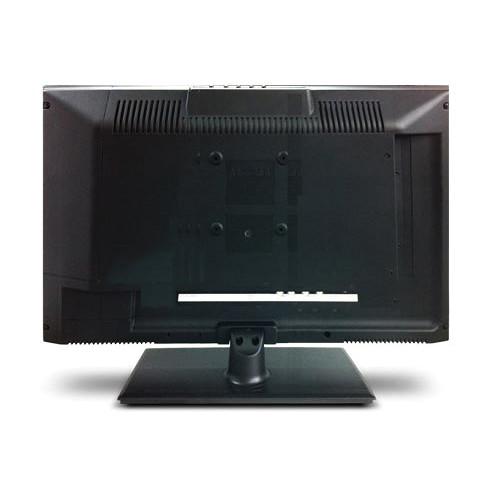

Dot crawl is reduced using the 2D comb filter to ensure a sharp picture with reduced noise. Equipped with multi-language support, the full HD monitor offers intuitive and convenient interface for easy operation. Featuring standard 2.9 x 2.9" (75 x 75 mm) VESA mounting holes, the monitor can be wall or ceiling-mounted. - LED BLU (Back Light Unit) - exceeds the NTSC color gamut standard (100%) by 23%, thereby offering vivid visuals with real world colors; uses eco-friendly material (no mercury or halogen)
- Delivers high-quality images in 16.7 million colors at a full HD resolution up to 1920 x 1080 at 60 Hz
- Wide viewing angles of 170° (H) / 160° (V) that allow you to view the displayed images from extreme angles
- Response time of less than 5ms - displays clear images with less blurring effect
- 2D comb filter - reduces dot crawl and ensures sharp picture with less noise
- Multi-language support - offers intuitive and convenient interface for easy operation
- 2.9 x 2.9" (75 x 75 mm) VESA mounting holes
- Optional wall and ceiling mount
UPC: 836228005219 In the Box Orion Images 21REDE Full HD LED Monitor (21.5") 2-Year Warranty on Parts & Labor Brochure PDF 484.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 21REDE Full HD LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 21REDE Specs | Screen Size | 21.5" (55 cm) | | Panel/Display Type | LED BLU | | Resolution | 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.24825 x 0.24825 mm | | Brightness | 250 cd/m² | | Contrast Ratio | 1000 : 1 | | Aspect Ratio | 16 : 9 | | Viewing Angle | 170° / 160° (H/V) | | Display Colors | 16.7 Million | | Response Time | < 5ms | | Video System | NTSC / PAL | | Frequency | 31~64 kHz/55~75 kHz (H/V) | | Interface | Video In / Out (BNC Type): 2 / 2
S-Video In: 1
VGA In (15 Pin D-Sub): 1
HDMI In: 1
PC Stereo In: Optional | | Speaker | Optional | | Features | Filter Type: 2D Comb Filter
Multi Language: English, French, German, Spanish, Italian | | Cabinet | Material / Color: ABS Plastic / Black
Tilt Function: Front 5° / Back 10° | | MTBF | 25,000 Hours (approx.) | | Power Requirements | AC110 ~ 230V(50/60Hz)
DC 24V / 3.7A | | Power Consumption | Max. <30W

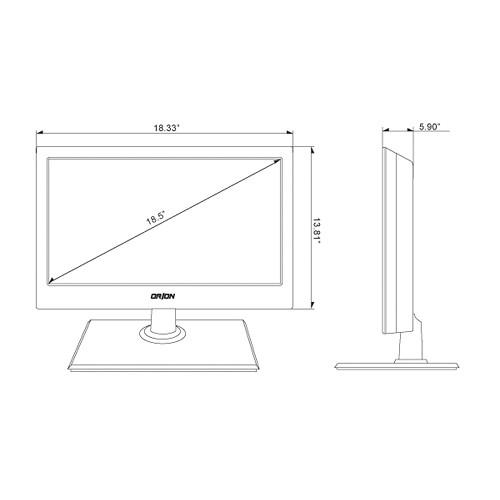

Min. <1W | | Operating Temperature | 32 ~ 122°F (0 ~ 50°C) | | Storage Temperature | -4 ~ 140°F (-20 ~ 60°C) | | VESA Mount Size | 2.9 x 2.9" (75 x 75 mm) | | Regulations | RoHS, TUV-NRTL, FCC(B), CE | | Dimensions (WxHxD) | w/ stand: 21.17 x 15.93 x 5.90" (537 x 405 x 150 mm) | | Weight | Net. Weight: 8.818 lb (3.9 kg)
Gross Weight: 11.02 lb (4.9 kg) | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 26.0 x 20.0 x 10.0" |
