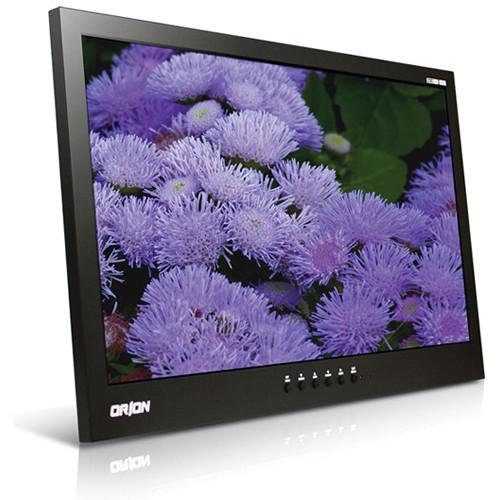

Product description The black ORION Images 23HSDI3G 23” SD / HD / 3G-SDI Input Full HD LED Monitor incorporates SD / HD / 3G-SDI inputs with LED backlight panel unit HDTV format of 1920 x 1080p Full HD solution monitor. It features image processing technology that provides higher contrast.

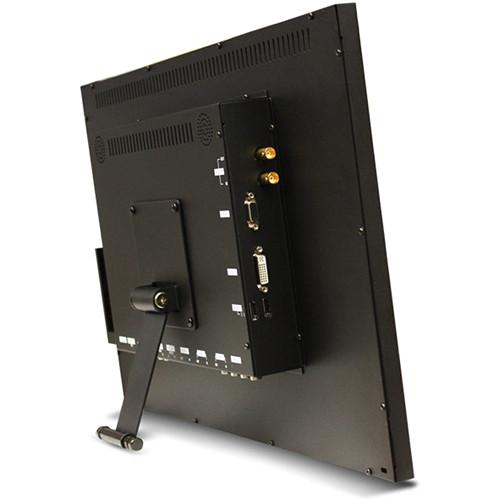

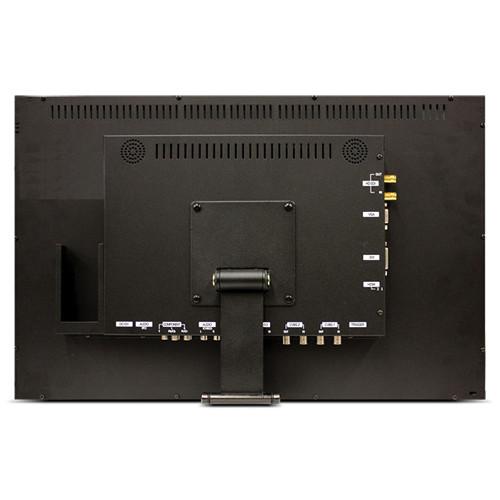

A secure mounting bracket is included for the AC power supply to be rear mounted directly to the back of the display. - Full HDTV display that delivers real time broadcast grade images
- LED backlight to extend the lifetime and save power
- Non-glare surface coating
- SD / HD / 3G-SDI (level A or B) is supported in addition to composite, PC (VGA), component, DVI-D and HDMI inputs
- PIP (Picture-In-Picture) and PBP (Picture-By-Picture) multi display function
- Remote control transmitter
- 3D Comb filter and de-interlacing filter type
- Advanced auto power recovery
UPC: 836228000269 In the Box Orion Images 23HSDI3G 23" SD / HD / 3G-SDI Input Full HD LED Monitor (Black) Secure AC Power Mounting Bracket Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 23HSDI3G 23" SD HD 3G-SDI Input Full HD LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 23HSDI3G Specs | | | Screen Size | 23.0" (58.4 cm) | | Maximum Resolution | 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.265 x 0.265 mm | | Brightness | 250 cd/m² | | Surface | Non-glare coating | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 160° / 170° | | Display Color | 16.7 Million | | Response Time | <5 ms (Gray to Gray) | | Video System | NTSC & PAL | | Frequency (H) | 60 to 75 kHz (H) | | Frequency (V) | 55 to 75 kHz (V) | | Input/Output | SDI:
SMPTE 125M: 525i (NTSC, 480i / 60)
1TU-R BT.601: 625i (PAL, 575i / 50)
SMPTE 296M: 720P (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SMPTE 274M: 1080i (60 / 59.94 / 50), 1080P (30 / 29.97 / 25 / 24 / 23.98), 1080PsF (30 / 29.97 / 25 / 24 / 23.98)
SMPTE 425M: 1080P (60 / 59.94 / 50) | | Analog Composite | Input / Output: 2 / 2 | | S-Video In/Out | 1 / 1 | | VGA In (15Pin D-Sub) | 1 | | Component | 1 | | DVI-D In / HDMI In | 1 / 2 | | Audio In (RCA Type) | 3 (L + R) | | PC Stereo In | 1 | | | | Built-In Speakers | Yes, (2x 4 W) | | Function | Multi Display: PIP / PBP | | Filter Type | 3D Comb Filter is built-in | | | | Multi Language Subtitle | English, Spanish, French, German, Italian | | | | Stand | Desk Top: Kick type stand | | | | Consumption: < On | <45 W | | Electrical Ratings | 12 VDC, 100 to 240 VAC (50/60 Hz) with AC Adapter | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Outline Dimension | 21.7 x 14.1 x 3.4" (55.1 x 35.8 x 8.6 cm) | | Net Weight | 15.6 lb (7.0 kg) | | | | Package Weight | 18.85 lb | | Box Dimensions (LxWxH) | 25.0 x 20.0 x 9.0" |
