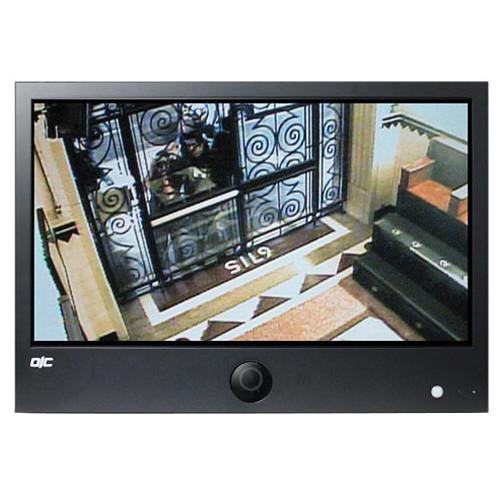

User Manual for Orion Images 23IPHPVM 23" 1080p LED BLU Back-Lit IP Public View Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images 23IPHPVM 23" 1080p LED
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
|
User manual for the Orion Images 23IPHPVM 23" 1080p LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description The ORION Images 23IPHPVM 23” 1080p LED BLU Back-Lit IP Public View Monitor comes with a built-in WDR Panasonic 2.2MP CMOS camera and motion-detection sensor, offering an effective theft-deterrent solution. With the optional built-in media card reader, you can turn your loss-prevention display into an advertising and marketing tool using pre-loaded marketing material that loops continuously. This monitor can be used in supermarkets, convenience stores, department stores, and other such applications. It comes in a metal chassis and features a screwless magnetic cover that allows for efficient cable management and protects the interfaces from humidity and other environmental conditions. - HD-SDI / IP H.264 ONVIF out
- 1000 TVL horizontal resolution
- 1920 x 1080 resolution, 250 bits, 1000:1 contrast
- Features 3D Motion Adaptive De-Interlacer / Auto Source Sequencing / 3D Comb Filter / PIP, PBP
- Built-in WDR 1/3" Panasonic 2.2MP CMOS sensor
- PIR motion sensor detects moving objects & people up to a distance of 10 to 30'
UPC: 836228000733 In the Box Orion Images 23IPHPVM 23" 1080p LED BLU Back-Lit IP Public View Monitor Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 23IPHPVM 23" 1080p LED BLU Back-Lit IP Public View Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 23IPHPVM Specs | | | Screen Size | 23.0" (58.4 cm) | | Backlight | LED BLU | | Maximum Resolution | 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.265 x 0.265 mm | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178° / 178° | | Display Color | 16.7 million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | Frequency (H) | 31 to 48 kHz (Horizontal) | | Frequency (V) | 56 to 75 kHz (Vertical) | | | | Video In / Out (BNC Type) | 2 / 3 (included camera out) | | HD-SDI Output | 1, BNC type | | ONVIF | 1 (RJ45), IP H.264 ONVIF Out | | HDMI In | 1 | | VGA In (15Pin D-Sub) | 1 | | Audio In (RCA Type) | 1 (L + R) | | PC Stereo In | 1 | | Remote Control | Yes | | | | Built-In Speakers | Yes (1 W x 2) | | | | Filter Type | 3D Comb filter | | De-Interlace | Yes (3D motion adaptive) | | Multi-Display Function | PIP / PBP | | Noise Reduction | Yes | | Multi Language Subtitle | English, Spanish, French, German, Italian | | Auto Source Sequencing | Yes | | Motion Sensor | PIR Motion Sensor 10 to 30' (3 to 9 m) | | Snapshot | 1 / 2 / 3 / 4 / 5 / 10 / 20 sec | | | | Camera Type | WDR camera | | Mechanical Design | Tilt swivel 1080p camera | | Scanning System | 2:1 interlace | | Image Sensor | 1/3" Panasonic 2.2 MP CMOS | | WDR Control | >50 dB | | Resolution | Horizontal: 1000 TVL | | Lens Mount | 2.8 to 12 mm varifocal 3 MP lens | | Sensitivity | 0.1 lux with F1.2 lens / 0.002 lux sens-up x 256 | | Electronic Shutter | 1/60 to 1/60,000 sec | | | | Consumption | < 40 W (On) | | Electrical Ratings | 100 to 240 VAC (50/60 Hz)
12 VDC | | | | VESA Mount Size | 200 x 200 mm | | Wall | WB-2642 | | Ceiling Bracket | CMK-01 with FMA-01 | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 21.9 x 15.6 x 3.1" (55.6 x 39.6 x 7.9 cm) | | Weight | 16.8 lb (7.6 kg) | | | | Package Weight | 21.9 lb | | Box Dimensions (LxWxH) | 25.0 x 20.0 x 9.0" |
