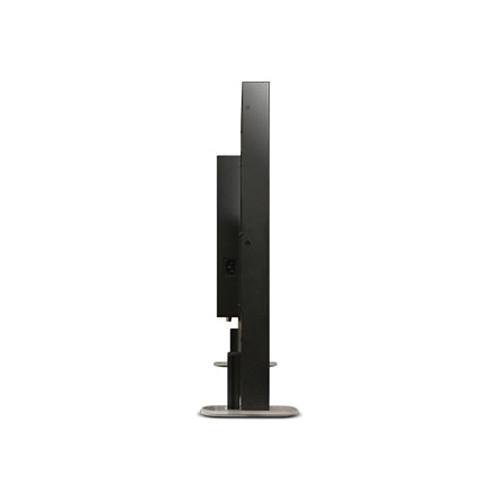

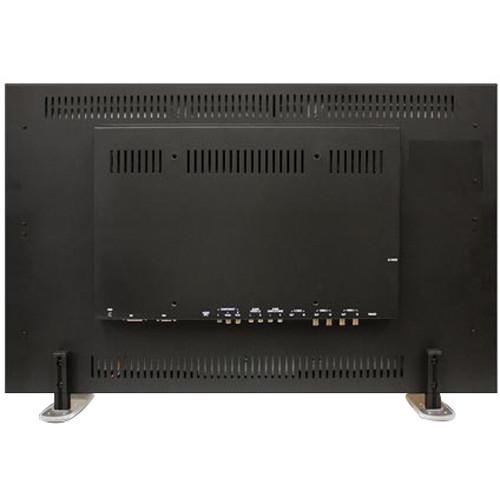

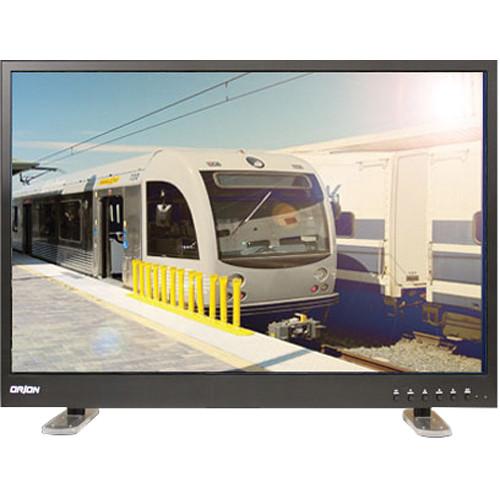

User Manual for Orion Images 32" Sunlight Readable LCD CCTV Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images 32" Sunlight Readable LCD
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
 |
User manual for the Orion Images 32" Sunlight Readable LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description The FCC Class A certified Orion Images 32" Sunlight Readable LCD CCTV Monitor has a bright, 1,300 Nit LCD color display that is legible even in areas with a high amount of ambient light. It can run continuously all year long, making it suitable for applications in security surveillance, industrial machinery, ATM machines, and order confirmation systems.This monitor’s transflective, anti-glare display is readable under all lighting conditions including direct and indirect sunlight—the stronger the ambient light, the brighter the image. The LCD holds both transmissive and reflective properties, enabling it to adapt to the ambient luminance and change how it displays the image. It uses a backlight with transmissive properties in poorly lit environments, and uses an external light with reflective properties in bright environments. The transflective technology enables low power consumption, low heat generation, and greater contrast and brightness to help preserve the backlight. - 1366 x 768 native display resolution
- Sunlight-readable bright LCD
- Transflective technology allows for better color performance
- Readable under all lighting conditions, including direct sunlight
- Power saving and backlight preservation in outdoor applications
- No extra heat generation even at high brightness levels
- Greater transmissive brightness
- Minimizes internal and surface reflections
- Low power usage (no more than off-the-shelf LCDs)
- Low heat emission (no more than off-the-shelf LCDs)
- Enhanced contrast ratio for both indoor and outdoor conditions
- PIP / PBP multi display function
- 2 x 7.5W built-in speakers
- Suitable for use as public information displays at bus stands, railway stations, and airports, digital signage for advertisements, ATMs, outdoor kiosks, and gas stations
UPC: 836228007329 In the Box Orion Images 32" Sunlight Readable LCD CCTV Monitor Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 32" Sunlight Readable LCD CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 32RTCSR Specs | Screen Size | 32" (81.3 cm) | | Active Viewing Area | 697.7 x 392.3 mm | | Native Resolution | 1366 x 768 @ 60 Hz | | Pixel Pitch | 0.511 x 0.511 | | Brightness | Outdoor: 1,300 cd/m²
Indoor: 850 cd/m² | | Contrast Ratio | 3000 : 1 | | Aspect Ratio | 16 : 9 | | Viewing Angle (H/V) | 176° / 176° | | Display Color | 16.7 Million | | Response Time | <8 ms | | Video System | NTSC / PAL | | Frequency (H) | 30 to 64 kHz | | Frequency (V) | 56 to 75 kHz | | | | Video In / Out (BNC Type) | 2 / 2 | | S-Video | In / Out: 1 / 1 | | VGA | In /Out: 15 Pin D-Sub: 1 | | Component Input | 1 | | DVI-D In / HDMI In | 1 / 2 | | RS-232C In / Out | Maximum ID and Connection: 1 to 99
Maximum Cable Length (RS-232C): 49.2' (14.9 m) | | Audio In (RCA Type) | 3 | | PC Stereo In | 1 | | Transmitter | IR remote control | | Audio | 2 x 7.5 W built-in speakers | | RS-232C Control | Monitor OSD control using PC | | Picture in Picture / Picture by Picture | Analog / Digital
BNC / BNC | | Filter Type | 3D Comb | | Multi-language Support | English, Spanish, French, German, Italian | | | | Power | Consumption: < 150 W | | Electrical Ratings | 100 to 240 VAC (50 / 60 Hz) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | VESA Mount Size | 200 x 200 m | | Mount | Wall: WB-2642
Ceiling: CMK-01 with FMA-01 Mounts are sold separately. | | Enclosure | ENCL-A32 Enclosure is sold separately. | | | | Material | Cabinet: Electronic galvanized iron | | Dimensions (W x H x D) | Outline (Open Frame): 30.0 x 19.8 x 9.4" (76.2 x 50.3 x 23.9 cm) | | Weight | 47.5 lb (21.5 kg) | | | | Box Dimensions (LxWxH) | 38.0 x 24.0 x 13.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
