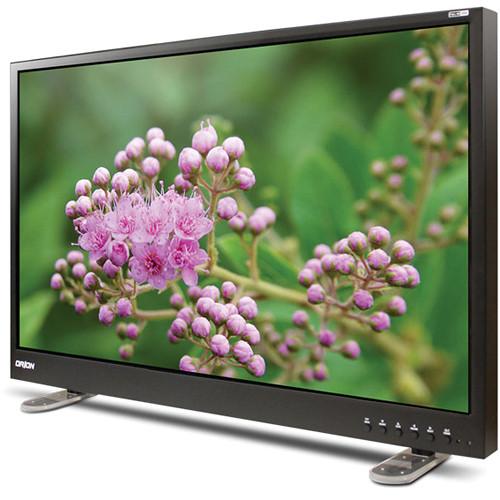

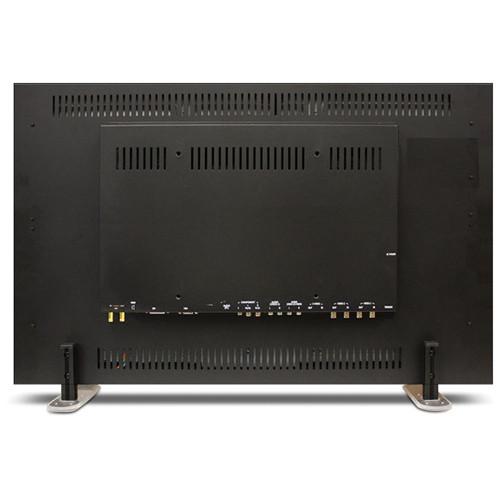

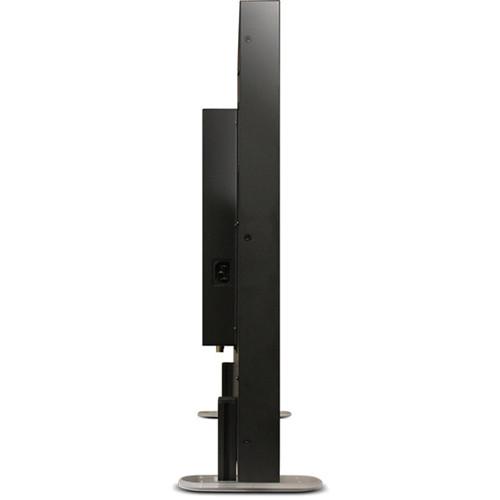

Product description The black ORION Images 32HSDI3G SD/HD/3G-SDI Input Full HD LED Monitor incorporates SD/HD/3G-SDI inputs with an LED (BLU) backlight panel unit HDTV format of 1920 x 1080p Full HD solution monitor. It features image processing technology that provides higher contrast. - Full HDTV display that delivers real time broadcast grade images
- LED backlight to extend the lifetime and save power
- Non-glare surface coating
- SD/HD/3G-SDI (level A or B) is supported in addition to composite, PC (VGA), component, DVI-D and HDMI inputs
- PIP (Picture-in-Picture) and PBP (Picture-by-Picture) multi-display function
- Remote control transmitter
- 3D Comb filter and de-interlacing filter type
- Advanced auto power recovery
UPC: 836228000153 In the Box Orion Images 32HSDI3G SD / HD / 3G-SDI Input Full HD LED Monitor (Black) Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 32HSDI3G SD HD 3G-SDI Input Full HD LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 32HSDI3G Specs | | | Screen Size | 31.55" (80.14 cm) | | Maximum Resolution | 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.364 x 0.364 mm | | Brightness | 360 cd/m² | | Surface | Non-glare coating | | Contrast Ratio | 1400:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178° / 178° | | Display Color | 16.7 million | | Response Time | <8 ms (gray-to-gray) | | Video System | NTSC & PAL | | Frequency (H) | 60 to 75 kHz (H) | | Frequency (V) | 55 to 75 kHz (V) | | Input/Output | SD-SDI:
480i (59.94) / 575i (50)
HD-SDI:
720p (50 / 59.94 / 60)
1080i (50 / 59.94 / 60)
1080p (24 / 25 / 29.97 / 30)
3G-SDI:
1080p (50 / 59.94 / 60) | | Video In/Out | BNC Type: 2 / 2 | | S-Video In/Out | 1 / 1 | | VGA In (15Pin D-Sub) | 1 | | DVI-D In / HDMI In | 1 / 2 | | Audio In (RCA Type) | 2 (L + R) | | PC Stereo In | 1 | | | | Built-In Speakers | 2 x 1 W | | Function | Multi Display: PIP / PBP | | Filter Type | 3D Comb Filter / Deinterlacing | | | | Multi Language Subtitle | English, Spanish, French, German, Italian | | | | Consumption: < On | <71 W | | Electrical Ratings | 100 to 240 VAC (50/60 Hz) | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Dimensions | 28.8 x 19.1 x 8.3" (73.1 x 48.5 x 21.01 cm) | | Weight | 29.32 lb (13.4 kg) | | | | Package Weight | 35.05 lb | | Box Dimensions (LxWxH) | 33.5 x 25.0 x 8.0" |
