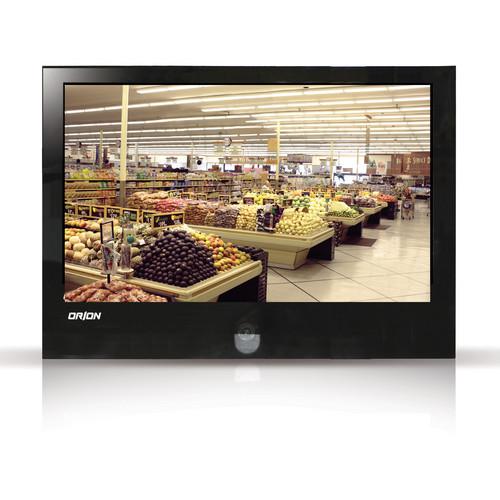

Product description The Orion Images 32PVMV Public View Display with WDR Built-in Camera delivers high-quality images in 16.7 million display colors at a resolution up to 1366 x 768 at 60Hz. It has a contrast ratio of 4000:1, a luminance of 450cd/m², and a wide viewing angle of 178°/178° that allows you to view the images clearly - may it be from room corners or when the display is mounted at a height.
With a response time of less than 8ms, the monitor displays clear images with less blurring effect. Dot crawl is reduced using the 3D comb filter to ensure a sharp picture with reduced noise. De-interlace circuitry converts interlaced video (such as common analog television signals or 1080i format HDTV signals) into a non-interlaced form. It includes multi-display functions (PIP / PBP) for displaying 2 images simultaneously. It also provides auto source sequencing, and a featured multi-language offers intuitive and convenient interface for easy operation. The 32" Public View Monitor features a Microwave motion sensor for distance ranging from 10-30' (3-9 m).
The LCD monitor with a protective acrylic shield has an enclosure made of powder coat metal. Featuring standard 200 x 200 mm VESA mounting holes, the monitor can be ceiling or wall-mounted.
With a built-in 1/3" PIXIM ORCA image sensor (Dramatic Dynamic range Sensor) and a varifocal lens (2.8-10 mm), the WDR camera delivers detailed imagery at a horizontal resolution up to 540TVL. A minimum illumination 0.08 lux (DSS mode) at f/1.2 makes the Tilt Swivel camera suitable for low-level night time surveillance. Public View Monitor (32") - Offers 16.7 million display colors
- Delivers high-quality images at a resolution up to 1366 x 768 at 60Hz
- Offers a high contrast ratio of 4000:1, a high brightness rating of 450cd/m², and a wide viewing angle of 178°/178° that allows you view the images clearly
- Response time of less than 8ms - displays clear images with less blurring effect
- Dot crawl is reduced using the 3D comb filter to ensure a sharp picture with less noise
- De-interlace circuitry converts interlaced video (such as common analog television signals or 1080i format HDTV signals) into a non-interlaced form
- Includes multi-display functions (PIP / PBP) for displaying 2 images simultaneously
- Multi-language support offers intuitive and convenient interface for easy operation
- Microwave motion sensor for distance ranging from 10-30' (3-9 m)
- All front acrylic LCD protective shield
- Enclosure made of powder coat metal
- 200 x 200 mm VESA mounting holes for ceiling or wall mounting
WDR Camera - Built-in 1/3" PIXIM ORCA image sensor (Dramatic Dynamic range Sensor)
- Delivers detailed imagery at a horizontal resolution up to 540TVL
- Minimum illumination 0.08 lux (DSS mode) at f/1.2 makes the camera suitable for low-level night time surveillance
- Varifocal lens with a focal length ranging from 2.8-10 mm
Optional Media Card Reader - Supports compact flash memory of 8 MB-8 GB
- Supporting file types - movie, music, photo, and data
In the Box Orion Images 32PVMV Public View Display with WDR Built-in Camera WDR Camera Remocon Battery VGA Cable Power Cord User's Guide 2-year Warranty on Part 2-year Warranty on Labor 50000hrs Warranty on MTBF (Approx.) Brochure PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 32PVMV Public View Display with WDR Built-in Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 32PVMV Specs | | | Display | Screen Size: 32"
Max. Resolution: 1366 x 768 @ 60Hz
Pixel Pitch: 0.51 x 0.51 mm
Brightness: 450cd/m²;
Contrast Ratio: 4000 : 1
Aspect Ratio: 16:9
Viewing Angle (H/V): 178° / 178°
Display Color: 16.7 Million
Response Time: < 8ms (Gray to Gray)
Video System: NTSC / PAL
Frequency (H): 30-64 KHz(H)
Frequency (V): 56-75 KHz(V) | | Interface | Video In/Out (BNC Type): 2/2
S-Video In/Out: 1/1
VGA In (15-Pin D-Sub): 1
DVI-D In / HDMI In: 1 / 1
Audio In (RCA Type): 3
Camera Out: 1
PC Stereo In: 1 | | Transmitter | Remote Control | | Audio | Built-in Speakers: 4W x 2 | | Features | Filter Type: 3D Comb Filter
Deinterlacing
Noise Reduction
Multi Display Function: PIP / PBP
LCD Protection: All Front Acrylic Shield
Multi Language: English, Spanish, French, German, Italian
Cycle Function
Motion Sensor: Microwave Motion Sensor (10-30') | | Dimensions (WxHxD) | 31.78 x 21.46x 4.52" | | Weight | 46.3lb (21.0kg) | | Cabinet | Color: Black
Material: Steel | | Power | Consumption: < 150W
Electrical Ratings: AC100 - 240V(50/60Hz) / DC 24V | | Operating Temperature | 32-122° F (0-50° C) | | Storage Temperature | -4 to 140° F (-20 to 60° C) | | Regulations | RoHS, TUV-NRTL(=UL), CB, FCC(A), CE-EMC(LVD) | | | | Camera Type | WDR Camera | | Design | Mechanical Design: Tilt Swivel Camera | | Signal System | NTSC | | Image Sensor | 1/3" PIXIM ORCA CMOS (Dramatic Dynamic range Sensor) | | Pixel System | PIXIM Digital Pixel System | | AGC Level | 0 - 60dB | | Resolution | Horizontal: 540TVL | | Lens Mount | 2.8-10 mm Varifocal Lens(F=1.5) | | Sensitivity | 0.1 Lux (Normal Mode) / 0.001 Lux (DSS Mode) | | Electronic Shutter | 1/60 - 1/10,000 sec | | | | VESA Mount Size | 200 x 200 mm | | Wall Mount | WB-2642 | | Ceiling Mount | CMK-01 with FMA-01 | | | | Support Storage Type | Compact Flash: 8MB-8GB
Microdrive / ST1 Driver: 1GB, 2GB, 4GB / 2.5GB, 5GB, 6GB, 8GB
Xd-Picture: 16MB-2GB: M-CARD, H-CARD
Multimedia Card: 8MB-4GB, MMC Plus, MMC mobile, MMC micro
Secure Digital: 8MB-2GB, miniSD, microSD (SDHC,3GB~)
Memory Stick / Duo: 4MB-128MB
Memory Stick Pro / Duo: 256MB, 512MB, 1GB, 2GB | | Socket Type | CF Type II, 4 in 1 Multi socket, USB socket | | Support Data Type | Movie: Divx3, Divx4, Divx5 (.avi) / Xvid (.avi) MPEG-1(.mpeg / .mpg) / MPEG-2(.mpeg / .mpg) / MPEG-4(.mpeg / .mpg V3 avi) / A license for Dvix / MPEG-4 decode is required / UP to 800 x 450(under 4Mbps)
Music: MPEG-2, MPEG-1 layer 2, MP3, WMA, low complexity ACC, OGG(optional) 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz
Photo: JPEG:- JIFF, EXIF (.jpg) Baseline JPEG:- below 5120 x 3840 | | Other Functions | e-Book Play | | | | Package Weight | 48.0 lb | | Box Dimensions (LxWxH) | 38.0 x 24.0 x 13.0" |
