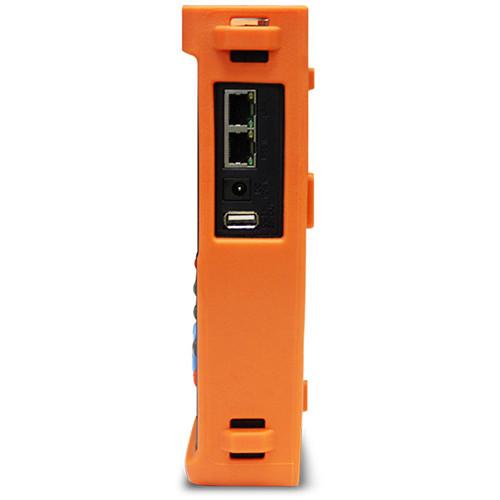

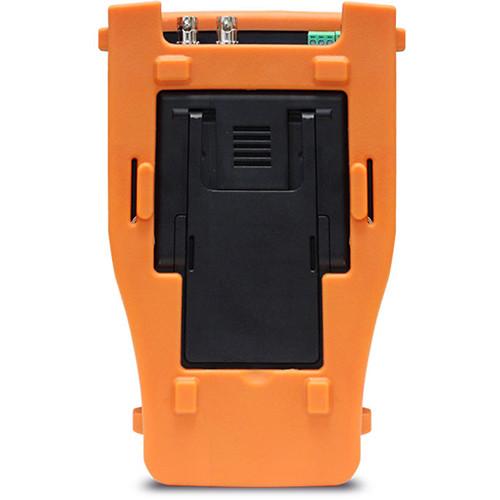

User Manual for Orion Images 4.3" IP and Analog Test LCD Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images 4.3" IP and Analog
- Product category: Test Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Test Monitors
 |
User manual for the Orion Images 4.3" IP and Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description Test camera functions on-site using the IP and Analog Test LCD Monitor from Orion Images. The compact device is lightweight and compatible with both IP and analog cameras, creating a convenient solution for surveillance installers. Complete with the necessary cables and ports, the monitor can test PTZ control, output power, audio, color pattern generation, RS-485 connections, cables, and IP address scanning. Featuring port flicker technology and video record, snapshot, playback, and zoom functionality, the monitor can be used to run an all-encompassing test to ensure cameras are completely and correctly installed. The monitor features a 4.3" LCD touchscreen and OSD menu for running tests, reading and reviewing results, and making needed adjustments. - Tests cameras on-site for simpler camera installations
- Compatible with IP and Analog cameras
- 4.3" LCD touchscreen for creating and reading tests
- Includes multi-meter cord, RS-485 cable, BNC to BNC cable, camera power cable, and audio cable for testing camera functions
- Built-in Wi-Fi for camera network tests
- Rechargeable battery allows for up to 16 hours of use before recharging
In the Box Orion Images 4.3" IP and Analog Test LCD Monitor Multi-Meter Cord RS-485 Cable BNC to BNC Cable (6') Camera Power Cord Audio Cable AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 4.3" IP and Analog Test LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images TMIP43 Specs | | | Screen Size | 4.3" / 10.9 cm digital TFT-LCD touchscreen | | Screen Resolution | 800 x 480 | | LCD Adjustment | Brightness, contrast, saturation, adjustable | | | | Analog Video Test | Signal Mode: NTSC/PAL
Video In/Out: 1 x BNC input, 1 x BNC output
Video Output Mode: 1.0 V p-p | | IP | Video In: RJ45, ONVIF-compliant | | Video Level | Level Test: Video signals measured in IRE or mV
HDMI Output: Max. 1920 x 1080 resolution | | PTZ | Supports RS-232 and RS-485
Baud Rate: 600, 1200, 2400, 4800, 9600, 19200, 57600, 115200 bps
Protocol: Compatible with over 30 protocols including Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan | | Video Signal | One channel output PAL/NTSC color bar video signal for testing monitor or video cable (red, green, blue, white, and black color) | | UTP Cable Tester | Tests cable connection and status, reads test box number | | Power Output | 12 VDC: 2 A power for camera
5 VDC: 2 A for power bank
PoE: 48 V PoE, max 24 W | | Audio Input | Tests pickup and other audio equipment on the front end | | | | Data Monitor | RS-485 data analysis for analyzing data from controlling device
Port Flicker for finding PoE port | | Zoom | 10x zoom image display and video out | | Record and Playback | Snapshots (JPG file)
Video record
Playback footage from SD card | | | | Power | 12 VDC, 2 A | | Battery | Built-in lithium polymer, 7.4 V 5000 mAh | | Battery Life | 16 hours, after charging for 3 to 4 hours | | Operating Temperature & Humidity | 14 to 122°F / -10 to 50°C, 30 to 90% | | Dimensions | 8.5 x 5.0 x 2.1" / 21.6 x 12.7 x 5.3 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 12.8 x 10.3 x 4.2" |
