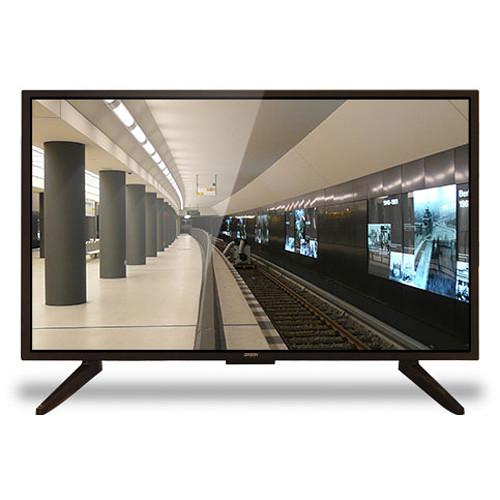

User Manual for Orion Images 43" Wide 1080p LCD with LED Backlight Unit Click to enlarge the picture
Contents of the user manual for the Orion Images 43" Wide 1080p LCD
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
|
User manual for the Orion Images 43" Wide 1080p LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description The 43" Wide 1080p LCD from Orion Images offers horizontal and vertical viewing angles of 178° and a brightness rating of 300 cd/m2. It features a native resolution of 1920 x 1080 and a contrast ratio of 1200:1. It is suitable for use in security, surveillance, and digital signage applications. It has an LED BLU (Backlight Unit) that allows for reduced power consumption, reduced depth, and a smaller bezel. This unit uses standby mode (less than 1W) to save energy. - 43" 1920 x 1080p maximum resolution
- LED BLU (Backlight Unit) display monitor
- 178° horizontal and vertical viewing angles
In the Box Orion Images 43" Wide 1080p LCD with LED Backlight Unit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 43" Wide 1080p LCD with LED Backlight Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 43RCE Specs | Screen Size | 42.5" (107.8 cm) | | Maximum Resolution | 1920 x 1080 at 60 Hz | | Pixel Pitch | 0.4902 x 0.4902 mm | | Brightness | 300 cd/m2 | | Contrast Ratio | 1200:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178/178° | | Display Color | 16.7 million | | Response Time | <8 ms | | Video System | NTSC/PAL | | Interface | 2 x video input (BNC type)
1 x video output (BNC type)
1 x HDMI input
1 x VGA input (15-pin D-Sub)
1 x audio input/output (RCA type) | | Remote Control | Yes | | Built-In Speakers | Yes, 2 x 2 W | | Multi-Language | English and Chinese | | Power Consumption | <100 W | | Standby Mode | <1 W | | Electrical Rating | 100 to 240 VAC (50/60 Hz) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | VESA Mount Size | 200 x 200 mm | | Material Type | Metal | | Desktop Stand | Yes, foot stand | | Dimensions | 39.5 x 23.7 x 3.5" (100 x 60.2 x 8.9 cm) without stand | | Weight | 49 lb (22.2 kg) |
