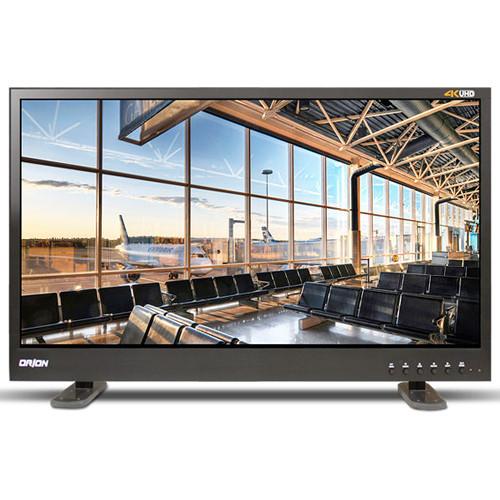

User Manual for Orion Images 4K40DHD LED Professional Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images 4K40DHD LED Professional Monitor
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
|
User manual for the Orion Images 4K40DHD LED Professional Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description The black 4K40DHD LED Professional Monitor from Orion Images is a high contrast LED monitor which displays images up to a resolution of 3840 x 2160. This monitor can accept 4K signals at various multiple video interfaces, DisplayPort / 60p, HDMI / 30p, DVI-D / 30p along with full SDI signal & VGA up to a resolution of 1920 x 1080 / 60p for various uses. It comes with a sleek design, thin bezel exterior. - Anti-reflection front coating
- Multi-Input Interface: DisplayPort, HDMI, DVI-D, SDI, VGA
- Full 60 fps frame rate (DisplayPort)
- Image and Menu Rotation: Landscape and portrait
- Dynamic Contrast: On / Off
- Gamma Selection: 1.8 / 2.0 / 2.2 / 2.4 / 2.6
- Color and monochrome selection
- Super Resolution: On / Off
- Industrial-grade metal cabinet
UPC: 836228000900 In the Box Orion Images 4K40DHD LED Professional Monitor (39.5", Black) Desktop Stand Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 4K40DHD LED Professional Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 4K40DHD Specs | | | Screen Size | 39.5" | | Native Resolution | 3840 x 2160 pixels | | Pixel Pitch | 0.2247 x 0.2247 mm | | Brightness | 300 cd/m2 | | Display Color | 1.07 billion | | Contrast Ratio | 5000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 176 / 176° | | Response Time | <8.5 ms | | Video System | NTSC / PAL | | | | Display | 1 x DisplayPort-in (version 1.2), 1 x HDMI-in (version 1.4), 1 x DVI-D-in (dual), 1 x 3G-SDI (in / out), 1 x VGA-in (15-pin D-sub) | | Audio | 1 x audio-in (1 for VGA and 1 for DVI), 1 x audio-out | | | | IR Remote Control | Supported | | | | Display Functions | Multi | | Noise Reduction | Supported | | Rotation | Image and Menu: Landscape and portrait | | Aspect Ratios Supported | Auto, full, 4:3, 5:4, 1:1 | | Dynamic Contrast Detection | On / off | | Gamma | 1.8, 2.0, 2.2, 2.4, and 2.6 | | Selection | Color and monochrome selection supported | | Super Resolution | On / off | | | | Base Stand | Desktop stand | | Material | Electro-galvanized steel | | | | Electrical | 100 to 240 VAC (50 / 60 Hz) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (W x D x H) | 35.4 x 9.5 x 22.3" (83.9 x 24.1 x 56.6 cm) | | Weight | 39.68 lb (18.0 kg) | | | | Package Weight | 54.0 lb | | Box Dimensions (LxWxH) | 43.0 x 31.5 x 12.5" |
