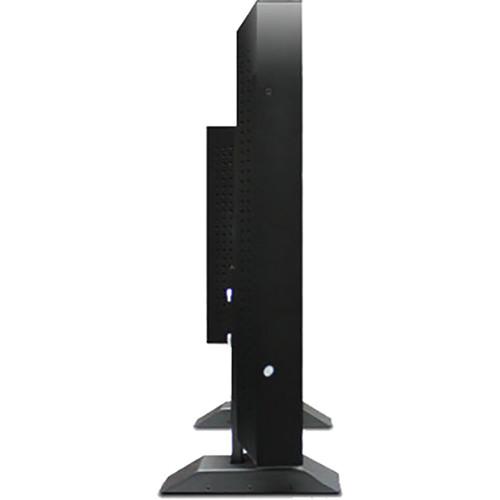

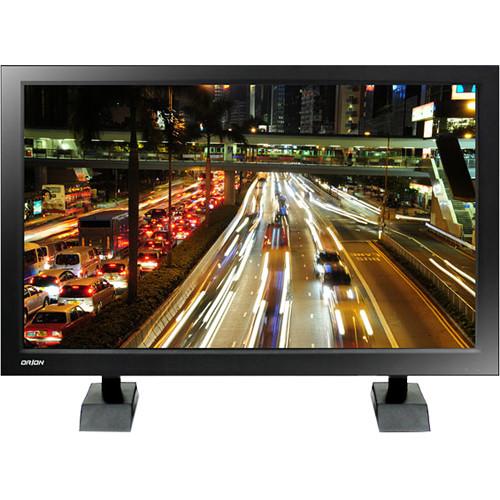

User Manual for Orion Images 55RCE Economy Wide 55" 1080p LED Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images 55RCE Economy Wide 55"
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
 |
User manual for the Orion Images 55RCE Economy Wide 55" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description The black 55RCE Economy Wide 55" 1080p LED Monitor from Orion supports 1920 x 1080 resolution and 16:9 aspect ratio. The 5000:1 contrast ratio showcases this monitor's ability to handle light and dark on-screen images. Wide viewing angle of 178° ensures minimal color deviation or distortion from virtually any angle. Using the separately available mounts, this monitor can be wall or ceiling mounted as per your requirement. -
- Built to run 24 x 7 x 365 continuously
- LED BLU (Back Light Unit) display monitor
- 300 cd/m2 bright output
- Various display modes such as Display Aspect Auto / 16:9 / 4:3 / Zoom 1 and 2
- Two BNC inputs and one BNC output
- One HDMI and VGA input
- One audio input and output
- Desktop mountable design with integrated foot stand
UPC: 836228001662 In the Box Orion Images 55RCE Economy Wide 55" 1080p LED Monitor Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images 55RCE Economy Wide 55" 1080p LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 55RCE Specs | | | Screen Size | 55" (139.7 cm) | | Maximum Resolution | 1920 x 1080 at 60 Hz | | Pixel Pitch | 0.02 x 0.02" (0.630 x 0.630 mm) | | Brightness | 300 cd/m2 | | Contrast Ratio | 5000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178° / 178° | | Display Color | 16.7 million | | Response Time | <6.5 ms | | Video System | NTSC / PAL | | | | Video | In: 2 x BNC
Out: 1 x BNC | | HDMI | 1 x HDMI In | | VGA | 1 x VGA In (15-pin D-sub) | | Audio In | 1 x RCA In
1 x RCA Out | | | | Built-In Speakers | 2 x 3 W | | Multi-Language | English | | Material Type | Metal | | VESA Mount Size | 7.9 x 7.9" (200 x 200 mm)
27.5 x 7.9" (700 x 200 mm) | | Mounting | Wall: WB-4663 (not included)
Ceiling: CMH-01 (not included) | | | | Input | 100 to 240 VAC (50/60 Hz) | | Power Consumption | On: 150 W maximum
Standby: 1 W maximum | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20° to 60°C) | | | | Dimensions | 50.19 x 29.52 x 3.98" (127.4 x 74.9 x 10.1 cm) without stand | | Weight | 80.63 lb (37 kg) |
