User Manual for Orion Images CHDC-34BSD 2.1MP 1080p CCTV Camera Click to enlarge the picture
Contents of the user manual for the Orion Images CHDC-34BSD 2.1MP 1080p CCTV
- Product category: Industrial & Multi-Purpose Cameras Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Industrial & Multi-Purpose Cameras
|
User manual for the Orion Images CHDC-34BSD 2.1MP 1080p CCTV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|

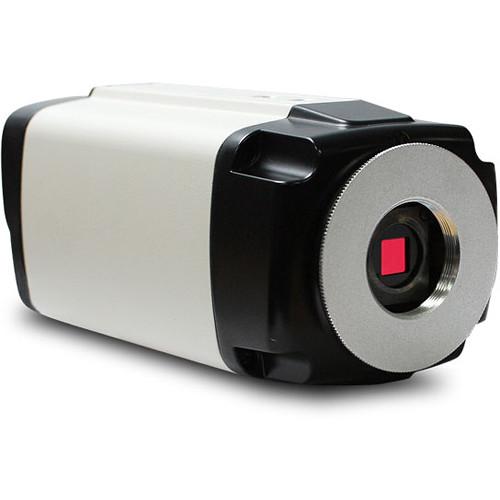

Product description The CHDC-34BSD 2.1MP 1080p CCTV Camera from Orion Images is equipped with a 1/2.8” CMOS image sensor and produces videos at resolutions of up to 1920 x 1080. Its electronic shutter feature helps provide vivid images in all lighting conditions and ensures clear videos even of fast-moving objects. For enhanced clarity, the camera's built-in noise reduction technology digitally corrects the image to avoid blurring or distortion. The two-way automatic iris control function allows the camera to switch between manual and DC type iris lenses. - 1/2.8" CMOS image sensor delivers clear images at resolution of 1920 x 1080
- Video transmission up to 100 m via 5C-HFBT coaxial cable
- Two-way automatic iris control function allows you to switch between manual- and DC-type iris lenses
UPC: 836228001877 In the Box Orion Images CHDC-34BSD 2.1MP 1080p CCTV Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images CHDC-34BSD 2.1MP 1080p CCTV Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images CHDC-34BSD Specs | Image Sensor | 1/2.8" 2.1 MP EXMOR CMOS | | Effective Pixels (H x V) | 1944 (H) x 1104 (V) | | Sync System | Internal | | Video Output | HD-SDI / 3G-SDI - BNC x 1
1920 x 1080p - 50 / 59.94
1920 x 1080i - 50 / 59.94
1280 x 720p - 50 / 59.94 | | Minimum Illumination | 0.2 lux (AGC ON) | | Auto White Balance | Auto / ATW / Manual | | Backlight Compensation | Built-in | | Noise Reduction | Built-in | | Electric Shutter | Auto / Manual (Manual: 1/15, 1/7.5, 1/5, 1/3.75, 1/3, 1/2, 1/1.5, 1/1.2, 1, 1/60, 1/240, 1/480, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000) | | Auto Iris | DC or manual selectable | | Day/Night | Built-in | | Privacy Masking | Built-in | | Camera ID | Built-in | | Lens Mount | CS mount C mount ring is provided as standard | | Power Requirement | 12 VDC, 450 mA +/- 10% | | Power Consumption | Approximately 5.4 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 0 to 90% | | Camera Mount | 1/4" - 20 UNC x 1 (Top and Bottom) | | Dimensions | 2.6 x 2.5 x 5.5" (6.6 x 6.3 x 13.9 cm) | | Weight | 0.66 lb (0.29 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.5 x 5.1 x 4.0" |
