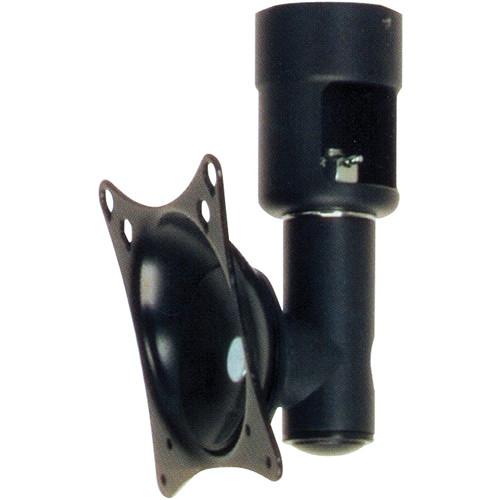

Product description The Orion Images CMA-01 Lower Assembly Mount (Black) is designed to hold a flat LCD monitor weighing up to 50 lb (22 kg) and measuring 10-37" (25-94 cm) . With 1.5" (3.8cm) NPT, you can adjust the LCD from 24-46" (61-116 cm) for flexibility. Radial glide technology facilitates flat-panel positioning up to 15° in any direction. In addition, the mount provides up to 360° of screen rotation.
Integrated cable management hides the cable that runs directly through the mount into the wall, thus deterring vandals and thieves from cutting the wires. The ceiling mount allows for cable routing inside pole and supports VESA 75 / 100 mm mounting standard. Adapting to 1.5" (3.8cm) NPT, the ceiling mount allows you to tilt and pivot your display screen for enhanced viewing at any angle. For completing installation, you only need the adjustable height suspension adaptor or NTP.
The CMK-01 LCD Ceiling Mount is compatible for use with various LCD displays that include 17RCM, 19RCM, 15RTV, 17RTV, 19RTV, 8RTC, 8RTF, 10RTC, 15RTC, 17RTC, 19RTC, 20RTC, 20RTH, 24RTC, 26RTC, 32RTC, 20PVME, 26PVMV, 32PVMV, 20PVMP, 26PVMP, 32PVMP, and 32PVMD. - Designed to hold a flat LCD monitor weighing up to 50 lb (22 kg)
- Suitable for LCD displays measuring 10-37" (25-94 cm)
- 1.5" NPT allow you to adjust the LCD from 24-46" (61-116 cm) for flexibility
- Radial glide technology facilitates flat-panel positioning up to 15° in any direction
- Provides up to 360° of screen rotation
- Integrated cable management hides the cable that runs directly through the mount into the wall, thus deterring vandals and thieves from cutting the wires
- Allows for cable routing inside pole
- Supports VESA 75 / 100 mm mounting standard
- Adapting to 1.5" (3.8cm) NPT, the ceiling mount allows you to tilt and pivot your display screen for enhanced viewing at any angle
- Only requires adjustable height suspension adaptor or NTP to complete installation
- Compatible for use with various LCD displays that include 17RCM, 19RCM, 15RTV, 17RTV, 19RTV, 8RTC, 8RTF, 10RTC, 15RTC, 17RTC, 19RTC, 20RTC, 20RTH, 24RTC, 26RTC, 32RTC, 20PVME, 26PVMV, 32PVMV, 20PVMP, 26PVMP, 32PVMP, and 32PVMD
UPC: 836228004113 In the Box Orion Images CMA-01 Lower Assembly Mount (Black) 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images CMA-01 Lower Assembly Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images CMA-01 Specs | Color | Black | | Weight | 6 lb (2.7 kg) | | Display Range | 10-37" (25-94 cm) | | Weight Capacity | 50 lb (22 kg) | | Tilt | +/-15° | | Rotation | 360° | | Mounting Pattern | 75 x 75mm, 100 x 100mm | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 10.0 x 8.6 x 6.6" |
