User Manual for Orion Images CMH-01 Elliptical Ceiling Mount Click to enlarge the picture
Contents of the user manual for the Orion Images CMH-01 Elliptical Ceiling Mount
- Product category: Monitor Ceiling Mounts Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Monitor Ceiling Mounts
|
User manual for the Orion Images CMH-01 Elliptical Ceiling Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|

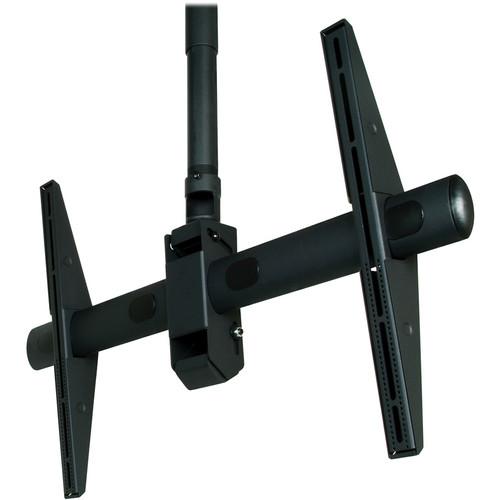

Product description The Orion Images CMH-01 Elliptical Ceiling Mount is designed to hold a flat LCD monitor weighing up to 160 lb (72.5 kg) and measuring 37-63". With the 1.5" NPT ceiling pole, you can adjust the LCD from 24 to 46" for flexibility and enhanced viewing. In addition, the ceiling mount provides up to 360° of swing and ±15° tilt. Ultra-thin design reduces deflection by balancing the flat-panel display.
Integrated cable management hides the cable that runs directly through the mount into the wall, thus deterring vandals and thieves from cutting the wires. In addition, the pop-on cover hides all your mounting hardware. The ceiling mount allows for cable routing via multiple cable management ports and supports VESA 200 x 200 up to 875 x 505mm mounting standard. You can use the elliptical ceiling mount to attach the display directly to the ceiling, eliminating the need of an extra hardware such as an adaptor.
When used in conjunction with optional brackets, the ceiling mount can be compatible with mini PC boxes and media player adaptors. You can easily connect your display via integrated power outlet. - Designed to hold a flat LCD monitor weighing up to 160 lb (72.5 kg)
- Suitable for LCD displays measuring 37-63"
- 1.5" NPT ceiling pole allows you to adjust the LCD from 24 to 46" for flexibility and enhanced viewing
- Suspends from ceiling with 1.5" NPT
- Provides up to 360° of swing
- Integrated cable management hides the cable that runs directly through the mount into the wall, thus deterring vandals and thieves from cutting the wires
- Pop-on cover hides all your mounting hardware
- Multiple cable management ports enable cable routing
- Supports VESA 200 x 200 up to 875 x 505 mm mounting standard
- Can attach the display directly to the ceiling, eliminating the need of an extra hardware such as an adaptor
- When used in conjunction with optional brackets, the ceiling mount can be compatible with mini PC boxes and media player adaptors
- Can easily connect your display via integrated power outlet
UPC: 836228009941 In the Box Orion Images CMH-01 Elliptical Ceiling Mount Elliptical Tilt Mount 1/2 pipe Adjustable Height Adapter Mounting Bracket Arms 8 x Griplate Washers 2 x Decorative Covers Thread Depth Indicator 2 x M6 x 25mm Phillips Screw 2 x M4 x 6mm Phillips Screw 8 x M4 x 16mm Phillips Head Screw 6 x M6 x 20mm Phillips Head Screw 4 x M4 x 25mm Phillips Head Screw 6 x M6 x 30mm Phillips Head Screw 6 x M5 x 12mm Phillips Head Screw 6 x M8 x 20mm Phillips Head Screw 6 x M5 x 16mm Phillips Head Screw 6 x M8 x 25mm Phillips Head Screw 6 x M5 x 20mm Phillips Head Screw 6 x M8 x 30mm Phillips Head Screw 4 x M5 x 25mm Phillips Head Screw 4 x M8 x 35mm Phillips Head Screw 4 x M5 x 50mm Phillips Head Screw 4 x M8 x 70mm Phillips Head Screw 8 x M6 x 12mm Phillips Head Screw 12 x 1/2" Nylon Spacers - Large 6 x 9/16" Nylon Spacers 6 x 1/4" Nylon Spacers - Large 6 x 1" Nylon Spacers 6 x 5/16" Flat Washer - Metal 6 x 1/4" Nylon Spacers 4 x 5/16" Nylon Sleeves 2 year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images CMH-01 Elliptical Ceiling Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images CMH-01 Specs | | | Color | Black | | Shipping Weight | 12 lbs | | Weight Capacity | 160 lbs (72 kg) | | | | Color | Black | | Display Range | 37 to 63" | | Tilt | ±15° | | Swing | 360° | | Mounting Pattern | 7.8 x 7.8" (Min) to 34.4 x 19.8" (Max) (200 x 200 mm to 875 x 505 mm) | | Shipping Weight | 31 lb (14 kg) | | Weight Capacity | 160 lb (72 kg) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 38.0 x 9.0 x 7.0" |
