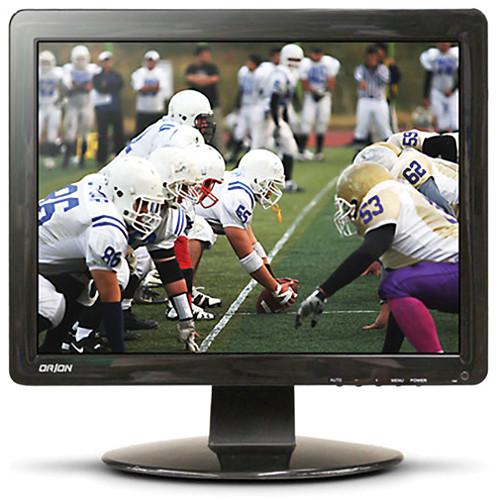

Product description The Economy Series 15" Rack-Mountable LCD CCTV Monitor from ORION Images supports up to 1024 x 768 video resolution at 60 Hz for displaying high-quality surveillance footage. This commercial grade monitor is designed for 24/7 365-day constant use, making it an ideal solution for security guards and law enforcement officers. There are two 2W built-in speakers for audio, and there are multiple input and output connections, including BNC, VGA, HDMI, and RCA. Additionally, the monitor is rack-mountable for placement on a shelf or in a media cabinet, and it has a 75 x 75mm VESA pattern, providing compatibility with mounting brackets for easy installation. - Supports a maximum resolution of 1024 x 768 at 60 Hz
- Multi-language support for ease of use and versatility
- Two BNC video inputs and one BNC output as well as a VGA video input
- Features one HDMI input for high-definition video and audio
- One RCA audio input and two 2W built-in speakers for audio output
- Includes remote control for easy system navigation
- 75 x 75mm VESA mounting wall and ceiling mount compatibility
- Monitor can also be rack-mounted for placement on a shelf or in a cabinet
UPC: 836228000191 In the Box Orion Images Economy Series 15" Rack-Mountable LCD CCTV Monitor Remote Control Limited 3-Year Warranty Brochure PDF 753.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images Economy Series 15" Rack-Mountable LCD CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 15RCE Specs | | | Screen Size | 15.0" (38.1 cm) | | Maximum Resolution | 1024 x 768 at 60 Hz | | Pixel Pitch | 0.297 x 0.297 mm | | Brightness | 430 cd/m2 | | Contrast Ratio | 400:1 | | Aspect Ratio | 4:3 | | Viewing Angle (H/V) | 140/110° | | Display Color | 16.2 million | | Response Time | <5 ms | | Video System | NTSC/PAL | | Frequency | H: 31 to 64 kHz
V: 56 to 75 kHz | | | | Video | 2 x inputs (BNC)
1 x output (BNC) | | HDMI | 1 x input | | VGA | 1 x input(15-Pin D-Sub) | | Audio | 1 x input(RCA Type: left and right)
1 x output (RCA Type: left and right) | | | | Built-In Speakers | 2 x 2 W | | | | Filter Type | 3D comb filter | | Languages | English, Chinese | | | | VESA Compatibility | 75 x 75 mm | | Compatibility | Wall Mount: WB-5, WB-10, WB-30, WB-31
Ceiling Mount: CMK-01
Rack: RMK-08 | | | | Material | ABS plastic | | Desktop Stand | Yes | | Tilt Function | Yes | | Power Consumption | <25 w
100 to 240 VAC (50/60 Hz)
12 VDC / 3 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 13.8 x 10.8 x 1.7" / 35.0 x 27.5 x 4.3 cm | | Weight | 5.8 lb / 2.6 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 16.2 x 15.1 x 4.8" |
