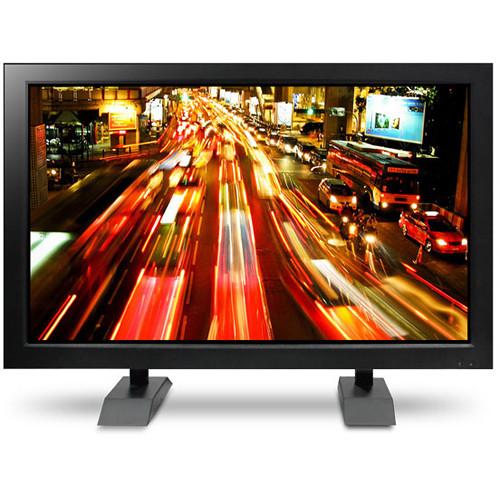

User Manual for Orion Images Economy Wide Series 32" LED CCTV Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images Economy Wide Series 32"
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
|
User manual for the Orion Images Economy Wide Series 32" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description The Economy Wide Series 32" LED CCTV Monitor from Orion Images is designed for 24 x 7 x 365 use. This LED backlit CCTV monitor supports up to 1920 x 1080 resolution and has wide 178° horizontal and vertical viewing angles. BNC, HDMI, and VGA video outputs provide a large range of compatibility, and the two built-in speakers offer 6W of total power. The monitor also has an audio input and output. - Maximum resolution of 1920 x 1080
- Viewing angle of 178°/178°
- Brightness of 300 cd/m² and contrast ratio of 5000:1
- Wall- and ceiling-mountable
UPC: 836228000870 In the Box Orion Images Economy Wide Series 32" LED CCTV Monitor Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images Economy Wide Series 32" LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 32RCE Specs | | | Screen Size | 32" (81.3 cm) | | Maximum Resolution | 1920 x 1080 | | Pixel Pitch | 0.364 x 0.364 mm | | Brightness | 300 cd/m2 | | Contrast Ratio | 5000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178°/178° | | Display Color | 1.07 billion | | Response Time | < 8 ms | | Video System | NTSC / PAL | | Frequency (H) | 31 to 64 kHz | | Frequency (V) | 56 to 75 kHz | | | | Inputs | 2 x BNC, 1 x HDMI, 1 x VGA, 1 RS-232, 1 x audio | | Outputs | 1 x BNC, 1 x audio | | | | Built-In Speakers | 2 x 3 W speakers | | | | Power Consumption | < 115 W | | Electrical Ratings | 100 to 240 VAC (50/60 Hz) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | VESA Mount Size | 200 x 200 mm | | Compatible Mounts | Available Separately:
Wall: WB-2642
Ceiling: CMH-01 | | Material | Metal | | Base Stand | Desktop | | Dimensions | Without Stand: 29.1 x 17.7 x 3.4" (74 x 45 x 8.5 cm)
With Stand: 29.1 x 20.9 x 8.8" (74.0 x 53.0 x 22.4 cm) | | Weight | 36.9 lb (16.8 kg) | | | | Package Weight | 39.0 lb | | Box Dimensions (LxWxH) | 33.6 x 23.3 x 8.0" |
