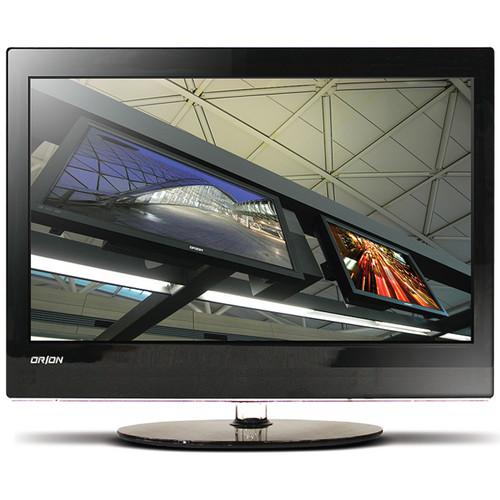

Product description The Orion Images LED BLU Monitor (18.5"), with LED BLU (Back Light Unit), exceeds the NTSC color gamut standard by 23%, thereby offering vivid visuals with real world colors. In addition, the LED BLU uses eco-friendly material (no mercury or halogen).
The display delivers high-quality images in 16.7 million colors at a resolution up to 1366x768 at 60Hz. It has a contrast ratio of 1000:1, a luminance of 250cd/m², and wide viewing angles of 160° (H) / 160° (V) that allow you to view the displayed images clearly from extreme angles - whether room corners or even when the monitor is mounted at a height.
With a response time of less than 5ms, the monitor displays clear images with less blurring effect. The Auto Color Balance feature automatically corrects the colors and white balance of the displayed images, thus ensuring natural-looking visuals. Equipped with multi-language support, the monitor offers intuitive and convenient interface for easy operation. Built-in 2W speakers provide sound to augment the multimedia experience, eliminating the need for external speakers. Featuring standard 2.9 x 2.9" (75 x 75mm) VESA mounting holes, the monitor can be wall or ceiling-mounted. The LED BLU Monitor can be tilted 5° in front or towards the back. - LED BLU (Back Light Unit) - exceeds the NTSC color gamut standard (100%) by 23%, thereby offering vivid visuals with real world colors; uses eco-friendly material (no mercury or halogen)
- Delivers high-quality images in 16.7 million colors at a resolution up to 1366x768 at 60Hz
- Wide viewing angles of 160° (H) / 160° (V) that allow you to view the displayed images clearly from extreme angles
- Response time of less than 5ms - displays clear images with less blurring effect
- Auto Color Balance feature automatically corrects the colors and white balance of the displayed images, thus ensuring natural-looking visuals
- Multi-language support - offers intuitive and convenient interface for easy operation
- Built-in 2W speakers - provide sound to augment the multimedia experience, eliminating the need for external speakers.
- Can be wall or ceiling-mounted
- Display can be tilted 5° in front or towards the back
- 2.9 x 2.9" (75 x 75mm) VESA compatible mount

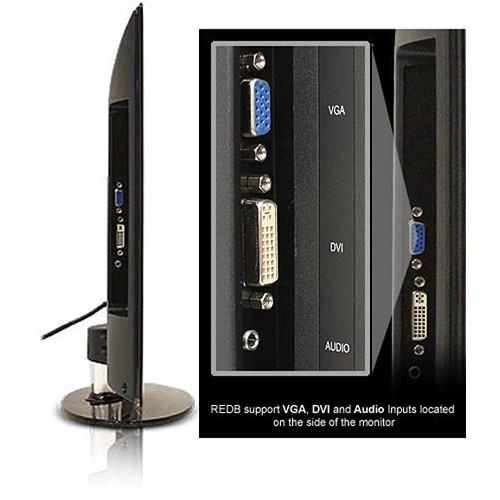

- Supports VGA, DVI, and audio inputs

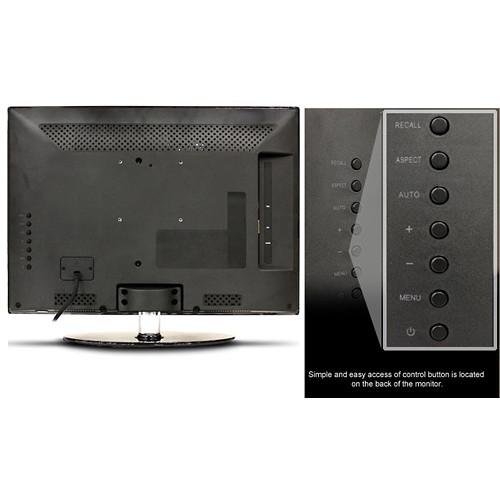

- Easy access to control buttons
UPC: 836228000054 In the Box Orion Images LED BLU Monitor (18.5") 2-Year Warranty on Parts & Labor Brochure PDF 4.5mbttztbubtwfqeawrtctatrvrvxbvza Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images LED BLU Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 18REDB Specs | Screen Size | 18.5" (47cm) | | Back Light Unit Type | LED BLU | | Resolution | 1366x768 @ 60Hz | | Pixel Pitch | 0.30 x 0.30mm | | Brightness | 250cd/m² | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle | 160° / 160° (H/V) | | Display Colors | 16.7 Million | | Response Time | < 5ms | | Video System | NTSC / PAL | | Frequency | 31~64kHz / 55~75kHz (H/V) | | Interface | DVI-D In: 1
VGA In (15Pin D-Sub): 1
PC Strero In: 1 | | Speaker | Built-in - 2x 2W | | Features | Auto Color Balance: Yes
Multi Language: English, Dutch, Spanish, French, Korea | | Cabinet | Material / Color: ABS Plastic / Black
Desk Top Stand: Yes
Tilt Function: Yes | | MTBF | 30,000 Hours (approx.) | | Power Requirements | AC110 ~ 230V(50/60Hz)
DC12V / 3.7A | | Power Consumption | < 30W | | Operating Temperature | 32 ~ 122°F (0 ~ 50°C) | | Storage Temperature | -4 ~ 140°F (-20 ~ 60°C) | | VESA Mount Size | 2.9 x 2.9" (75 x 75mm) | | Regulations | RoHS, UL, FCC (A), TUV/GS, CE, RRL | | Dimensions (WxHxD) | 18.46 x 14.24 x 1.417" (469 x 361 x 36mm) | | Weight | 8.81 lb (3.99 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 22.0 x 22.0 x 6.0" |
